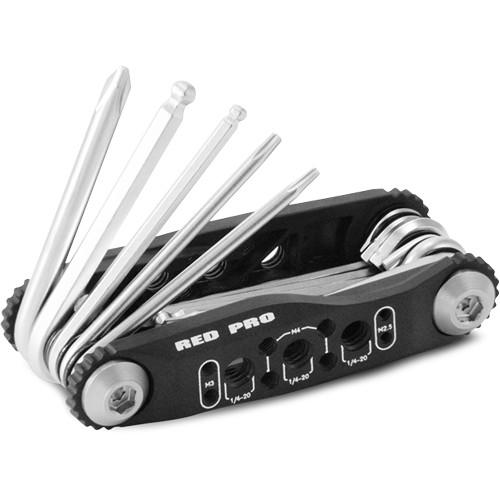

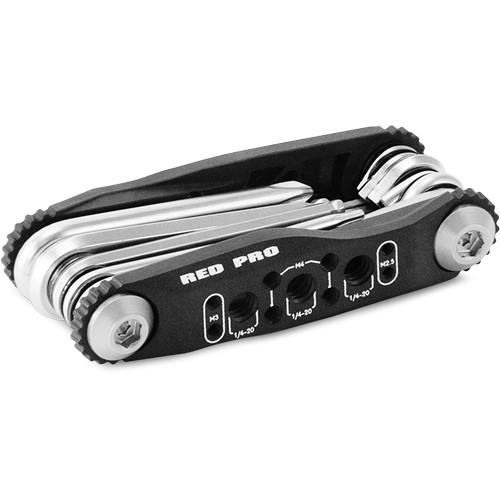

Product description The RED DSMC Bolt Kit from RED DIGITAL CINEMA includes the RED SIDEWINDER pocket-sized multi-tool and a variety of 46 screws to configure your camera how you like it. The 11 different drivers can be opened to adjust the screws found throughout the modular DSMC and DSMC2 camera systems. Threaded holes on the sides of the multi-tool can hold non-captive screws safely, so they don't get lost while you make adjustments to your camera or add/remove camera modules. To ensure a long life, the nickel-plated, high-carbon steel alloy driver keys are secured to a heat-resistant polymer composite that should survive many a production. - Includes
- 6 x M3 x 6mm Torx screws (T10; bottom fan, side plates, EPIC rear panel)
6 x M3 x 5.5mm Torx screw (T10; SCARLET side)
4 x 1/4"-20 x 5/8" Hex screws (3/16" Hex; Tactical attachments)
4 x M2.5 x 6mm Torx screw (T8; top hood scoop)
4 x M3 x 10mm Torx screw (T10; REDMOTE V-Mount)
4 x M4 x 8mm Hex screw (3.0 mm Hex; BACKPACK Base Plate)
3 - 1/4"-20 x 3/8" Hex screw (3/16" Hex; Spinner guide and mount)
2 - 1/4"-20 x 12mm Hex screw (3/16" Hex; Tactical Left Plate, Tactical Right Plate, Tactical Support Ribs, Tactical Top Plate Rod Adapter, Tactical Top Plate 2.0)
2 - M4 x 8mm Torx screw (T20; lens mounts, and RED MOTION MOUNT)
2 - 1/4"-20 x 3/8" Hex screw (3/16" Hex; SWAT rails, matte box support, Tactical EVF Mount, Dual Outrigger Handle)
2 - M3 x 12mm Torx screw (T10; Tactical Left Adapter, Tactical Bottom Adapter, Tactical Z Adapter)
2 - 3/8"-16 x 14mm slotted screw (slotted screwdriver; Mounting Plate, Modular Assault Plate, Modular Base Plate)
2 - 1/4"-20 x 1" Hex screw (3/16" Hex; Rosette-to-Guide Adapter)
1 - 1/4"-20 x 14mm slotted screw (slotted screwdriver; Mounting Plate, Modular Assault Plate, Camera Guide Platform)

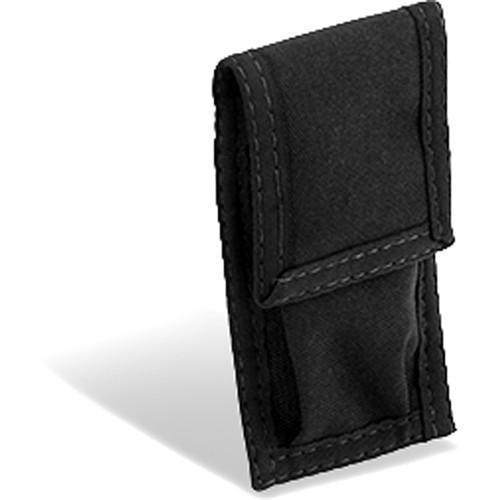

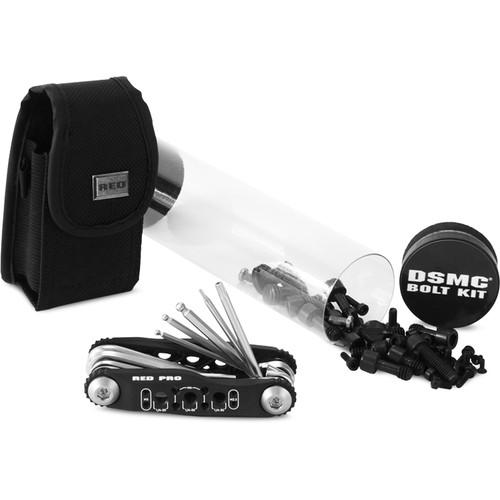

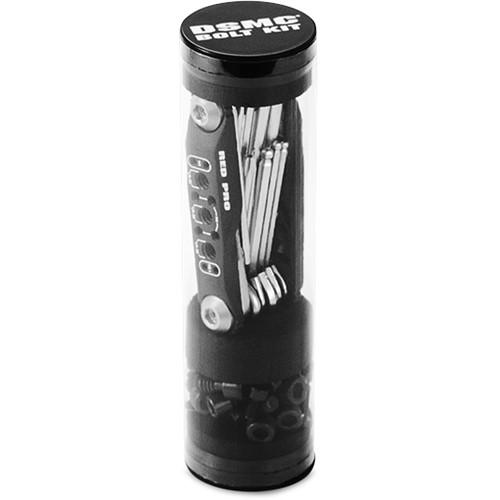

2 - M2 x 4mm Torx screws (T6; DSMC Interchangeable OLPFs) In the Box RED DIGITAL CINEMA RED DSMC Bolt Kit RED SIDEWINDER Multi-Tool wdsqrvzsrdazxewxye 6 x M3 x 6mm Torx Screws 6 x M3 x 5.5mm Torx Screw 4 x 1/4"-20 x 5/8" Hex Screws 4 x M2.5 x 6mm Torx Screws 4 x M3 x 10mm Torx Screws 4 x M4 x 8mm Hex Screws 3 x 1/4"-20 x 3/8" Hex Screws 2 x 1/4"-20 x 12mm Hex Screws 2 x M4 x 8mm Torx Screws 2 x 1/4"-20 x 3/8" Hex Screws 2 x M3 x 12mm Torx Screws 2 x 3/8"-16 x 14mm Slotted Screws 2 x 1/4"-20 x 1" Hex Screws 1/4"-20 x 14mm Slotted Screw 2 x M2 x 4mm Torx Screws Carry Tube for Screws Carry Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA RED DSMC Bolt Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA 790-0445 Specs | Keys | Imperial Allen/Hex: 1/8", 5/32", 3/16"
Metric Allen/Hex: M2.5, M3
Torx: T6, T8, T10, T20
Screwdriver: Flat (slotted), Phillips #1 | | Threaded Holes | 6 x 1/4"-20
8 x M4
4 x M3
4 x M2.5 | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.3 x 3.9 x 1.2" |
