User Manual for RED DIGITAL CINEMA RED PRO 7" LCD On-Board Monitor Click to enlarge the picture
Contents of the user manual for the RED DIGITAL CINEMA RED PRO 7"
- Product category: Viewfinders RED DIGITAL CINEMA
- Brand: RED DIGITAL CINEMA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RED DIGITAL CINEMA Viewfinders
 |
User manual for the RED DIGITAL CINEMA RED PRO 7" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RED DIGITAL CINEMA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RED DIGITAL CINEMA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RED DIGITAL CINEMA product will considerably shorten its lifespan!
|

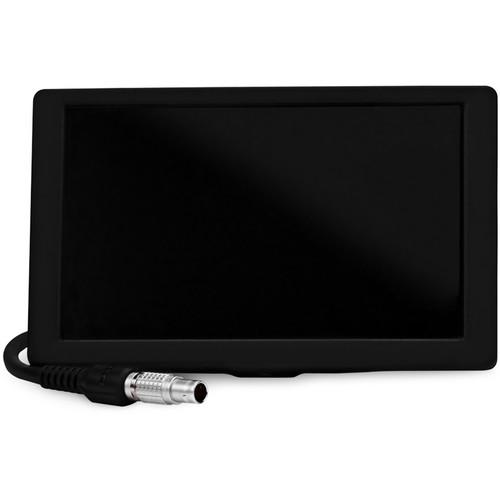

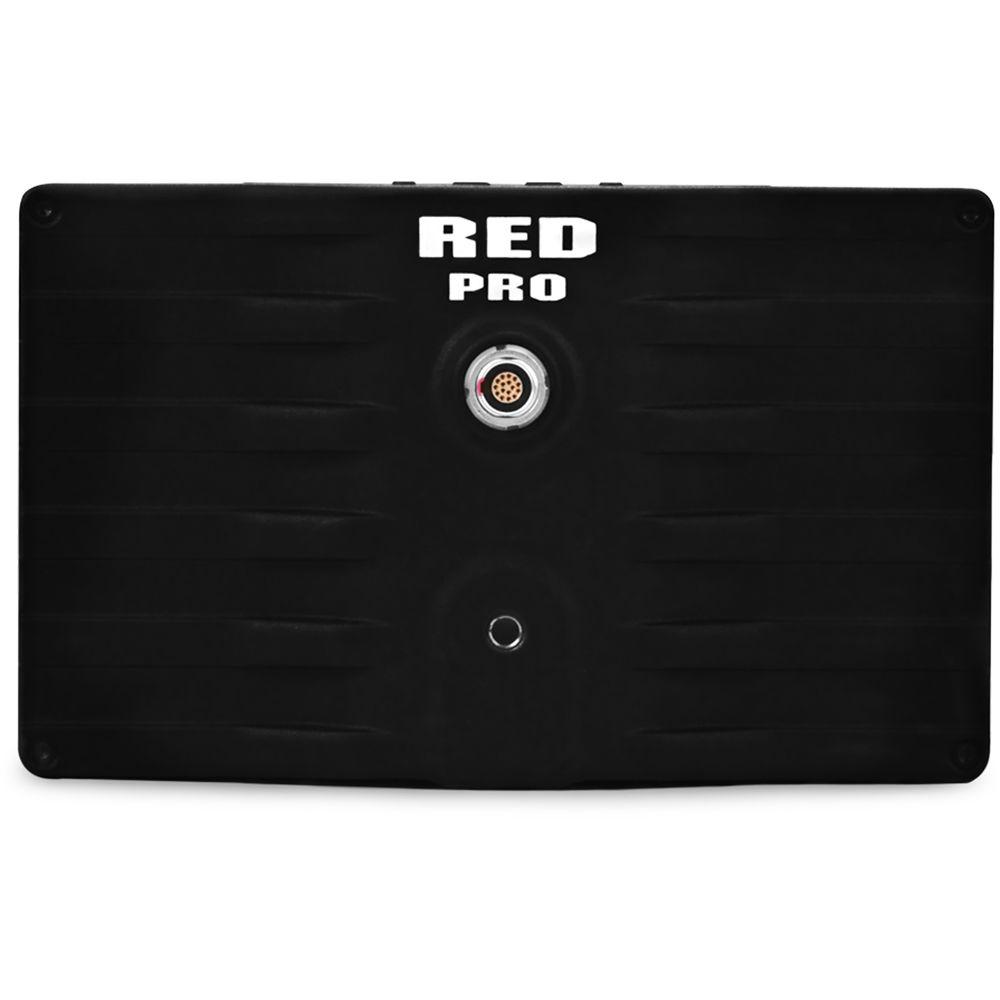

Product description The RED PRO 7" LCD from RED DIGITAL CINEMA is a high-resolution, non-touchscreen on-board monitor providing a wide field of view. This monitor features 1024 x 600 resolution, a 400 cd/m² brightness level, and a contrast ratio of 700:1. Up to 80 x 80° off-axis (H x V) viewing means you needn't be directly aligned with the viewfinder to see an optimal image. The RED PRO is navigated using its top-mounted buttons.

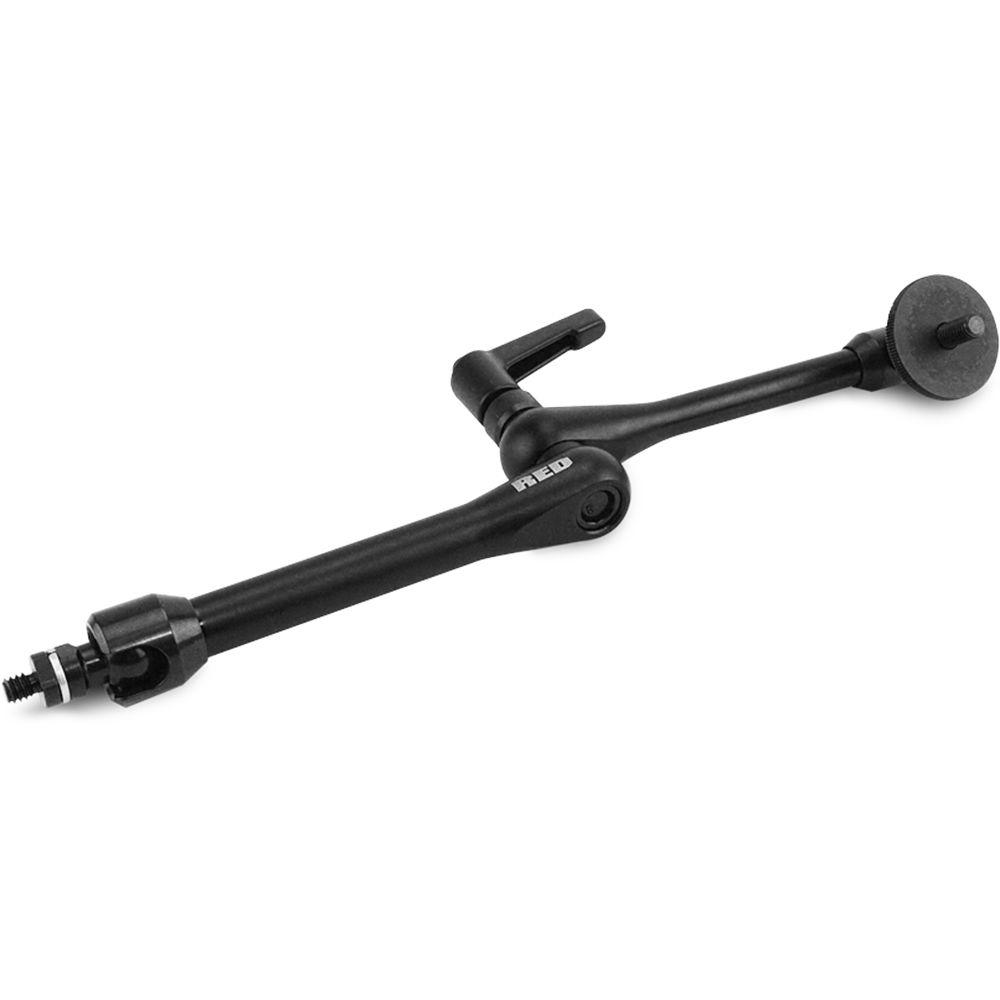

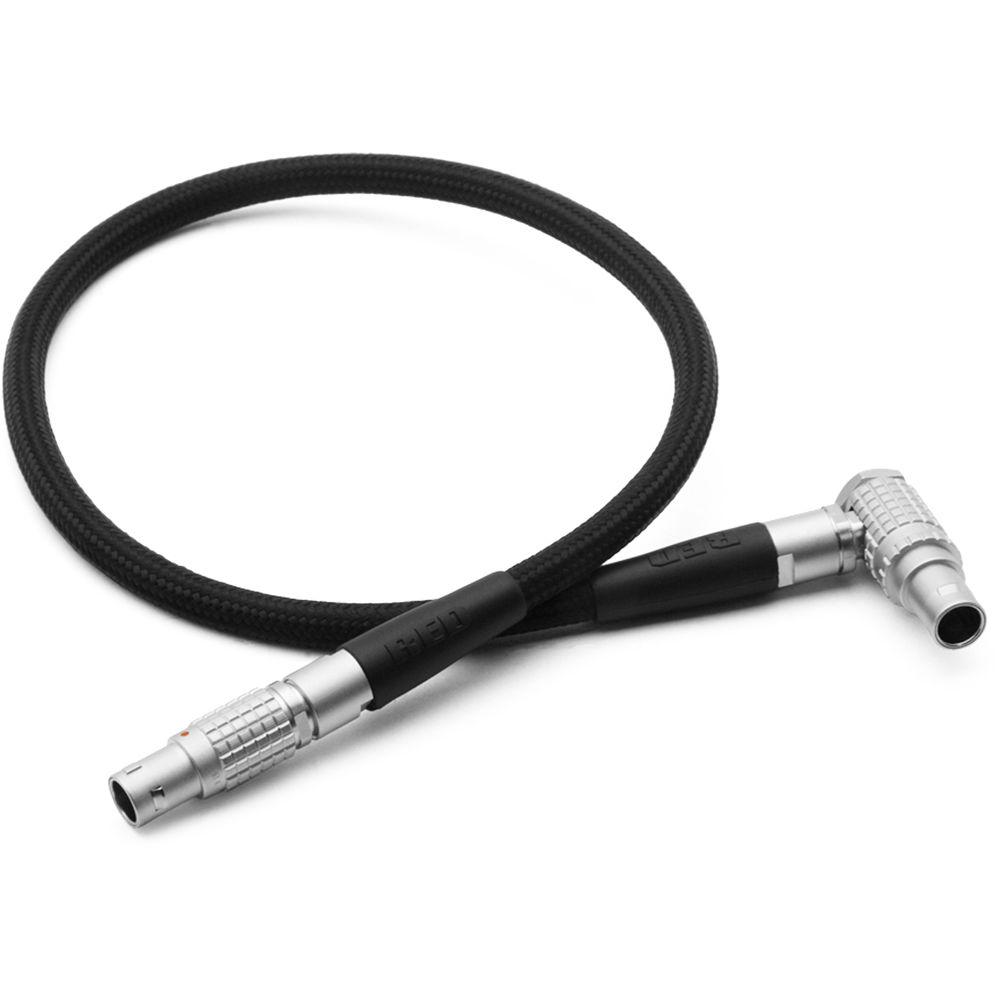

A LEMO-type connector enables the RED PRO LCD to connect to RED DSMC2 and DSMC cameras. An 18" LCD cable with both a straight and 90° connector, and a 9" RED ARM are included with the RED PRO 7" LCD monitor. - Features
-
- High-resolution, non-touchscreen 1024 x 600 display with 700:1 contrast ratio
- 400-cd/m² brightness level, and 160° off-axis viewing
- Top-mounted button navigation
- Mounts to RED DSMC2 and DSMC cameras with the included RED ARM
- Includes one 18" LEMO-type cable
In the Box RED DIGITAL CINEMA RED PRO 7" LCD On-Board Monitor RED ARM (9") LCD/EVF Cable (18", Right-to-Straight) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA RED PRO 7" LCD On-Board Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA 730-0009 Specs | Type | Non-touchscreen LCD | | Resolution | 1024 x 600 | | Response Time | 25 ms | | Contrast Ratio | 700:1 | | Brightness | 400 cd/m² | | Viewing Angle | 80° H, 80° V | | Power Consumption (typical) | 225 mW | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions and Weight | Not specified by manufacturer |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
