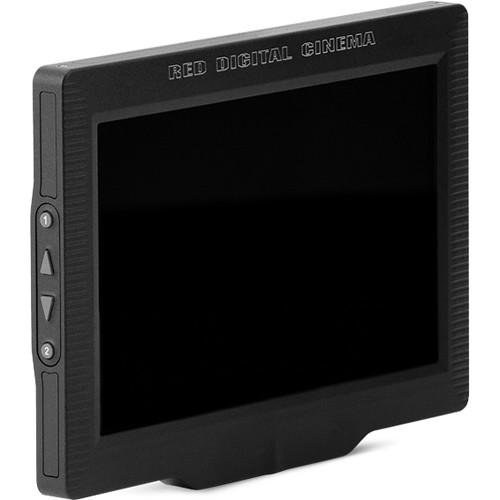

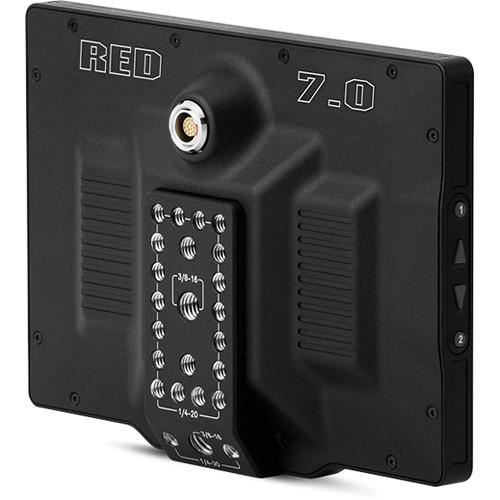

Product description The lightweight RED PRO Touch 7" LCD from RED DIGITAL CINEMA is a high-resolution, touchscreen on-board monitor compatible with DSMC2 and DSMC cameras. Bright enough for viewing in high ambient light settings, this monitor features 1920 x 1136 resolution, a high 323 ppi density, a 350 cd/m² brightness level, and a contrast ratio of 1000:1. Its 85° off-angle viewing on all axes means you needn't be directly aligned with the viewfinder to see an optimal image. Navigate the RED PRO Touch via its robust, optically-bonded touchscreen, or via its side-mounted buttons.

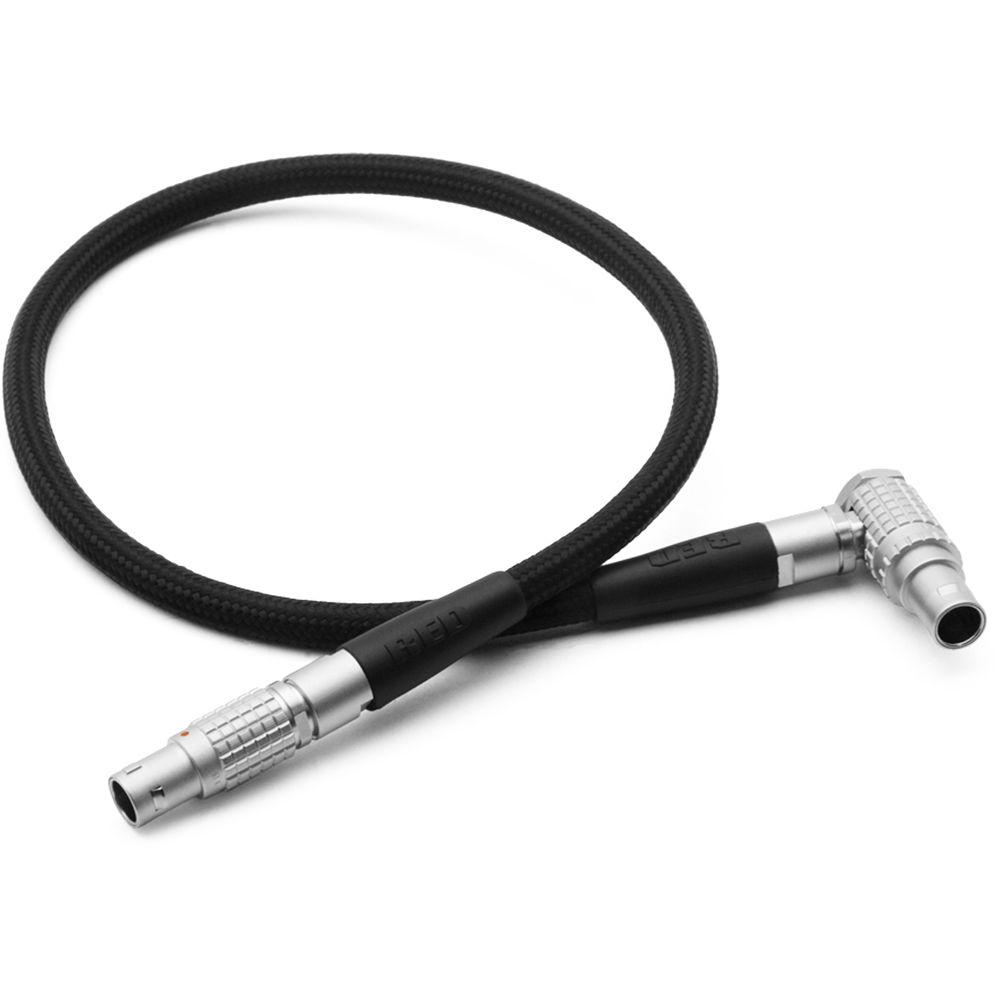

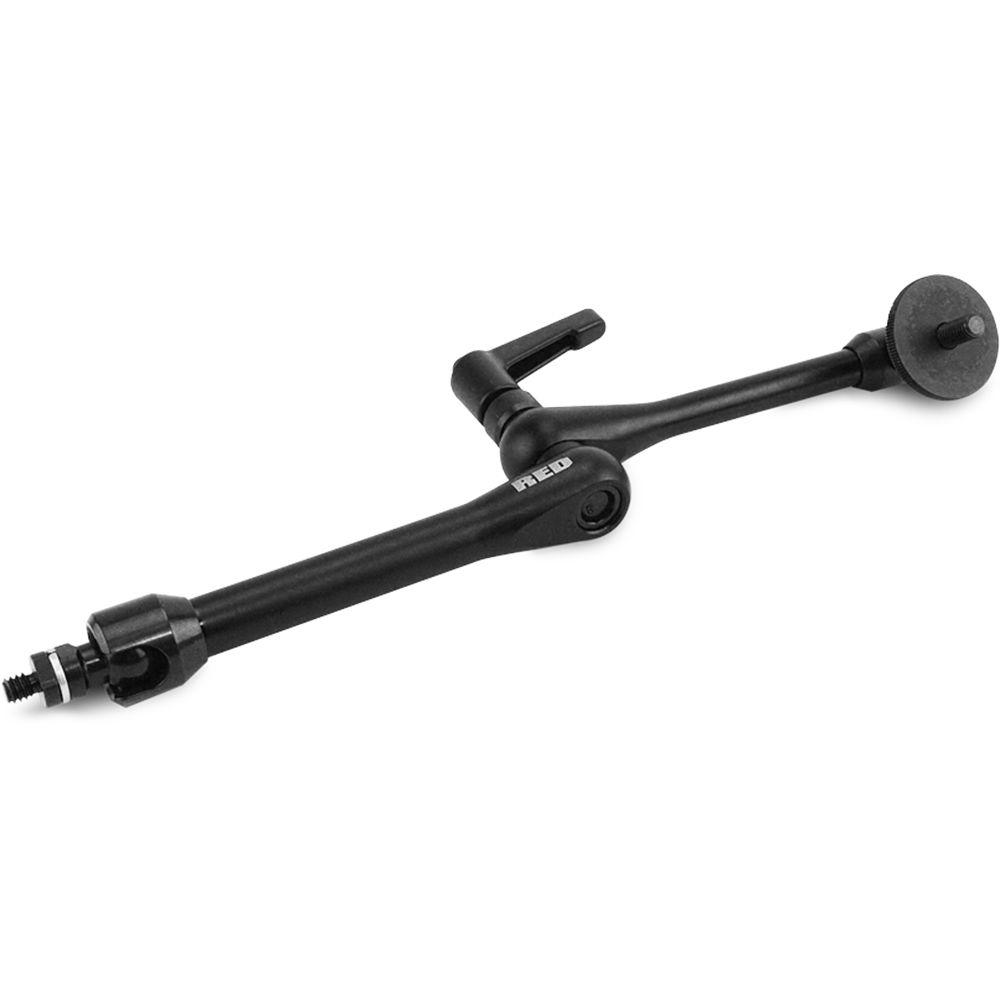

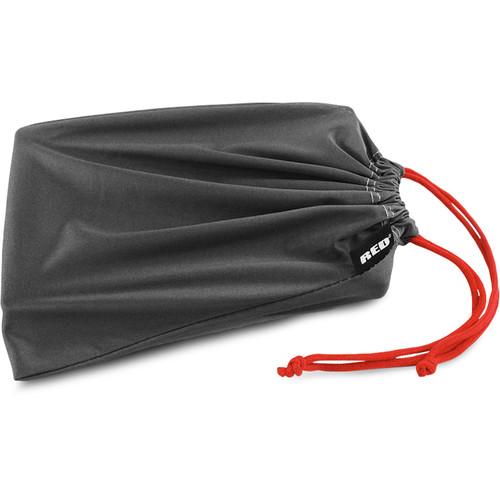

A LEMO-type connector enables the RED PRO Touch LCD to connect to RED DSMC2 and DSMC cameras, and suits it to remote viewing on cranes, gimbals, etc. Use a DSMC2 LEMO Adapter A with the PRO Touch for convenient mounting options away from your DSMC2 camera BRAIN. An 18" LCD cable with both a straight and 90° connector, a 9" RED ARM, and a carrying pouch are included with the RED PRO Touch 7" LCD monitor. - Features
-
- High-resolution, robust 1920 x 1136 touchscreen display with 1000:1 contrast ratio
- 350 cd/m² brightness level, and 170° off-angle, all-axes viewing
- Robust, optically bonded touchscreen
- Touchscreen and side-mounted button navigation

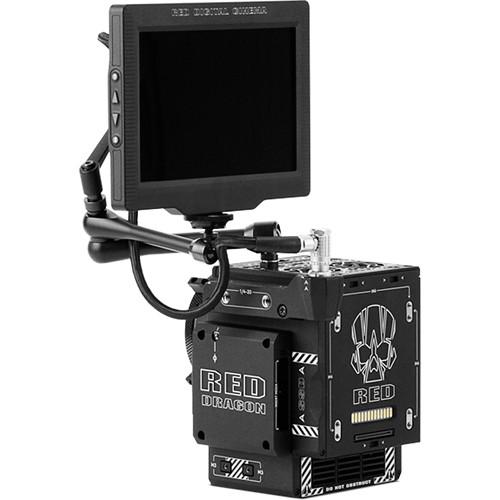

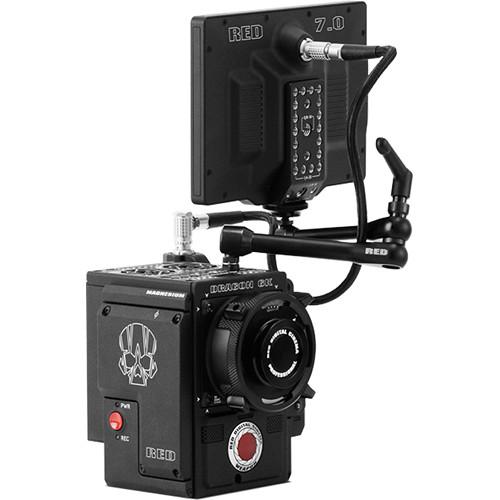

- Mounts to RED DSMC2 and DSMC cameras with the included RED ARM
- Includes one 18" LEMO-type cable

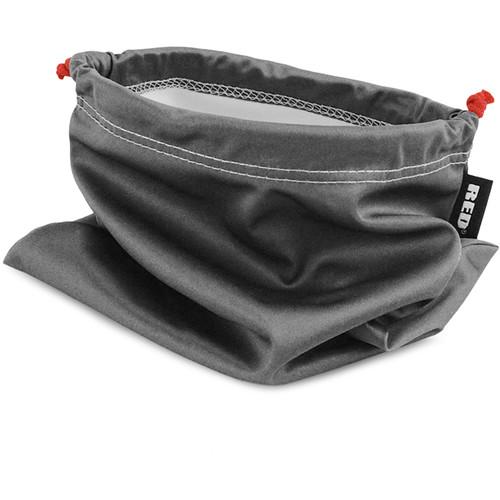

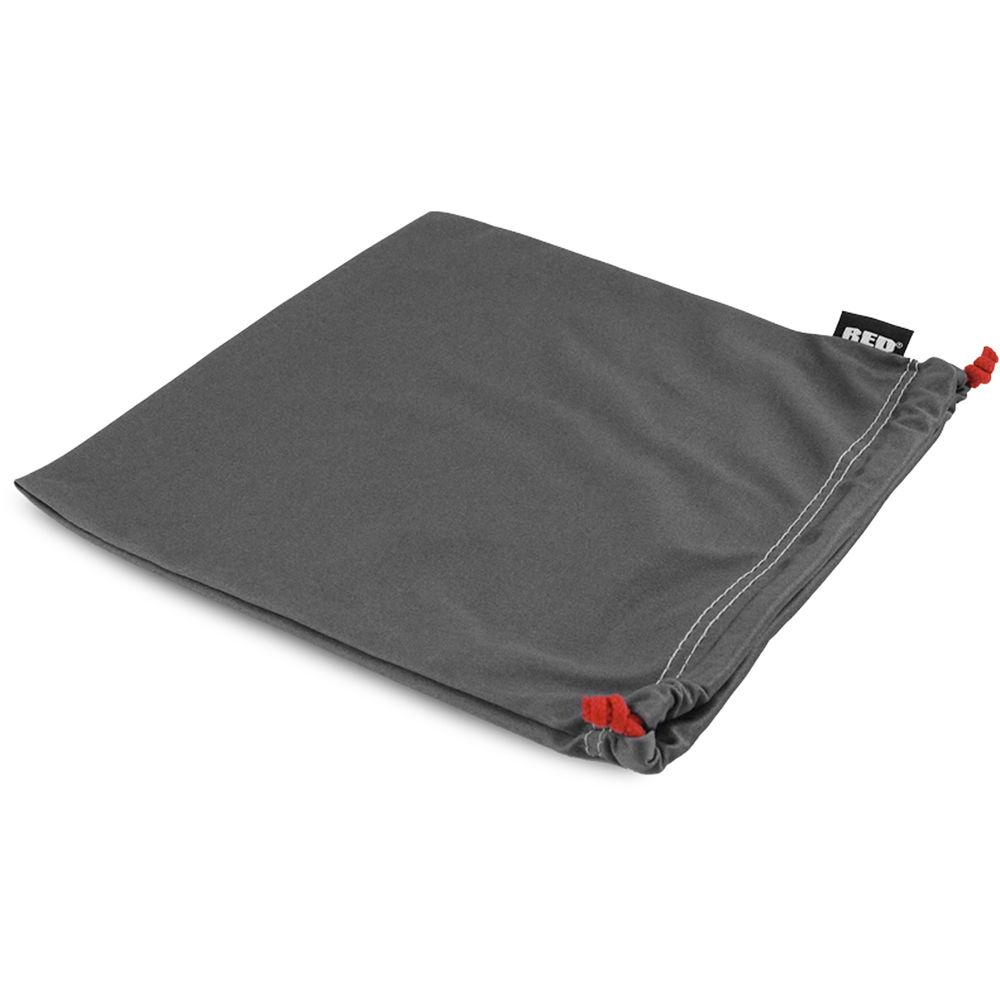

In the Box RED DIGITAL CINEMA RED PRO Touch 7'' LCD RED ARM (9") LCD/EVF Cable (18", Right-to-Straight) Microfiber Bag (Large) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA RED PRO Touch 7'' LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA 730-0025 Specs | Type | Touchscreen LCD | | Firmware Requirement | All DSMC firmware v5.2.38 or later | | Resolution | 1024 x 600 | | Pixel Density | 323 ppi (pixels per inch) | | Refresh Rate | 60 Hz | | Response Time | 23 ms (black to white) | | Contrast Ratio | 1000:1 | | Brightness | 350 cd/m² | | Color Depth | 8-bit RGB, 4:4:4 progressive scan (16.7 million colors) | | Colors | 70% NTSC | | Viewing Angle | 80° all axes | | Display Orientation | Landscape, 180° rotation | | Touchscreen | Projected capacitive (PCAP), multi-touch | | Camera Connection | Power and communication via LCD/EVF cable | | Mounting Threads | 23 x 1/4"-20
2 x 3/8"-16 | | Hood | M3 x 0.5
