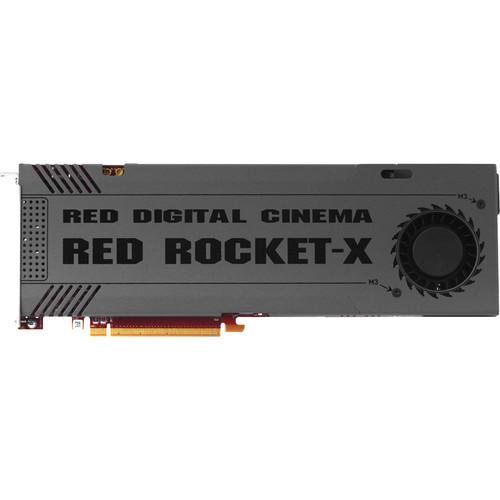

User Manual for RED DIGITAL CINEMA RED ROCKET-X Click to enlarge the picture
Contents of the user manual for the RED DIGITAL CINEMA RED ROCKET-X
- Product category: Computer Hardware RED DIGITAL CINEMA
- Brand: RED DIGITAL CINEMA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RED DIGITAL CINEMA Computer Hardware
|
User manual for the RED DIGITAL CINEMA RED ROCKET-X contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RED DIGITAL CINEMA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RED DIGITAL CINEMA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RED DIGITAL CINEMA product will considerably shorten its lifespan!
|
Product description Process and play back REDCODE (R3D) raw files in real-time with the RED DIGITAL CINEMA RED ROCKET-X accelerator card. The card itself can be installed in an available PCI-E x16 slot, either in a Windows PC, Mac Pro tower, or Thunderbolt PCIe chassis. The RED ROCKET-X benefits your workflow by decoding, debayering, and scaling REDCODE footage in real-time. DisplayPort and SDI outputs can connect to external displays for directly monitoring the processed footage. Direct 4K playback through the DisplayPort outputs is possible, and processing of 6K footage can be done faster than real-time. The RED ROCKET-X supports all HELIUM, RED DRAGON, RED DRAGON Monochrome, MYSTERIUM, MYSTERIUM-X, and Monochrome R3D files. In the Box RED DIGITAL CINEMA RED ROCKET-X SDI Output Panel PCI-E 6-Pin to 6-Pin Dual Y Power Splitter PC Extender Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA RED ROCKET-X in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA RED ROCKET-X Specs | Video Outputs | 2 x DisplayPort, 8/10/12-bit 4:2:2 sampling
2 x SDI (break out to included SDI bracket) | | Audio Output | Embedded audio via SDI | | Audio Format | 24-bit, 48 kHz | | Timecode | Vertical (VITC) via SDI | | Color Modes | YCbCr 4:2:2, RGB 4:4:4 | | Processing | REDCODE decoding, debayering, and scaling up to 6K | | Hardware Requirements | PCIe x16 physical slot
1 x 6-pin PCIe power cable | | Form-Factor | Full-length (12" approx.), single-slot (card only) | | Environmental | Operating Temperature: 41 to 104°F / 5 to 40°C
Storage Temperature: -4 to 122°F / -20 to 50°C
Operating Humidity: 20-80% RH, non-condensing
Storage Humidity: 10-80% RH, non-condensing | | | | Package Weight | 2.84 lb | | Box Dimensions (LxWxH) | 14.45 x 7.45 x 1.7" |
