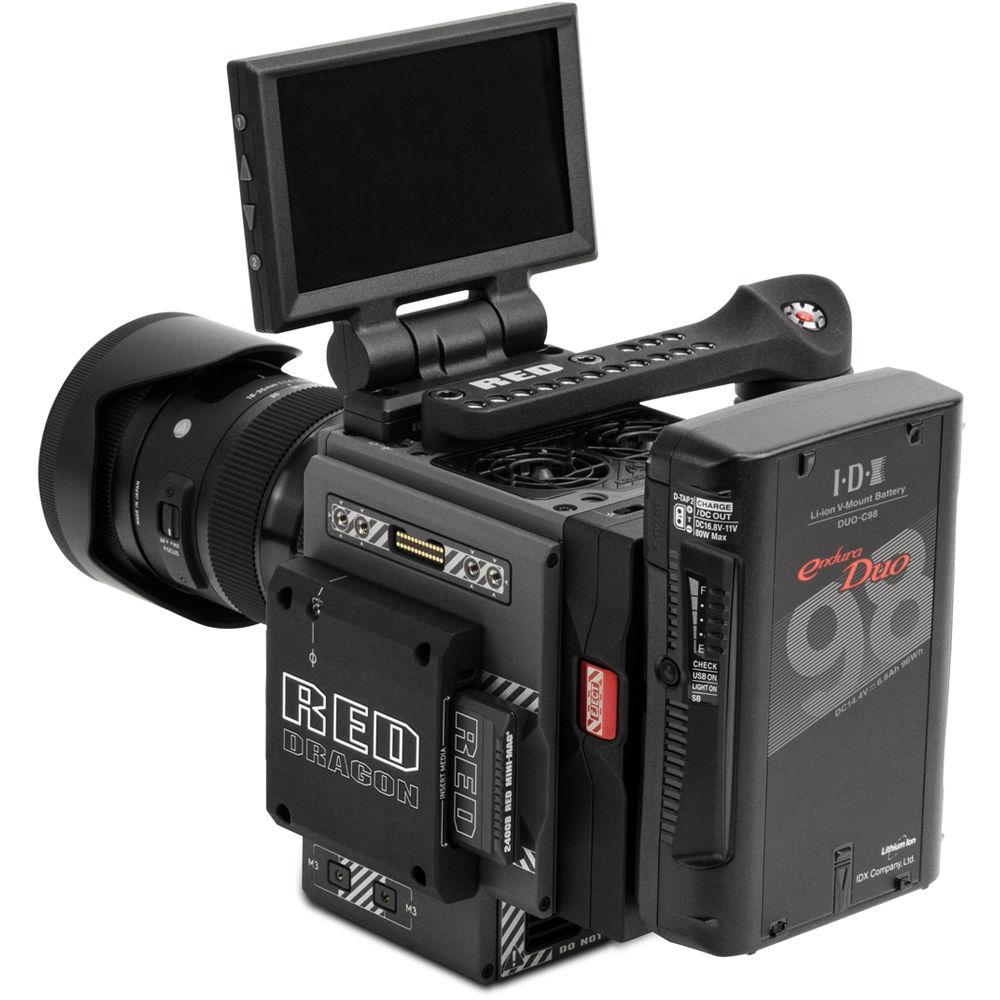

RED DIGITAL CINEMA SCARLET-W Camera Kit

User Manual for RED DIGITAL CINEMA SCARLET-W Camera Kit

• Product category: Digital Cine Cameras RED DIGITAL CINEMA
• Brand: RED DIGITAL CINEMA
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for RED DIGITAL CINEMA Digital Cine Cameras

Product description

• SCARLET-W BRAIN with DRAGON 5K Sensor (Standard OLPF, Compatible with DSMC2 Accessories) Designed for cinema and high-resolution video production, the RED SCARLET-W DSMC2 cinema camera features the DRAGON 5K Super 35 CMOS sensor and REDCODE RAW imaging pipeline. Shooting in 5K gives the production an edge in the post process, even in 4K deliverables, as the greater-than-4K resolutionREDCODE RAW is the format of choice for the SCARLET-W. RED's versatile raw codec uses wavelet compression to reduce data rates while maintaining a visually lossless image rendering. This efficient codec can be edited on many available NLE software programs without transcoding, though if you prefer a proxy workflow, ProRes or DNx files can be recorded simultaneously to the MINI-MAG media.Lowering the recording resolution allows the sensor to capture higher frame rates for dramatic slow-motion footage. The SCARLET-W's DRAGON sensor windows to record slow motion, requiring wider lenses to compensate for the additional crop.All of the SCARLET-W's power is enclosed in a relatively small body constructed out of aluminum. The BRAIN's size, or lack thereof, makes it very versatile. From studio tripod configuration to handheld and gimbal, drone, or vehicle mounted situations, the SCARLET-W can handle it all, providing cinema-grade footage that punches above the camera's weight. The camera BRAIN is compatible with DSMC2 accessories.
  5K DRAGON Sensor
  • As the successor to the stalwart 5K Mysterium-X sensor, the 5K DRAGON CMOS sensor brings extra resolution, dynamic range, and color depth to the table. The DRAGON design is not a rehash of a previous fabrication. Working from the ground up, the team at RED developed this sensor with an updated color science, while making additional improvements in dynamic range and sensitivity. Different separately available OLPFs (Optical Low-Pass Filters) can be exchanged for the included standard OLPF for more creative options that can improve highlight handling, skin tone rendering, or low-light performance.
  REDCODE RAW
  • The cornerstone of RED's workflow is the robust REDCODE RAW file format. Using wavelet compression with ratios ranging from 2:1 to 22:1, REDCODE RAW offers the versatility of raw files without the overwhelming storage requirements of uncompressed image data. Since REDCODE RAW has been around since the days of the RED ONE cinema camera, many common NLE software programs including Adobe Premiere Pro, Blackmagic Design DaVinci Resolve, Apple Final Cut Pro, and Avid Media Composer can import and edit REDCODE RAW footage without transcoding, saving production time in the edit suite.

    Note: Not all compression ratios are available at all resolutions and frame rates
  Apple ProRes and Avid DNx Formats
  • For projects requiring proxy files or quicker turnaround times than raw files permit, Apple ProRes or Avid DNx formats can be recorded at 4K and 2K resolutions directly to the onboard MINI-MAG media. Since these debayered video files can be recorded alongside the raw files, no extra time is required for transcoding the proxies. Bring the debayered files straight into your NLE and begin editing.
  DSMC2 Form Factor
  • Like the preceding DSMC cameras, RED designed the DSMC2 camera line to be modular to fit a wide range of production workflows. Smaller and lighter than the original DSMC design, when stripped down to the BRAIN itself, the SCARLET-W becomes a gimbal workhorse. Likewise, add DSMC2 modules to the rear to gain professional I/O connections and battery power. Many other parts of the DSMC2 design are meant to be interchangeable. Swap out the lens mounts to open up new libraries of lenses. You can also mount an EVF without cables that can get snagged, or use a separately available adapter to attach RED LCDs via LEMO cable.
  Color Management
  • Supports 17x17x17 3D LUTs
    Variable number of 3D LUT outputs with DSMC2 expander module
    User-programmable shaper 1D LUTs
    Tetrahedral interpolation, 16-bit processing
• DSMC Canon Mount (Aluminum) This aluminum RED Digital Cinema DSMC Canon Mount attaches to your DSMC or DSMC2 camera brain providing an EF/EF-S compatible lens port for your camera. Dual locking rings secure your lens in the mount, minimizing play. The mount features captive screws, so you don't have to worry about accidentally dropping a screw into the sensor cavity. The mount supports electronic communication between the lens and the camera, although not all functions may be supported. RED DSMC mounts are designed to be swapped without requiring a backfocus adjustment.
  • This lens mount is made from aluminum for a balance between weight and strength
  • Autofocus support available for select EF lenses
  • Electronic iris control available for select EF and EF-S compatible lenses
  • Touch focus enabled for select lenses
  UPC: 856672007362
• 18-35mm f/1.8 DC HSM Art Lens for Canon EF The Canon EF-mount Sigma 18-35mm f/1.8 DC HSM Art Lens is a wide-angle to normal-length zoom that features a fast, bright constant f/1.8 maximum aperture. It is specifically designed for use with APS-C-sized sensors and provides a 35mm-equivalent focal length range of 28.8-56mm.

  The lens integrates four aspherical elements into its construction as well as five Special Low Dispersion (SLD) glass elements to help minimize various aberrations and distortions throughout the zoom range as well as provide greater image sharpness and clarity. A Super Multi-Layer Coating has also been applied to lens elements to reduce surface reflections, lens flare, and ghosting to produce images with higher contrast and color fidelity. The lens barrel design is constructed from a Thermally Stable Composite (TSC) material that is akin to metal in texture and resistance to temperature and environmental changes while also remaining lightweight and compact. An internal focusing and zooming mechanism also helps to maintain a compact and consistent overall length and non-rotating front ring also better enables the use of circular polarizing filters. For control of focus, a Hyper Sonic Motor (HSM) is used to ensure fast, precise, and quiet focusing capabilities that are well suited to continuous shooting and movie recording.

  For updating lens firmware and fine-tuning its nuances to best suit your personal shooting, this lens is compatible with the Sigma USB Dock. The dock allows you to specify certain parameters and other settings through the Sigma Optimization Pro software, such as AF speed and focusing limitations.
  Art Lens Line
  • This lens is part of Sigma's Art line; deeming it well-suited to creative image making due to its large, constant f/1.8 maximum aperture and ability to produce aesthetic bokeh by way of a nine-blade circular diaphragm. The range of focal lengths it covers, from wide-angle to normal-length, is nicely situated for everyday and artistic shooting applications.
  Optimized Lens Design
  • Four aspherical lens elements, as well as the incorporation of five SLD glass elements, help to minimize the appearance of distortions and aberrations throughout the zoom range and provide clear imagery with enhanced sharpness. A Super Multi-Layer Coating also benefits the image quality by reducing reflections and flare and contributing to greater overall contrast and fidelity.
  Hyper Sonic AF Motor
  • The Hyper Sonic Motor provides fast, quiet, and smooth auto focusing that is well-suited for use with video applications. This AF motor can also be manually overridden at any time by rotating the focusing ring, giving you the ability to fine-tune image sharpness through manual focusing.
  USB Dock
  • Compatible with Sigma's USB Dock and Sigma Optimization Pro software for fine-tuning your lens' performance, updating its firmware, and better suiting it to your needs.
  Other Lens Features
  • • Constructed using a TSC compound material, this lens is lightweight while also exhibiting notable durability and resistance to environmental changes.
    • An internal focusing and zooming mechanism helps to maintain a consistent overall lens length and a non-rotating front ring facilitates more efficient use of circular polarizers.
  UPC: 085126210540
• DSMC2 V-LOCK I/O Expander More than just a way to power your camera, the RED DSMC2 V-LOCK I/O Expander provides a variety of input/output connections in addition to a V-Lock mount for your DSMC2 camera. The Expander is made from magnesium, so it is lightweight yet strong. It enables powering your camera from a V-Mount battery or by an alternate DC source via cable, and you can set it to automatically boot your camera up once power is connected. It provides both 3G-SDI and HDMI outputs, as well as control and sync outputs.

  Built-in USB and auxiliary power outputs enable powering accessories and limiting the number of power splitter and converter boxes hanging from your camera. Audio is not forgotten by RED, and the Expander features both an analog stereo input and a stereo headphone jack. It is compatible with the WEAPON 8K S35, WEAPON 6K, as well as the EPIC/SCARLET-W, and the RAVEN.
  Auto Boot-Up on Power-On
  • The Expander features a physical switch that allows you to enable the camera to automatically boot up when power is applied. This is a useful feature for when the camera is in a difficult-to-access position.
  Firmware
  • Since the V-Lock I/O Expander communicates with your camera, and allows electronic signals and video output, it requires that your DSMC2 camera has firmware v6.2.17 or later installed.
  • The Expander simplifies your power and output situation when shooting, and can be removed if you want your camera to have a smaller profile for stash-cam, gimbal, or drone shooting.
• Touch 4.7" LCD for Select DSMC2 RED Cameras Designed for cable-free mounting to select DSMC2 RED cameras, the RED DIGITAL CINEMA Touch 4.7" LCD features 1280 x 720 resolution. The design of the LCD provides good off-axis viewing up to 160°, with 80° left, right, up, or down so you don't have to be directly aligned with the viewfinder to see an optimal image. The LCD features multi-touch control, with hard navigation buttons on the side.

  With a brightness level of 400 cd/m² and contrast ration of 1000:1 providing a clear image, the RED Touch LCD mounts directly to your camera without any cables needed between the LCD and your camera. It can mount directly onto DSMC2 cameras including the WEAPON 8K S35, WEAPON 6K, EPIC/SCARLET-W, EPIC/SCARLET M-X, EPIC/SCARLET DRAGON, and the RED RAVEN. A built-in mirror and image flip allow for monitoring while upside down for special applications.
  • The LCD is designed to mount directly to select cameras for cable-free operation.
  • Used in conjunction with the optional DSMC2 LEMO Adapter Collection, you can mount your DSMC2 display away from the camera body.
  • The built-in hinge provides up to 240° of tilt—90° forward and 150° back—which allows the LCD to fold flat on your camera.
  • You can use an optional DSMC2 LEMO Adapter B to mount the LCD to RED EPIC or RED SCARLET cameras.
• DSMC2 Outrigger Handle The RED Digital Cinema DSMC2 Outrigger Handle mounts to your camera's DSMC2 Top Handle Port, giving you a secure support handle while gripping the camera with one hand, leaving your other hand free for lens adjustments. This handle features an integrated start/stop trigger button in an ergonomically molded grip. Secured to your camera via two cap head Allen head screws, the handles integrated electronic connectors create a cable-free connection. The handle also incorporates fourteen 1/4"-20 threaded accessory mounting holes along the top.
  • Ergonomic handle with the word RED molded into the grip
  • Fourteen 1/4"-20 threaded accessory mounting holes
  • Integrated start/stop trigger button
  • Please note that only one handle at a time may be attached to the DSMC2 Top Handle Port
• ev|Series Reader RED MINI-MAG Edition Simplify your RED workflow with G-Technology's ev|Series Reader RED MINI-MAG Edition. This card reader accepts RED's proprietary MINI-MAG SSDs and can connect them to a computer and offer quick upload via USB 3.0 or be integrated into your existing G-Technology Evolution workflow through the SATA connection. UPC: 705487200768
• RED MINI-MAG (240GB) This RED DIGITAL CINEMA RED MINI-MAG has a capacity of 240GB, is compatible with most RED cameras (may require SSD module), and on select cameras can attain write speeds as high as 225 MB/s. The RED MINI-MAG can support simultaneous R3D and Apple ProRes recording, when used with DSMC2 camera systems.
  • RED MINI-MAGs are encased in aluminum and offer a compact form factor
  • Compatible with DSMC2 camera systems, the RED MINI-MAGs require a RED MINI-MAG Side SSD Module for use with your RED EPIC or SCARLET BRAIN. The RED MINI-MAG system requires that your DSMC is on firmware v5.1.34 or later.
  Maximum Data Rates
  • WEAPON DRAGON (Carbon Fiber): up to 225 MB/s
    WEAPON DRAGON (Magnesium): up to 225 MB/s
    EPIC DRAGON: up to 170 MB/s
    SCARLET DRAGON: up to 72 MB/s
    SCARLET-W and RAVEN DRAGON: up to 140 MB/s
• DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port The IDX DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 2.3" thick, but packs 96Wh of capacity to power your professional devices. It is well suited for handheld gimbal and aerial applications, as well as run-and-gun productions where size and weight can become an issue. Battery data information displays in most camera's viewfinders.

  The DUO-C98 can handle a combined load of up to 10A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery.
  Key Features
  • • Suitable for handheld gimbal, aerial, run-and-gun, and other productions that need a high-power-draw battery in a small package
    • The battery data displays in the viewfinder system of most cameras, and the addition of an SMBUS enables RED cameras to display this information as well
    • Handles up to 10A loads
    • Two unregulated D-tap accessory outputs at 50W each
    • USB port
    • Battery circuit protection
    • 5-LED battery life indicator
    • Fully compatible with all IDX Endura V-mount chargers
  UPC: 825781012994
• 925 Case with Foam (Black) When traveling through inhospitable environments or situations, be sure to protect your valuable gear with the black 950 Case with Foam from NANUK. A well-designed case, it features Powerclaw latches, two holes for user-supplied padlocks, purge valve, and a bezel system to prevent water intrusion. Lightweight and waterproof, the case has an IP67 rating. Carry the case with the robust top handle. For convenience the handle and the lid will stay in an upright position. The pick-and-pluck foam interior allows for customized gear placement. Made of impact resistant NK-7 resin with stainless steel hardware, the case is strong, durable, and may be stacked.
  • High performance gasket is ideal for protecting your equipment in extremely harsh weather conditions
  • Waterproof & lightweight
  • Padlockable
  • Case made from impact-resistant NK-7 resin & 100% stainless steel hardware
  • Crushproof & dustproof (IP67 rated)
  • Automatic pressure release valve
  • Molded-in bezel system
  • Powerclaw latching system
  • Integrated lid stay
  • Soft-grip foldable handle
  • Stackable
  • Meets airline carry-on regulations
  UPC: 666365002280

• DSMC Front Body Cap

• DSMC2 Standard OLPF with Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Petal-Type Lens Hood

• Front Lens Cap

• Rear Lens Cap

• Pouch

• Limited 1-Year Warranty

• Limited 3-Year U.S.A. Extended Warranty Extension Against Manufacturing and Workmanship Defects.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• USB 3.0 Cable

• Limited 3-Year Warranty (US Only)

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• Conditional Lifetime Guarantee

Also Includes

• IDX Dual Battery Charger
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SCARLET-W BRAIN with DRAGON 5K Sensor (Standard OLPF, Compatible with DSMC2 Accessories)

  Image Sensor Size	25.6 x 13.5 mm (Super35)
  Effective Sensor Resolution	5120 x 2700 (13.8 MP)
  Advertised Dynamic Range	16.5 Stops
  Signal-to-Noise Ratio	80 dB

  Lens Mount	None
  Built-In ND Filter	None
  Built-In Microphone Type	Stereo
  Recording Media	1 x RED MINI-MAG Card Slot

  Raw Recording	REDCODE RAW: 5120 x 2700 (170 MB/s) 4096 x 2160 3072 x 1620 2048 x 1080
  Recording Modes	ProRes 422HQ: 4096 x 2160 at 29.97 fps DNxHR 8-Bit: 4096 x 2160 at 29.97 fps
  Audio Recording	2-Channel 24-Bit 48 kHz

  Other I/O	1 x RED Cable-Free Monitor Connection
  Wireless Interfaces	Wi-Fi Control

  Battery Type	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 140°F / -20 to 60°C
  Operating Humidity	0 to 85%

  Accessory Mount	1 x 1/4"-20 Female
  Weight	3.5 lb / 1.6 kg

  Box Dimensions (LxWxH)	12.7 x 12.3 x 12.2"

• DSMC Canon Mount (Aluminum)

  Dimensions	1.20 x 3.35 x 3.11" / 3.06 x 8.50 x 7.91 cm
  Weight	.67 lb / 300 g

  Box Dimensions (LxWxH)	7.4 x 4.8 x 2.3"

• 18-35mm f/1.8 DC HSM Art Lens for Canon EF

  Focal Length	18 to 35mm (35mm Equivalent Focal Length: 28.8 to 56mm)
  Maximum Aperture	f/1.8
  Minimum Aperture	f/16
  Lens Mount	Canon EF
  Format Compatibility	APS-C
  Angle of View	73.8 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 68 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. Post new comment to RED DIGITAL CINEMA SCARLET-W Camera Kit Subject: product manual Date: 11.02.2024 12:41:18 Name: J. GANESAN SICA CINEMATOGRAPHER please send me red digital cameras details THANK YOU REGARDS J.GANESAN Post reply Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
