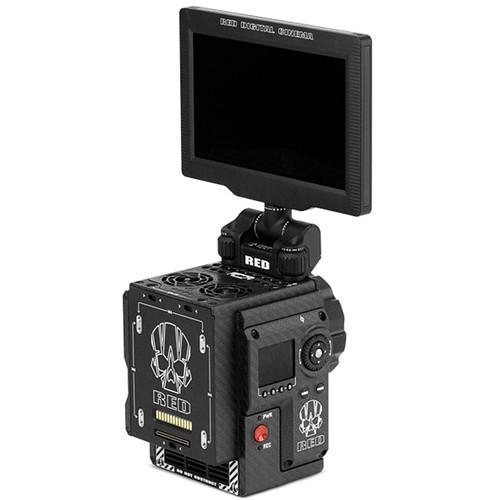

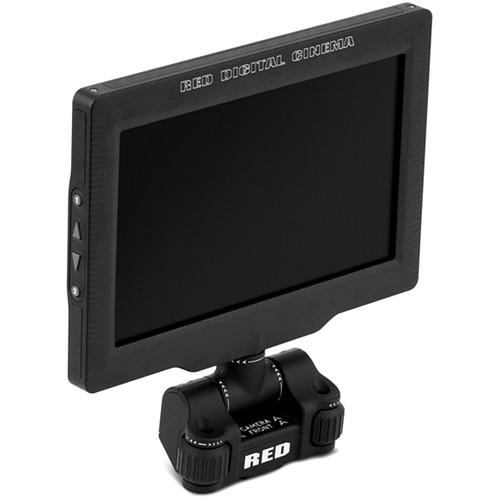

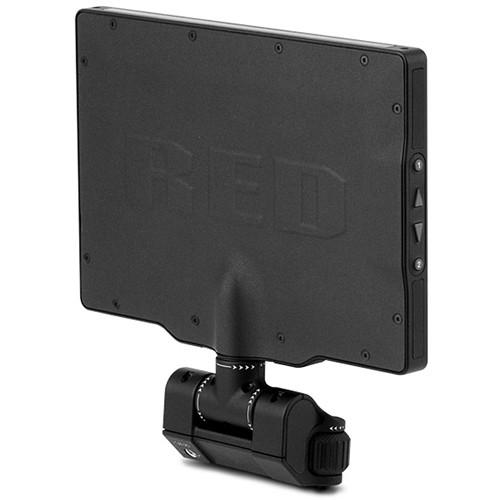

Product description Designed for cable-free mounting to select DSMC2 RED cameras, the RED DIGITAL CINEMA Touch 7.0" LCD (Aluminum) features 1920 x 1136 resolution. The design of the LCD provides good off-axis viewing up to 170°, with 85° left, right, up, or down so you don't have to be directly aligned with the viewfinder to see an optimal image. The LCD features multi-touch control, with hard navigation buttons on the side.
With a brightness level of 350 cd/m² and contrast ration of 1000:1 providing a clear image, the RED Touch LCD mounts directly to your camera without any cables needed between the LCD and your camera. It can mount directly onto DSMC2 cameras including the WEAPON 8K S35, WEAPON 6K, EPIC/SCARLET-W, EPIC/SCARLET M-X, EPIC/SCARLET DRAGON, and the RED RAVEN. A built-in mirror and image flip allow for monitoring while upside down for special applications. - The LCD is designed to mount directly to select cameras for cable-free operation.
- Used in conjunction with the optional DSMC2 LEMO Adapter Collection, you can mount your DSMC2 display away from the camera body.
- The built-in hinge provides up to 180° of tilt—90° forward and 90° back—which allows the LCD to fold flat on your camera. The hinge also enables rotating the display 180°.
- You can use an optional DSMC2 LEMO Adapter B to mount the LCD to RED EPIC or RED SCARLET cameras.
In the Box RED DIGITAL CINEMA Touch 7.0" LCD for Select DSMC2 RED Cameras (Aluminum) RED Microfiber Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RED DIGITAL CINEMA Touch 7.0" LCD for Select DSMC2 RED Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRED DIGITAL CINEMA 730-0024 Specs | Material of Construction | Aluminum | | Type | Touchscreen LCD | | Resolution | 1920 x 1136 | | Contrast Ratio | 1000:1 | | Brightness | 350 cd/m² | | Pixel Density | 323 PPI | | Color Depth | 8-bit RGB, 4:4:4 progressive scan (16.7 million colors) | | Colors | 70% NTSC | | Viewing Angle | ±85° U/D/L/R | | Touch | Projected capacitive (PCAP), multi-touch | | Range of Motion | Tilt: +90 to -90°
Rotation: +180 to -180°
1/4"-20 threaded hole | | Connector | DSMC2 LCD/EVF pogo connector (26-pin) | | Mounting | 2 x M4 captive screws | | Hood | Mounting: M3x0.5 x 5 mm (max depth) | | Power Consumption | 5.5 W | | Operating Conditions | Temperature: 32 to 104°F / 0 to 40°C
Humidity: 0 to 85% non-condensing | | Storage Conditions | Temperature: -4 to 122°F / -20 to 50°C
Humidity: 0 to 85% non-condensing | | Dimensions | 7.15 x 7.28 x 0.51" / 181.5 x 185 x 13 mm (with hinge) | | Weight | 19.4 oz / 549.0 g | | | | Package Weight | 2.235 lb | | Box Dimensions (LxWxH) | 9.85 x 9.25 x 2.65" |
