User Manual for Redfield 3-9x40 Revolution Riflescope Click to enlarge the picture
Contents of the user manual for the Redfield 3-9x40 Revolution Riflescope
- Product category: Riflescopes Redfield
- Brand: Redfield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redfield Riflescopes
 |
User manual for the Redfield 3-9x40 Revolution Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redfield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redfield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redfield product will considerably shorten its lifespan!
|

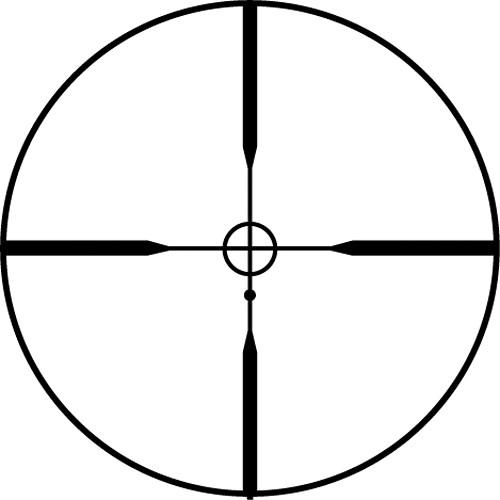

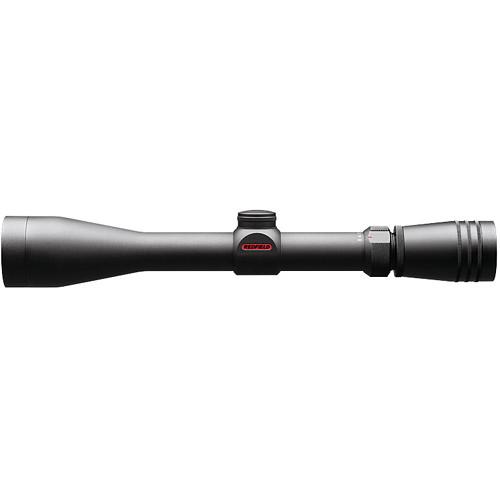

Product description Redfield's 3-9x40 Revolution Riflescope brings versatility, durability, and outstanding optical performance. Its optical system features a 3-9x zoom magnification, a 40mm objective diameter, and a Vapor-deposited Multi-Coated Illuminator System, which delivers crisp and bright images in most lighting conditions. At the core of the optical system is the 2nd plane 4-Plex Reticle that features four tapered posts, a thin crosshair with a target circle, and a single BDC bead just below the circle. This reticle offers clean and unobtrusive views of your targets.
For durability and a reduced weight, the housing is crafted from aluminum and treated with a black anodized finish. It features a 1" main-tube diameter and The Rapid Target Acquisition(RTA) lockable eyepiece. The eyepiece rings and exposed windage and elevation turrets have fine and sharp knurling for a slip-free grip and easy adjustments. To allow you the freedom to take it anywhere, the riflescope is waterproof, impact-resistant, and nitrogen-filled for a fogproof performance. - Reticle
-
- Four tapered posts
- Thin crosshair with a target circle
- One BDC bead below the circle
- Optical Performance
-
- 3-9x zoom magnification
- 40mm objective lens diameter
- Vapor-deposited multi-coatings
- Eye relief: 3.7-4.2"
- Use and Handling
-
- 1/4 MOA impact point correction
- Accu-Trac finger-adjustable turrets
- Rapid Target Acquisition eyepiece with lockable setting
- Construction Details
-
- 1" main-tube diameter
- Aluminum housing with anodized finish
- Rapid Target Acquisition (RTA) lockable eyepiece
- Ultra-fine sharp knurling provides a slip-free grip
- Nitrogen-filled, fogproof
- Waterproof
UPC: 030317670955 In the Box Redfield 3-9x40 Revolution Riflescope (Accu-Range Reticle) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Redfield 3-9x40 Revolution Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedfield 67095 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 32.9' @ 100 yd / 11 m @ 100 m
9x: 13.1' @ 100 yd / 4.4 m @ 100 m | | Exit Pupil Diameter | 3x: 12.1 mm
9x: 4.7 mm | | Eye Relief | 3.7 to 4.2" / 94 to 107 mm | | | | Reticle Type | Accu-Range Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 56 MOA | | Elevation Adjustment | 56 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.3" / 312 mm | | Weight | 12.6 oz / 357 g | | | | Package Weight | 1.14 lb | | Box Dimensions (LxWxH) | 14.25 x 3.75 x 3.0" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
