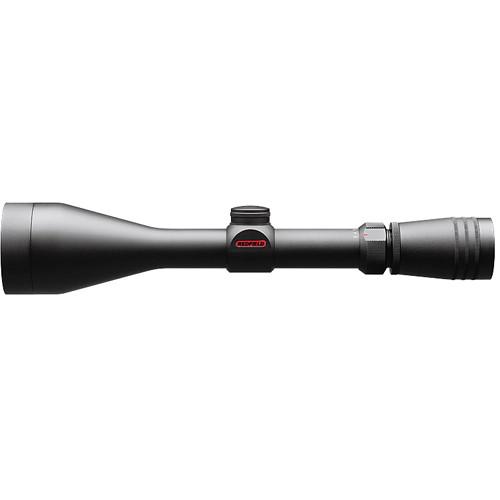

User Manual for Redfield 3-9x50 Revolution Riflescope Click to enlarge the picture
Contents of the user manual for the Redfield 3-9x50 Revolution Riflescope
- Product category: Riflescopes Redfield
- Brand: Redfield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redfield Riflescopes
 |
User manual for the Redfield 3-9x50 Revolution Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redfield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redfield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redfield product will considerably shorten its lifespan!
|

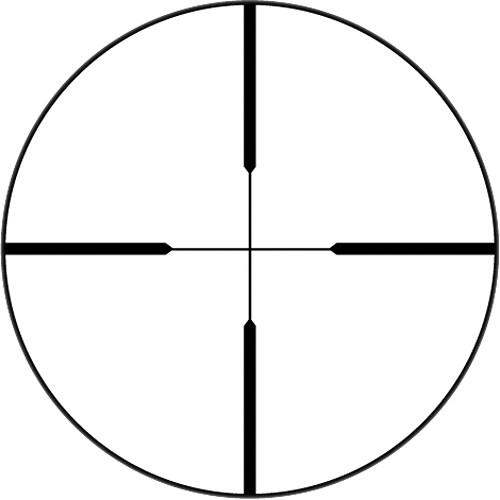

Product description Pose a threat to your game with the 3-9x50 Revolution Riflescope from Redfield. This optic features vapor-deposited multiple anti-reflection coatings that provide bright and clear images. With the wide 50mm objective, you can take advantage of low-light conditions and will get accurate target acquisitions even at dusk of dawn. For precision short-to-mid-range shooting, the scope provides 3-9x zoom that gives you options for carefully choosing an aiming point. If you prefer distance shooting in all-weather conditions, the Accu-Trac windage and elevation system offers 56 MOA of total travel in each direction with 1/4 MOA increments. The 4-Plex Reticle is located in the second focal plane and features four medium-weight tapered posts, a thin crosshair, and offers a clean and unobtrusive view of your targets.

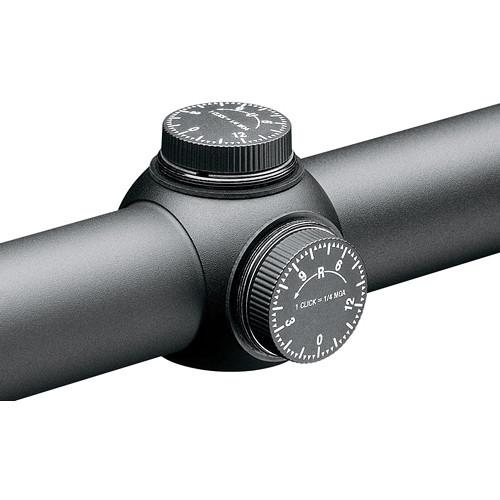

The lightweight and durable aluminum housing features a 1" maintube. It is filled with nitrogen to offer fogproof, waterproof, and shock-resistant performance that gives you the freedom to hunt and train in all-weather conditions. For high accuracy, reliability, and repeatability of your windage and elevation adjustments, the Accu-Trac turret system is precision-manufactured with stainless steel and offers a finger-operated configuration. For ease of use in quickly changing situations, the lockable Rapid Target Acquisition (RTA) eyepiece offers effortless and precise zooming action. Also included with the Revolution are two protective lens caps. - Reticle
-
- 2nd focal plane
- Four medium-weight tapered posts
- Thin crosshair
- Optical Performance
-
- Magnification: 3-9x
- 50mm wide objective
- Multi-coated lens system
- Eye relief: 3.7-4.2"
- Use and Handling
-
- 1/4 MOA impact point correction
- 56 MOA windage and elevation range
- Construction Details
-
- 1" maintube diameter
- Accu-Trac turrets:
- Stainless steel
- Finger-adjustable
- High repeatability and reliability
- Rapid Target Acquisition (RTA) lockable eyepiece
- Nitrogen-filled, fogproof and waterproof
- Shock-resistant
UPC: 030317671006 In the Box Redfield 3-9x50 Revolution Riflescope (4-Plex Reticle) - 2 x Lens Covers
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Redfield 3-9x50 Revolution Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedfield 67100 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 33' @ 100 yd / 11 m @ 100 m
12x: 13.1' @ 100 yd / 4.4 m @ 100 m | | Exit Pupil Diameter | 3x: 15.2 mm
9x: 5.6 mm | | Eye Relief | 3.7 to 4.2" / 94 to 107 mm | | | | Reticle Type | 4-Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 56 MOA | | Elevation Adjustment | 56 MOA | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.4" / 315 mm | | Weight | 12.6 oz / 357 g | | | | Package Weight | 1.275 lb | | Box Dimensions (LxWxH) | 14.2 x 3.7 x 3.0" |
