User Manual for Redfield 4-12x40 Revolution Riflescope Click to enlarge the picture
Contents of the user manual for the Redfield 4-12x40 Revolution Riflescope
- Product category: Riflescopes Redfield
- Brand: Redfield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redfield Riflescopes
 |
User manual for the Redfield 4-12x40 Revolution Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redfield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redfield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redfield product will considerably shorten its lifespan!
|
Product description The 4-12x40 Revolution Riflescope from Redfield features a weather-sealed housing and Accu-Range circle-crosshair reticle. This mid-range scope uses Redfield's Illuminator Lens System to produce high-contrast views that are bright throughout the zoom range. Resettable, finger-adjustable Accu-Trac windage and elevation turrets allow impact point adjustments in 1/4 MOA increments. The Rapid Target Acquisition eyepiece with lockable setting enables the shooter to maintain the diopter correction for their vision. Additionally, the nitrogen-filled aluminum housing is built to deliver fogproof and waterproof performance. - Optical Performance
-
- Magnification: 4-12x
- Objective lens: 40mm
- Main tube diameter: 1"
- Eye relief: 3.7-4.9"

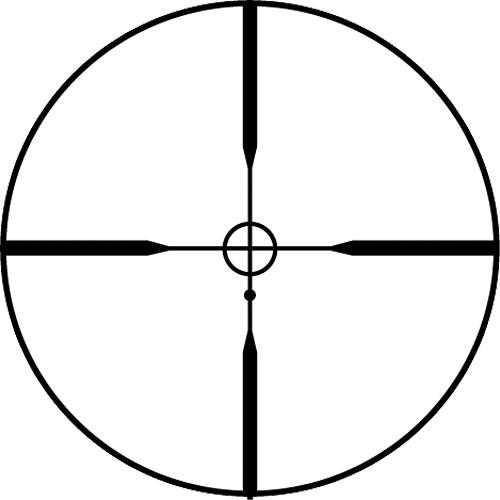

- Accu-Range reticle: Circle-crosshair pattern with secondary aiming point for bullet drop compensation
- Multicoated Illuminator Lens System
- Use and Handling
-
- 1/4 MOA impact point correction

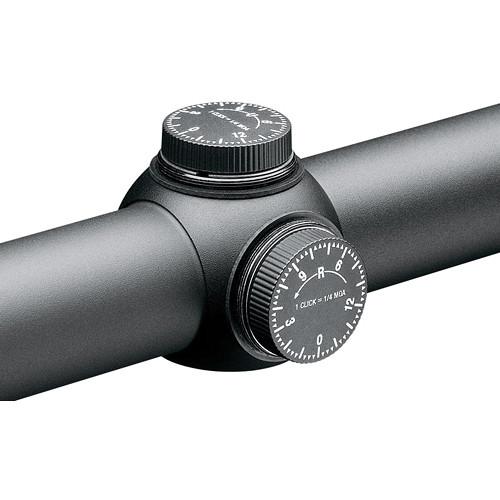

- Accu-Trac finger-adjustable turrets
- Rapid Target Acquisition eyepiece with lockable setting
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- Weight: 13.1 oz
UPC: 030317671150 In the Box Redfield 4-12x40 Revolution Riflescope (Accu-Range) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Redfield 4-12x40 Revolution Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedfield 67115 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 19.9' @ 100 yd / 6.6 m @ 100 m
12x: 9.4' @ 100 yd / 3.1 m @ 100 m | | Exit Pupil Diameter | 4x: 8.9 mm
12x: 3.5 mm | | Eye Relief | 3.7 to 4.9" / 94 to 124.5 mm | | | | Reticle Type | Accu-Range Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.3" / 31 cm | | Weight | 13.1 oz / 371 g | | | | Package Weight | 1.175 lb | | Box Dimensions (LxWxH) | 14.3 x 3.45 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
