User Manual for Redrock Micro 8-113-0009 ultraCage Black Ultimate Field Cinema Bundle for DSLR Click to enlarge the picture
Contents of the user manual for the Redrock Micro 8-113-0009 ultraCage Black Ultimate
- Product category: DSLR Video Supports & Rigs Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro DSLR Video Supports & Rigs
 |
User manual for the Redrock Micro 8-113-0009 ultraCage Black Ultimate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|

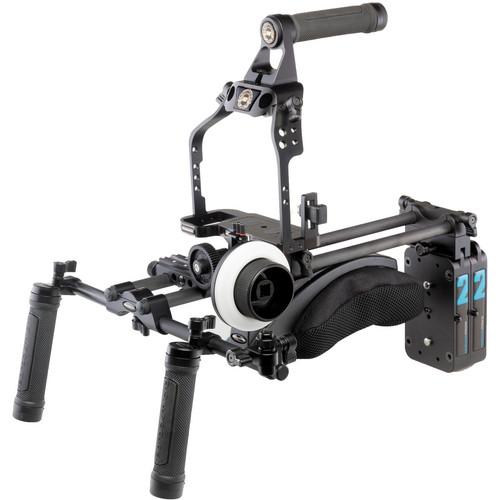

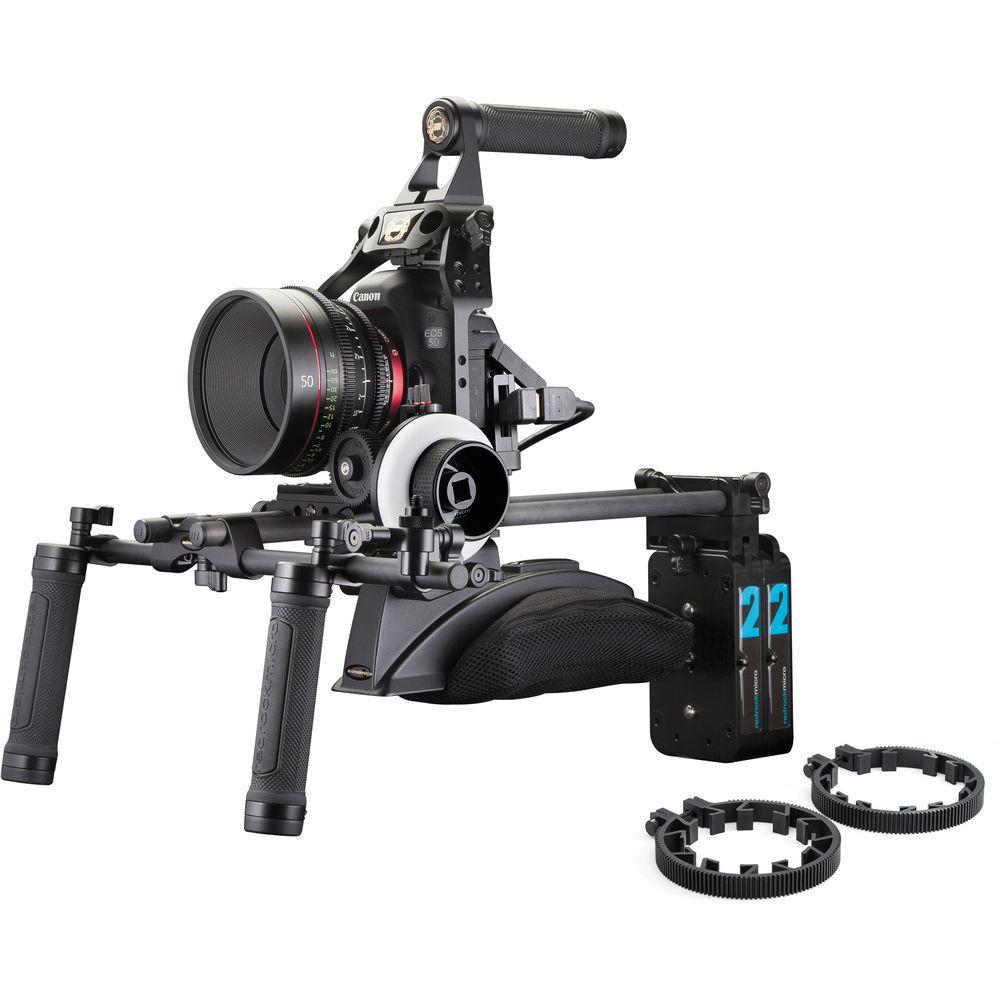

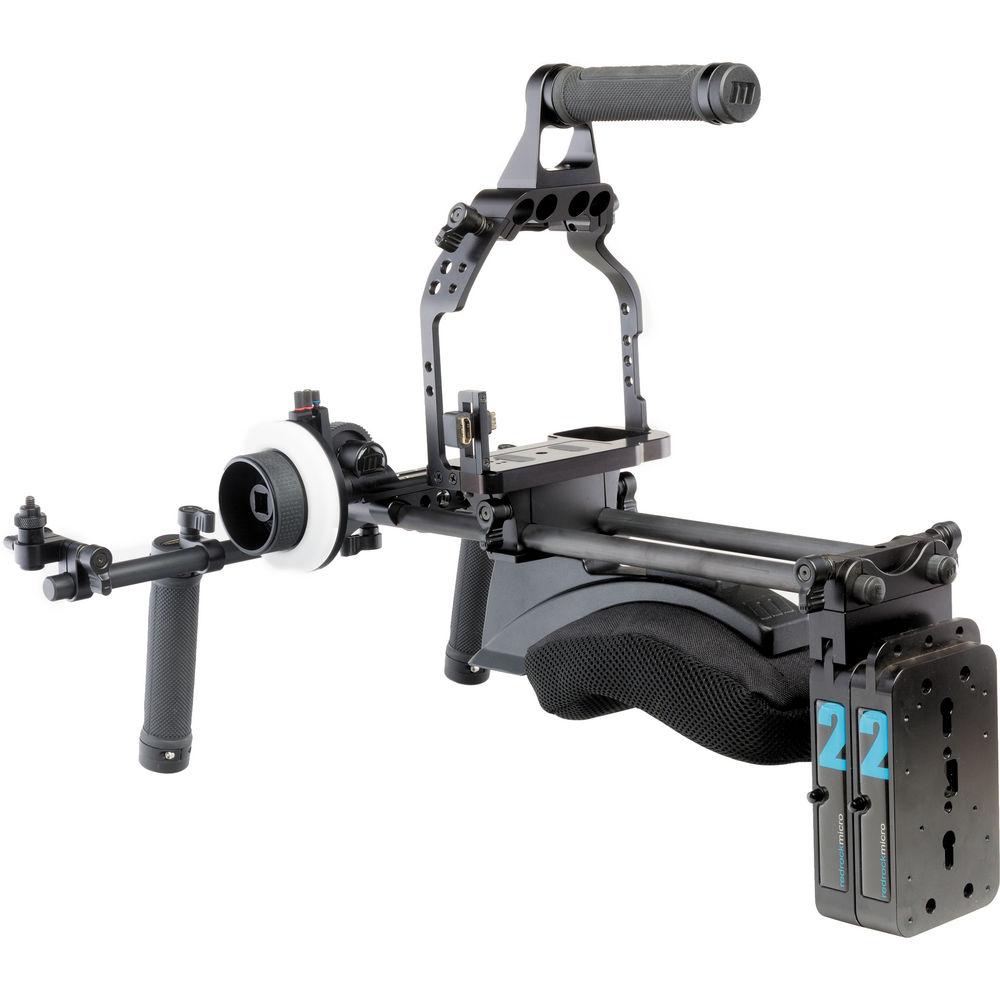

Product description Redrock Micro's 8-113-0009 ultraCage Black Ultimate Field Cinema Bundle for DSLR is designed for most commonly available DSLR cameras and protects your DSLR without blocking any of its functionality. It provides a base shoulder rig with follow focus that allows you to add your choice of matte boxes and accessories. It provides a cage that protects your DSLR and features accessory mounting capabilities.
The bundle includes the ultraCage Black Professional Series DSLR; the Universal Shoe Clamp; 4" Grip Rod; 18" long carbon fiber 15mm rods; 14" carbon fiber 15mm rods; a top handle; the microFollowFocus Black; a rod-mounted shoulder pad; two, 2-pound, quick release weights; and microBalance plate. - Features
-
- Integrated top and bottom rod clamps.
- Sleek form-fitting design takes up as little space as possible.
- Four points of contact between the camera and cage for security.
- Spring-loaded locking levers.
- 100% Made in USA.
- Camera Compatibility
-
- The ultraCage Black Ultimate Field Cinema Bundle for DSLR cameras is compatible with the following cameras, allowing full functionality, and the cage does not block any ports or battery compartments.
- Canon 5D MK III, 5D MK II, 7D, 6D
- Nikon D90, D300s, D600, D800
- Sony A50 series, A60 series, A70 series.
- The ultraCage is compatible with many DSLRs. However, it will block access to the battery door of some DSLRs. Redrock Micro suggests the use of an available AC Power adapter when working with the following cameras.
- Canon 60D & Canon Rebel series (T2i, T3i, T4i)
- ultraCage
- The ultraCage provides four individual points of contact, and the provided set screws prevent the camera from twisting when mounted on the cage. The cage protects your DSLR, and provides 24 threaded mounting points that allow you to attach accessories to your DSLR without stressing the camera body. The built-in, top-mounted rod clamps allow you to mount 15mm rods above the lens for additional accessories.
- Universal Shoe Clamp
- The included Universal Shoe Clamp allows you to securely mount a variety of DSLR cameras in the cage.
- Rear Chassis
- The included rear chassis provides 48 additional accessory mounting points and a second clamping point for top and bottom rods, creating a robust rod setup.
- microFollow Focus
- The follow focus includes an adjustment lever that allows you to adjust the amount of play in the unit. It features integrated hard stops, and a moveable focus indicator that allows you to pull focus from any place on the camera while maintaining view of focus indicator and focus wheel.
- Matte Box
- Featuring a swing-away design, the matte box supports 4x4" and 4x5.65" professional filters, with two rotating filter stages that can rotate 360°. A top/bottom eyebrow and a pair of adjustable side wings allow you to control light spill and lens flare.
- microMount with Spud
- The microMount with spud allows you to add a cold shoe accessory mount to the rig in place of the one covered by the Universal Shoe Clamp.
- HDMI Wirelock
- The included HDMI Wirelock features a right-angle mini to full-size HDMI adapter and holds the adapter tight into your DSLR so the HDMI cable doesn't fall out.
- Counterweight
- The bundle includes two quick-release counterweights and a microBalance bracket that attaches to 15mm LWS rods. The micro balance bracket can be adjusted from side to side to help balance the rig on your shoulder. The weights are designed to fit into the bracket and lock into place. Pressing a latch on the weight allows you to remove it from the bracket. Each weight features both the male and female QR sides, allowing you to stack many weights on each other. The weights are also tapped to mount available Anton Bauer and V-mount brackets.
In the Box Redrock Micro 8-113-0009 ultraCage Black Ultimate Field Cinema Bundle for DSLR Universal Shoe Clamp microShoulderPad with Rod Clamp 2 x microHandGrip 8-011-0002 15mm Carbon Fiber Rod (18", Pair) Handlebar Clamp uyxqvcud 4" Handlebar Rod 8" Handlebar Rod microFollowFocus Black microLensGear Size B (Black) microLensGear Size C (Black) wireLock for ultraCage DSLR & ultraBase DSLR ultraCage Black Top Handle Assembly microBalance QR 4 lb Vertical Weight Kit (Black) Limited Lifetime Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro 8-113-0009 ultraCage Black Ultimate Field Cinema Bundle for DSLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 8-113-0009 Specs | Material of Construction | ultraCage & Rear Chassis: Machined aluminum | | Accessory Mounting | ultraCage:
16 x 3/8"-16
8 x 1/4"-20 | | | | Package Weight | 16.85 lb | | Box Dimensions (LxWxH) | 17.6 x 14.8 x 8.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
