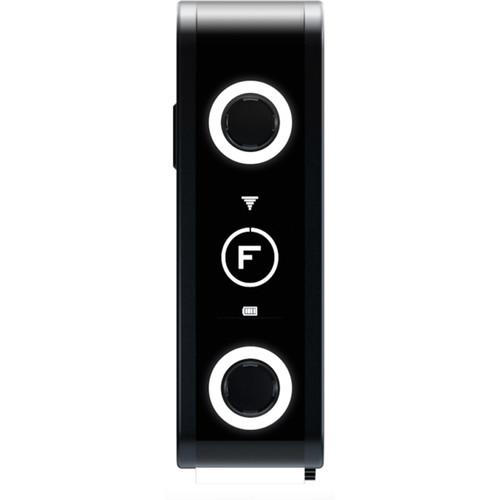

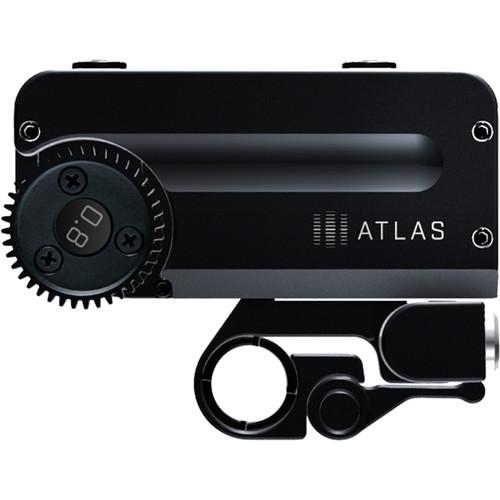

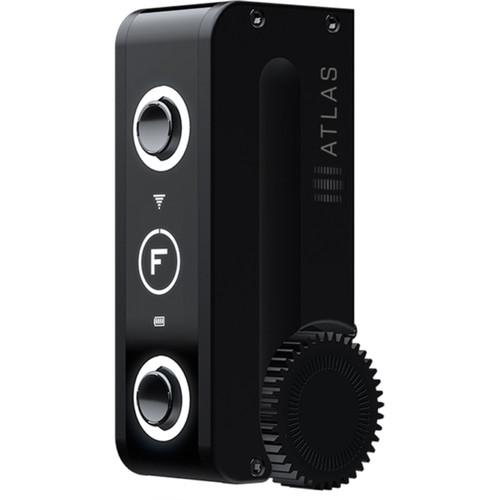

Product description The Redrock Micro Atlas Smart Motor features a compact design with increased torque and resolution compared to Redrock's previous motors. This is the standalone configuration of the motor which includes a single motor with a removable 0.8 MOD drive gear. The included 15 to 19mm bushing allows you to mount the motor on either cine-rod standard. The motor features both manual and automatic calibration. Though small in size, it has many advanced features including rotating ports that make cabling easier, LED indicators, and an OLED display screen.

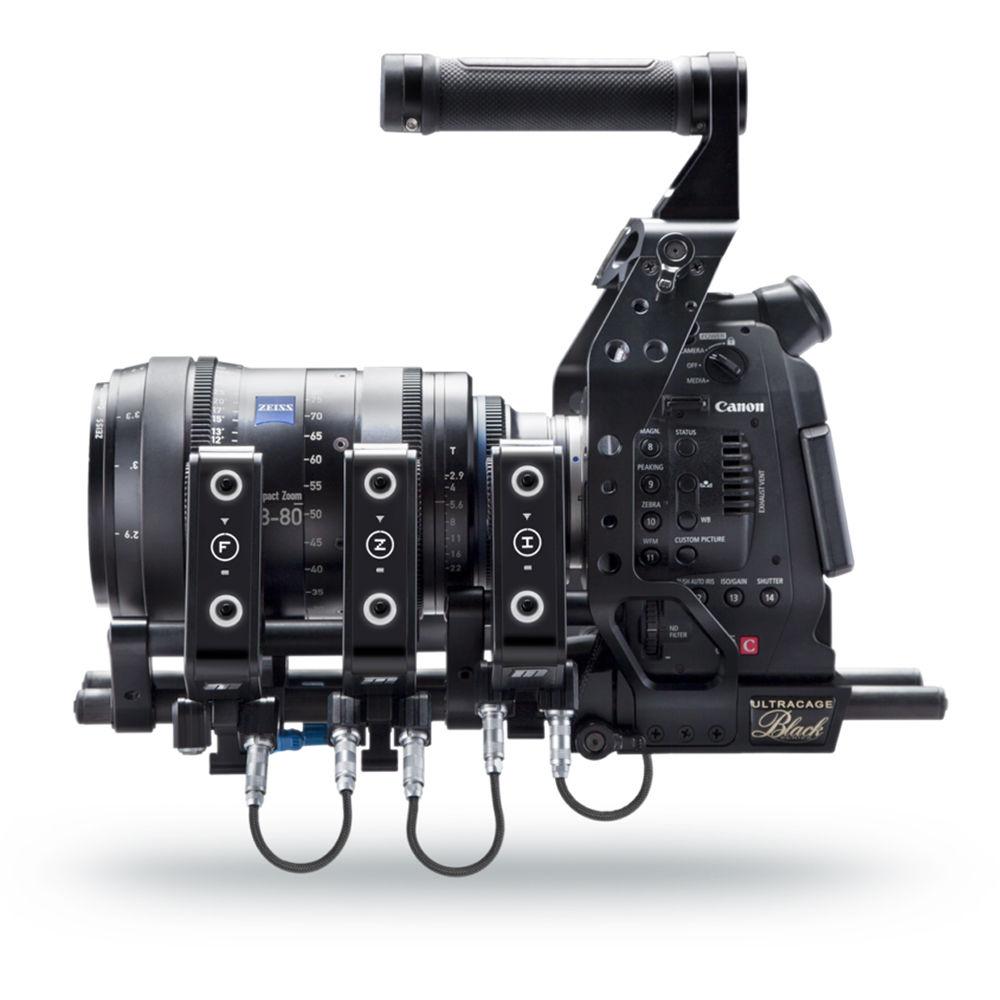

Well suited to either focus, iris, or zoom, the motors are hardwired and can be daisy-chained as each one can function without a separate control box or MDR, greatly saving you on weight. The motors also support Wi-Fi, RF, NFC, and S.Bus control for a truly flexible system. The free Eclipse mobile app makes setup and calibration a breeze. -
- Works with virtually any camera and lens
- Removable 0.8 MOD drive gear
- Wireless-ready (2.4 GHz)
- No external brain/MDR/control/distribution box required
- Auto and manual calibration
- One-button push for auto calibration
- Adjustable torque
- Onboard LED and OLED for visual confirmation of status and configuration
- Rotating ports simplify cabling and rigging
- Hemo-style connectors eliminate cable mismatch
- Wide selection of add-on controllers—solo op fingerwheel, mini FIZ, wireless remote, drone
- Included Eclipse mobile app for configuration and wireless remote focus control
- Mission Control-ready—display real-time focus information on compatible smallHD monitors (not included)
- MetaTouch offers lens discovery and configuration for fast lens changes just by touching the lens
In the Box Redrock Micro Atlas Smart Motor (Single Motor Standalone) 15 to 19mm Bushing Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro Atlas Smart Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 2-155-0001 Specs | Material of Construction | Aircraft-Grade Aluminum | | Connector | Connector 1: Eclipse Net Power and Communications
Connector 2: Eclipse Net Power and Communications
Connector 3: Mini Control Port S.Bus | | Wi-Fi Compatibility | Frequency: 2.4 GHz
NFC: Yes | | Power | 12 to 18 VDC | | Dimensions | 3.78 x 1.14 x 2.8" / 9.6 x 2.9 x 7.1 cm | | Weight | 8.4 oz / 238 g |
