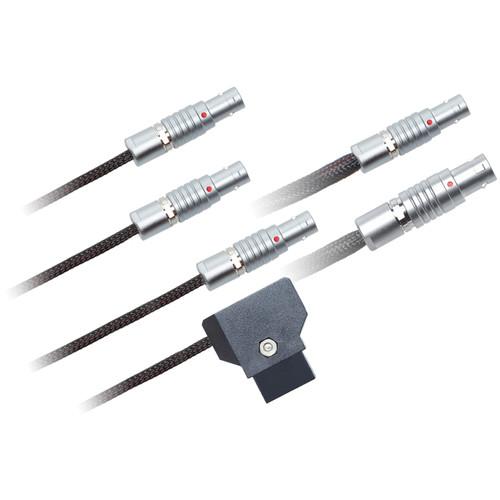

User Manual for Redrock Micro DJI Ronin - microRemote flexCable Wireless Kit Click to enlarge the picture
Contents of the user manual for the Redrock Micro DJI Ronin - microRemote
- Product category: Wireless Lens Control Cables Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Wireless Lens Control Cables
|
User manual for the Redrock Micro DJI Ronin - microRemote contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|
Product description This kit from Redrock Micro includes one 18" long 7-Pin LEMO to 7-Pin LEMO flexCable for microRemote Torque Motor, one 12" long D-Tap to 2-Pin LEMO flexCable for microRemote, and one 50" long 3-Pin LEMO to 5-Pin LEMO flexCable for microRemote Fingerwheel. This flexCable upgrade kit replaces the microRemote standard cable with ultra-flexible, lightweight flexCables with lengths and connectors optimized for the Ronin. - D-Tap to 2-Pin LEMO flexCable for microRemote (12") This 12" long Redrock Micro D-Tap to 2-Pin LEMO flexCable for microRemote is for powering an optional microRemote from a D-Tap power source. The 12" cable is designed for use specifically with gimbals where the D-tap battery port is closer to the microRemote Basestation, such as the DJI Ronin's D-tap battery ports, which are located on the camera sled.
Designed to be 200% more flexible than standard cables, which means easier cable wrangling and less drag when using accessories between the camera and gimbal frame, such as when using a Fingerwheel controller or for power connections. - The D-Tap connector is also known as a P-Tap connector.
- 7-Pin LEMO to 7-Pin LEMO flexCable for microRemote Torque Motor (18") This 18" long Redrock Micro 7-Pin LEMO to 7-Pin LEMO flexCable for microRemote Torque Motor connects to the 7-pin connector on an optional microRemote Basestation to an optional microRemote Torque motor, delivering both power and control from the basestation to the motor.
Designed to be 200% more flexible than standard cables, which means easier cable wrangling and less drag when using accessories between the camera and gimbal frame, such as when using a Fingerwheel controller or for power connections. - flexCable for microRemote Gimbal Fingerwheel (50") The Redrock Micro flexCable for the microRemote Fingerwheel lets you connect the microRemote Fingerwheel to the microRemote Basestation. This 50" version is designed to allow for full range of gimbal movement while using the Fingerwheel. It features a 3-pin connector on one end and 5-pin on the other.
- Lighter Design
- flexCables are 35% lighter than most standard cables thanks in large part to the cable sheathing that's ultra-lightweight (yet still provides the required protection).
- Increased Flexibility
- flexCables have a 200% greater flexibility than most standard cables, allowing for less drag and easier cable wrangling. These cables can be wrapped, twisted, and bent to keep your rig tight without damaging or crimping the cable.
- Thin Construction
- flexCables are 20% thinner than most standard cables. You can more easily install them where you need to and secure them with less effort.
In the Box Bundle Items D-Tap to 2-Pin LEMO flexCable for microRemote (12") wbebeqdaxxxaveywtudeds 7-Pin LEMO to 7-Pin LEMO flexCable for microRemote Torque Motor (18") flexCable for microRemote Gimbal Fingerwheel (50") Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro DJI Ronin - microRemote flexCable Wireless Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - D-Tap to 2-Pin LEMO flexCable for microRemote (12")
| Length | 12" / 30.5 cm | | Connector 1 | D-Tap | | Connector 2 | 2-pin LEMO | | Weight | 2 oz / 57 g | | | | Box Dimensions (LxWxH) | 4.4 x 2.2 x 0.3" | - 7-Pin LEMO to 7-Pin LEMO flexCable for microRemote Torque Motor (18")
| Length | 18" / 46 cm | | Connector 1 | 7-pin LEMO | | Connector 2 | 7-pin LEMO | | Weight | 2 oz / 57 g | | | | Box Dimensions (LxWxH) | 4.9 x 1.6 x 1.1" | - flexCable for microRemote Gimbal Fingerwheel (50")
| Length | 50" (127 cm) | | Connector 1 | 3-pin | | Connector 2 | 5-pin | | Weight | 2 oz (57 g) | | | | Box Dimensions (LxWxH) | 9.0 x 1.0 x 0.3" |
