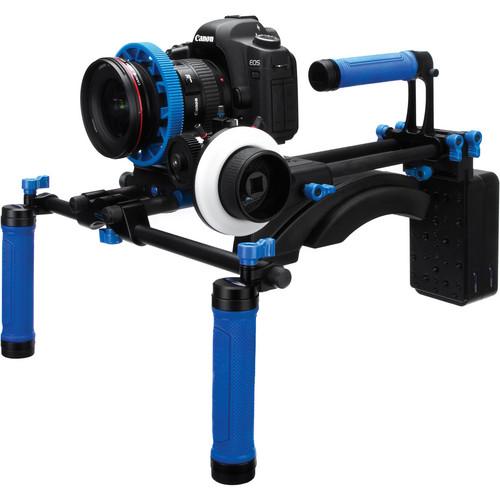

User Manual for Redrock Micro DSLR Field Cinema Deluxe Bundle Black with Advanced microFollowFocus Click to enlarge the picture
Contents of the user manual for the Redrock Micro DSLR Field Cinema Deluxe
- Product category: DSLR Video Supports & Rigs Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro DSLR Video Supports & Rigs
|
User manual for the Redrock Micro DSLR Field Cinema Deluxe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|
Product description The Redrock Micro DSLR Field Cinema Deluxe Bundle Black with Advanced microFollowFocus is a complete rig to support HDSLR cameras with external monitor.
Compatible with most HDSLR cameras with or without battery grips, the Cinema Deluxe Bundle enables you do professional-style cinematography. The included DSLR baseplate mounts your DSLR camera on rails, and a microMount allows you to attach a monitor to the rig. The external monitor helps a camera assistant to precisely pull the focus while the cameraman concentrates on framing.
The microFollowFocus Black with 0.8 film pitch drive gear allows accurate focusing of still and cinema lenses. It includes a backlash dial that enhances the precision of focusing. The integrated hard stops with easy begin/end setups enable fast repeatable racking between 2 focus points and thus allow usage of lenses without hard stops. A moveable reinforced focus indicator allows you to pull focus from any place on the camera while maintaining view of focus indicator and focus wheel.
The 3D marking disk allows you to view your focus marks from many angles. The quick release clamp can be easily attached or detached from the set up without disturbing the other rail mounted gears. A flippable gearbox adjusts the drive gear front and rear and is compatible with lenses of any size.
An industry-standard, all-metal machined accessory port enables you to add focus whip or speed crank to the focusing system. A Kung Fu rubberized handgrip prevents hand-slips and ensures stable shooting. The microFollowFocus Black has an aluminum construction to ensure durability.
With 18" carbon fiber rods and microShoulderPad, the DSLR camera can be easily carried over your shoulders. Using a handlebar rod clamp, you can attach the 2 hand grips to the standard 15 mm rods for perfect support and maneuvering.
The microBalance Plus provides a vertical accessory plate for mounting microBalance counterbalance weights or other accessories to standard 15 mm rods. It consists of a rod clamp, a left-right adjustment block, and a cheese plate.
With the rod-clamp having thumb screws, you can securely attach the microBalance Plus unit to 15 mm standard rods of camera support systems. Using the left-right adjustment block, you can optimally adjust the position of the counterweight to balance your camera system. The cheese plate offers mounting holes for Anton Bauer or Sony v-mount battery plates. Two counterbalance weights are included to balance the rig on your shoulder.
The microHandle Plus is an upgraded version of the microHandle and is used as a top or side handle for a camera rig. It comes with an integrated hot shoe clamp for directly connecting the handle to the top shoe mount on your DSLR camera. Industry-standard rails can be attached to the handle via mounting holes for mounting further camera accessories. - Complete rig to support HDSLR cameras with external monitor
- Compatible with DSLR cameras such as Nikon D90, D300s and Canon 7D, 1D Mark IV, and 5D MKII
- Ideal to be used with DSLR cameras offering an output to an external monitor
microFollowFocus Black - Allows precise focusing of still and cinema lenses
- Includes a backlash dial that enhances the precision of focusing
- Integrated hard stops with easy begin/end setups enable fast repeatable racking between two focus points and thus allows usage of lenses without hard stops
- A moveable reinforced focus indicator allows you to pull focus from any place on the camera while maintaining view of focus indicator and focus wheel
- 3D marking disk - allows you to view your focus marks from many angles
- Flippable gearbox - adjusts the drive gear front and rear and is compatible with lenses of any size
- Industry-standard, all-metal machined accessory port - you can add focus whip or speed crank to the focusing system
- Kung Fu rubberized handgrip - prevents hand-slips and ensures stable shooting
- With 18" carbon fiber rods and microShoulderPad, the DSLR camera can be easily carried over your shoulders
Handlebar Rod Clamp - You can attach 4" or 8" rods to the standard 15 mm rods and create handgrip support for shouldermount rigs
microBalance Plus - Provides a vertical accessory plate for mounting microBalance counterbalance weights or other accessories to standard 15 mm rods
- Consists of rod clamp, left-right adjustment block and cheese plate
- Rod-clamp - allows you to securely attach the microBalance Plus unit to 15 mm standard rods of a camera support system
- Left-right adjustment block - adjusts the position of the counterweight to optimally balance your camera system
- Cheese plate with mounting holes for brick-style batteries from Anton Bauer and Sony v-mount
microHandle Plus - Upgraded version for microHandle and is used as a top or side handle for a camera rig
- Integrated hot shoe clamp for directly connecting the handle to the top shoe mount on your DSLR camera
- 1/4" 20 female tap allows a top-mounted monitor to be attached to the handle for easy low-mode shooting
- Mounting holes for attaching the handle to industry-standard rails, which can be used for mounting camera accessories
DSLR Baseplate - Enables you to mount your DSLR camera on rails
- You can attach a monitor to the rig (with a microMount)
- Being able to view high-definition images on an external monitor, a camera assistant can precisely pull the focus
- Rig offers easy access to video setup tutorials
In the Box Redrock Micro DSLR Field Cinema Deluxe Bundle Black with Advanced microFollowFocus microFollowFocus Black 18" Carbon Fiber Rods microShoulderPad Handlebar Rod Clamp microBalance Plus microHandle Plus DSLR Baseplate 1 - Year Warranty User Manual PDF 1.6mbysubfbecyxadstzrxtwzbwyabruryxrdyt Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro DSLR Field Cinema Deluxe Bundle Black with Advanced microFollowFocus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 18-066-0001 Specs | | | Package Weight | 14.1 lb | | Box Dimensions (LxWxH) | 19.5 x 8.75 x 8.0" |
