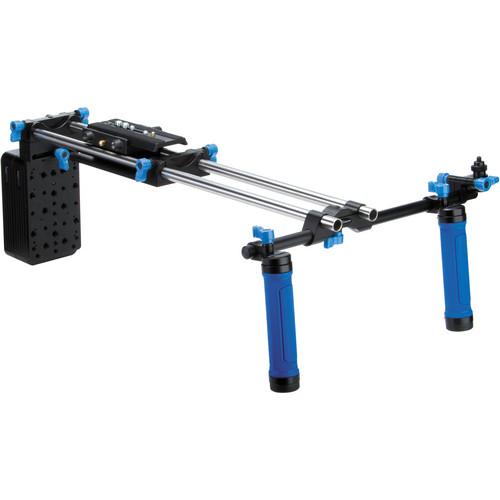

User Manual for Redrock Micro Field Cinema Shoulder Rig for the Sony F3 Click to enlarge the picture
Contents of the user manual for the Redrock Micro Field Cinema Shoulder Rig
- Product category: Camcorder Supports & Rigs Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Camcorder Supports & Rigs
|
User manual for the Redrock Micro Field Cinema Shoulder Rig contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|
Product description Redrock's Field Cinema Shoulder Rig for the Sony F3 combines a baseplate and a rod-mount shoulder pad into the core of a shoulder rig. By way of rods, clamps and a cheese plate, this core is enhanced into a complete rig with a follow focus, counterweights, handlebars, and a mount for an external monitor. An optional matte box can be mounted right in front of the handlebars.
The handlebars are made up of two rods, one twice the length of the other. The longer rod sticks out to the side more than the other. The monitor mount sits on that rod. The counterweights, two in total, each weighing 2 lbs, attach to the cheese plate. The baseplate features a quick-release camera plate. 18" rods run through the baseplate and hold the handlebars in front and the cheese plate with the weights in back. You can remove the weights from the cheese plate and replace them with a battery, an audio transmitter, or with other accessories.
The follow focus is Redrock's microFollowFocus Black, equipped with a .8 drive gear for cinema lenses. Optional gear rings will add support for still lenses. microFollowFocus Black has a flippable gear box, integrated hard stops, and a backlash dial to prevent against backlash.
Other than using the rig shoulder-mounted, you can take off the shoulder pad (or just move it away some from the baseplate) and mount the rig onto a tripod. The baseplate features both 1/4" and 3/8" tripod-mount threads on its underside. -
- Tripod-mount baseplate and rod-mount shoulder pad form the core the rig
- 0.8 follow focus features a flippable gear box, hard stops, and a backlash dial
- Shoulder pad can be removed (or moved) and the baseplate mounted to a tripod
- Handlebars are made up of two rods and stick out to one side more than the other
In the Box Redrock Micro Field Cinema Shoulder Rig for the Sony F3 microSupport Baseplate (15mm Low Riser) bxrdcztvvuxwyzxszywvsy microFollowFocus Black microShoulderPad with FieldTech 8-011-0002 15mm Carbon Fiber Rod (18", Pair) microMount 8" Handlebar Rod 4" Handlebar Rod Handlebar Clamp microHandGrip (Blue) MicroBalance Plus microBalance Counterbalance Add-on Weight Lifetime Warranty Against Defects User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro Field Cinema Shoulder Rig for the Sony F3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 22-066-0002 Specs | Mount Type | Baseplate features 1/4" and 3/8" tripod-mount threads | | Rod Length | 15 mm rod: 18" (45 cm)
4" handlebar rod (10 cm)
8" handlebar rod (20 cm) | | Follow Focus | .8 gear drive | | Counterweight | 2x 2 lb (2x .9 kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 21.0 x 21.0 x 14.0" |
