User Manual for Redrock Micro FieldRunner AC Rig Click to enlarge the picture
Contents of the user manual for the Redrock Micro FieldRunner AC Rig
- Product category: Handles & Grips Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Handles & Grips
|
User manual for the Redrock Micro FieldRunner AC Rig contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|

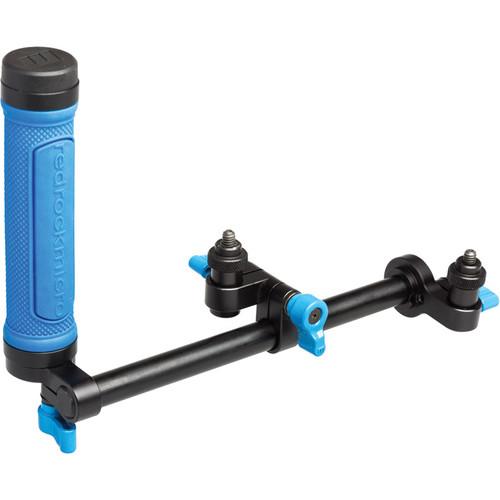

Product description The FieldRunner AC Rig from Redrock Micro lets you mount your reference monitor, microRemote Handheld Wireless Focus Controller, and wireless video receiver onto a single handheld rig. The AC Rig features a microHandGrip, an 8" Grip Rod, microMount with Spud, and a microSpud.The rig serves as a suitable foundation for any remote focus setup, and it allows you to secure your accessories together without using hook & loop fasteners or other adhesives that can damage your equipment. Ideal for use with Steadicam and gimbal based stabilizers, the FieldRunner AC Rig allows for focus to be pulled from a calm and controlled environment irrespective of the camera position. It also features an additional 1/4"-20 thread underneath your monitor for easy mounting to a stand, and the microRemote Handheld Controller can then be quickly removed to allow multiple people to view the monitor on set.Built off standard 15mm rods, the FieldRunner AC Rig is designed to be configured and built upon as your requirements augment. Its modular design makes it comfortable for all types of operators. It can easily transition from a handheld configuration to a stand for extended shooting as well. With a 360° rotating handgrip, the ideal placement and balance is just a thumbscrew away. The Monitor and Wireless Controllers are attached with included microSpuds, allowing for precise alignment and viewing angle.Designed by using lightweight materials, the Rig Kit adds less than one pound to your monitor and wireless controller. Your existing Redrock Micro Lanyard can also be incorporated into the FieldRunner AC Rig for additional support and easy carrying. Please see the links below for more information on the components of this ri - microHandGrip (Blue) The Redrock Micro microHandGrip (Blue) combines a rubberized handgrip with an integrated all-metal rod clamp and thumb screw to provide a comfortable, non-slip handle. Attaches to 15mm rod/rail support systems such as Redrock's microShoulderMount and its DSLR support rigs.
- Grip Rod - 8" With its integrated rod clamp and thumb screw, the Redrock Micro 8" Grip Rod is ideal for attaching rod-mounted accessories to any 15mm rail system. Forming a perfect combo with Redrock's microMount, the Grip Rod can be used to attach such accessories as monitor clamps, hand grips, and microphone shock mounts.
- microMount with Cold Shoe Spud The Redrock Micro microMount with Cold Shoe Spud is a two-piece set that lets you conveniently attach a shoe-mount accessory, like a light or mic, onto a 15mm rod. Additionally, the Spud of the set features atop it a 1/4"-20 screw-hole for accessories with 1/4"-20 screws; (and furthermore, the Spud can be removed from the microMount to reveal a 1/4"-20 screw for accessories with 1/4"-20 screw-holes, like monitors).
- microSpud The Redrock Micro microSpud is a quick-release mount used with a microMount, microCheesePlate, or any other accessory requiring a 1/4"-20 male or female connection. It is 1" long, with an industry-standard 15mm diameter.
In the Box Bundle Items microHandGrip (Blue) beusexuzswrbdd Grip Rod - 8" microMount with Cold Shoe Spud - Lifetime Warranty against Defects per Product Registration within 30 Days of Purchase
microSpud Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro FieldRunner AC Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - microHandGrip (Blue)
| | | Box Dimensions (LxWxH) | 7.7 x 2.5 x 1.5" | - Grip Rod - 8"
| Diameter | 15mm | | Length | 8" | | Weight | 6 oz (170g) | | | | Box Dimensions (LxWxH) | 9.3 x 1.5 x 0.04" | - microMount with Cold Shoe Spud
| Mount Types | 15 mm openning for a 15 mm rod
Cold-shoe for shoe-mount accessories
1/4"-20 screw-hole inside spud for accessories with 1/4"-20 screws
1/4"-20 screw underneath spud for accessories with 1/4"-20 screw-holes | | | | Box Dimensions (LxWxH) | 5.0 x 4.2 x 3.4" | - microSpud
| Dimensions | Length: 1"
Diameter: 15mm | | Mount | 1/4"-20 (male/female) | | | | Box Dimensions (LxWxH) | 2.0 x 2.0 x 1.0" |
