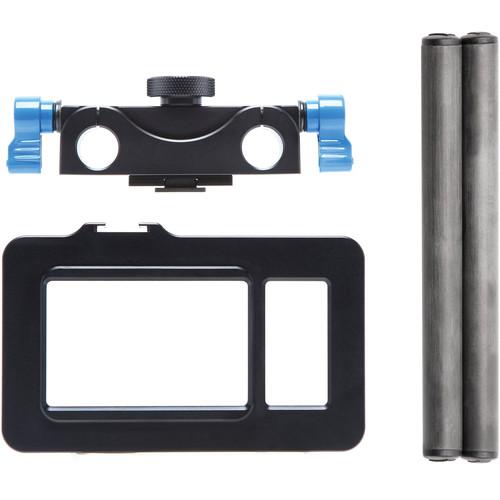

User Manual for Redrock Micro Gimbal Kit for Blackmagic Pocket Camera Click to enlarge the picture
Contents of the user manual for the Redrock Micro Gimbal Kit for Blackmagic
- Product category: Stabilizers & Gimbals Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Stabilizers & Gimbals
|
User manual for the Redrock Micro Gimbal Kit for Blackmagic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|
Product description The Gimbal Kit for Blackmagic Pocket Camera from Redrock Micro includes the retroFlex cage for Pocket Camera, a pair of carbon fiber rods, and a gimbal rail clamp.The retroFlex cage for Blackmagic Pocket Camera provides added protection, stability, and accessory mounting threads for your Blackmagic Pocket Cinema Camera, while leaving access open to all camera functions. The camera attaches to the cage via a top and bottom 1/4"-20 threaded screw and rests flush against the backplate to assure the camera remains straight in the cage. The cage adds nine additional accessory mounting points, consisting of six 1/4"-20 threads, two 3/8"-16 threads, and a cold shoe mount.
The pair of 6" carbon fiber rods are 15mm in size, making them ideal for attaching a matte box, follow focus, and much more. The gimbal rod clamp for remote focus attaches to the hot shoe of any camera to provide a pair of 15mm rod clamps, ideal for attaching the motor of a remote focus system. The Rod Clamp replaces the need for a heavy camera baseplate while operating any gimbal based stabilizer. The clamp features a pair of industry standard 15mm rod clamps. This allows for the remote focus motor to be placed on either side of the camera for optimal balance. The ability to choose specific rail length also sheds any unnecessary weight on the rig. The Gimbal Rod Clamp secures to the hot shoe of any camera by tightening its large knurled screw. - retroFlex Cage for Blackmagic Pocket Camera The retroFlex Cage for Blackmagic Pocket Camera from Redrock Micro provides added protection, stability, and accessory mounting threads for your Blackmagic Pocket Cinema Camera, while leaving access open to all camera functions. The camera attaches to the cage via a top and bottom 1/4"-20 threaded screw and rests flush against the backplate to assure the camera remains straight in the cage. The cage adds nine additional accessory mounting points, consisting of six 1/4"-20 threads, two 3/8"-16 threads, and a cold shoe mount.
The open-face design of the cage keeps the camera's grip accessible to allow for easy and secure handling. It also leaves the area around the lens mount open, so it won't interfere with any lens mount adapters. The optional wireLock accessory can be added to provide a locking mechanism for each of the five cable connectors on the Pocket Cinema Camera. This is especially useful when using an external HDMI monitor or recorder.
The retroFlex cage also serves as the foundation for other retroFlex accessories, including an optical viewfinder and pistol grip with integrated start/stop button. An integrated metal frame on the rear of the cage is provided for quickly adding or removing the retroFlex Optical Viewfinder. -
- 360° of camera protection
- Open-face design leaves lens mount and camera grip accessible
- Doesn't block buttons or battery door
- Adds six 1/4"-20 threads, two 3/8"-16, and a cold shoe mount
- Integrated magnetic frame for adding the optional retroFlex Optical Viewfinder
- Optional wireLock accessory secures cables
- 8-011-0005 15mm Carbon Fiber Rod (6", Pair) The 8-011-0005 15mm Carbon Fiber Rods (6", Pair) are designed specifically for Redrock Micro's wide variety of support systems. The rods are 15mm in size, making them ideal for attaching a mattebox, follow focus, and much more. The carbon fiber nets a total weight reduction of 66% when compared to stainless steel, making the unit incredibly light. Carbon fiber is not only extremely light, but also has a rigidity that exceeds titanium, making it extremely sturdy.
- Redrock carbon fiber rods are precision crafted 15mm support rods.
- Can be used with a wide variety of accessories, including follow focus and matteboxes.
- Gimbal Rod Clamp for Remote Focus The Redrock Micro Gimbal Rod Clamp for Remote Focus attaches to the hot shoe of any camera to provide a pair of 15mm rod clamps, ideal for attaching the motor of a remote focus system. The Rod Clamp replaces the need for a heavy camera baseplate while operating any gimbal based stabilizer. This reduces the weight of the overall system, allowing not only for longer shooting times without operator fatigue, but also the creative freedom to use a wider variety of lenses.
The clamp features a pair of industry standard 15mm rod clamps. This allows for the remote focus motor to be placed on either side of the camera for optimal balance. The ability to choose specific rail length also sheds any unnecessary weight on the rig. The Gimbal Rod Clamp secures to the hot shoe of any camera by tightening its large knurled screw. This allows it to be attached and removed securely without any tools. - Lightweight solution to add rods to any camera, making it ideal for mounting a remote focus controller on a gimbal stabilizer
In the Box Bundle Items retroFlex Cage for Blackmagic Pocket Camera wbebeqdaxxxaveywtudeds - 2 x 1/4" Camera Mounting Screw
- Limited Lifetime Warranty (with Product Registration Within 30 Days of Purchase)
8-011-0005 15mm Carbon Fiber Rod (6", Pair) Gimbal Rod Clamp for Remote Focus - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro Gimbal Kit for Blackmagic Pocket Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - retroFlex Cage for Blackmagic Pocket Camera
| Material of Construction | Aluminum | | Accessory Mounting Threads | 6 x 1/4"-20
2 x 3/8"-16
1 x Cold shoe mount | | | | Box Dimensions (LxWxH) | 3.0 x 3.0 x 2.0" | - 8-011-0005 15mm Carbon Fiber Rod (6", Pair)
| Material | Carbon Fiber | | Dimensions (LxDiameter) | 6" (15.2cm) x ø15mm | | Weight | 1.2 oz (48 g) | | | | Box Dimensions (LxWxH) | 7.717 x 2.756 x 1.575" | - Gimbal Rod Clamp for Remote Focus
| | | Box Dimensions (LxWxH) | 5.7 x 2.3 x 1.4" |
