User Manual for Redrock Micro microFollowFocus Click to enlarge the picture
Contents of the user manual for the Redrock Micro microFollowFocus
- Product category: Follow Focus Systems Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Follow Focus Systems
 |
User manual for the Redrock Micro microFollowFocus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|

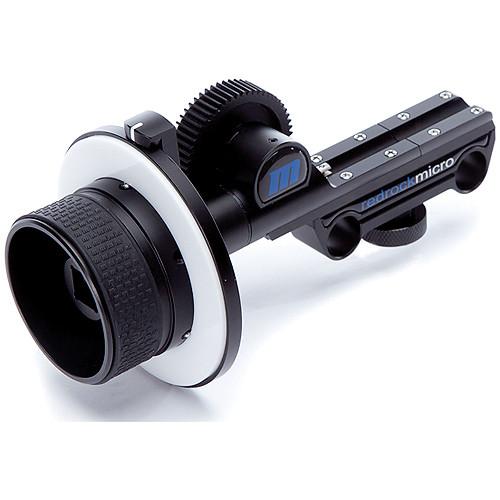

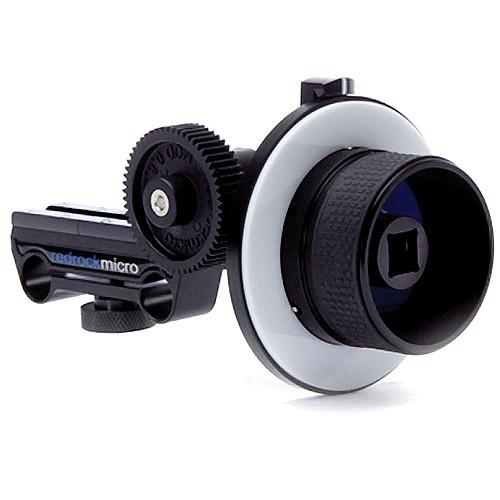

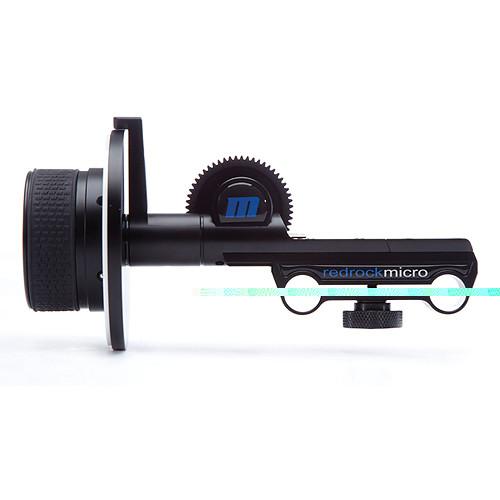

Product description The Redrock Micro microFollowFocus is the "little brother" version of the microFollowFocus | Blue. It's compatible with standard 15mm rods and can optionally be used with 19mm rods per the addition of a microOmniMount accessory. The focusing unit slides left or right to adjust to varying lens diameters, and the gearbox flips to the front or rear to support long and short lenses.
The drive gear is standard 0.8 for cinema lenses, but still lenses can also be used per the separately-sold addition of proper gearing, such as from Redrock's microLensGears lineup. The gearbox features an adjustable backlash and is capable of achieving backlash-free focus pulls. A 2D white marking disk cleans very easily -- you can just wipe your markings away. A reinforced focus indicator at all times shows where you are focused. And a standard accessory port is available for accessories such as a focus whip or speed crank.
The microFollowFocus is made of precision-machined aircraft grade aluminum, with the drive gear being of hardened composite with a metal insert in it, and the focus wheel featuring a rubberized handgrip, offering a comfortable and confident grip. - "Little Brother" of the microFollowFocus | Blue
-
- Slides onto 15mm rods and tightens by thumbscrew
- Focusing unit shifts sideways to adjust to different lenses
- Features a standard 0.8 film pitch drive gear for cinema lenses
- Works with still lenses per the addition of relevant microLensGears
- Backlash is adjustable and backlash-free focus pulls can be achieved
- The gearbox can be flipped to the front or rear to support different lenses

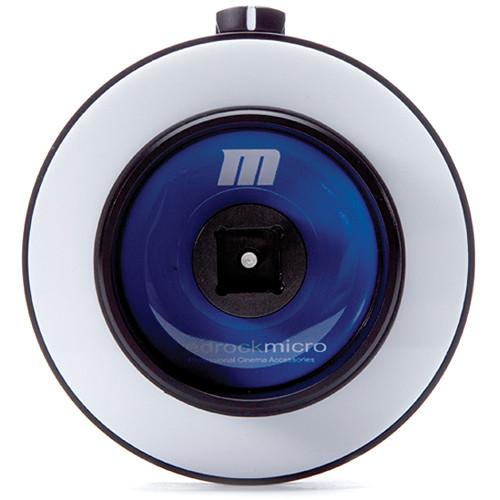

- Equipped with a 2D wipe-away marking disk and a reinforced focus indicator
- A standard accessory port takes on optional accessories such as a speed crank
In the Box Redrock Micro microFollowFocus 0.8 Film Pitch Drive Gear 2D Wipe-Away Marking Disk Operating Instructions Lifetime Warranty per Product Registration within 30 Days of Purchase Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro microFollowFocus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 3-066-0011 Specs | Drive Gear | Standard 0.8 mod 32 film pitch drive gear | | Mount | Compatible with standard 15mm rods with 60mm spacing /
optionally compatible with 19mm rods | | Material | Precision-machined aircraft grade aluminum, hardened composite drive gear with a metal insert, rubberized handgrip | | Weight | 0.85 lbs (0.39 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.3 x 5.9 x 4.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
