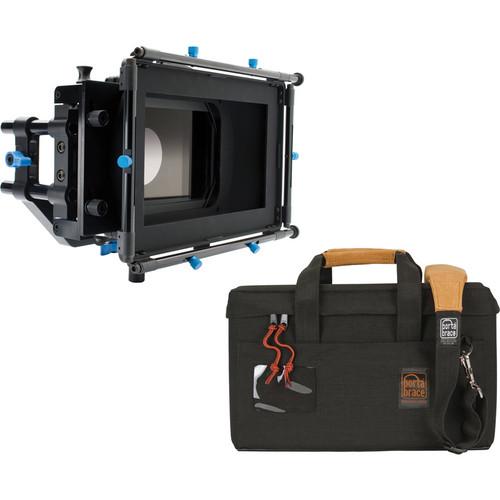

User Manual for Redrock Micro microMatteBox Standard Bundle and MB-1B Matte Box Case Kit Click to enlarge the picture
Contents of the user manual for the Redrock Micro microMatteBox Standard Bundle and
- Product category: Matte Boxes & Sunshades Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Matte Boxes & Sunshades
|
User manual for the Redrock Micro microMatteBox Standard Bundle and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|
Product description The Redrock Micro microMatteBox Standard Bundle and MB-1B Matte Box Case Kit from B&H features a universal matte box for camcorders, DLSRs, or film cameras, and a padded case for organizing and carrying the matte box components. The kit includes the Redrock Micro microMatteBox Deluxe Bundle and a black Porta Brace MB-1B Matte Box Case.
The Redrock Micro microMatteBox supports the use of 15mm rods as well as Redrock's 19mm/15mm studio offset. Its swing-away design lets you perform quick lens changes without having to remove the matte box from your rods. Dual purpose filter trays slot into 360° rotating filter stages and are compatible with both 4x4" and 4x5.65" professional filters, and can rotate 360°. Everything on the microMatteBox can be easily locked, adjusted, or simply removed. Top, bottom, and side flags are sold separately.
The black Porta Brace MB-1B Matte Box Case provides a convenient way to store and carry the matte box. It organizes all the parts of the matte box so it can be quickly transferred to the camera lens. The case is made from 1000 denier water-resistant Cordura nylon with a rigid interior frame and a fully foam padded interior. There is a large front outside pocket for accessories and a mesh pocket inside the top that allows viewing the contents. The optional FC-1 filter case can be stored inside allowing the entire matte box system to be ready at hand. The case is carried by suede leather-covered carry handles or an HB-10 suede leather-covered shoulder strap.
Please see the links below for more information on the various components of this kit. - Redrock Micro microMatteBox Standard Bundle The Redrock Micro microMatteBox Standard Bundle is a universal matte box system that accommodates any lens – whether camcorder, film camera, DSLR, or 35mm lens adapter. With its convenient swing-away design, this cinema-grade lens attachment allows the use of 4x4" and 4x5.65" professional filters that can rotate 360° or be easily swapped out for different looks. Everything on the microMatteBox can be easily locked, adjusted, or simply removed.
Configurability is key, and not only of filters: optional Redrock accessories include the 15mm microSupport system as well as flags and additional filter stages. And since the microMatteBox uses industry-standard support and filter sizes, it's completely compatible with existing 15mm and 19mm rod/rail systems. (The optional Redrock Micro 19mm/15mm Studio Support Arm accommodates 19mm systems.) With its high-quality design and affordability, the microMatteBox system is built for productions small, large, or anywhere in between. Note: The microMatteBox Standard Bundle does not come with support rods, baseplate, filters, or flags, which are available separately. - Universal matte box: works with videocameras, 35mm lens adapters, and motion-picture film cameras
- Flattened shade design for wide-angle lenses
- Swing-away design – a first for this price range
- Industry-standard support for 15mm rods
- Separate locking knobs for filter position and filter rotation
- Metal filter trays with spring-loaded filter locks
- All filter stages rotate 360° and support up to 5.65" square filter trays
- Dual-purpose filter tray for 4x4" and 4x5.65" filters. Additional tray options will be available to support up to 5.65" square filters
- Unique stackable stage design: add or remove stages to exactly meet your configuration needs
- All-metal construction (lens shade and lens adapter: high-impact ABS)
- Adaptable to various lens sizes (lens opening with lens connector: 140mm, without: 155mm). Four neoprene donuts fit lenses of varying diameters. (Diameter of donut openings: 51mm, 64mm, 76mm, and 102mm. Additional sizes can be cut from supplied donuts)
- Height from center of rods to center of matte box: 85mm (industry-standard height) with +/- 10mm adjustment
- Compatible with Arri filter trays and Arri bellows (with optional Arri bellows adapter)
- Porta Brace MB-1B Matte Box Case (Black) The Porta Brace MB-1B Matte Box Case (Black) is designed to carry a Matte Box such Chrosziel, Fujinon, Petroff, Tiffen, Vocas or similar size matte box set-up. It organizes all the parts of the Matte Box; so it can be quickly transferred to the camera lens. The case is made from 1000 denier water-resistant Cordura nylon with a rigid interior frame and a fully foam padded interior. There is a large front outside pocket for accessories and a mesh pocket inside the top that allows viewing the contents. Optional FC-1 or FC-2 filter cases can be stowed inside allowing an entire matte box system to be ready at hand. The case is carried by suede leather-covered carry handles or an HB-10 suede leather-covered shoulder strap.
- Construction
-
- 1000 denier water-resistant Cordura nylon exterior
- Rigid interior frame
- Fully foam padded interior
- Zipper closure
- Pockets
-
- Large front outside pocket for accessories
- Mesh pocket inside the top allows viewing contents and is easily accessible using the sliding zippers
- Optional FC-1 or FC-2 filter cases stowed inside allow entire matte box system to be ready at hand
- Carrying options
-
- Suede leather-covered carry handles
- Porta Brace HB-10 removable, adjustable suede leather-covered shoulder strap
UPC: 877547014629 In the Box - microMatteBox Standard Bundle cqcvfxcxuvxxbsxvfwzdvz
- Wide-Angle Shade
- 16:9 Interchangeable Matte
- 2 x Rotating Filter Stages
- 2 x microMatteBox 4x4" / 4x5.65" Dual Size Filter Tray
- Lightweight Support Arm 15mm
- Donut Kit for microMatteBox
- Video Tutorials for Matte Box Configuration and Use
- 1 Year Warranty
- Porta Brace - MB-1B Matte Box Case (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro microMatteBox Standard Bundle and MB-1B Matte Box Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Redrock Micro microMatteBox Standard Bundle
| Lens Fit and Mount | Universal w/rubber donuts | | Type | Flattened, wide-screen shade w/15mm rod support | | Filter Type | 4x4", 4x5.65" | | Total Filter Stages | 2 | | Rotating Stages | 2 | | Degree of Rotation | 360° | | Materials | All-metal construction | | Dimensions (WxHxD) | Not specified by manufacturer | | Weight | 2.9 lb (1.3 kg) | | | | Box Dimensions (LxWxH) | 17.6 x 15.0 x 7.5" | - Porta Brace MB-1B Matte Box Case (Black)
| Material | Exterior: 1000 denier Cordura nylon
Interior: Fully padded
Interior: Rigid frame | | Type of Closure | Zippers | | Interior Dimensions | 15 x 6.0 x 7.5" (38 x 15.24 x 19.05cm) (LxWxH) | | Carrying/Transport Options | Carry handle
HB-10 shoulder strap | | Weight | 3.4 lbs (1.54kg) | | | | Box Dimensions (LxWxH) | 17.9 x 10.2 x 9.9" |
