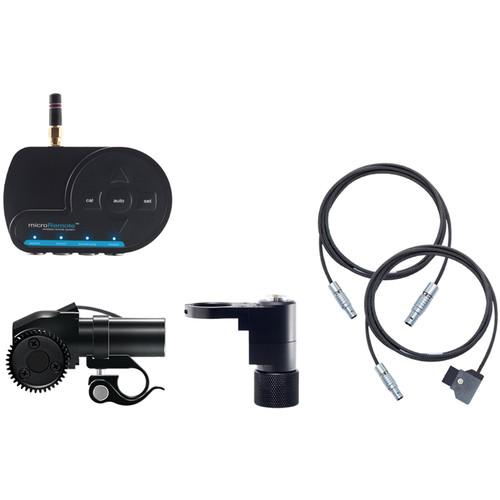

User Manual for Redrock Micro microRemote Handheld Kit with Fingerwheel Controller, SLS Motor and flexCable

• Product category: Wireless Lens Control Systems Redrock Micro
• Brand: Redrock Micro
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Redrock Micro Wireless Lens Control Systems

Product description

• microRemote Fingerwheel Controller Add-On Option
  • Meet the SLS
  The Redrock Micro microRemote Fingerwheel Controller Add-On Option is an optional component for the microRemote wireless lens control system. The fingerwheel mounts onto a microHandGrip (sold separately) and enables precise adjustments with 270° of rotation (with built-in hard stops). The fingerwheel control cable is included.
• SLS Ultra-Compact Lens Control Motor for microRemote The Redrock Micro SLS Ultra-Compact Lens Control Motor for microRemote is ultra-compact and lightweight, making it well suited for use with drones, gimbals, and stabilizers where every gram can make a difference. The small size and light weight gives you the option to leave it on your camera at all times. This version of the SLS motor features a standard 7-pin connector for compatibility with Redrock Micro and third-party controllers.

  Belying its small size and lightweight nature, the motor is a powerhouse with three times the torque and twice the resolution of Redrock's original torque motor. The SLS motor mounts onto 15mm rods using a removable adjustable rod clamp, and Redrock Micro integrated a light into the motor for low-light lens mark visibility. A Cine standard 0.8 MOD drive gear assures that this motor can be used to drive any lens ring with Cine-standard gearing.
  • SLS is a great upgrade for microRemote owners who want increased performance and smaller size, Use one motor for focus, or three for full FIZ control.
  • • Ultra-compact, ultra-lightweight size
    • Adjustable 15mm locking rod clamp
    • Integrated lens light for reading lens markings
    • Standard drive gear
• D-Tap to 2-Pin LEMO flexCable for microRemote (24") This 24" long Redrock Micro D-Tap to 2-Pin LEMO flexCable for microRemote is for powering an optional microRemote from a D-Tap power source.

  Designed to be 200% more flexible than standard cables, which means easier cable wrangling and less drag when using accessories between the camera and gimbal frame, such as when using a Fingerwheel controller or for power connections.
  • The D-Tap connector is also known as a P-Tap connector.
• Air Lens Gear (Single) The single Air Lens Gear from Redrock Micro adds lightweight precision gearing for accurate and repeatable focusing when using a follow focus or wireless remote (sold separately). The gear is small enough to leave on even when shooting stills. It is designed with lubricated nylon that wraps around your lens' focus ring. It features industry standard 0.8 gearing that works with any focus system, including the Redrock microFollowFocus, microRemote, and Eclipse.
  • Adapts still lenses for video and cinema accessories
  • Works with virtually any lens and can also be used on many iris and zoom rings

• 1-Year Limited Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• microRemote Basestation
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• microRemote Fingerwheel Controller Add-On Option

  Box Dimensions (LxWxH)	7.7 x 2.8 x 1.7"

• SLS Ultra-Compact Lens Control Motor for microRemote

  Material of Construction	Aircraft-Grade Aluminum
  Connector	1 x 7-Pin Connector
  Rod Clamp Type	15 mm
  Drive Gear	0.8 MOD
  Dimensions	3.15 x 1.18 x 0.71" / 8 x 3 x 1.8 cm
  Weight	4.2 oz / 120 g

• D-Tap to 2-Pin LEMO flexCable for microRemote (24")

  Length	24" / 61 cm
  Connector 1	D-Tap
  Connector 2	2-pin LEMO
  Weight	2 oz / 57 g

  Box Dimensions (LxWxH)	7.6 x 2.5 x 0.7"

• Air Lens Gear (Single)

  Gear Pitch	Mod 0.8, 32 pitch
  Length	Fits lenses with up to 12.5" / 318 mm focus ring circumference
  Width	0.39" / 10 mm
  Weight	0.4 oz / 12 g

  Box Dimensions (LxWxH)	4.0 x 4.0 x 0.4"
