User Manual for Redrock Micro microSupport Baseplate w 4" Rods Click to enlarge the picture
Contents of the user manual for the Redrock Micro microSupport Baseplate w 4"
- Product category: Camcorder Supports & Rigs Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Camcorder Supports & Rigs
|
User manual for the Redrock Micro microSupport Baseplate w 4" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|

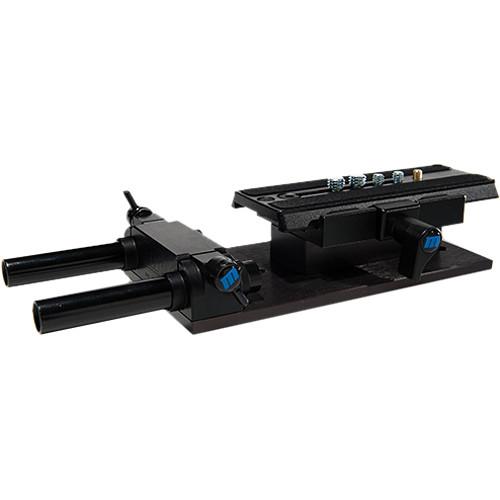

Product description As the heart of Redrock Micro's microSupport System, the microSupport Baseplate w/4" 15mm Rods is designed to attach Redrock's microMatteBox to standard video cameras, such as Sony EX, Panasonic HVX and many other prosumer and professional camcorders. Made of aircraft-grade, machined aluminum, the baseplate's quick-release system, integrated horizontal/vertical adjustment knobs, and ability to mount to nearly any camera, make it indispensable to accessory support. The included 4" 15mm microRods fit the baseplate or any other standard 15mm system, and are made of rugged, precision-machined stainless steel. Baseplate - Aircraft-grade machined aluminum construction
- 15mm lightweight (60mm center to center) rod clamp
- Includes quick release system and dovetail based on Bogen 357 standard quick release system
- Included dovetail mounts to virtually any camera using supplied standard 1/4" and 3/8" screws
- Integrated left-right adjustment
- Shim kit for vertical adjustment up to 1"
- 1/4"-20 or 3/8" holes accept virtually any tripod plate
- Compatible with virtually any prosumer format video camera including Sony EX series, Panasonic HVX200 series, HPX170, DVX series cameras, Canon H1, A1, G1, JVC HD series cameras, and many others
- Additional mounting holes for extending support plate with lower rods
microRods - Aircraft-grade machined stainless steel
- High tolerance machined to 0.0001" precision
- Laser etched with Redrock logo
In the Box Redrock Micro microSupport Baseplate w/4" Rods Universal Baseplate 2 x 4" 15mm Rods Shim Kit 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro microSupport Baseplate w 4" Rods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro microSupport Baseplate Specs | Construction | Baseplate: Aluminum
Rods: Stainless Steel | | Weight | Baseplate: 1.75 lbs (0.79kg)
(2) Rod: 3.5 oz (99g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 3.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
