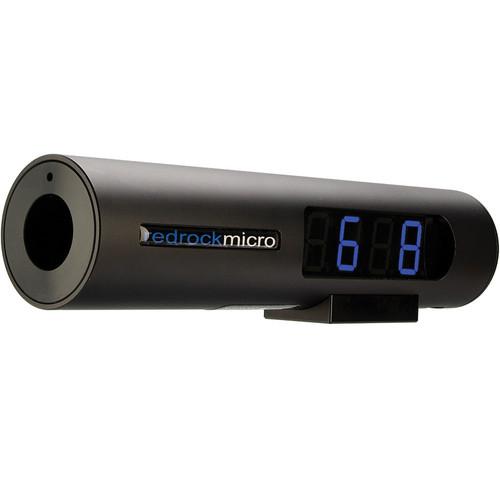

User Manual for Redrock Micro microTape Sonar Rangefinder Click to enlarge the picture
Contents of the user manual for the Redrock Micro microTape Sonar Rangefinder
- Product category: Follow Focus Accessories Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Follow Focus Accessories
|
User manual for the Redrock Micro microTape Sonar Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|
Product description By shooting a sonar beam at a subject, and then measuring the returning "echo", Redrock Micro's microTape Sonar Rangefinder helps measure the focusing distance of a subject up to 21 feet away from the camera.
The measurement is accurate to within an inch, and it updates and returns in real-time on a beautiful display on the side of the unit. The minimum distance the microTape measures is six inches, but it is nevertheless not designed for short distances, such as those shorter than an inch, or for distances between parts within a subject.
The sonar beam is powerful but it is harmless -- it can safely be directed at people and animals. However, what should be used with caution is a laser available on the microTape. A laser is available and can be switched on and off to help determine where the sonar beam is pointed at. This laser should not be pointed near a person's eys or an animal's eyes.
The microTape's display is a double-sided LED and is configurable. It can be set to read out feet and inches or centimeters. If the microTape is combined with Redrock's microRemote, the readout gets displayed on a wireless handheld that can be viewed remotely.
The microTape has a 1/4"-20 female thread at its bottom for mounting a camera rig or other support devices. It can also be used off camera, whereupon the offset from the camera can be programmed to ensure accurate measurements.
When used as a standalone, the microTape can be powered via an included 9V battery cable that has a 9V battery case on one of its ends, or via optional cables by a D-tap battery or AC power. The 9V or D-tap batteries are not included. The microTape draws very little power -- a single 9V battery will last over 24 hours. When connected to the microRemote basestation, microTape draws power from the basestation directly.
The microTape is a valid addition to productions that would benefit from accurate focus. - Measures focusing distance up to 21 feet by shooting a sonar beam and reading returning echo.
- Accurate to within an inch.
- Updates and returns measurement in real-time on a double-sided LED display.
- Powerful but harmless sonar beam.
- Readout can be configured to display feet and inches or just centimeters.
- Can be combined with Redrock's microRemote for wireless remote handheld readouts.
- Very low consumption power. Can be used with 9V battery, D-tap battery, or AC power. A 9V battery cable with a battery case on one of its ends is included.
In the Box Redrock Micro microTape Sonar Rangefinder 9V Battery Cable 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro microTape Sonar Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 8-026-0001 Specs | Range | Approximately 21' (6.4m) | | Display | Double-sided extra bright blue LED numeric readout | | Display Unit | User selectable feet/inches, inches, centimeters | | Mounting | 1/4" 20 female tap on bottom of microTape
Can also be used off-camera with range offset for accuracy | | Power | By 9V battery/D-tap battery/AC power via respective cables when used standalone (9V battery cable included with a 9V battery case on one of its ends is included), or from Redrock microRemote basestation when used with microRemote | | Weight | 12 oz (366 g) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 12.5 x 8.7 x 7.4" |
