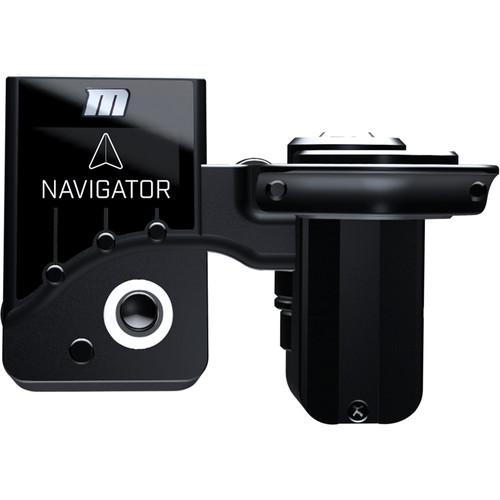

User Manual for Redrock Micro Navigator 7-In-1 Command Module Click to enlarge the picture
Contents of the user manual for the Redrock Micro Navigator 7-In-1 Command Module
- Product category: Stabilizers & Gimbals Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Stabilizers & Gimbals
|
User manual for the Redrock Micro Navigator 7-In-1 Command Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|
Product description The standalone Redrock Micro Navigator 7-In-1 Command Module is the heart of a control system that, with optional motors and cables, works as a mini FIZ (focus, iris, zoom) control unit. The two dampened finger wheels and joystick are dedicated lag-free finger controls for each individual channel (focus, iris, zoom). The Navigator also features a scroll wheel, an OLED screen and onboard LEDs for status display, as well as three function buttons. Please note, the Navigator does not include lens motors, motor cables, or camera control cables which must be sourced separately.
The Navigator powers from readily available LP-E6 batteries via its built-in battery plate. You can use cables to connect the Navigator to a camera or gimbals for wired control, or use the built-in wireless system that has a nearly one-mile range. In addition to the OLED display screen with live feedback of focus, iris, and zoom position, it also features LED indicators and haptic (vibrating) feedback. The MōVI Pro API mode enables you to interface the Navigator to your MōVI Pro. - Camera Control
-
- Canon
- RED
- Sony
- Panasonic
- Blackmagic Design
- ARRI
- LANC protocol
Please note, camera control requires optional cables not included with the Navigator. - Gimbal Control
-
- Freefly MōVI
- DJI Ronin
- Compatible S.Bus gimbals
- Freefly MōVI Interface
- Putting the Navigator into MōVI Pro API mode enables you to directly connect to the MōVI Pro and use it as a Solo Op (when plugged directly into the MōVI Pro) or as a remote controller when connected to the Freefly Mimic for wireless access.
- Features
-
- Mission Control: A real-time focus data display on smallHD monitors
- MetaTouch: Allows for lens discovery and configuration just by touching the lens
- Halo Explorer configuration and activation
- Orbit configuration and activation
In the Box Redrock Micro Navigator 7-In-1 Command Module (Standalone) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro Navigator 7-In-1 Command Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 62-162-0001 Specs | Ports and Connectors | 1 x Eclipse Port
1 x Mini Control Port
1 x 2.5 mm (LANC) Port | | Communication | 2.4 GHz Radio
Wi-Fi
S.Bus
CAN Bus | | Mobile App Support | iOS: 10.0 or Higher (iPhone 6 or Later)
Android: 6.0 (Marshmallow) or Higher | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.2 x 6.1 x 4.4" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
