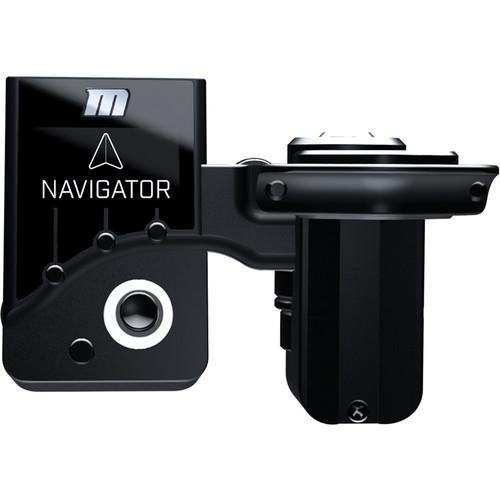

Product description The Redrock Micro Navigator 7-In-1 Command Module for Gimbals puts control of select gimbals at your fingertips. It features a mini FIZ unit and allows you to control gimbals, your camera, and other Redrock Micro Eclipse products. The included MōVI Pro cable, in conjunction with the Navigator's MōVI Pro API mode, enables direct connection and interface with you MōVI Pro and allows you to control it by either a direct hardwire connection or wirelessly when connected to a FREEFLY MIMIC. The included S.Bus cable allows you to interface with gimbals that use the S.Bus protocol. - Navigator 7-In-1 Command Module (Standalone) The standalone Redrock Micro Navigator 7-In-1 Command Module is the heart of a control system that, with optional motors and cables, works as a mini FIZ (focus, iris, zoom) control unit. The two dampened finger wheels and joystick are dedicated lag-free finger controls for each individual channel (focus, iris, zoom). The Navigator also features a scroll wheel, an OLED screen and onboard LEDs for status display, as well as three function buttons. Please note, the Navigator does not include lens motors, motor cables, or camera control cables which must be sourced separately.
The Navigator powers from readily available LP-E6 batteries via its built-in battery plate. You can use cables to connect the Navigator to a camera or gimbals for wired control, or use the built-in wireless system that has a nearly one-mile range. In addition to the OLED display screen with live feedback of focus, iris, and zoom position, it also features LED indicators and haptic (vibrating) feedback. The MōVI Pro API mode enables you to interface the Navigator to your MōVI Pro. - Camera Control
-
- Canon
- RED
- Sony
- Panasonic
- Blackmagic Design
- ARRI
- LANC protocol
Please note, camera control requires optional cables not included with the Navigator. - Gimbal Control
-
- Freefly MōVI
- DJI Ronin
- Compatible S.Bus gimbals
- Freefly MōVI Interface
- Putting the Navigator into MōVI Pro API mode enables you to directly connect to the MōVI Pro and use it as a Solo Op (when plugged directly into the MōVI Pro) or as a remote controller when connected to the Freefly Mimic for wireless access.
- Features
-
- Mission Control: A real-time focus data display on smallHD monitors
- MetaTouch: Allows for lens discovery and configuration just by touching the lens
- Halo Explorer configuration and activation
- Orbit configuration and activation
- Mini Control Port Cable for Navigator to Freefly MoVI Pro (36") The 36" Mini Control Port Cable for Navigator to Freefly MoVI Pro from Redrock Micro connects the Redrock Navigator 7-in-1 Command Module to Freefly MoVI Pro. This cable can connect the Navigator to either the MoVI Pro direct or to the Mimic for wireless control.
In the Box Bundle Items Navigator 7-In-1 Command Module (Standalone) Mini Control Port Cable for Navigator to Freefly MoVI Pro (36") uvqsrabbwradwuzdtsfzvbzqxdctzssec
Also Includes - Mini Control Port FlexCable (Navigator to S.Bus)
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro Navigator 7-In-1 Command Module for Gimbals in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Navigator 7-In-1 Command Module (Standalone)
| Ports and Connectors | 1 x Eclipse Port
1 x Mini Control Port
1 x 2.5 mm (LANC) Port | | Communication | 2.4 GHz Radio
Wi-Fi
S.Bus
CAN Bus | | Mobile App Support | iOS: 10.0 or Higher (iPhone 6 or Later)
Android: 6.0 (Marshmallow) or Higher | | | | Box Dimensions (LxWxH) | 6.2 x 6.1 x 4.4" | - Mini Control Port Cable for Navigator to Freefly MoVI Pro (36")
