User Manual for Redrock Micro retroFlex Rig Bundle for Blackmagic Pocket Camera Click to enlarge the picture
Contents of the user manual for the Redrock Micro retroFlex Rig Bundle for
- Product category: Camcorder Supports & Rigs Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Camcorder Supports & Rigs
 |
User manual for the Redrock Micro retroFlex Rig Bundle for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|

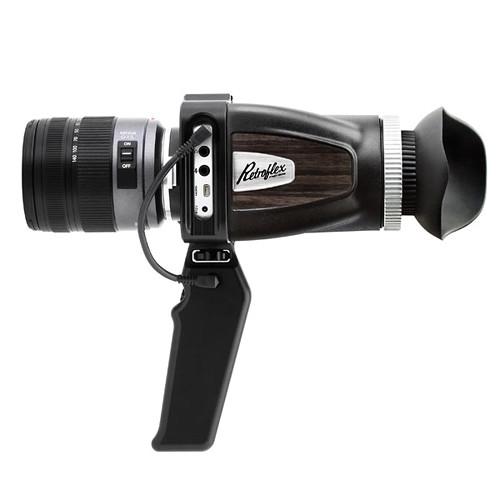

Product description The retroFlex Rig Bundle for Blackmagic Pocket Camera from Redrock Micro is a modular cage support system designed to mimic a retro shooting style reminiscent of older 16mm Bolex or Super8 cameras. The rig consists of a pistol grip with start/stop trigger button, a 3x optical viewfinder, and a protective cage - all designed specifically for the Blackmagic Pocket Cinema Camera. The compact size makes the rig suitable for a wide range of run-and-gun applications, location scouting, or even using the Pocket Cinema Camera as a director's viewfinder on set.

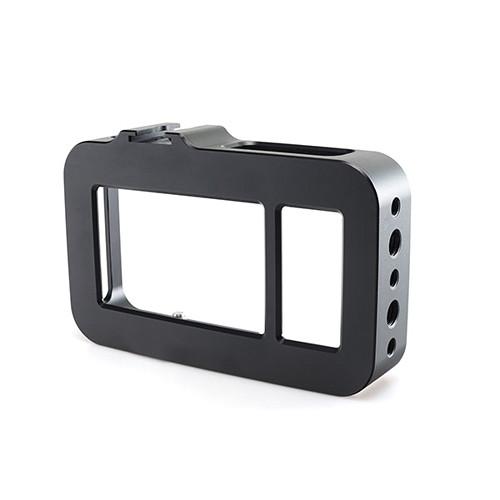

At the heart of the rig is the retroFlex Cage, which provides added protection, stability, and accessory mounting threads for your Blackmagic Pocket Cinema Camera, while leaving access open to all camera functions. The camera attaches to the cage via a top and bottom 1/4"-20 threaded screw and rests flush against the backplate to assure the camera remains straight in the cage. The cage adds nine additional accessory mounting points, consisting of six 1/4"-20 threads, two 3/8"-16 threads, and a cold shoe mount.
The open-face design of the cage keeps the camera's grip accessible to allow for easy and secure handling. It also leaves the area around the lens mount open, so it won't interfere with any lens mount adapters. The optional wireLock accessory can be added to provide a locking mechanism for each of the five cable connectors on the Pocket Cinema Camera. This is especially useful when using an external HDMI monitor or recorder.

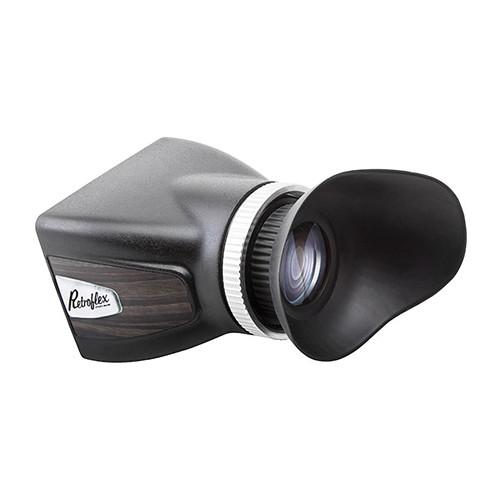

The retroFlex cage also provides points of attachment for the 3x optical viewfinder and pistol grip. The optical viewfinder is attached to the retroFlex Cage for Blackmagic Pocket Camera via rare-earth magnets and an integrated mounting frame that prevents light leakage. It has an integrated adjustable diopter for eyesight correction. The pistol grip support allows for the camera to be triggered at a moment's notice without needing to readjust your grip. -
- Modular cage support system
- 360° of camera protection
- Open-face design leaves lens mount and camera grip accessible
- Doesn't block buttons or battery door
- Adds six 1/4"-20 threads, two 3/8"-16, and a cold shoe mount
- Removable Pistol Grip with start/stop trigger
- 3x Optical Viewfinder aids in outdoor screen visibility and is easily detachable
- Optional wireLock accessory secures cables
In the Box Redrock Micro retroFlex Rig Bundle for Blackmagic Pocket Camera retroFlex Cage for Blackmagic Pocket Camera 3x Optical Viewfinder Pistol Grip with Start/Stop Trigger 2 x 1/4" Camera Mounting Screw Limited Lifetime Warranty (with Product Registration Within 30 Days of Purchase) Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro retroFlex Rig Bundle for Blackmagic Pocket Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 8-144-0001 Specs | Material of Construction | Cage: Aluminum | | Viewfinder Magnification | 3x | | Accessory Mounting Threads | 6 x 1/4"-20
2 x 3/8"-16
1 x Cold shoe mount | | | | Package Weight | 2.345 lb | | Box Dimensions (LxWxH) | 8.9 x 8.35 x 5.2" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
