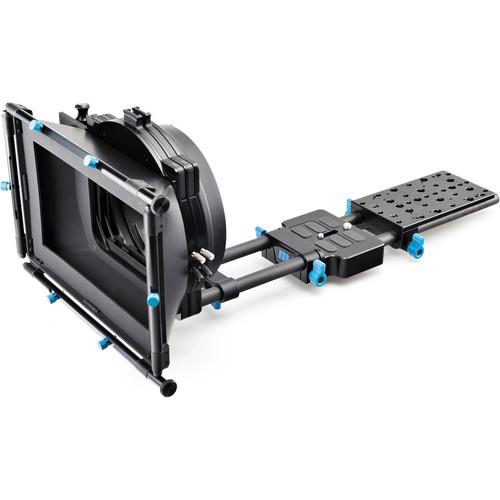

Product description Redrock Micro's Studio Bundle with lowBase is a complete mattebox and follow focus kit for tripod-mount applications. It supports RED's Epic and Scarlet cameras, taller DSLR bodies, like the Canon 1D and Nikon D3S and D4, and also regular-sized DSLRs that have a battery grip.
The bundle includes many accessories to support the mattebox, follow focus and camera. You get two pairs of 15mm rods, 9" and 6" in length, a mattebox height extender, a microPod cheeseplate with numerous 1/4" and 3/8" threads, and the lowBase, which is the baseplate of the bundle, featuring 1/4" and 3/8" threads on its underside for mounting tripods, and a rubberized pad grip on its top to hold the camera body securely. - microMatteBox Deluxe Bundle
-
- Universal mattebox: works with video cameras, 35mm lens adapters, and motion picture film cameras
- Wide-screen format shade
- Flattened shade design for wide angle lenses
- Interchangeable mattes
- Swing-away arm
- Separate locking knobs for filter position and filter rotation
- Metal filter trays with spring-loaded filter locks
- All filter stages rotate 360° and support up to 5.65" square filter trays
- Dual purpose filter tray for 4x4" and 4x5.65" filters.
- Unique stackable stage design: add or remove stages to exactly meet your configuration needs
- All metal construction (except for the lens shade and lens adapter, which are made of high impact ABS plastic)
- Adaptable to various lens sizes (lens opening with lens connector: 140mm / without: 155mm)
- Compatible with Arri filter trays and Arri bellows (with optional Arri bellows adapter)
- microFollowFocus| Blue
-
- 0.8 film pitch drive gear, with options for Fujinon and Canon drive gears
- Backlash dial for enhanced precision in focusing
- Integrated hard stops with easy begin/end setups enable fast repeatable racking between two focus points
- A moveable focus indicator allows you to pull focus from any place on the camera while maintaining view of focus indicator and focus wheel
- 3D marking disk -- can be used in low-light conditions using an optional flare, which offers a glow and illuminates the marking disc
- Flippable gearbox -- adjusts the drive gear to the front and rear to accommodate different lens sizes
- Allows you to optionally attach a second focus wheel for pulling focus from the other side of your lens
- Rubberized handgrip
- Industry-standard, all-metal machined accessory port
- Aluminum construction
- lowBase Baseplate
-
- 1/4" and 3/8" tripod mounting threads on its underside
- Rubberized pads grip and hold the camera body securely
- Adjustable 1/4" camera screw
- Storage bays on bottom of plate for spare 1/4" and 3/8" screws
In the Box Redrock Micro Studio Bundle with lowBase lowBase Tall Camera Baseplate ubrvtxtqxutvzcuwssx 8-011-0004 15mm Carbon Fiber Rod (9", Pair) 8-011-0005 15mm Carbon Fiber Rod (6", Pair) microMatteBox Deluxe Bundle microMatteBox Vertical Height Extender microPod Accessory Plate microFollowFocus Black Lifetime Warranty Against Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro Studio Bundle with lowBase in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 8-125-0009 Specs | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 17.7 x 14.8 x 8.3" |
