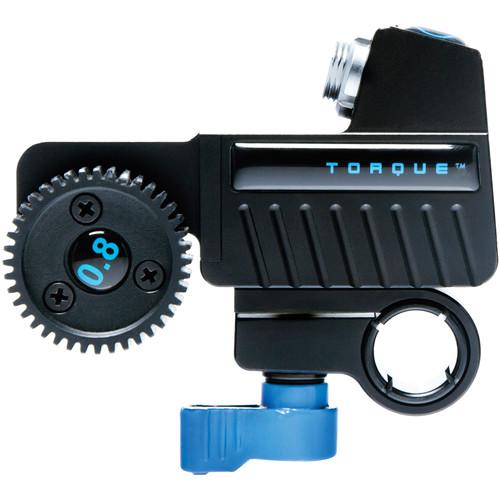

User Manual for Redrock Micro Torque Motor Click to enlarge the picture
Contents of the user manual for the Redrock Micro Torque Motor
- Product category: Wireless Lens Control Accessories Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro Wireless Lens Control Accessories
|
User manual for the Redrock Micro Torque Motor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|
Product description The Redrock Micro Torque Motor is a 19/15mm rod-mount lens motor compatible with lens control systems that feature a 7-pin interface. These include Preston, BarTech, ARRI, and cmotion systems, as well as Redrock's microRemote system. Compact and lightweight, the Torque Motor is ideal for all applications, including gimbal operations. It can be used as the sole motor, or multiple units can be used in a focus/iris/zoom setup. It has a snap-on 0.8 MOD drive gear that can be mounted on either side, and operation is quiet.
The rod mount is natively 19mm, but a bushing is included for 15mm compatibility. The Torque Motor has the output to drive both cinema and still lenses. Also, it's constructed mainly of aluminum, so it has a robust and durable design. - Key Features
-
- Compact 19/15mm rod-mount lens motor
- Compatible with Preston, BarTech, ARRI, cmotion, microRemote, and other lens control systems with a 7-pin interface
- Snap-on 0.8 MOD drive gear, mountable on either side
- Quiet operation
- Robust aluminum construction
In the Box Redrock Micro Torque Motor 19-to-15mm Rod Bushing 0.8 MOD Drive Gear Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro Torque Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 3-079-0001 Specs | Interface | 7-Pin LEMO | | MOD | 0.8 | | Rod Mount | 19 mm (15 mm Bushing Included) | | Material of Construction | Aluminum | | Dimensions | 1 x 3.5 x 1.9" / 2.7 x 8.8 x 4.7 cm | | Weight | 6.1 oz / 173 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 3.6 x 3.3 x 1.0" |
