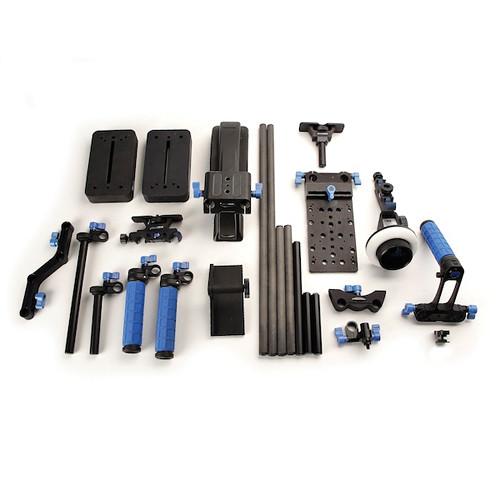

User Manual for Redrock Micro Ultimate Universal Bundle With microFollowFocus Black Click to enlarge the picture
Contents of the user manual for the Redrock Micro Ultimate Universal Bundle With
- Product category: DSLR Video Supports & Rigs Redrock Micro
- Brand: Redrock Micro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Redrock Micro DSLR Video Supports & Rigs
|
User manual for the Redrock Micro Ultimate Universal Bundle With contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Redrock Micro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Redrock Micro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Redrock Micro product will considerably shorten its lifespan!
|
Product description The Redrock Micro Ultimate Universal Bundle With microFollowFocus Black combines all the components you need to build many different rigs into a single convenient kit. You can go beyond standard rigs--design and build your own unique rigs to meet your needs and shooting style precisely.
Compatible with most HDSLR cameras with or without battery grips, the Ultimate Universal Bundle enables you do professional-style cinematography. The included DSLR baseplate mounts your DSLR camera on rails, and a microMount with a spud allows you to attach a monitor (not included) to the rig. An external monitor helps a camera assistant to precisely pull the focus while the cameraman concentrates on framing.
The microFollowFocus Black is a custom designed gearbox that delivers smooth, backlash-free focus pulls. It has a 0.8 film pitch drive gear, which allows accurate focusing of still and cinema lenses. It includes a backlash dial that enhances the precision of focusing, and the original Redrock 3D marking disk is included as well.
A flippable gearbox adjusts the drive gear front and rear, and is compatible with lenses of any size. There are also adjustable hard stops and a reinforced moveable focus indicator.
An industry-standard, all-metal machined accessory port enables you to add focus whip or speed crank to the focusing system. A Kung Fu rubberized handgrip prevents hand-slips and ensures stable shooting. The microFollowFocus has an aluminum construction to ensure durability.
With the microShoulderPad, the DSLR camera can be easily carried over your shoulders. Using a handlebar rod clamp, you can attach the 2 hand grips to the standard 15 mm rods for perfect support and maneuvering.
The microBalance Plus provides a vertical accessory plate for mounting microBalance counterbalance weights or other accessories to standard 15 mm rods. It consists of a rod clamp, a left-right adjustment block, and a cheese plate.
With the rod-clamp having thumb screws, you can securely attach the microBalance Plus unit to 15 mm standard rods of camera support systems. Using the left-right adjustment block, you can optimally adjust the position of the counterweight to balance your camera system. The cheese plate offers mounting holes for Anton Bauer or Sony v-mount battery plates. One counterbalance weight is included.
Also included are such crucial accessories as the microLink4 Riser, microHandle Hot Shoe accessory, microBrace Body Pad, and the microHandGrip. An impressive range of configurations is possible using these elements. - Components needed to build many different rigs, all in a single convenient kit
- Compatible with DSLR cameras such as Nikon D90, D300s, D3s, and Canon 7D, 1D Mark IV, and 5D MKII
- Ideal for use with DSLR cameras offering an output to an external monitor
microFollowFocus Black - Allows precise focusing of still and cinema lenses
- Includes a backlash dial that enhances the precision of focusing
- 3D marking disk to view your focus marks from many angles
- Integrated hard stops have easy begin/end setups for fast repeatable racking between two points, and make focusing lenses that have no hard stops (such as Canon EOS lenses) much easier.
- Moveable reinforced focus indicator - conveniently pull focus from any place on the camera while maintaining view of focus indicator and focus wheel.
- Flippable gearbox - adjusts the drive gear front and rear and is compatible with lenses of any size
- Industry-standard, all-metal machined accessory port - you can add focus whip or speed crank to the focusing system
- Kung Fu rubberized handgrip - prevents hand-slips and ensures stable shooting
- With 18" carbon fiber rods and microShoulderPad, the DSLR camera can be easily carried over your shoulders
Handlebar Rod Clamp - You can attach 4" or 8" rods to the standard 15 mm rods and create handgrip support for shouldermount rigs
microBalance Plus - Provides a vertical accessory plate for mounting microBalance counterbalance weights or other accessories to standard 15 mm rods
- Consists of rod clamp, left-right adjustment block and cheese plate
- Rod-clamp - allows you to securely attach the microBalance Plus unit to 15 mm standard rods of a camera support system
- Left-right adjustment block - adjusts the position of the counterweight to optimally balance your camera system
- Cheese plate with mounting holes for brick-style batteries from Anton Bauer and Sony v-mount
DSLR Baseplate - Enables you to mount your DSLR camera on rails
- You can attach a monitor to the rig (with a microMount)
- Being able to view high-definition images on an external monitor, a camera assistant can precisely pull the focus
- Rig offers easy access to video setup tutorials
In the Box Redrock Micro Ultimate Universal Bundle With microFollowFocus Black 8-011-0004 15mm Carbon Fiber Rod (9", Pair) twcvvddy microShoulder Pad with Rod Clamp 8-011-0002 15mm Carbon Fiber Rod (18", Pair) DSLR Baseplate microFollowFocus Black Handlebar Clamp 4" Handlebar Rod 8" Handlebar Rod microHandle microHandGrip microLink4 Riser microMount with Cold Shoe Spud MicroBalance Plus microBalance Counterbalance Add-on Weight microHandle Hot Shoe Accessory Grip Rod - 4" microBrace Body Pad Grip Rod - 8" 2-073-0001 Nano DSLR Baseplate 1-Year Limited Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro Ultimate Universal Bundle With microFollowFocus Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 18-066-0003 Specs | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 17.5 x 14.9 x 8.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
