Product description

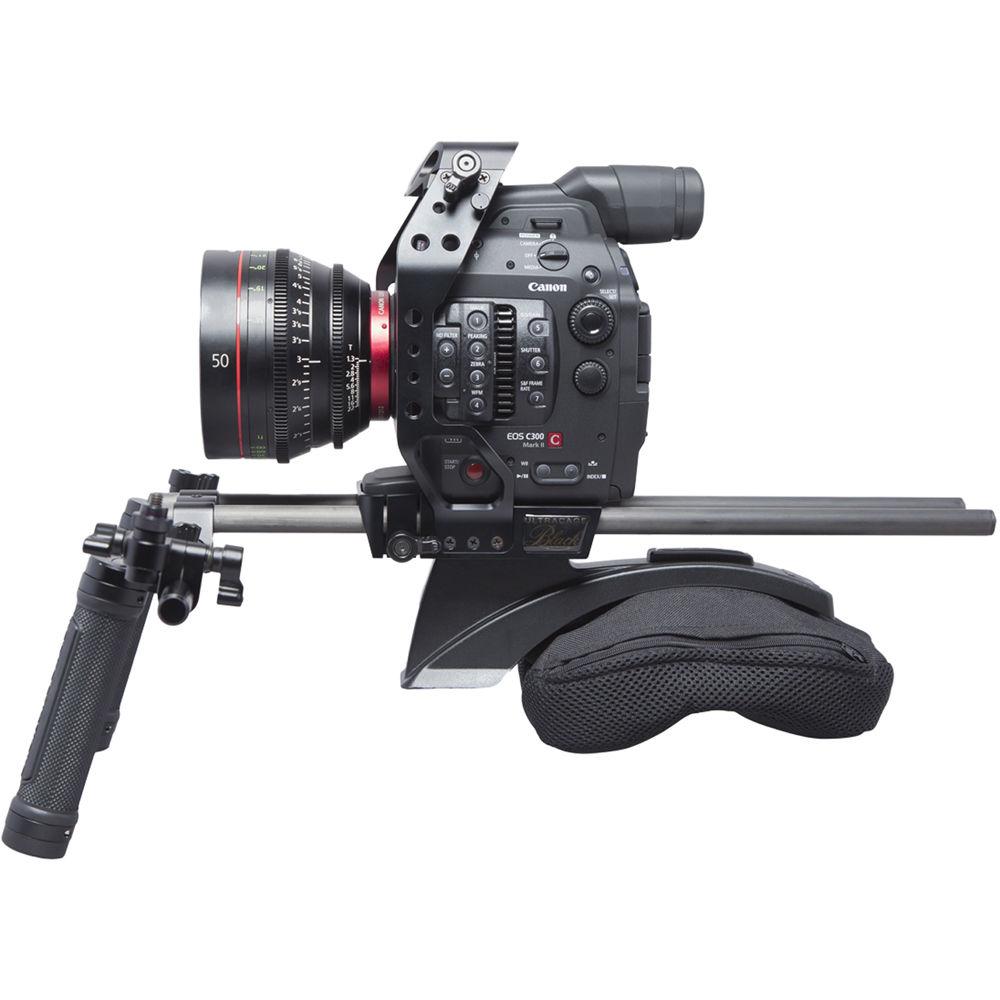

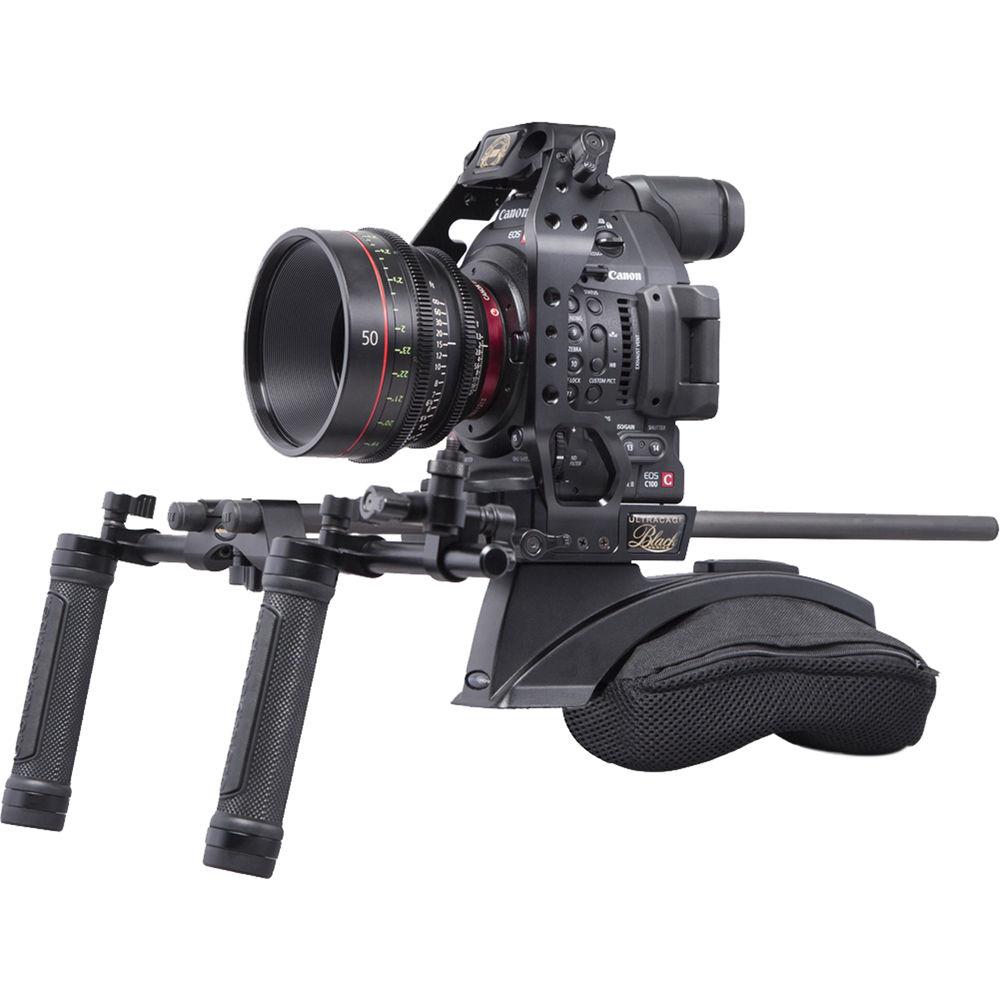

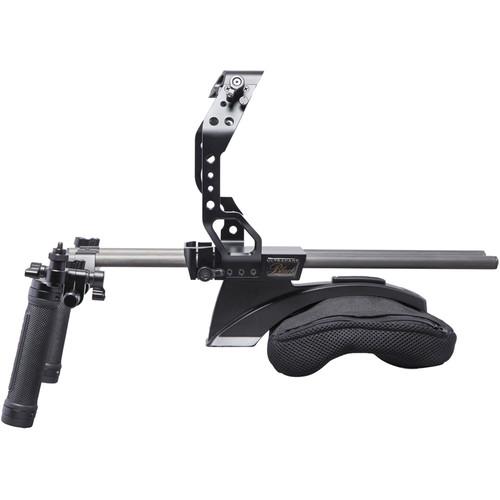

• ultraCage Cinema EOS MKII Redesigned for the slightly bulkier shape of the Canon C100/C300 Mk II, the Redrock Micro ultraCage Cinema EOS MKII is a formfitting, all-around cage offering integrated top and bottom 15mm rod clamps, access to all ports and controls, and 1/4"-20 and 3/8"-16 tapped accessory ports all around. It also features multiple 1/4"-20 and 3/8"-16 taps on the bottom of the baseplate for tripod mounting as well as attaching optional 3rd-party bridgeplates, such as the Arri bridgeplate, in order to adapt 15mm studio and 19mm rods. The baseplate is already designed with the correct height and mounting points to support the optional 15mm studio / 19mm rods to accommodate large cine lenses from Canon, Angenieux, Fujinon, and other manufacturers.

  The camera attaches to the ultraCage from both the top and bottom. A 1/4"-20 screw secures to the camera from the top, and one 1/4"-20 and one 3/8"-16 screw secure the camera from the bottom using an included Double-Tap Plate. This Double-Tap Plate replaces the bottom plate of the camera in order to provide two screw holes.

  The ultraCage is a modular system that can be taken apart if need be and that supports a variety of Redrock Micro accessories, including the compact powerPack. The powerPack neatly attaches on the right side and delivers power to the camera and to up to two accessories from your external battery, and also displays remaining battery life.
  Key Features
  • • Form-fitting cage for the redesigned Canon C100/C300 Mk II
    • Integrated top and bottom 15mm LWS rod clamps
    • Access to all ports and controls
    • 1/4"-20 and 3/8"-16 tapped accessory ports
    • Multiple 1/4"-20 and 3/8"-16 taps on the bottom for bridgeplates and tripod-mounting
    • 3rd-party bridgeplates supported to accommodate 15mm studio and 19mm rods for large cine lenses
    • Secures camera from the top and bottom
    • Supports direct attachment of variety of Redrock Micro accessories, such as the powerPack
• Handlebar Clamp The Handlebar Clamp from Redrock Micro allows 4 or 8" rods to be attached to standard 15mm rods (60mm spacing). It is typically used for creating a hand grip support for handheld or shoulder-mount rigs. Note: The handlebar clamp does not include bars. However, you can choose the length and number of bars separately.
  • The clamp allows 4 or 8" rods to be attached to standard 15mm rods (60mm spacing)
  • This unit is typically used for creating a hand grip support for handheld or shoulder-mount rigs
• microHandGrip (Blue) The Redrock Micro microHandGrip (Blue) combines a rubberized handgrip with an integrated all-metal rod clamp and thumb screw to provide a comfortable, non-slip handle. Attaches to 15mm rod/rail support systems such as Redrock's microShoulderMount and its DSLR support rigs.
• 8-011-0002 15mm Carbon Fiber Rod (18", Pair) The 8-011-0002 15mm Carbon Fiber Rods (18", Pair) are designed specifically for Redrock Micro's wide variety of support systems. The rods are 15mm in size, making them ideal for attaching a mattebox, follow focus, and much more. The carbon fiber nets a total weight reduction of 66% when compared to stainless steel, making the unit incredibly light. Carbon fiber is not only extremely light, but also has a rigidity that exceeds titanium, making it extremely sturdy.
  • Redrock carbon fiber rods are precision crafted 15mm support rods.
  • Can be used with a wide variety of accessories, including follow focus and matteboxes.
• 4" Handlebar Rod The 4" Handlebar Rod from Redrock Micro adds a 15mm 4" rod to the Handlebar Clamp. It features an anti-rotation locking mechanism and attaches with a standard hex screw. Note: The handlebar clamp is required to use this item.
  • This rod adds 4" to the Handlebar Clamp
  • It features an anti-rotation locking mechanism and attaches with a standard hex screw
• 8" Handlebar Rod The 8" Handlebar Rod from Redrock Micro adds a 15mm 8" rod to the Handlebar Clamp. It features an anti-rotation locking mechanism and attaches with a standard hex screw. Note: The handlebar clamp is required to use this item.
  • This rod adds 8" to the Handlebar Clamp
  • It features an anti-rotation locking mechanism and attaches with a standard hex screw
• microShoulderPad with FieldTech The Redrock Micro microShoulderPad with FieldTech provides adjustable support for your camcorder or DSLR. It includes a microShoulderMount Rod Clamp for 15mm rods and a FieldTech shoulder pad.

  The FieldTech shoulder pad is made of Cordura, breathable 3D mesh, and free-forming microPoly beads, and it provides balanced pressure distribution. It's self-leveling and actively adapts to all shapes and slopes. The rod clamp is adjustable backward and forward along 15mm rods and can be locked into place.

  The microShoulderPad features 1/4" and 3/8" threads on top for attaching a camera, and it has threads on the bottom for mounting onto a tripod.
• microMount The Redrock Micro microMount is a handy connector that attaches to any 15mm rod on your camera support system and lets you add accessories such as articulating arms, external monitors, or even additional rods. With its standard 1/4"-20 male and female connectors, a wide range of options is at your fingertips.

• Double Tap Plate

• Set of 1/4"-20 and 3/8"-16 Camera Mount Screws

• Limited Lifetime Warranty

• One-Year Warranty Against Defects in Material & Workmanship

• Rubberized Hand Grip

• Rod Clamp

• Thumb Screw

• 1 Year Warranty

• Limited 1-Year Warranty

• One-Year Warranty Against Defects in Material & Workmanship

• Limited 1-Year Warranty

• microShoulderMount Rod Clamp

• Limited Lifetime Warranty

• 1 Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ultraCage Cinema EOS MKII

  Rod Mounts	Integrated top and bottom 15 mm LWS rod clamps
  Mount Types	1/4"-20 and 3/8"-16 accessory mount taps 1/4"-20 and 3/8"-16 taps on the bottom for bridgeplates and tripod mounting
  Material	Aluminum

  Box Dimensions (LxWxH)	9.3 x 6.2 x 5.9"

• Handlebar Clamp

  Box Dimensions (LxWxH)	5.748 x 2.284 x 1.496"

• microHandGrip (Blue)

  Weight

  6.35 oz (180g)

  Box Dimensions (LxWxH)	7.7 x 2.5 x 1.5"

• 8-011-0002 15mm Carbon Fiber Rod (18", Pair)

  Material	Carbon Fiber
  Dimensions (LxDiameter)	18" (45.7cm) x ø15mm
  Weight	4.5 oz (122 g)

  Box Dimensions (LxWxH)	18.898 x 1.339 x 1.3"

• 4" Handlebar Rod

  Box Dimensions (LxWxH)	6.0 x 2.0 x 1.0"

• 8" Handlebar Rod

  Box Dimensions (LxWxH)	8.583 x 0.787 x 0.709"

• microShoulderPad with FieldTech

  Weight

  27.5 oz (780 g)

  Box Dimensions (LxWxH)	9.5 x 9.4 x 5.8"

• microMount

  Connector	1/4"-20 (male/female)
  Weight	2.8 oz (80g)

  Box Dimensions (LxWxH)	3.0 x 3.0 x 1.0"
