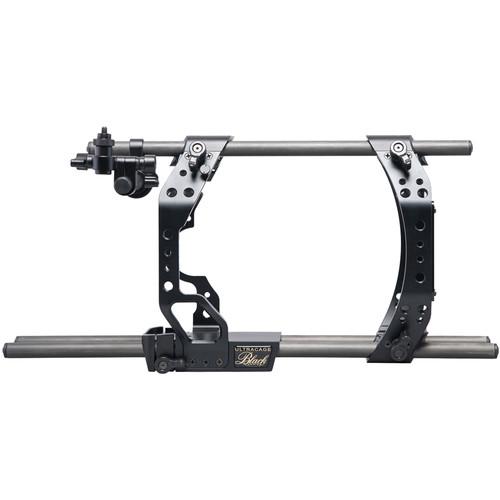

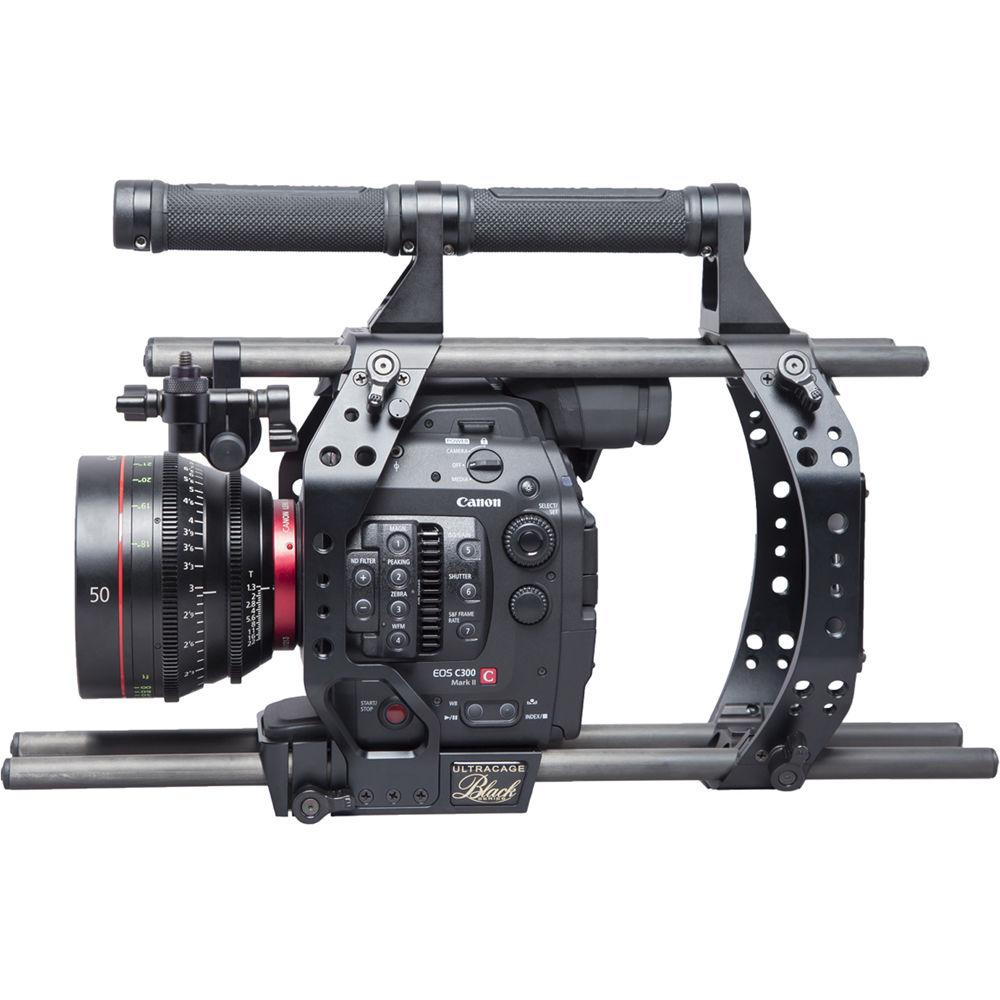

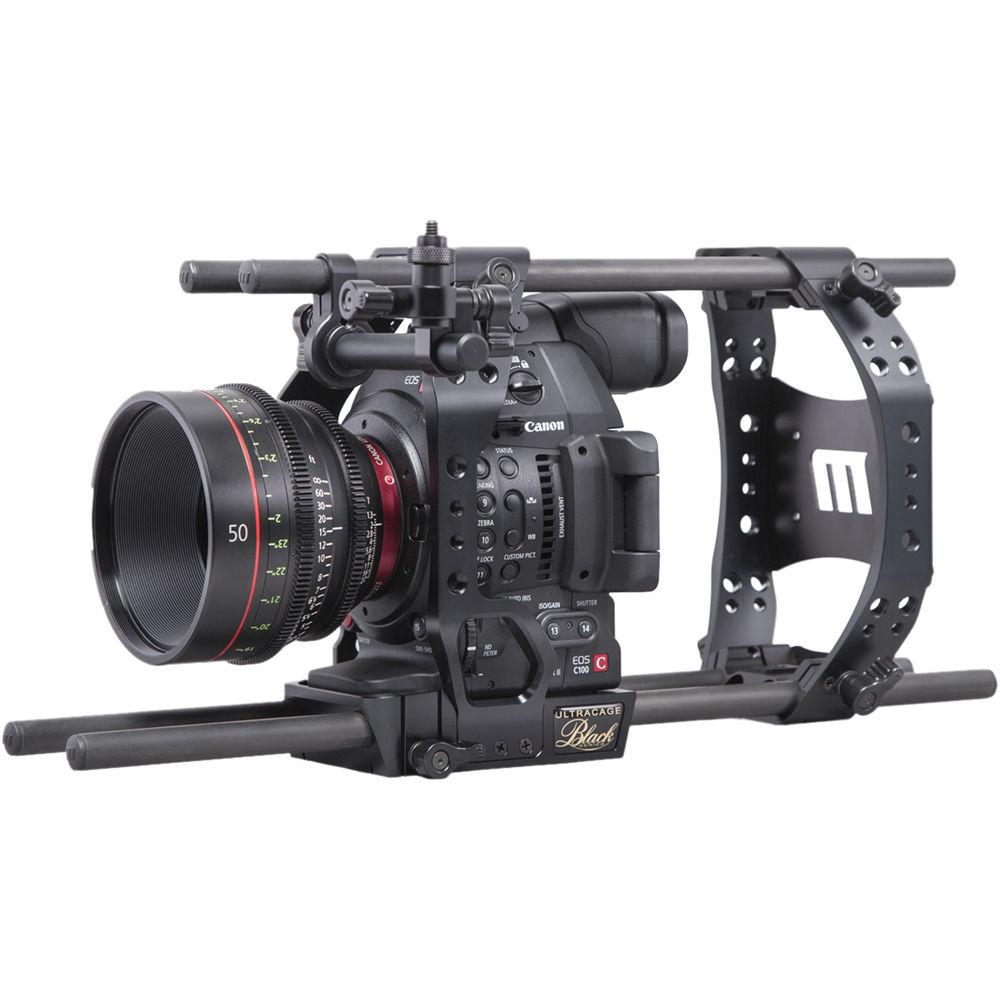

Redrock Micro ultraCage Black Studio Rig

User Manual for Redrock Micro ultraCage Black Studio Rig for Canon Cinema EOS C100 C300 MKII Cameras

• Product category: Camcorder Supports & Rigs Redrock Micro
• Brand: Redrock Micro
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Redrock Micro Camcorder Supports & Rigs

Product description

• ultraCage Cinema EOS MKII Redesigned for the slightly bulkier shape of the Canon C100/C300 Mk II, the Redrock Micro ultraCage Cinema EOS MKII is a formfitting, all-around cage offering integrated top and bottom 15mm rod clamps, access to all ports and controls, and 1/4"-20 and 3/8"-16 tapped accessory ports all around. It also features multiple 1/4"-20 and 3/8"-16 taps on the bottom of the baseplate for tripod mounting as well as attaching optional 3rd-party bridgeplates, such as the Arri bridgeplate, in order to adapt 15mm studio and 19mm rods. The baseplate is already designed with the correct height and mounting points to support the optional 15mm studio / 19mm rods to accommodate large cine lenses from Canon, Angenieux, Fujinon, and other manufacturers.

  The camera attaches to the ultraCage from both the top and bottom. A 1/4"-20 screw secures to the camera from the top, and one 1/4"-20 and one 3/8"-16 screw secure the camera from the bottom using an included Double-Tap Plate. This Double-Tap Plate replaces the bottom plate of the camera in order to provide two screw holes.

  The ultraCage is a modular system that can be taken apart if need be and that supports a variety of Redrock Micro accessories, including the compact powerPack. The powerPack neatly attaches on the right side and delivers power to the camera and to up to two accessories from your external battery, and also displays remaining battery life.
  Key Features
  • • Form-fitting cage for the redesigned Canon C100/C300 Mk II
    • Integrated top and bottom 15mm LWS rod clamps
    • Access to all ports and controls
    • 1/4"-20 and 3/8"-16 tapped accessory ports
    • Multiple 1/4"-20 and 3/8"-16 taps on the bottom for bridgeplates and tripod-mounting
    • 3rd-party bridgeplates supported to accommodate 15mm studio and 19mm rods for large cine lenses
    • Secures camera from the top and bottom
    • Supports direct attachment of variety of Redrock Micro accessories, such as the powerPack
• ultraCage Black Rear Chassis Assembly for C300 The Redrock Micro ultraCage Black Rear Chassis Assembly for C300 completes the C300 ultraCage by serving as a rear cage, whereas the C300 ultraCage attaches to only the front of the camera. Both cages feature top and bottom 15mm rod clamps and connect by optional rods. This rear cage features 48 1/4" and 3/8" threads along its sides and top and supports a top handle to complement the C300 ultraCage's front top handle.
• microMount The Redrock Micro microMount is a handy connector that attaches to any 15mm rod on your camera support system and lets you add accessories such as articulating arms, external monitors, or even additional rods. With its standard 1/4"-20 male and female connectors, a wide range of options is at your fingertips.
• Grip Rod - 4" With its integrated rod clamp and thumb screw, the Redrock Micro 4" Grip Rod is ideal for attaching rod-mounted accessories to any 15mm rail system. Forming a perfect combo with Redrock's microMount, the Grip Rod can be used to attach such accessories as monitor clamps, hand grips, and microphone shock mounts.
• 8-011-0002 15mm Carbon Fiber Rod (18", Pair) The 8-011-0002 15mm Carbon Fiber Rods (18", Pair) are designed specifically for Redrock Micro's wide variety of support systems. The rods are 15mm in size, making them ideal for attaching a mattebox, follow focus, and much more. The carbon fiber nets a total weight reduction of 66% when compared to stainless steel, making the unit incredibly light. Carbon fiber is not only extremely light, but also has a rigidity that exceeds titanium, making it extremely sturdy.
  • Redrock carbon fiber rods are precision crafted 15mm support rods.
  • Can be used with a wide variety of accessories, including follow focus and matteboxes.
• 15mm Carbon Fiber Support Rod (14", Pair) The pair of 14" Redrock Micro Carbon Fiber Support Rods are precision crafted support rods that allow you to attach accesories that require a 15mm rod support.

• Double Tap Plate

• Set of 1/4"-20 and 3/8"-16 Camera Mount Screws

• Limited Lifetime Warranty

• Lifetime Warranty Against Defects Per Product Registration within 30 Days

• 1 Year Warranty

• 1 Year Warranty

• Limited 1-Year Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ultraCage Cinema EOS MKII

  Rod Mounts	Integrated top and bottom 15 mm LWS rod clamps
  Mount Types	1/4"-20 and 3/8"-16 accessory mount taps 1/4"-20 and 3/8"-16 taps on the bottom for bridgeplates and tripod mounting
  Material	Aluminum

  Box Dimensions (LxWxH)	9.3 x 6.2 x 5.9"

• ultraCage Black Rear Chassis Assembly for C300

  Box Dimensions (LxWxH)	9.2 x 6.0 x 5.0"

• microMount

  Connector	1/4"-20 (male/female)
  Weight	2.8 oz (80g)

  Box Dimensions (LxWxH)	3.0 x 3.0 x 1.0"

• Grip Rod - 4"

  Diameter	15mm
  Length	4"
  Weight	4.23 oz (120g)

  Box Dimensions (LxWxH)	5.748 x 2.362 x 1.417"

• 8-011-0002 15mm Carbon Fiber Rod (18", Pair)

  Material	Carbon Fiber
  Dimensions (LxDiameter)	18" (45.7cm) x ø15mm
  Weight	4.5 oz (122 g)

  Box Dimensions (LxWxH)	18.898 x 1.339 x 1.3"

• 15mm Carbon Fiber Support Rod (14", Pair)

  Box Dimensions (LxWxH)	18.5 x 1.3 x 1.3"
