Product description - NEW "Scout HX" Active Cage by Redrock Micro
- Scout Rig Quick Start Guide
- Which Scout is Right for You?

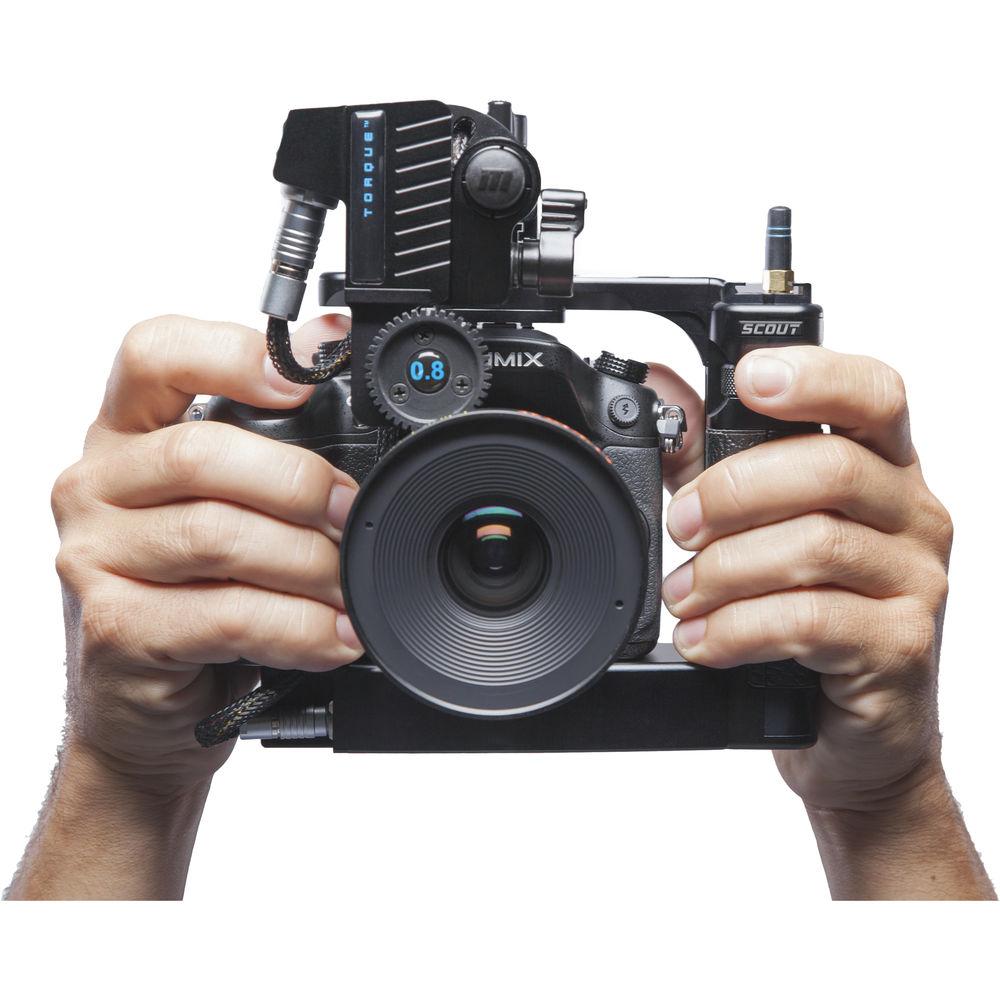

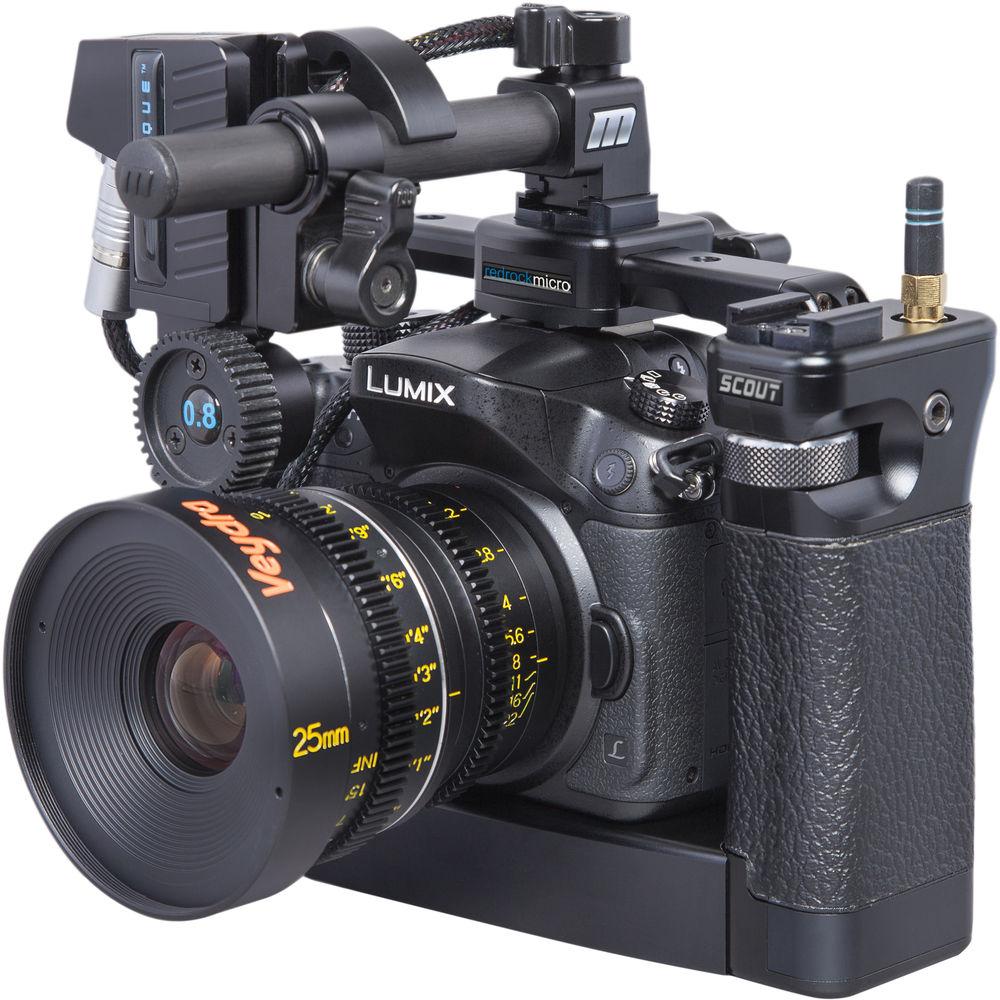

The ultraCage Scout HX from Redrock Micro is a portable, self-contained handheld cage and rig for mirrorless and DSLR cameras. The fully loaded Scout HX features a precision-machined cage, a removable rod system, microRemote electronics, an integrated fingerwheel, and built-in battery power.The Scout can be configured to fit most handheld cameras, ranging from smaller mirrorless to larger DSLRs, while leaving all camera functions fully accessible. The rig's aluminum frame gives your camera added protection from bumps and scrapes, while its Rhino mount secures the torque motor for slip-free operation, and its integrated cold shoe mount enables you to mount up to two accessories.
The ultraCage Scout's wireless-ready microRemote Fingerwheel System is integrated into the cage to optimize balance and minimize size. The integrated fingerwheel offers smooth electronically controlled focus without your hands leaving the grips, and the added opposite-side handgrip provides balance for handholding shots.
The ultraCage Scout HX has setup options to adapt to different shooting styles. You can use the rig in Expanded mode, which features extended grip for comfortable and balanced handholding, or collapse the rig into Compact mode for a smaller setup designed for use on cine-style rigs, such as studio or shouldermount rigs, or on gimbals. You can also fine-tune between the two modes using four sliders for maximum size and balance adjustments. - Precision-machined aluminum cage protects your camera
- Provides stability and torque
- Easy balancing with built-in multi-axis balancing adjustments
- Reversible design allows for handgrip to be placed on either side of the camera
- Integrated fingerwheel and built-in fingerwheel port for external fingerwheel (sold separately)
- Wireless-ready integrated remote basestation
- Expanded and Compact modes for handheld and cine-style rigs
- Dovetail is compatible with DJI Ronin-M gimbal

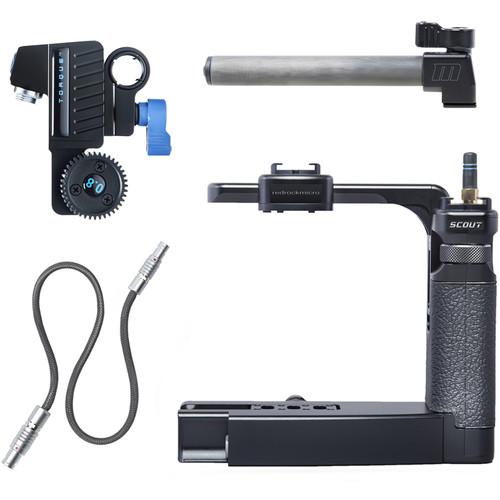

In the Box Redrock Micro ultraCage Scout HX Torque Motor Torque Motor Cable Rhino Mount with 4" 15mm Rod svxewarrvsxzeqtfzrsqdebbvxauzs Limited Lifetime Warranty Quick start Guide PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Redrock Micro ultraCage Scout HX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRedrock Micro 8-165-0001 Specs | Compatibility | Cameras ranging from 3.6 to 4.9" / 91mm to 125mm tall | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 9.4 x 9.3 x 5.6" |
