User manual
Reflecmedia RM 1123DS 13 x 16'

User Manual for Reflecmedia RM 1123DS 13 x 16' Chromatte Backdrop with Small Dual LiteRing Kit

• Product category: LED Lights Reflecmedia
• Brand: Reflecmedia
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Reflecmedia LED Lights

Product description

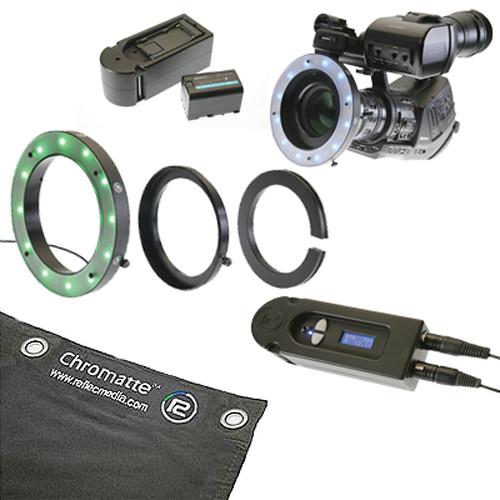

• RM 3251S Small Dual LiteRing Reflecmedia's Chromatte fabric is designed to work in conjunction with a LiteRing. The LiteRing features Light Emitting Diodes (LEDs) that are arranged in a circular casing that is positioned in front of the camera lens. This provides all the light required to illuminate the Chromatte background for chroma key production. The Reflecmedia RM 3251S Small Dual LiteRing builds upon the remarkable success of the original and combines features that make it more versatile than ever! The enhanced optional controller allows you to change the color from green to blue (and back) with the flick of a switch. The LiteRing itself also features a diffusion filter over the LED lights. Note: This listing is for the LiteRing only. Brightness is regulated by the optional LiteRing Controller, which is powered by 12VDC from an optional universal power supply or camera battery. A single Controller and Power Supply are required to power each LiteRing. A LiteRing adapter for your lens or lenses is also required for use.
  • The Reflecmedia Dual LiteRing is designed to fit snugly around the camera lens to provide perfect illumination of the Reflecmedia Chromatte background for chroma key production.
  • The Dual LiteRing features high performance surface mounted Light Emitting Diodes (LEDs) arranged in a robust circular casing with a tuned diffusion to create extremely even illumination without causing discomfort to the subject.
  • The LiteRing is powered by the Reflecmedia Dual LiteRing Controller that allows the user to switch between blue or green output. 256 steps of dimming control are available with last setting memory for fast setup and instant switch over between colors.
• Dual LiteRing Controller The Reflecmedia Dual LiteRing Controller is designed specifically and exclusively to power the Dual LiteRing. The Controller features 0-100% dimming regulation in 256 steps, as well as selection of blue or green LEDs. Power options include optional external batteries, Sony NP-F batteries and a universal 90-240VAC power supply via a 4 Pin XLR input. UPC: 639713580631
• Lite-Ring World Power Supply 90-240V AC to 12V DC When you want to bring your Reflecmedia Lite-Ring from out of the studio and onto the road, the Reflecmedia 12V World Power Supply will convert AC voltages from 90V to 240V to a nominal 12V DC. It is provided with interchangeable USA, UK and European plug adapters.
  • The output is 12V DC on a female 4 pin XLR connector.
    Total power consumption is approximately 600 mA.
  UPC: 719821266198
• Chromatte Curtain with Bag (16'4"x13'1") Reflecmedia Chromatte material is manufactured for Reflecmedia by Lastolite Limited - one of the world's leading producers of collapsible screens for the video and photographic industries. It is typically used as a background for chromakey.The shaped glass beads on the reflective Chromatte background reflect back LED Lights along the same axis (angle) toward, and into the camera lens. The material looks grey to the eye; when lit by an LED LiteRing, it will adapt the color of the LED's.
  • Easy to set up and use
  • Can be used in studio or in the field
  UPC: 719821300809

• Limited 1-Year Warranty

• 1 Year Manufacturer's Warranty

• XLR plug to USA AC power supply

• European plug adapter

• UK plug adapter

• Storage Bag

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RM 3251S Small Dual LiteRing

  Cooling System	None
  Display	None

  Power Input Connector	3-Pin XLR

  Fixture Mount	None
  Accessory Mount	None

  AC Input Power	90 to 240 VAC, 50 / 60 Hz
  DC Input Power	22.1 VDC at 0.5 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	12 W

  IP Rating	IP40
  Operating Temperature	122°F / 50°C
  Protection Class	III

  Box Dimensions (LxWxH)	7.2 x 5.8 x 1.6"

• Dual LiteRing Controller

  Intended Application	Powering Dual LiteRing Photographic/film studios and similar locations
  Input	7.5 - 12VDC 4 Pin XLR power input, Pin 1 0V, Pin 4 +V 7.5VDC via SONY NP-F built-in MDV battery mount
  Output	3 pin XLR. Pin 1 +V (common) Pin 2 0V(1) Pin 3 0V(2) LiteRing output Max. 0.45A, 22.1VDC
  Dimming	0 - 100% in 256 discreet steps (values of 0 - 255)
  Control	Dimming, selection of blue or green LEDs
  Power Source	Optional external batteries Optional Sony NP-F camera batteries Optional universal power adapter (90-240VAC)
  Power Consumption	12W maximum
  Ratings	IP30 (dry locations) Electric insulation class: III
  Operating Conditions	Maximum ambient temperature: 122°F (50°C) Maximum surface temperature: 176°F (80°C)

  Box Dimensions (LxWxH)	7.7 x 4.2 x 3.2"

• Lite-Ring World Power Supply 90-240V AC to 12V DC

  Output Voltage	12V DC
  Output Current	600 mAh
  Power Source	90-240V AC
  Connector	4 Pin XLR power connection

  Box Dimensions (LxWxH)	5.1 x 4.6 x 3.4"

• Chromatte Curtain with Bag (16'4"x13'1")

  Color	Not Applicable
  Size	16'4"x13'1" (5 x 4 m)"

  Box Dimensions (LxWxH)	32.0 x 20.5 x 7.75"
