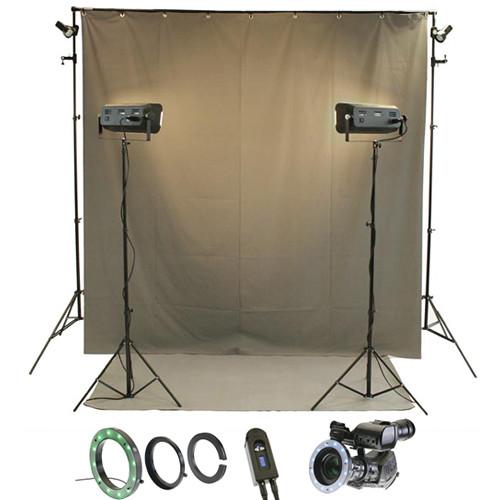

User Manual for Reflecmedia RM 7225DM 8.0 x 8.0' Deskshoot All In One Bundle with Medium Dual LiteRing Click to enlarge the picture
Contents of the user manual for the Reflecmedia RM 7225DM 8.0 x 8.0'
- Product category: LED Lights Reflecmedia
- Brand: Reflecmedia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Reflecmedia LED Lights
|
User manual for the Reflecmedia RM 7225DM 8.0 x 8.0' contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Reflecmedia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Reflecmedia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Reflecmedia product will considerably shorten its lifespan!
|
Product description Reflecmedia's Deskshoot fabric is designed to work in conjunction with a LiteRing. The LiteRing features Light Emitting Diodes (LEDs) that are arranged in a circular casing that is positioned in front of the camera lens. This provides all the light required to illuminate the Deskshoot background for chroma key production. The Reflecmedia RM 7225DM 8.0 x 8.0' Deskshoot All In One Bundle with Medium Dual LiteRing builds upon the remarkable success of the original and combines features that make it more versatile than ever! The enhanced controller allows you to change the color from green to blue (and back) with the flick of a switch and offers 256 increments of 0-100% dimming. It's powered by 12VDC from its universal power supply or optional external or camera batteries. The LiteRing itself also features a diffusion filter over the LED lights. The LiteRing fits lenses with a diameter of 112 mm and under. Specially designed optional adapter rings simply screw into the filter thread on the front of the lens and then the LiteRing is placed on to the adapter and locked with a single screw, significantly reducing the set-up time associated with conventional chroma key. The rest of the kit is rounded out by just about everything you'll need to do advanced chroma key work. A 8.0 x 8.0' Deskshoot Backdrop and a support stand are included with a 4.0 x 6.0' BaseMatte Tile, as well as 2 Iztac front lights with stands and 2 clip-on backlights. Note: An optional adapter ring is available for your lens and is required for use of this product - RM 3261M Medium Dual LiteRing The Reflecmedia RM 3261M Medium Dual LiteRing builds upon the remarkable success of the original and combines features that make it more versatile than ever. The enhanced optional controller allows you to change the color from green to blue (and back) with the flick of a switch. The LiteRing itself also features a diffusion filter over the LED lights. Reflecmedia's Chromatte fabric is designed to work in conjunction with the LiteRing. The LiteRing's Light Emitting Diodes (LEDs) are arranged in a circular casing that is positioned in front of the camera lens. This provides all the light required to illuminate the Chromatte background for chroma key production. This listing is for the LiteRing only. Brightness is regulated by the optional LiteRing Controller, which is powered by 12VDC from an optional universal power supply or camera battery. A single Controller and Power Supply are required to power each LiteRing.
- The Reflecmedia Dual LiteRing is designed to fit snugly around the camera lens to provide perfect illumination of the Reflecmedia Chromatte background for chroma key production.
- The Dual LiteRing features high performance surface mounted Light Emitting Diodes (LEDs) arranged in a robust circular casing with a tuned diffusion to create extremely even illumination without causing discomfort to the subject.
- The LiteRing is powered by the Reflecmedia Dual LiteRing Controller (purchased separately) that allows the user to switch between blue or green output. 256 steps of dimming control are available with last setting memory for fast setup and instant switch over between colors.
UPC: 639713580570 - Dual LiteRing Controller The Reflecmedia Dual LiteRing Controller is designed specifically and exclusively to power the Dual LiteRing. The Controller features 0-100% dimming regulation in 256 steps, as well as selection of blue or green LEDs. Power options include optional external batteries, Sony NP-F batteries and a universal 90-240VAC power supply via a 4 Pin XLR input. UPC: 639713580631
- Lite-Ring World Power Supply 90-240V AC to 12V DC When you want to bring your Reflecmedia Lite-Ring from out of the studio and onto the road, the Reflecmedia 12V World Power Supply will convert AC voltages from 90V to 240V to a nominal 12V DC. It is provided with interchangeable USA, UK and European plug adapters.
- The output is 12V DC on a female 4 pin XLR connector.
Total power consumption is approximately 600 mA. UPC: 719821266198 - BaseMatte Tile The 6.6 x 4.6' (2 x 1.4 m) Reflecmedia BaseMatte™ Tile has a Chromatte special "beaded" surface with a rubberized backing. It is ideal for floor application with your Reflecmedia system. The backing forms easily to most carpets and solid floors and provides a flat chromatte panel with no creases. When used with a ChromaFlex or Chromatte curtain it will enable the camera operator to frame full body shots.
- BaseMatte™ tiles can easily be replaced, unlike an entire studio floor.
- Chromatte tape can be used to cover and mask microphone cables and other unwanted studio equipment (See "Accessories" Tab for #RM1212).
- Non-slip, pressure resistant
UPC: 719821271376 In the Box Bundle Items RM 3261M Medium Dual LiteRing wcsuextuxtdrxtcexf Dual LiteRing Controller - 1 Year Manufacturer's Warranty
Lite-Ring World Power Supply 90-240V AC to 12V DC - XLR plug to USA AC power supply
BaseMatte Tile
Also Includes - 8.0 x 8.0' Deskshoot Backdrop
- 2 x Backlight with Power Cord
- Iztac Key Light with Power Cord
- Background Support Set (2 Stands, 1 Crossbar)
- Limited 1-Year Warranty
Guides & Manuals wcsuextuxtdrxtcexf Table of Contents
|
Upload User Manual
Have you got an user manual for the Reflecmedia RM 7225DM 8.0 x 8.0' Deskshoot All In One Bundle with Medium Dual LiteRing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Reflecmedia RM 7225DM 8.0 x 8.0' Deskshoot All In One Bundle with Medium Dual LiteRing can be downloaded in PDF format at the link stated below.
Technical parameters - RM 3261M Medium Dual LiteRing
| | | Cooling System | None | | Display | None | | | | Power Input Connector | 3-Pin XLR | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 22.1 VDC at 0.5 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 12 W | | | | IP Rating | IP40 | | Operating Temperature | 122°F / 50°C | | Protection Class | III | | | | Box Dimensions (LxWxH) | 9.8 x 6.9 x 2.9" | - Dual LiteRing Controller
| Intended Application | Powering Dual LiteRing
Photographic/film studios and similar locations | | Input | 7.5 - 12VDC
4 Pin XLR power input, Pin 1 0V, Pin 4 +V
7.5VDC via SONY NP-F built-in MDV battery mount | | Output | 3 pin XLR. Pin 1 +V (common) Pin 2 0V(1) Pin 3 0V(2) LiteRing output Max. 0.45A, 22.1VDC | | Dimming | 0 - 100% in 256 discreet steps (values of 0 - 255) | | Control | Dimming, selection of blue or green LEDs | | Power Source | Optional external batteries
Optional Sony NP-F camera batteries
Optional universal power adapter (90-240VAC) | | Power Consumption | 12W maximum | | Ratings | IP30 (dry locations)
Electric insulation class: III | | Operating Conditions | Maximum ambient temperature: 122°F (50°C)
Maximum surface temperature: 176°F (80°C) | | | | Box Dimensions (LxWxH) | 7.7 x 4.2 x 3.2" | - Lite-Ring World Power Supply 90-240V AC to 12V DC
| Output Voltage | 12V DC | | Output Current | 600 mAh | | Power Source | 90-240V AC | | Connector | 4 Pin XLR power connection | | | | Box Dimensions (LxWxH) | 5.1 x 4.6 x 3.4" | - BaseMatte Tile
| | | Box Dimensions (LxWxH) | 60.0 x 10.0 x 10.0" |
