Product description - DJ ANGELO - Analog vs Digital (with Reloop RMX22i)

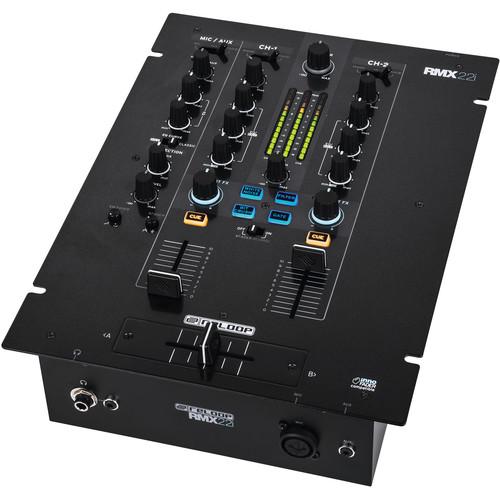

The RMX-22i from Reloop is a 2+1 channel DJ mixer with built-in digital effects and connectivity for smartphones and tablets for professional DJs, serious home enthusiasts, and clubs. The mixer boasts a total of 8 inputs, with channels 1 & 2 featuring line and phono RCA inputs, as well as 1/8" / 3.5mm jacks for connecting any smartphone or tablet. The included audio splitter cable divides the output of the device into two separate mono channels for split cuing, or one stereo channel for production or sampler apps.

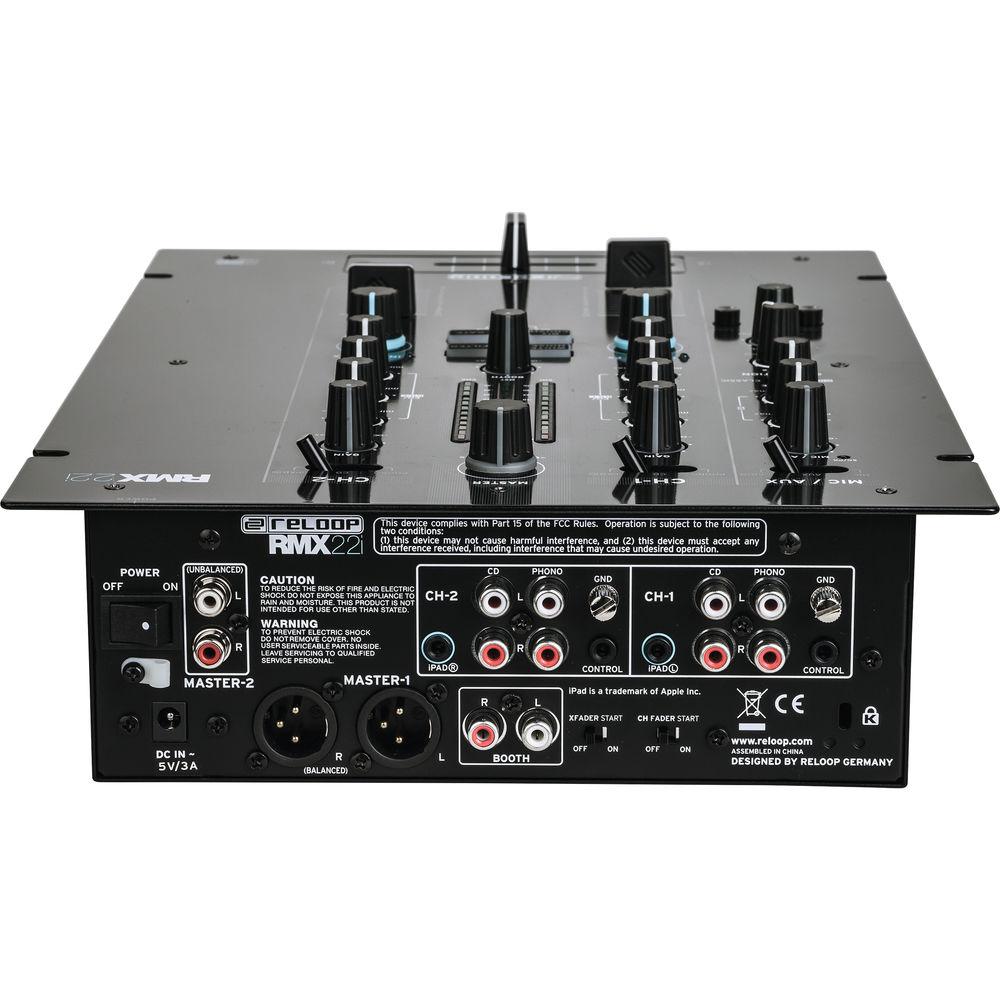

The main outputs include two balanced XLR (Stereo L+R) and unbalanced stereo RCA connections, while booth outputs are offered via unbalanced stereo RCA. The two headphone outputs include 1/4" / 6.35 mm and 1/8" / 3.5 mm jacks. A combo XLR/1/4" / 6.35 mm input is offered for a microphone, which feeds a dedicated mic channel with a 2-band EQ. Additionally, the mic input can be switched to accept an 1/8" / 3.5 mm stereo input for an additional line input.

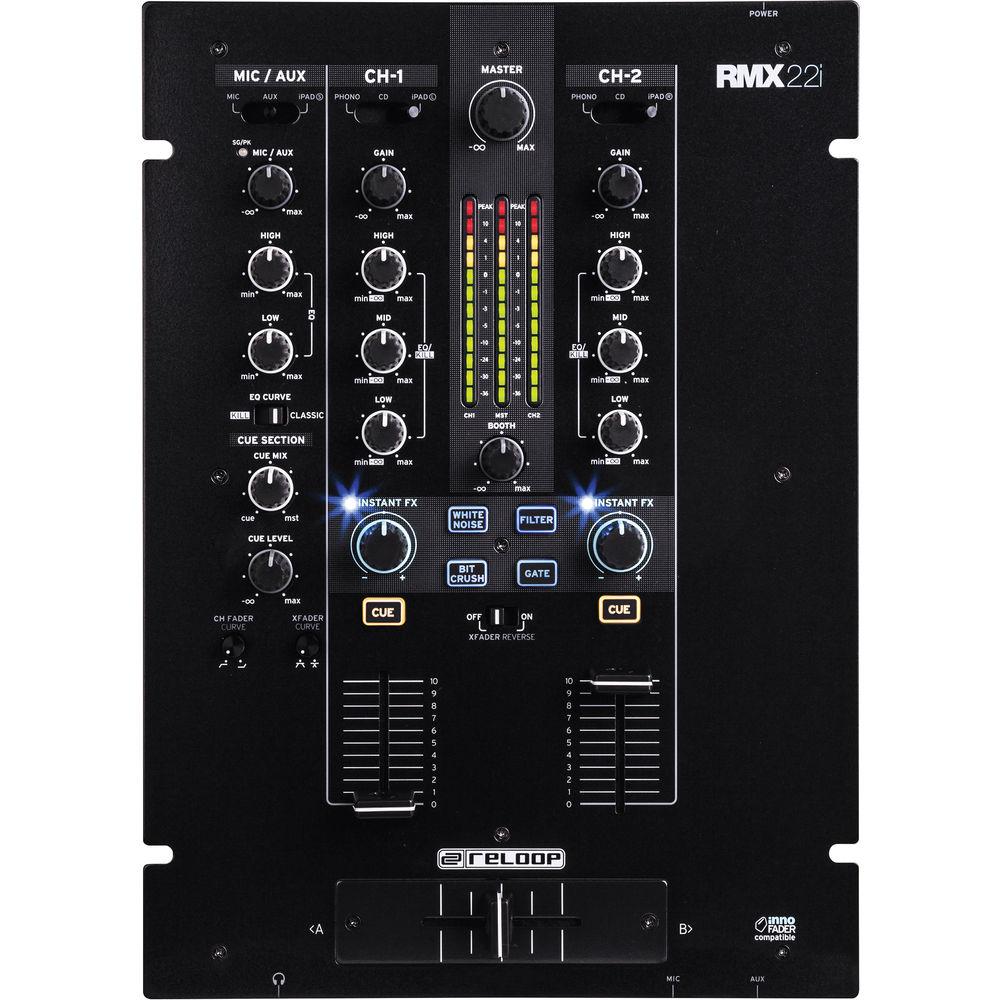

Each channel features a 3-band EQ that is switchable between isolator and classic EQ to suit any individual mixing styles. The instant sound FX section is available on any channel, with dedicated potentiometers for control and manipulation. The effects offered include white noise, filter, bit crush, and gate. The 1.8" / 45.0 mm crossfader is replaceable and compatible with innoFADER. The crossfader also features fader-start, reverse, and curve control. The Remix 22i ships with the audio split cable and an international power supply. -
- 2 (+1) Channel Digital Effect Mixer
- Fully digital architecture for outstanding sound and flexibility
- 4 Instant Sound Color Effects per channel (Filter, White Noise, Bit Crush & Gate)

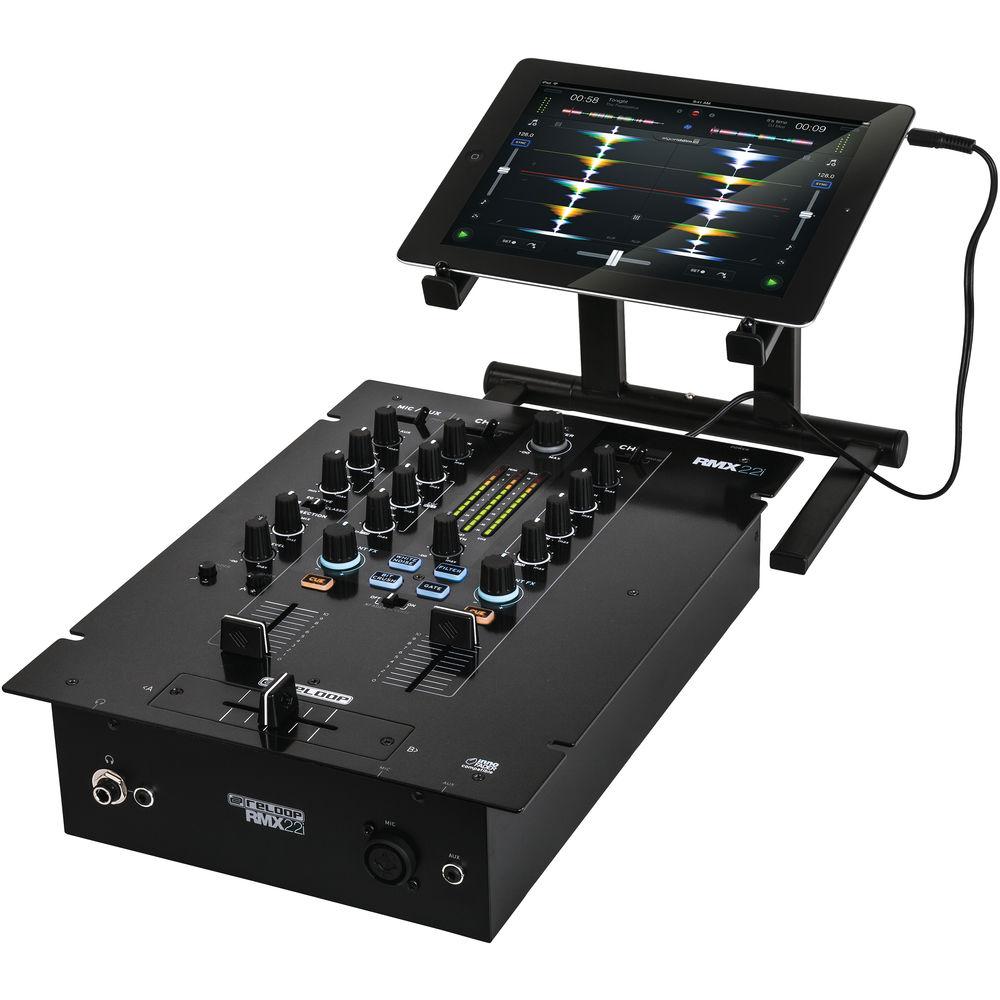

- iPad / tablet / smartphone audio split-input
- EQ-setting for classic or isolator (kill)
- 1.8" / 45.0 mm club line & crossfader
- Fader-start, reverse & curve control
- innoFADER compatible
- Mic channel with 2-band EQ
- 2 headphones outputs (1/4" / 6.3 mm jack and 1/8" / 3.5 mm jack)
- Balanced (XLR) and unbalanced (RCA) outputs
- Altogether 8 inputs (2x phono, 5x line, 1x combo-mic)
- Altogether 5 outputs (1x XLR, 2x RCA, 2x headphones)
- Club-quality sound & built
- Optional Reloop RMX innoFADER accessory by Audio Innovate available
- Includes smartphone / tablet audio split cable and international power supply
In the Box Reloop RMX-22i - 2+1 DJ Mixer with Digital FX and Smart Device Connectivity Smartphone / Tablet Audio Split Cable International Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop RMX-22i - 2 1 DJ Mixer with Digital FX and Smart Device Connectivity in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReloop RMX-22I Specs | Type | 2-channel effect mixer | | Connections | Input
Phono: 2 x stereo RCA
Mic: 1 x combo XLR/1/4" / 6.35 mm
Line: 2 x stereo RCA
Line: 2 x 1/8" / 3.5 mm mono inputs
Line: 1 x stereo 1/8" / 3.5 mm
Output
Main Out: 2 x balanced XLR (stereo L+R)
Main Out: 1 x stereo RCA
Booth Out: 1 x stereo RCA
Headphone: 1 x 1/4" / 6.35 mm
Headphone: 1 x 1/8" / 3.5 mm | | Input | Line/CD/iPad/Aux: 51 kOhm / -14 dBV (200 mV) ±1 dB
Phono: 47 kOhm / -50 dBV (3.16 mV) ±1 dB
Mic: 12 kOhm / -54 dBV (1.99 mV) ±1 dB | | Output | Master: 1 kOhm / 0 dBV (1 V) ±2 dB
Balanced: 600 Ohm / 0 dBV (1 V) ±2 dB
Booth: 1 kOhm / 0 dBV (1 V) ±2 dB
Phones: 33 Ohm / 0 dBV (1 V) ±2 dB | | Frequency Range | iPad/CD/Aux: 20 Hz to 20 kHz +2/-3 dB
Phono: 20 Hz to 20 kHz +2/-3 dB (RIAA) at input level = -60 dBV
Mic: 20 Hz to 20 kHz +2/-3dB
Frequency Increase/Decrease: +12 dB / < -26 dB | | S/N Ratio | iPad/CD: > 80 dB at 0 dB Input
Phono: > 70 dB at -36 dB Input
Aux: > 70 dB at 0 dB Input
Mic: 70 dB at -40 dB Input | | Dimensions (W x H x L) | 10.0 x 4.1 x 14.0" / 25.4 x 10.4 x 35.5 cm | | Weight | 8.2 lb / 3.7 kg |
