User Manual for Reloop RMX-60 Digital 4 1 Channel DJ Mixer with Built-in EFX Click to enlarge the picture
Contents of the user manual for the Reloop RMX-60 Digital 4 1 Channel
- Product category: DJ Mixers Reloop
- Brand: Reloop
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Reloop DJ Mixers
 |
User manual for the Reloop RMX-60 Digital 4 1 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Reloop product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Reloop user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Reloop product will considerably shorten its lifespan!
|

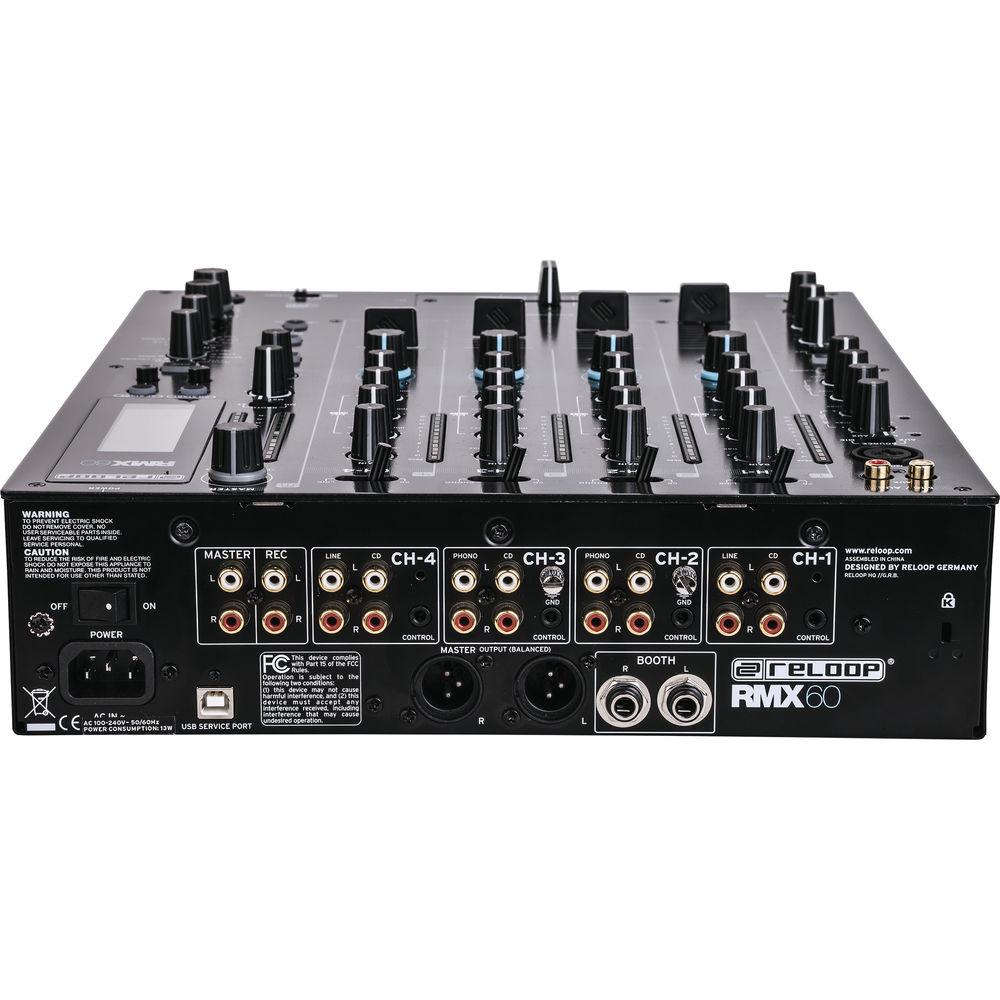

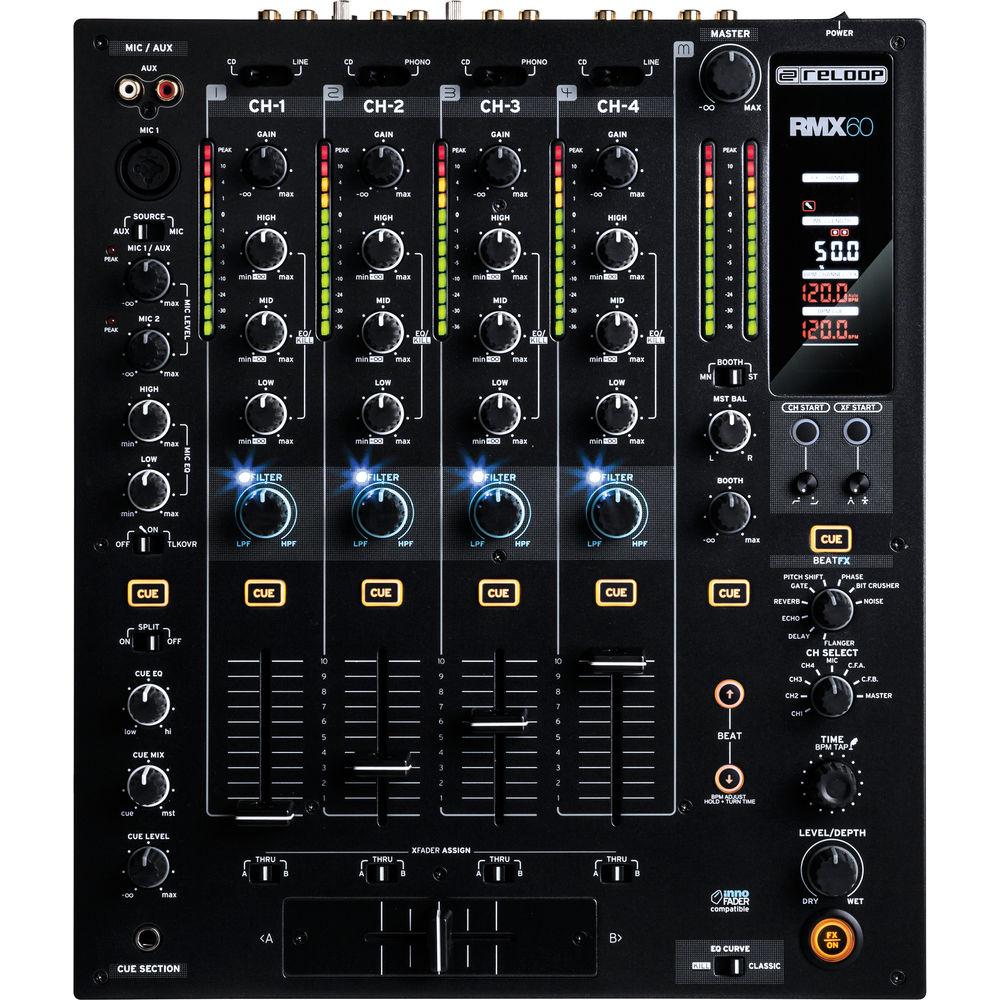

Product description The RMX-60 Digital 4+1 Channel DJ Mixer with Built-in EFX from Reloop is designed for live performance applications such as playing at parties or in the club. The fully digital mixer features 4+1 mix channels, a clear terminal panel for up to 9 signal sources, 7 RCA line inputs, 2 RCA phono inputs, and two microphone inputs with active ducking technology. For outputs it features two headphone jacks (1/4" and 1/8") with 1-knob headphone EQ, stereo 1/4" booth outputs, stereo balanced XLR master outputs, and unbalanced stereo master and record outputs via RCA.
Step-less adjustable fader and crossfader controls allow you to change the curves for scratching or mixing and the bipolar filter section with switchable kill/classic EQ controls enables extensive flexibility in adjusting the frequency spectrum. Two independent beat counters feature an intelligent tempo detect circuit to help you keep your mixes in time.
The eight performance effects were developed with the input of professional DJs and enable extensive live remix sessions with the ability to assign effect to individual channels, crossfader channels, and the master output channel. A large LCD display provides visual feedback. For monitoring the mixer features both a classic solo cue mode as well as an extended mix cue mode that allows you to monitor several channels at the same time. The RMX-60 ships with a standard IEC power cord. -
- Classic 4+1 channel performance club mixer
- 11 inputs, 6 outputs
- Fully digital architecture for outstanding sound and flexibility
- 8 high-quality performance effects in studio quality (delay, echo, reverb, gate, pitch shift, phase, bit crusher, noise)
- Large, clearly arranged parameter display
- Bipolar filter per channel
- Adjustable EQ characteristics (kill & classic)
- InnoFader compatible (RMX InnoFader available separately)
- Crossfader assign switch per channel
- Mic channel with 2-band EQ & talkover ''Active Ducking Technology'' for mic channel
- 2 headphones outputs (jack and mini jack)
- Intelligent 1-knob equalizer and mono/stereo switch for headphones
- Future-proof due to innovative, updateable firmware system (USB service port)
- Fader & crossfader-start and curve adjust
- Symmetrical (XLR) as well as asymmetrical (RCA) outputs
In the Box Reloop RMX-60 Digital 4+1 Channel DJ Mixer with Built-in EFX Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop RMX-60 Digital 4 1 Channel DJ Mixer with Built-in EFX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReloop RMX-60 Specs | Type | Club mixer | | Inputs | 7x RCA pairs (4 CD + 2 Line + 1 aux)
2x phono RCA pairs with ground
1x mic XLR/1/4" / 6.35 mm combo jack
1x 1/4" / 6.35 mm | | Outputs | 2x XLR-3F master output
2x 1/4" / 6.35 mm booth outputs
1x RCA stereo pair (left and right) master output
1x RCA stereo pair (left and right) rec output
1x 1/4" / 6.35 mm headphone output
1x 1/8" / 3.5 mm headphone output | | EQ Controls | EQ Range Classic: +12 / -8 dB
EQ Range Isolator: +12 / -26 dB (total kill) | | USB | Type B Port for connecting to computer | | Input Impedances | Line/CD: 10 kOhms / -14 dBV (200 mV)
Phono: 47 kOhms / -50 dBV (3.16 mV)
Aux: 10 kOhms/ -14 dBV (200 mV)
Mic 1: 6.8 kOhms / -54 dBV (1.99 mV), unbalanced
Mic 2: 6.8 kOhms / -54 dBV (1.99 mV)
Return: 10 kOhms / -10 dBV (316 mV), level VR at 100% | | Output Impedances | Master: 1 kOhms / 0 dBV (1 V) ±2 dB
Balanced: 600 ohms / 0 dBV (1 V) ±2 dB
Booth: 600 ohms / 0 dBV (1 V) ±2 dB
Rec: 1 kOhms / -10 dBV (316 mV) ±2 dB
Send: 1 kOhms / -10 dBV (315 mV) ±2 dB
Phones: 33 ohms / -3 dBV (708 mV) ±2 dB | | Frequency Range | 20 Hz to 20 kHz | | S/N Ratio | Phono: 85 dB
Line: 85 dB
Aux: 85 dB
DJ Mic: 90 dB
Mic 2: 90 dB | | Kensington Lock Support | Yes | | Power Supply | 100 to 240 VAC at 50/60 Hz | | Dimensions (W x H x D) | 12.6 x 4.3 x 15.2" / 320.0 x 107.5 x 386.7 mm | | Weight | 15.0 lb / 6.8 kg |
