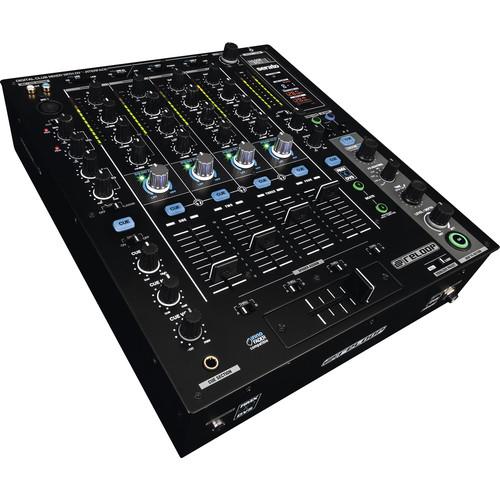

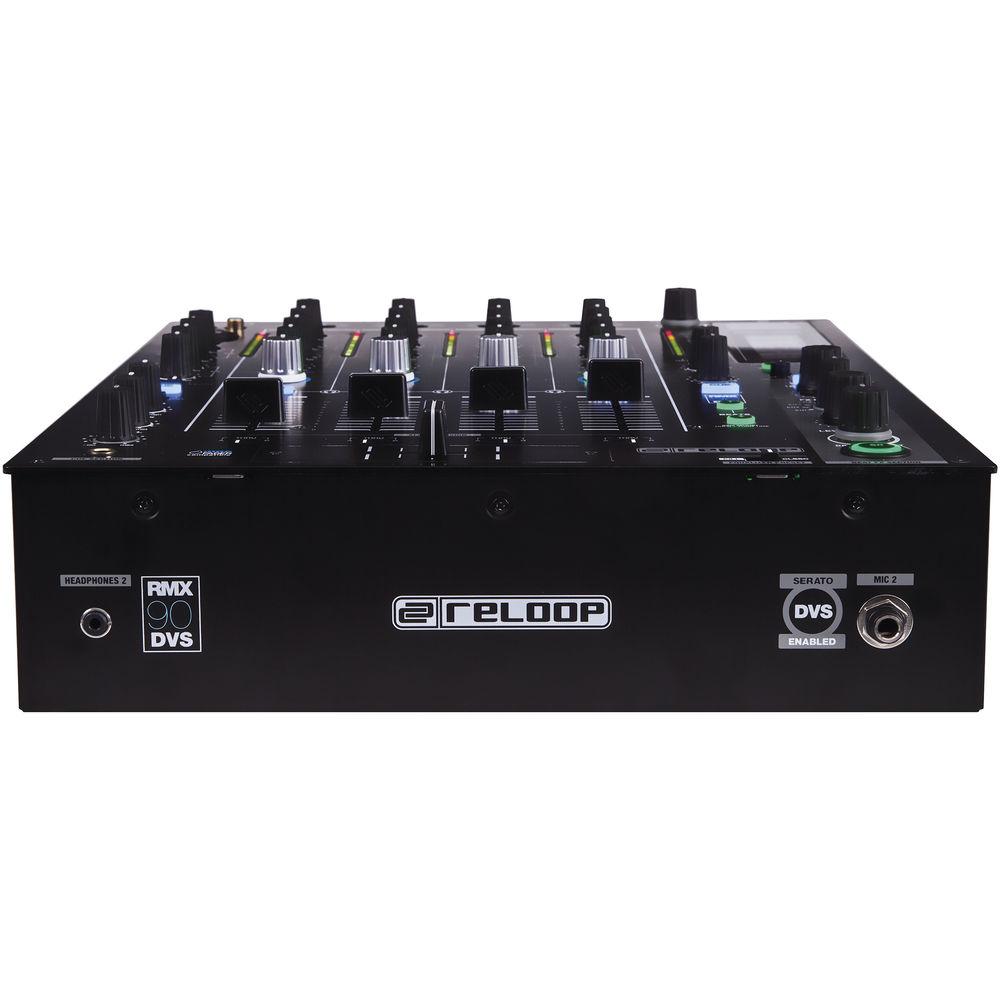

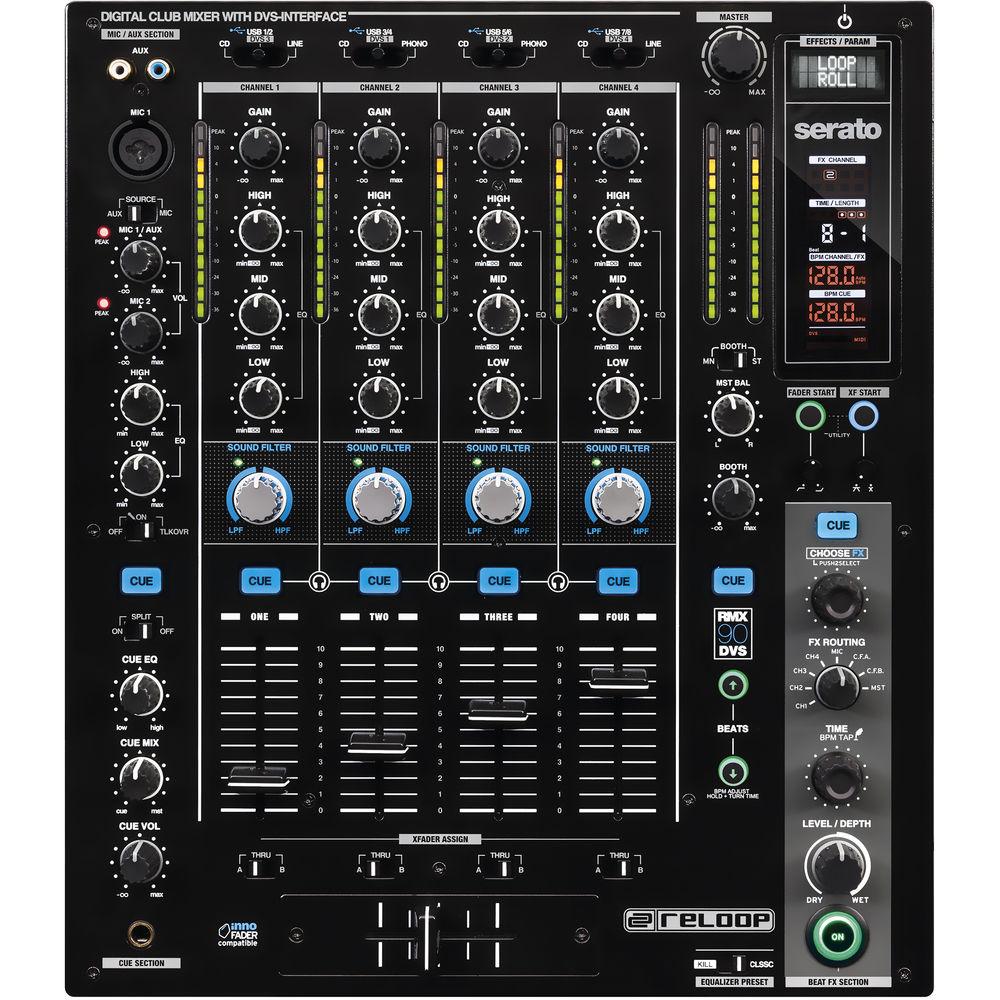

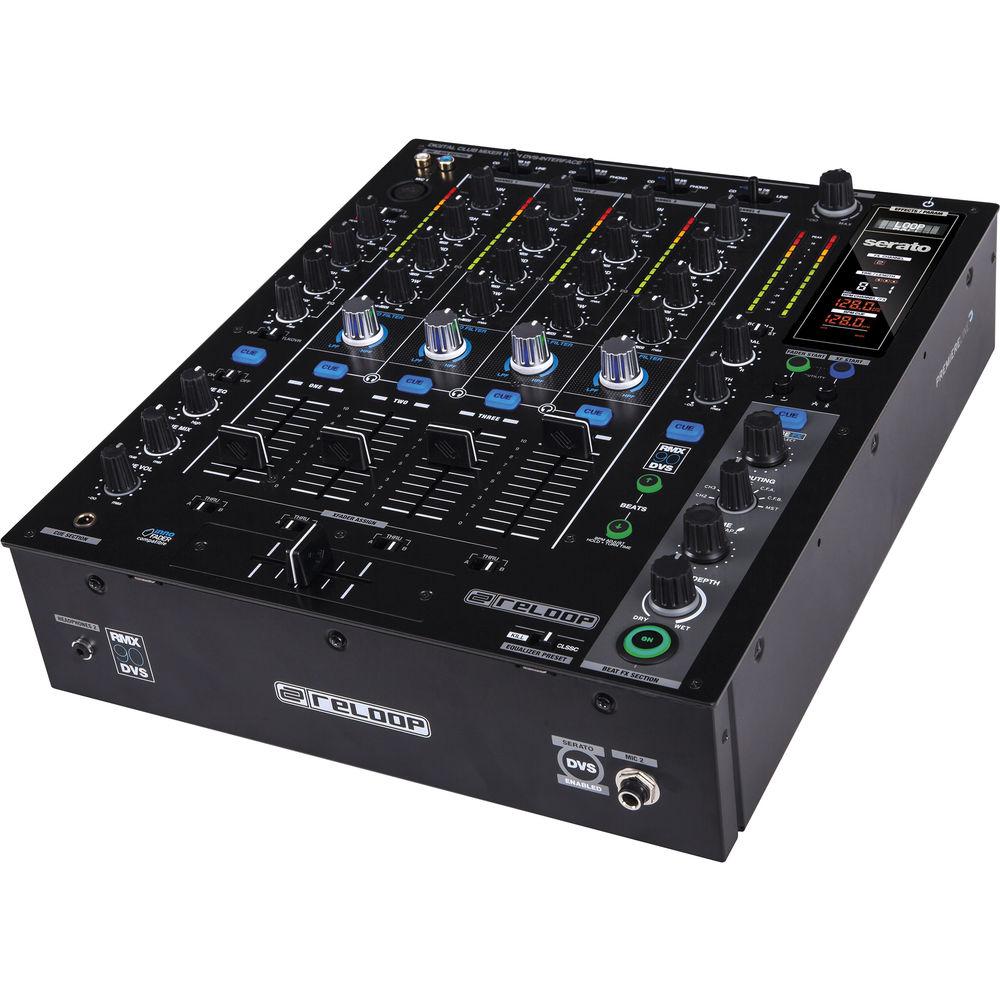

Product description The RMX-90 DVS from Reloop is a 4+1-channel DJ mixer with a built-in audio interface designed to offer full DVS control support for Serato DJ, flexible processing and control options, and extensive I/O for live performances, parties, and mixtapes. For controlling Serato DJ, it provides simple, USB 2.0 plug-and-play operation, and includes two Serato NoiseMap control vinyl records.Its four main channels have RCA inputs, while the additional channel offers RCA, XLR, and 1/4” inputs. Connect line sources, turntables, CD players, smartphones, and microphones. Outputs are available via RCA, XLR, and 1/4” jacks. Connect to a computer via USB to take advantage of the mixer's 8-channel audio interface functionality. The built-in active USB hub allows connection to other devices, such as storage media and MIDI controllers. The RMX-90 DVS provides MIDI-control capability, as it can send and receive MIDI messages.Each channel features 3-band EQ with high- and low-pass filters. The EQ can be set to classic or kill mode. The integrated Beat FX unit offers 12 individually assignable effects, which can be synchronized via the BPM Adjust knob. Dual digital displays can show BPM, time, parameter values, and more.The RMX-90 DVS features sturdy construction with screwed knobs and a metal housing. It supports the Kensington lock system for increased security. -
- 4-channel DJ mixer with extra channel for mic or aux input
- 8-channel DVS audio interface with plug-and-play support for Serato DJ
- Up to 24-bit resolution
- Dual mic inputs with talk-over function
- Phono, Line, CD, and Aux inputs via RCA jacks
- RCA, XLR, and 1/4” outputs
- Supports Serato DVS to control Serato DJ
- Includes two Serato NoiseMap control vinyl records
- Beat FX offers 12 individually assignable effects, which can be synchronized via BPM Adjust knob
- Effects include Flanger, Delay, Echo, Reverb, Transformer, Pitch Shift, Loop Roll, Reverse Loop, Noise, Bitcrusher, Gate, and Tape Delay
- Per-channel 3-band equalizer with high- and low-pass filters
- Classic and kill-style EQ
- Two digital displays show BPM, time, parameter values, and more
- Cue solo option
- Adjustable channel fader and crossfader curves
- Full MIDI control support allows RMX-90 DVS to transmit and receive MIDI messages
- Compatible with RMX Innofader
- USB 2.0 connectivity
- Built-in active 3-port USB 2.0 hub for connection of storage media, MIDI controllers, and more
- Supports fader-start via 3.5mm control cable
- Kensington lock
In the Box Reloop RMX-90 DVS Digital 4+1 Channel DJ Mixer with Built-in EFX 2 x Serato NoiseMap Control Vinyl Records IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop RMX-90 DVS Digital 4 1 Channel DJ Mixer with Built-in EFX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

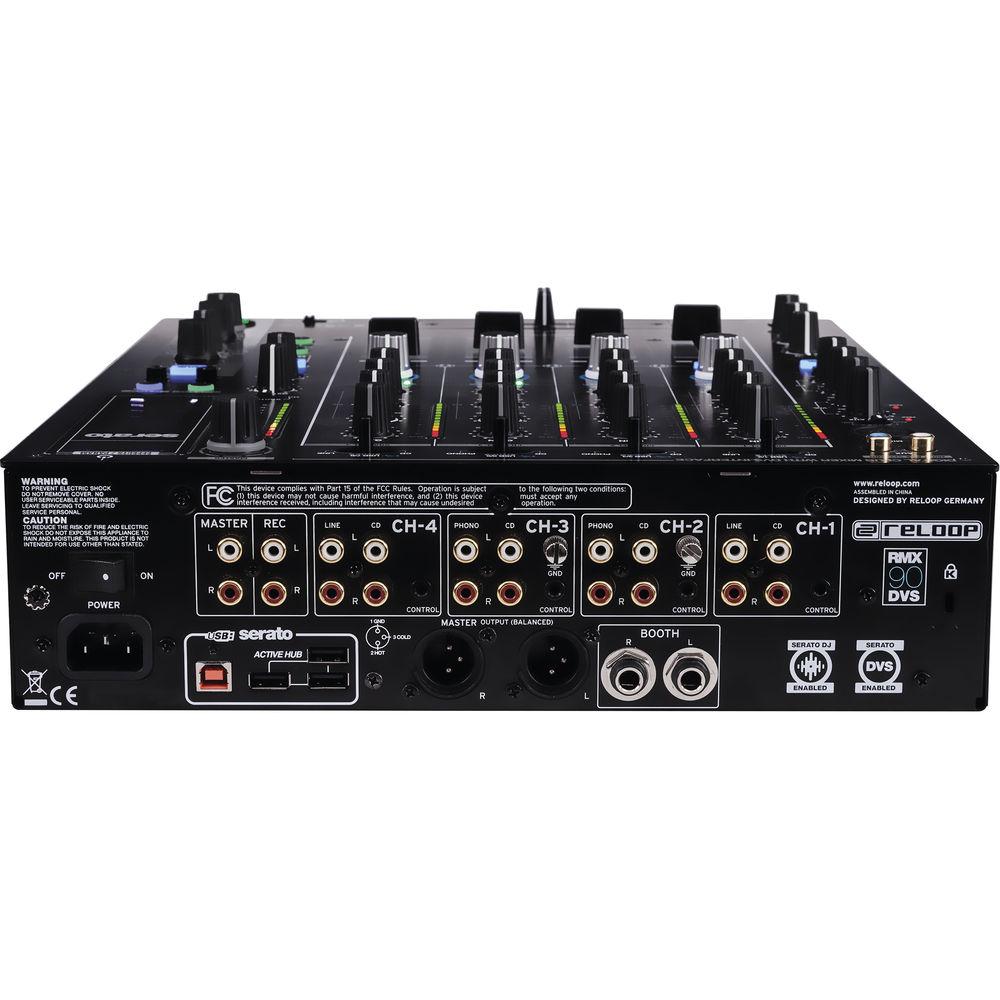

Technical parametersReloop RMX-90-DVS Specs | Inputs | 1 x XLR/TRS/TS combo jack (Mic 1)
1 x 1/4" (Mic 2)
2 x RCA stereo pairs (Phono)
4 x RCA stereo pairs (CD)
2 x RCA stereo pairs (Line)
1 x RCA stereo pair (Aux) | | Outputs | 2 x XLR (Master)
2 x 1/4" (Booth)
1 x RCA stereo pair (Master)
1 x RCA stereo pair (Rec)
1 x 1/4" stereo (Cue)
1 x 3.5 mm stereo (Headphones) | | Control Input | 4 x 3.5 mm | | USB | USB 2.0 protocol
1 x USB Type-B
3 x USB Type-A (active hub) | | Input Impedance | Line/CD: 45 kOhms (0 dBV input level)
Phono: 47 kOhms (-35 dBV input level)
Aux: 45 kOhms (0 dBV input level)
Mic: 5 kOhms (-42 dBV input level) | | Output Impedance | Master: 1 kOhm (-2.2 dBV output level)
Balanced: 600 Ohms (-2.2 dBV output level)
Booth: 600 Ohms (-2.2 dBV output level)
Record: 1 kOhm (-11 dBV output level)
Phones: 33 Ohms (-13 dBV output level) | | Maximum Input | Line/CD/Aux: > +12 dBV (nominal), > +11 dBV (limited)
Phono: > -23 dBV (nominal), > -25 dBV (limited)
Mic: > -30 dBV (nominal), > -32 dBV (limited) | | Maximum Output | Master Unbalanced: > +17.8 dBV (nominal), > +16 dBV (limited)
Master Balanced: > +17.8 dBV (nominal), > +16 dBV (limited)
Booth Balanced: > +17.8 dBV (nominal), > +16 dBV (limited)
Phones: > +6.8 dBV (nominal), > +5 dBV (limited) | | Frequency Response | Line/CD/Aux: 20 Hz - 20 kHz (+1 / -1.5 dB @ nominal), (+2 / -3 dB @ 0 dBV limited)
Phono: 20 Hz - 20 kHz (+1 / -2 dB @ nominal), (+2 / -3 dB @ -50 dB limited)
Mic: 20 Hz - 20 kHz (+1 / -2 dB @ nominal), (+2 / -3 dB @ -42 dBV limited) | | S/N Ratio | Line/CD/Aux @ 0 dBV Input: 83 dB (nominal), 77 dB (limited)
Phono @ -35 dBV Input: 83 dB (nominal), 77 dB (limited)
Mic @ -42 dBV Input: 70 dB (nominal), 65 dB (limited) | | THD + N | Line/CD/Aux @ 0 dBV Input: 0.01% (nominal), 0.02% (limited)
Phono @ -35 dBV Input: 0.02% (nominal), 0.05% (limited)
Mic @ -42 dBV Input: 0.03% (nominal), 0.06% (limited)
CD @ 0 dBV Input: 0.02% (nominal), 0.05% (limited) | | Crosstalk @ 1 kHz | Line/CD @ 0 dBV Input: 90 dB (nominal), 80 dB (limited)
Phono @ -35 dBV Input: 90 dB (nominal), 80 dB (limited) | | Channel Separation @ 1 kHz | Line/CD/Aux @ 0 dBV Input: 80 dB (nominal), 75 dB (limited)
Phono @ -35 dBV Input: 80 dB (nominal), 75 dB (limited) | | Equalizer | EQ Range Classic @ 70 Hz, 1 kHz, 13 kHz: -26 dB / +9 dB
EQ Range Isolator @ 70 Hz, 1 kHz, 13 kHz: -∞ dB / +9 dB
EQ Range Mic @ 100 Hz, 10 kHz: -12 dB / +12 dB | | Output Load | 100 kOhms (unbalanced)
600 Ohms (balanced) | | Power Consumption | 23 W | | Power Requirements | 100 - 240 VAC, 50/60 Hz | | Enclosure Material | Metal | | Dimensions (W x D x H) | 12.7 x 15.2 x 4.2" / 322 x 387 x 107 mm | | Weight | 15.2 lb / 6.9 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Reloop RMX-90 DVS Digital 4 1 Channel DJ Mixer with Built-in EFX
| Subject: RMX-90 DVS MIXER ERROR E5535 | | Date: 17.01.2022 04:00:20 | Name: Sai Gibz | HELLO i HAVE OWNED MY MIXER FOR 6 MONTHS SINCE PURCHASE BRAND NEW..
I HAVE JUST HAD IT SITTING IN MY STUDIO .. when i turned it on recently
it showed an error on the screen E5535 ... it wouldnt connect to serato on my macbook.
Can you tell me what type of error this is and how to fix please :(
