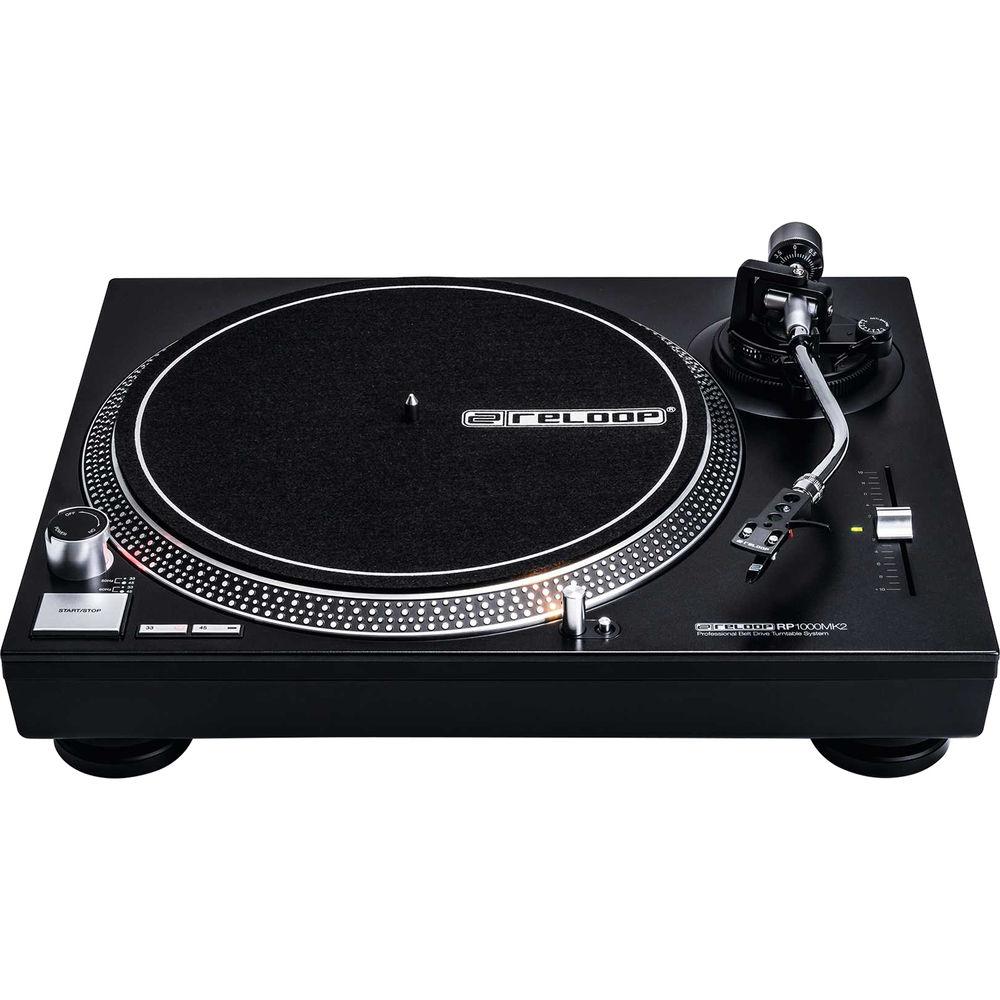

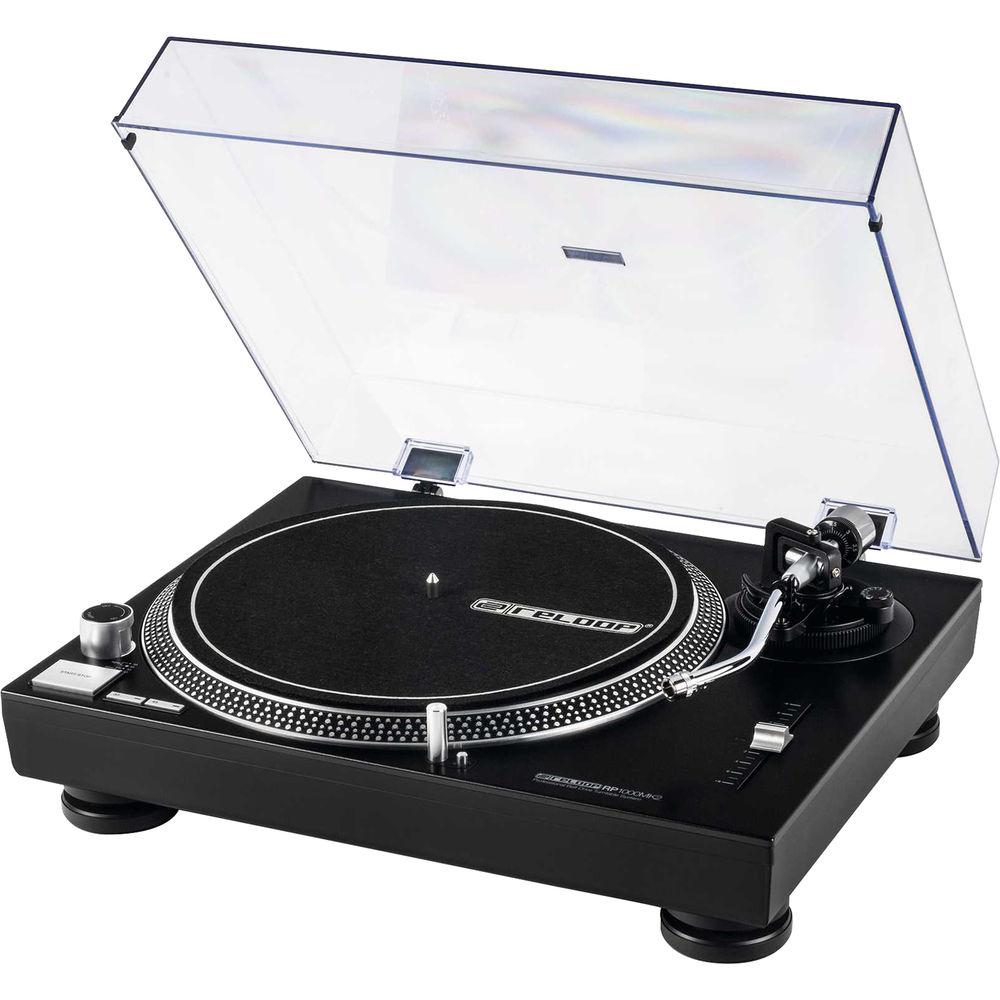

User Manual for Reloop RP-1000 MK2 Belt-Driven DJ Turntable Click to enlarge the picture
Contents of the user manual for the Reloop RP-1000 MK2 Belt-Driven DJ Turntable
- Product category: Turntables Reloop
- Brand: Reloop
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Reloop Turntables
 |
User manual for the Reloop RP-1000 MK2 Belt-Driven DJ Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Reloop product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Reloop user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Reloop product will considerably shorten its lifespan!
|
Product description The Reloop RP-1000 MK2 is a powerful belt-drive turntable designed for HiFi enthusiasts, audiophiles, and DJs practicing at home, or performing at parties and gigs. The MK2 features a redesigned top panel, reinforced housing construction, and reworked metallic buttons with improved feel and tactile response.
The belt-driven motor de-couples the drive unit from the precision-engineered platter and chassis, while the high-quality elastic rubber belt absorbs and reduces unwanted vibrations, resulting in distortion-free playback. The sturdy, reinforced construction and a die-cast aluminum platter allow the RP-1000 MK2 to withstand the rigors of on-the-road wear and tear. Speeds of 33-1/3 and 45 rpm are manually selectable via dedicated top-panel buttons, and a precision fader allows easy pitch control up to +/-10%. The S-shaped tone arm is statically balanced, and features a hydraulic lift and an anti-skating mechanism. Shock-absorbing feet isolate the turntable from vibration and sympathetic resonance. The RP-1000 MK2 utilizes gold-plated RCA phono outputs and a grounding connection for standardized hookup to a phono preamp or mixer. The universal connection accommodates the included Ortofon OM Black pickup system and allows you to swap to your own preferred SME model (available separately). The RP-1000 MK2 is supplied with a slipmat, a removable headshell, a counterweight, and a power cable. -
- Upgraded top panel and reinforced housing construction
- Reworked metallic buttons with improved feel and tactile response
- Precision pitch with selectable ranges of ±10 %
- Deep black metallic finish
- Turntable with belt-drive for DJ and HiFi use
- Great for aspiring DJs and HiFi enthusiasts
- Powerful belt-drive motor system absorbs unwanted vibration and noise

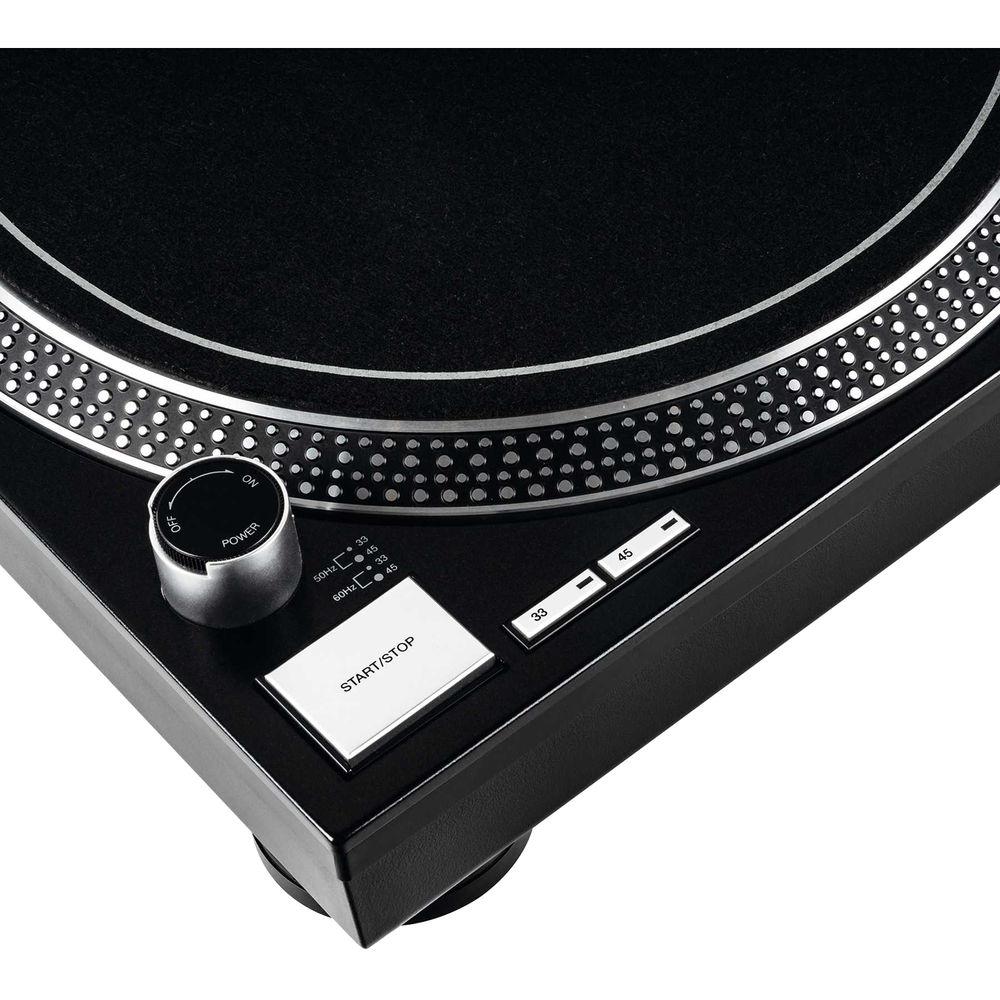

- Precise motor control with 2 selectable speeds (33-1/3 & 45 rpm)
- Precision-engineered, die-cast aluminum platter with stable rotation
- Statically balanced s-shaped tone arm with hydraulic lift and anti-skating mechanism
- Universal connection for pick-up systems (SME)
- Extendible needle illumination
- Shock-absorbing feet for vibration isolation
- Sturdy, heavy construction with optimized damping features

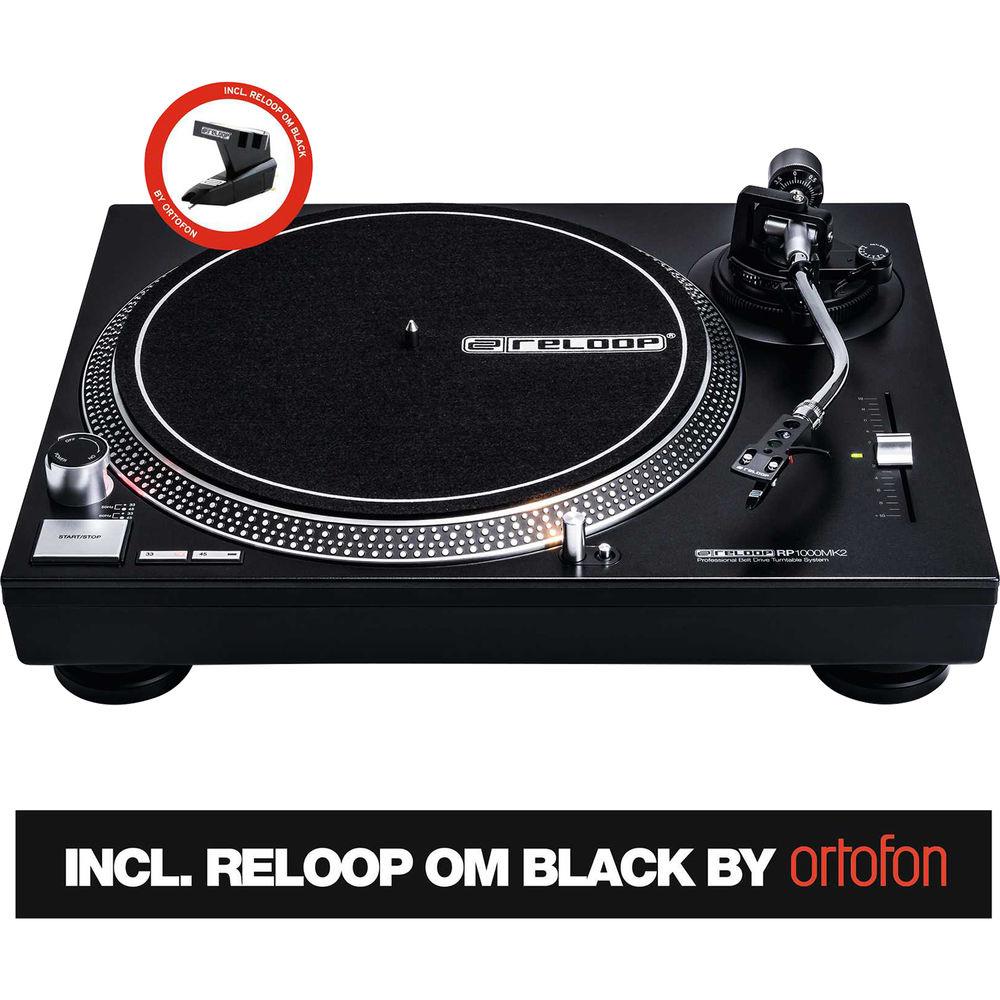

- Includes slipmat, removable headshell, and pre-mounted OM Black pick-up made by Ortofon
- Dust cover available as optional accessory
In the Box Reloop RP-1000 MK2 Belt-Driven DJ Turntable Ortofon OM Black Pickup System Headshell Slipmat Counterweight Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop RP-1000 MK2 Belt-Driven DJ Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReloop RP-1000 MK2 Specs | | | Type | Belt Drive Turntable | | Drive | Belt Drive | | Motor | DC Motor | | Speed | 33-1/3 and 45 RPM | | Brake Time | < 1 Sec | | Start-Up Time | Start-Up / RPM Change: < 1 Sec | | Wow & Flutter | < 0.25% WRMS | | Signal-to-Noise Ratio (SNR) | > 50 dB (DIN-B) | | Brake System | Electronic Brake | | | | Material | Aluminum Die-Cast | | Diameter | 13.1" / 332.0 mm | | | | Type | Universal, Statically Balanced, S-Shaped | | Length | Effective Length: 9.1" / 230.5 mm | | Overhang | 0.6" / 16.0 mm | | Tracking Error Angle | < 3° | | Weight | Applicable Pick-Up Weight
Without Headshell: 0.1 oz / 3.5 g to 0.3 oz / 8.5 g
With Headshell: 0.5 oz / 13.0 g to 0.6 oz / 18.0 g | | Anti-Skating Range | 0 to 0.2 oz / 7.0 g | | | | Connector | Stereo RCA Phono (Gold-Plated) | | | | Power | Power Supply: 115/230 VAC, 60/50 Hz (US/EU) Power Consumption: 10 W | | Dimensions (W x D x H) | 17.7 x 13.9 x 5.7" / 450 x 352 x 144 mm | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 15.915 lb | | Box Dimensions (LxWxH) | 21.1 x 16.9 x 8.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
