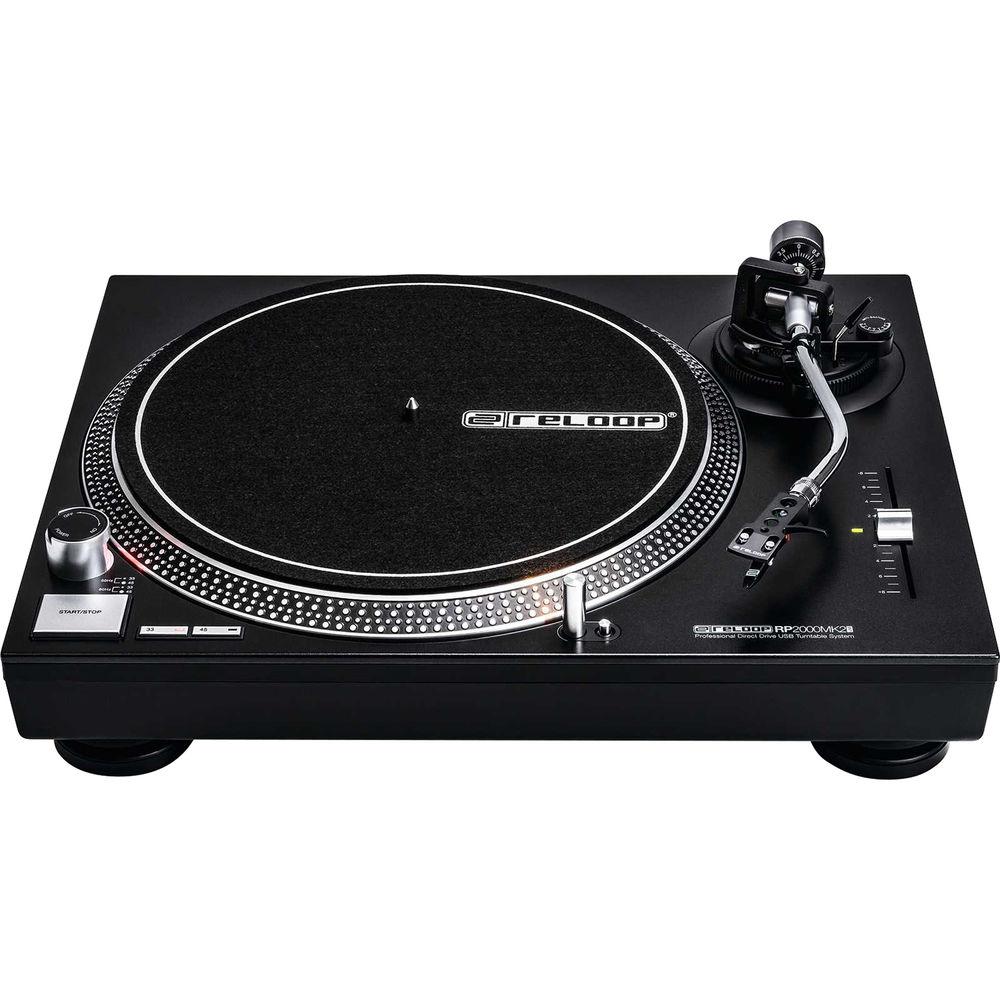

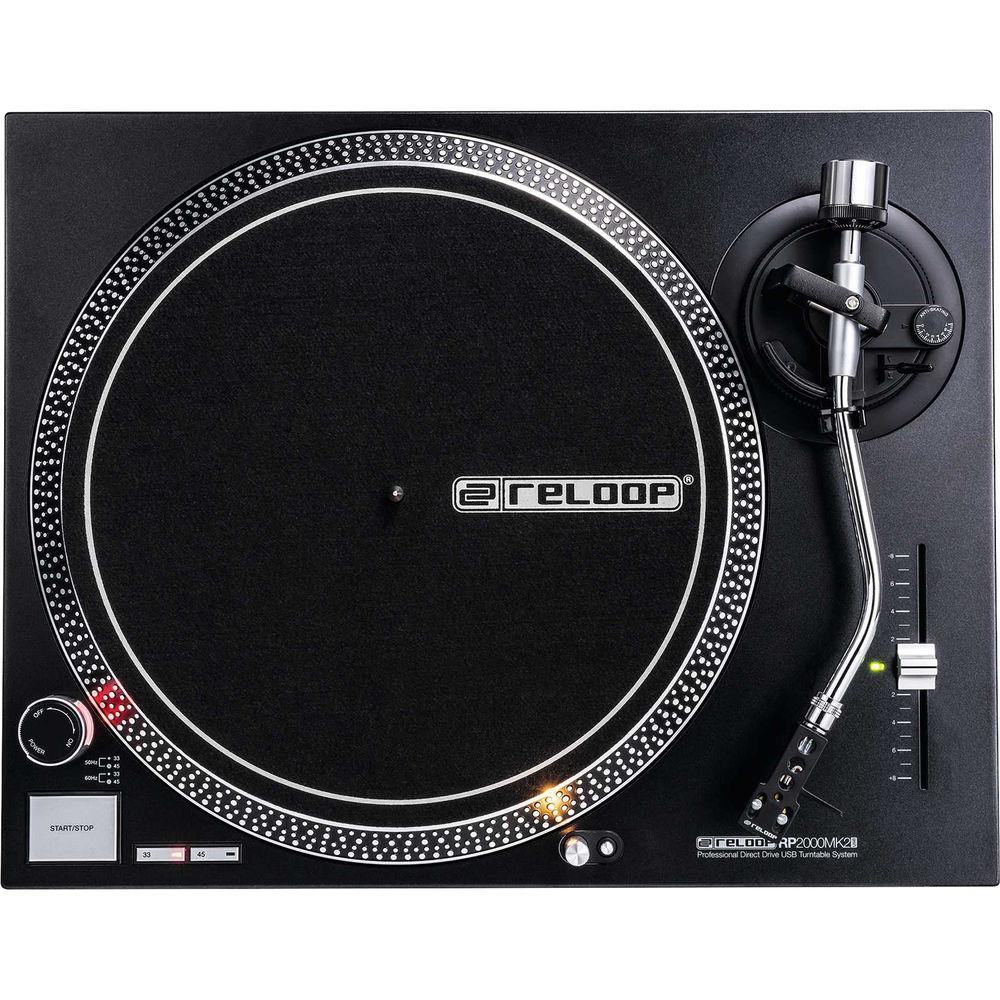

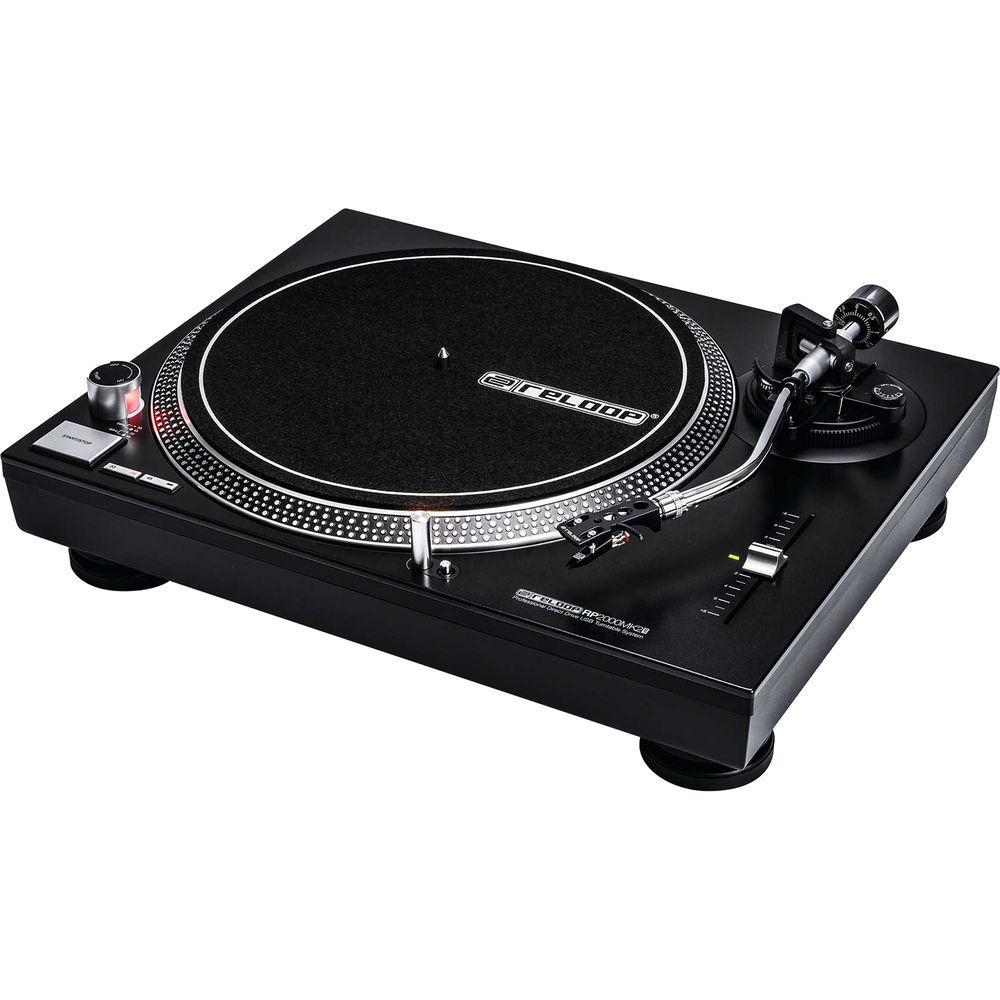

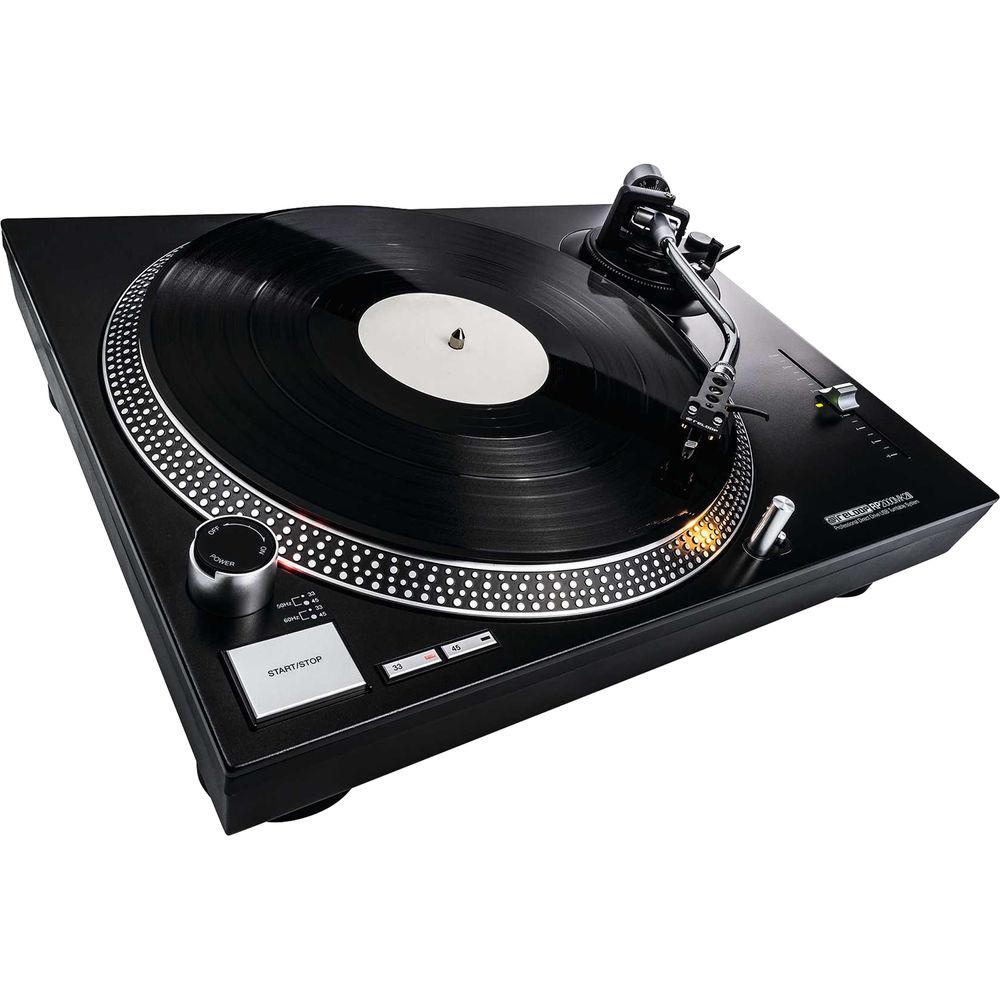

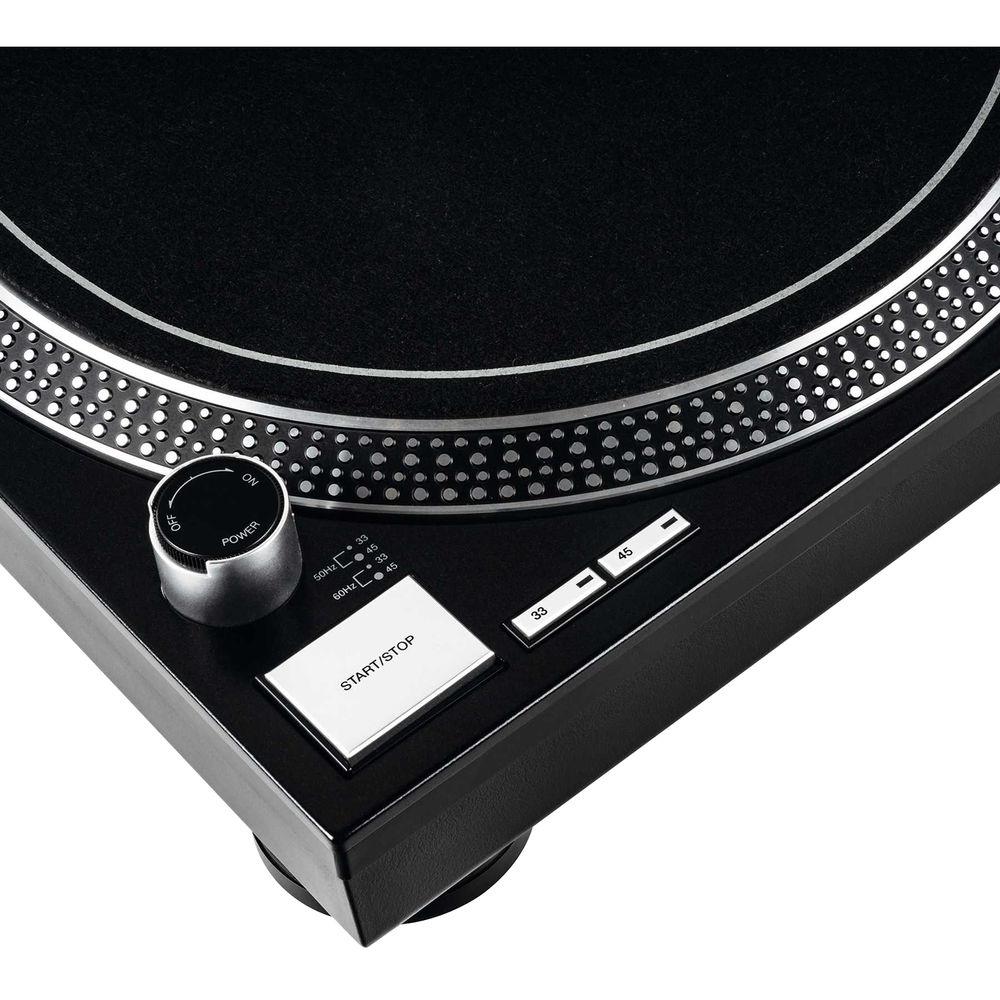

Product description The Reloop RP-2000 USB MK2 is a quartz-driven, direct-drive turntable designed for DJs practicing at home, or performing at parties and gigs. The MK2 features a redesigned top panel, reinforced housing construction, and reworked metallic buttons with improved feel and tactile response. With no drivers needed, the high-resolution USB connection allows you to record your records to digital format quickly and easily.
The direct drive motor transfers the motor force directly to the drive hub, ensuring high torque for faster power on the precision-engineered platter with minimal wow and flutter. The sturdy, reinforced construction and a die-cast aluminum platter allow the RP-2000 USB MK2 to withstand the rigors of on-the-road wear and tear. Speeds of 33-1/3 and 45 rpm are manually selectable via dedicated top-panel buttons, and a precision fader allows easy pitch control up to +/-8%. The S-shaped tone arm is statically balanced, and features a hydraulic lift and an anti-skating mechanism. Shock-absorbing feet isolate the turntable from vibration and sympathetic resonance. The RP-2000 USB MK2 utilizes gold-plated RCA outputs for standardized hookup to a phono preamp or mixer. Additionally, the RCA output is switchable to line level, allowing the turntable to connect to a playback system without an integrated phono preamp. The universal connection accommodates the included Ortofon OM Black pickup system and allows you to swap to your own preferred SME model (available separately). The RP-2000 USB MK2 is supplied with a slipmat, a removable headshell, a counterweight, and a power cable. -
- Updated top panel and reinforced housing construction
- Reworked metallic buttons with improved feel & tactile response

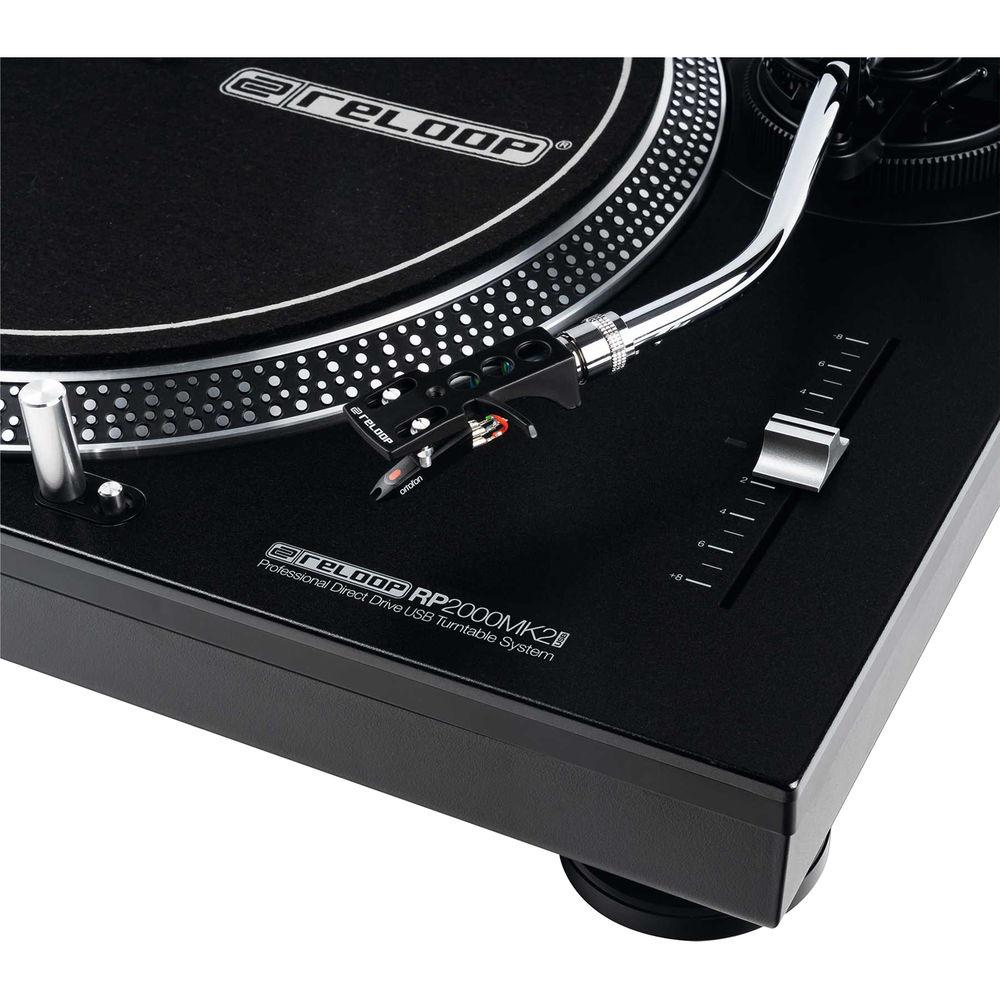

- Precision pitch with selectable ranges of +/-8 %
- Deep black metallic finish
- Quartz-driven DJ turntable with direct drive
- Great for beginners
- USB audio output for digitizing your records easily
- Precise motor control with 2 speeds selectable (33-1/3 & 45 RPM)
- Precision-engineered, die-cast aluminum platter with stable rotation
- Statically balanced S-shaped tone arm with hydraulic lift and anti-skating mechanism
- Universal connection for pick-up systems (SME)
- Extendible needle illumination
- Built-in phono pre-amplifier (no grounding necessary)

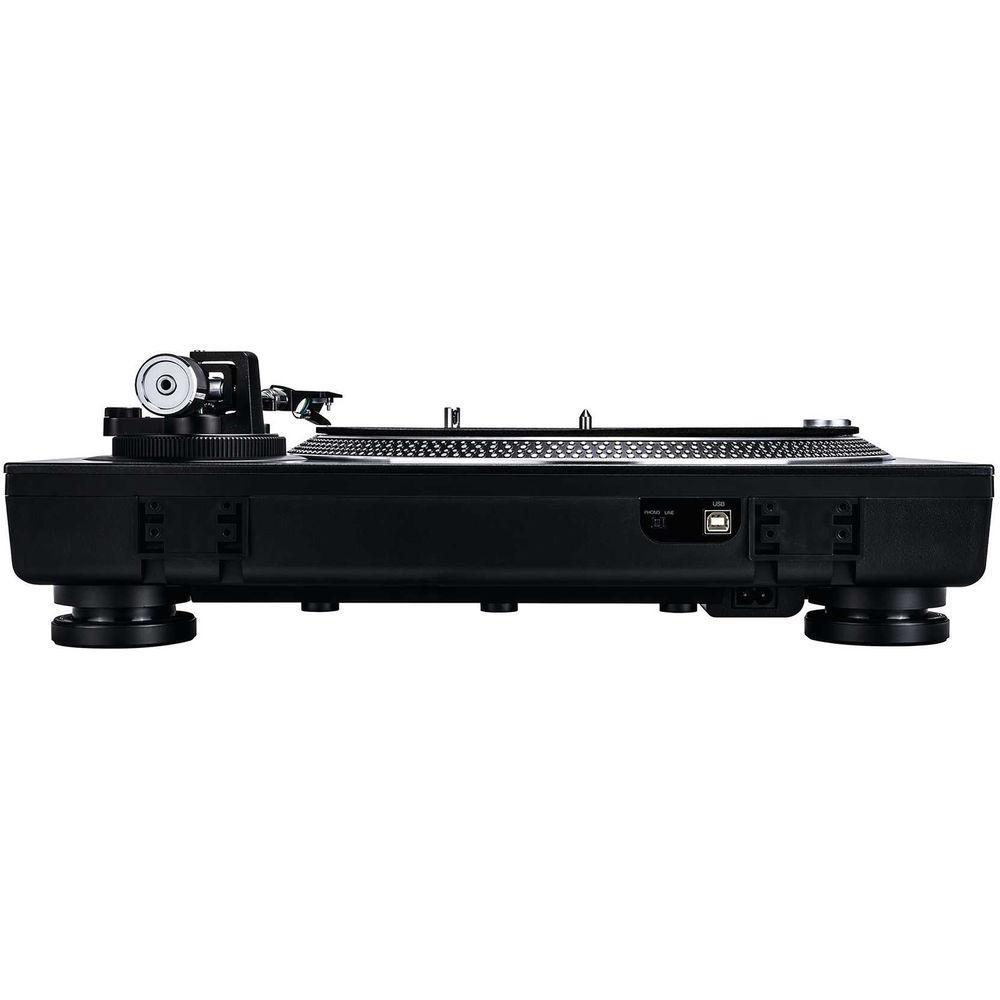

- Switchable phono and line level output
- Shock-absorbing feet for vibration isolation
- Sturdy, heavy construction with optimized damping features

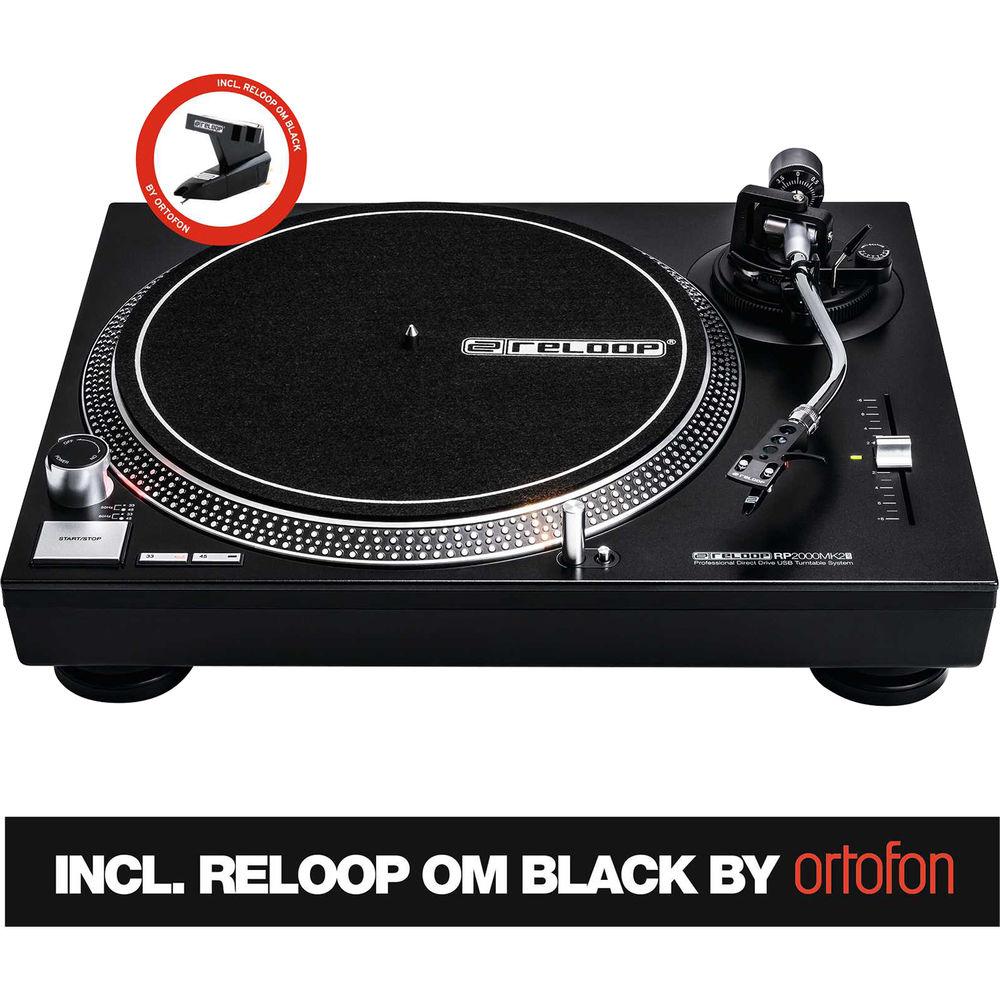

- Includes slipmat, removable headshell, and ready-mounted OM Black pick-up made by Ortofon

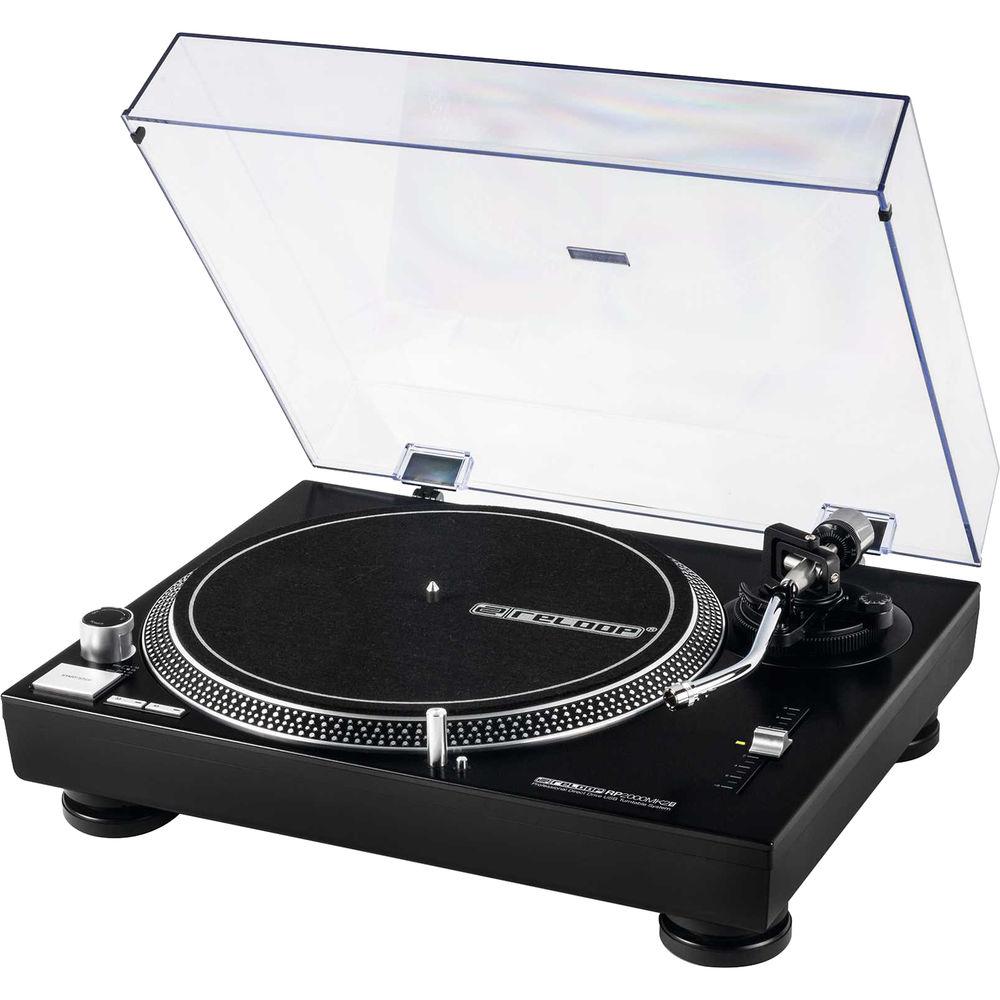

- Prepared for dust cover (available as optional accessory)
In the Box Reloop RP-2000 USB MK2 - Professional Direct Drive USB Turntable System Ortofon OM Black Pickup System Headshell Slipmat Counterweight Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop RP-2000 USB MK2 - Professional Direct Drive USB Turntable System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReloop RP-2000 USB Specs | Type | Direct Drive Turntable | Drive | Quartz-Driven Direct Drive | Motor | 8-Pol., 2-Phase, Brushless DC Motor | Speed | 33-1/3 and 45 RPM | Torque | Starting Torque: > 1 kg/cm | Brake Time | < 1 Sec | Start-Up Time | Start-Up / RPM Change: < 1 Sec | Wow & Flutter | < 0.15% WRMS | Signal-to-Noise Ratio (SNR) | > 50 dB (DIN-B) | Brake System | Electronic Brake | | Material | Aluminum Die-Cast | Diameter | 13.1" / 332.0 mm | | Type | Universal, Statically Balanced, S-Shaped | Length | Effective Length: 9.1" / 230.5 mm | Overhang | 0.6" / 16.0 mm | Tracking Error Angle | < 3° | Weight | Applicable Pick-Up Weight Without Headshell: 0.1 oz / 3.5 g to 0.3 oz / 8.5 g With Headshell: 0.5 oz / 13.0 g to 0.6 oz / 18.0 g | Anti-Skating Range | 0 to 0.2 oz / 7.0 g | | Connector | Stereo Gold-Plated RCA, Switchable Phono/Line | | Power | Power Supply: 115/230 VAC, 60/50 Hz (US/EU) Power Consumption: 13 W | Dimensions (W x D x H) | 17.7 x 13.9 x 5.7" / 450 x 352 x 144 mm | Weight | 14.9 lb / 6.8 kg | | Package Weight | 18.32 lb | Box Dimensions (LxWxH) | 21.1 x 17.0 x 8.8" |
