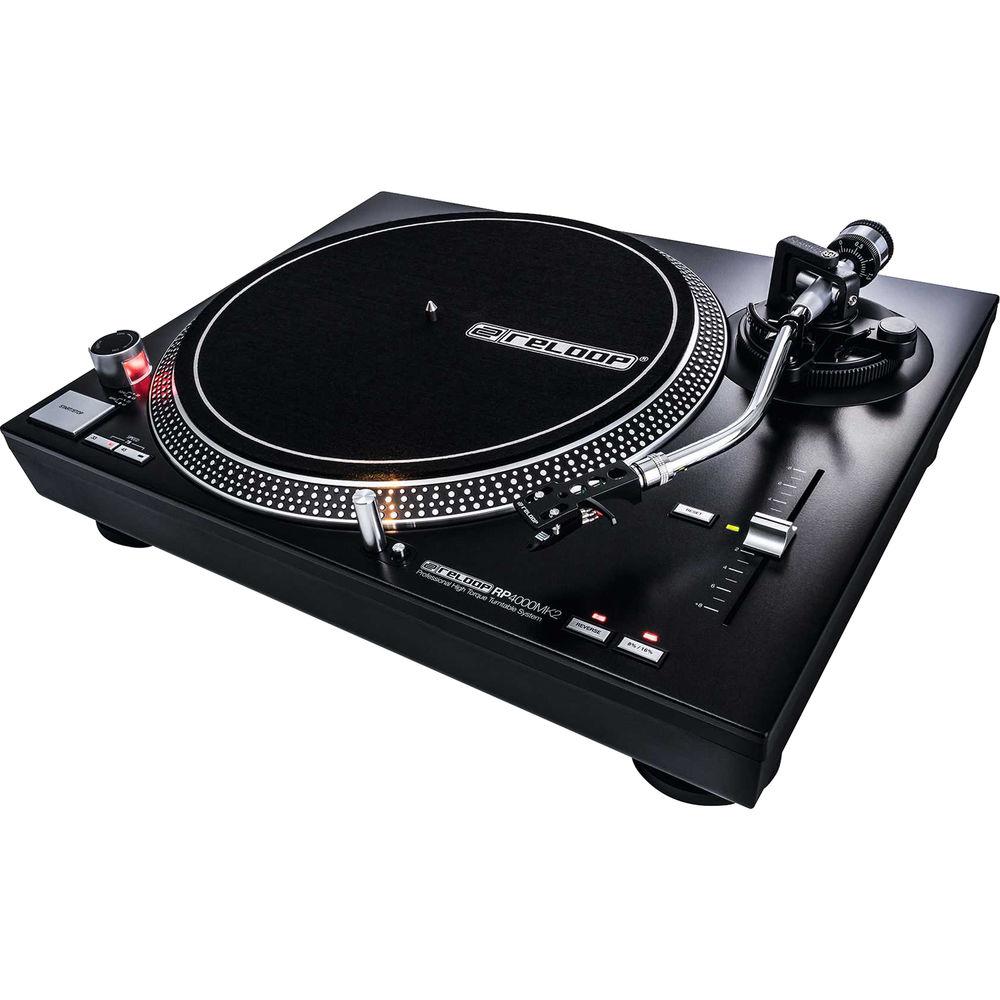

User Manual for Reloop RP-4000 MK2 Quartz-Driven DJ Turntable with High-Torque Direct Drive Click to enlarge the picture
Contents of the user manual for the Reloop RP-4000 MK2 Quartz-Driven DJ Turntable
- Product category: Turntables Reloop
- Brand: Reloop
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Reloop Turntables
 |
User manual for the Reloop RP-4000 MK2 Quartz-Driven DJ Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Reloop product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Reloop user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Reloop product will considerably shorten its lifespan!
|

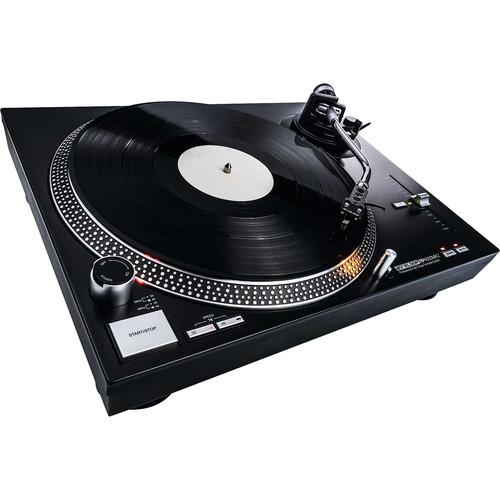

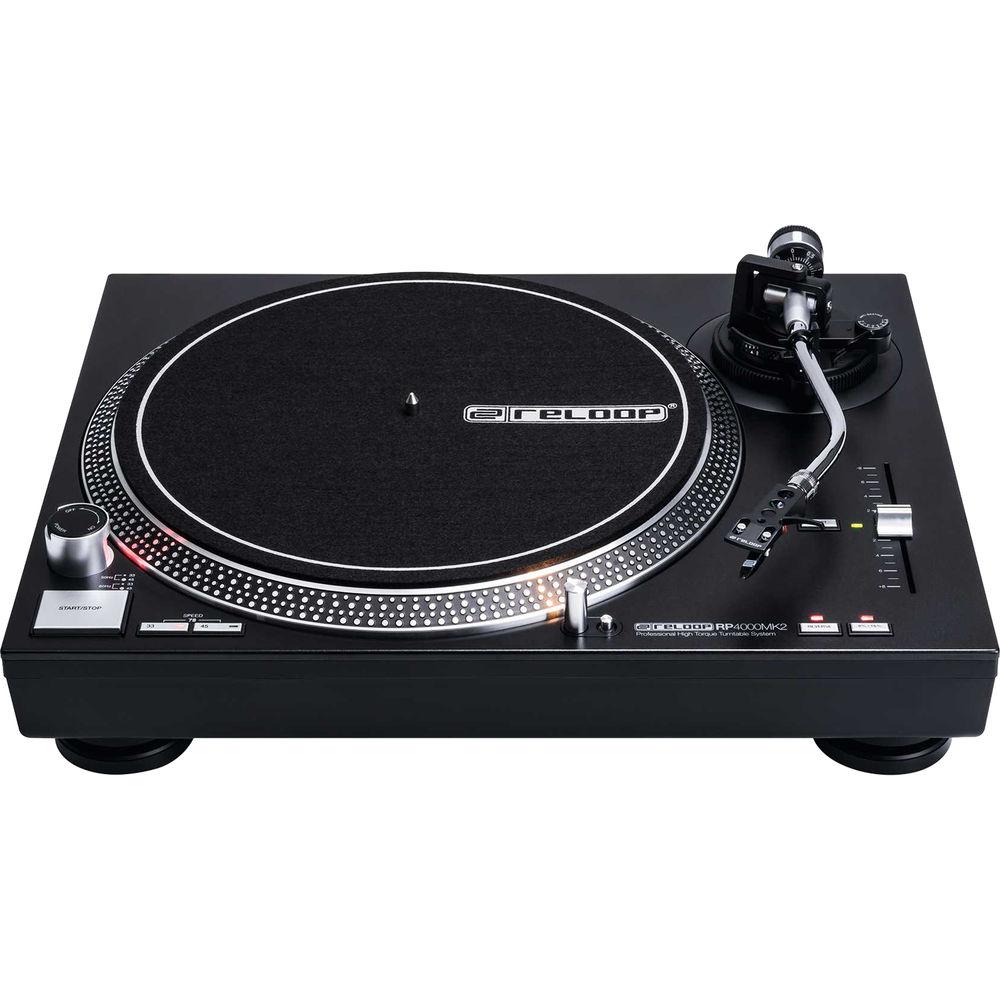

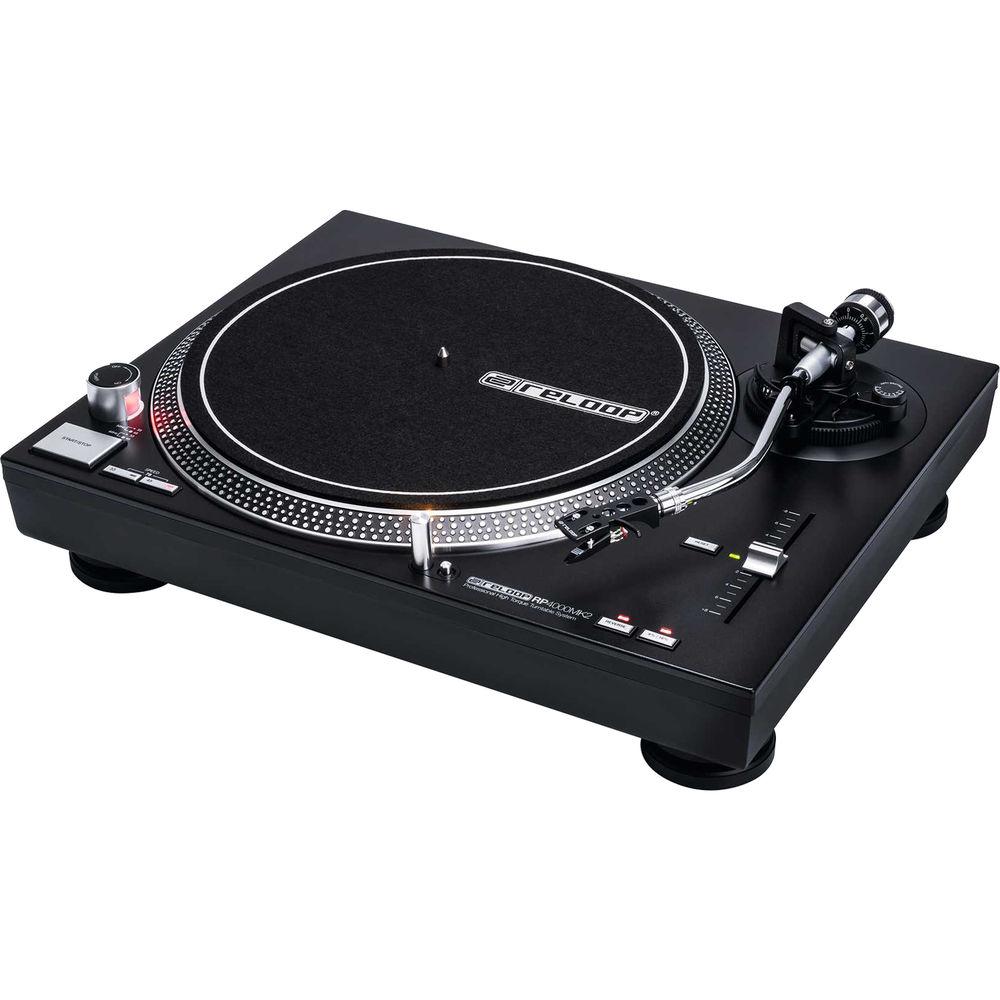

Product description Designed for newcomers and advanced DJs alike, the Reloop RP-4000 MK2 is an update of the popular RP-4000 turntable with improved look-and-feel, construction, and a few new functions. This direct-drive turntable features a precision-engineered aluminum die-cast platter accelerated by a brushless DC motor with over 1.8 kg/cm of torque. The precise, quartz-controlled motor with three selectable speeds—33-1/3, 45, and 78 rpm, allows you to adjust the pitch range between +/-8% and +/-16%, great for playing back any record with the finest variations in tempo control.The RP-4000 MK2 is equipped with a statically balanced, s-shaped tone arm, which features a hydraulic lift and anti-skating mechanism for increased accuracy and performance. The tone arm also offers a universal pick-up system connection (SME) for connecting a wide variety of headshells.New features include a redesigned deep-black metallic top panel with tactile buttons. A tempo-reset button allows you to quickly jump back to the original tempo of a record, and a reverse switch reverses the playback of your record. There is also a button for extending the aluminum target light, so you can see exactly where your needle is positioned in low-light situations.Built to withstand the rigors of live performances, the reinforced housing construction with optimized shock-absorbing feet and damping features helps improve overall isolation from unwanted vibrations in noisy environments.To get you spinning right away, the turntable ships with a high-quality OM Black cartridge with spherical stylus, handmade by Ortofon in Denmark and pre-fitted to a Reloop headshell. - What's New with the MK2
-

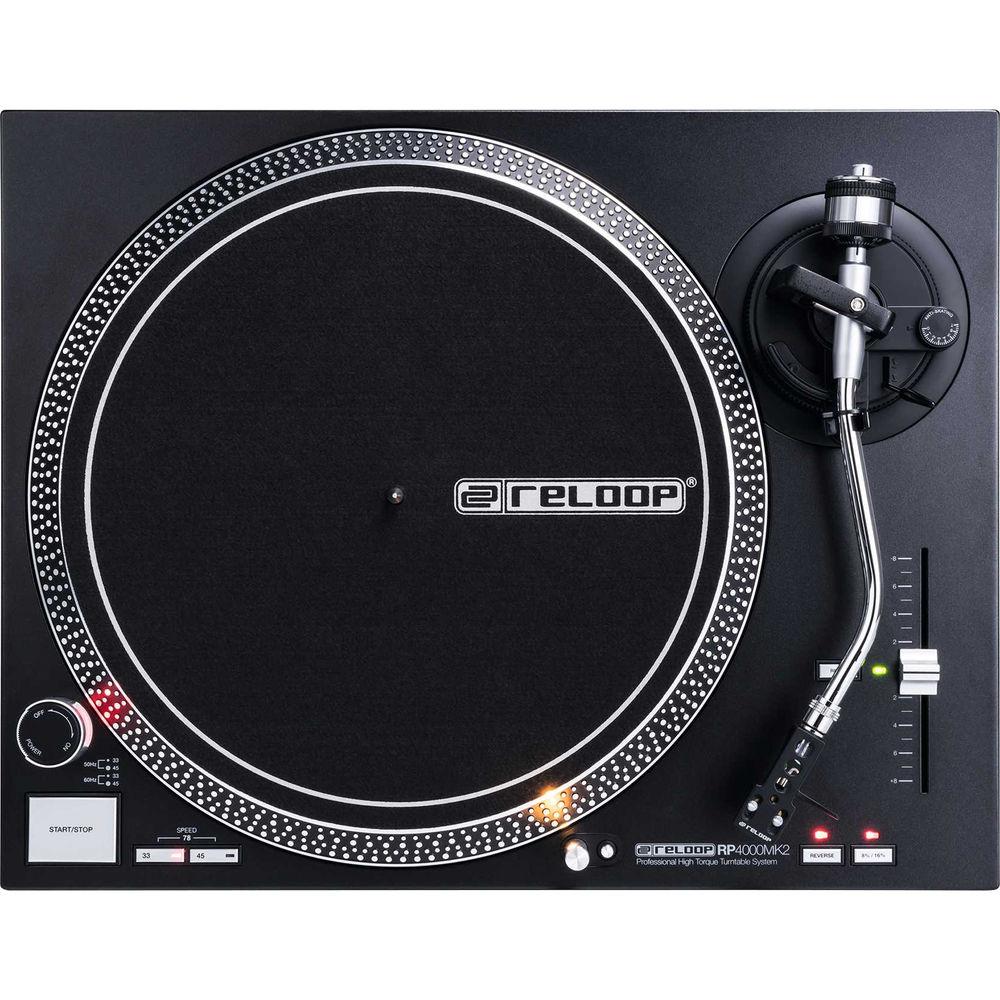

- Newly developed top panel and reinforced housing construction

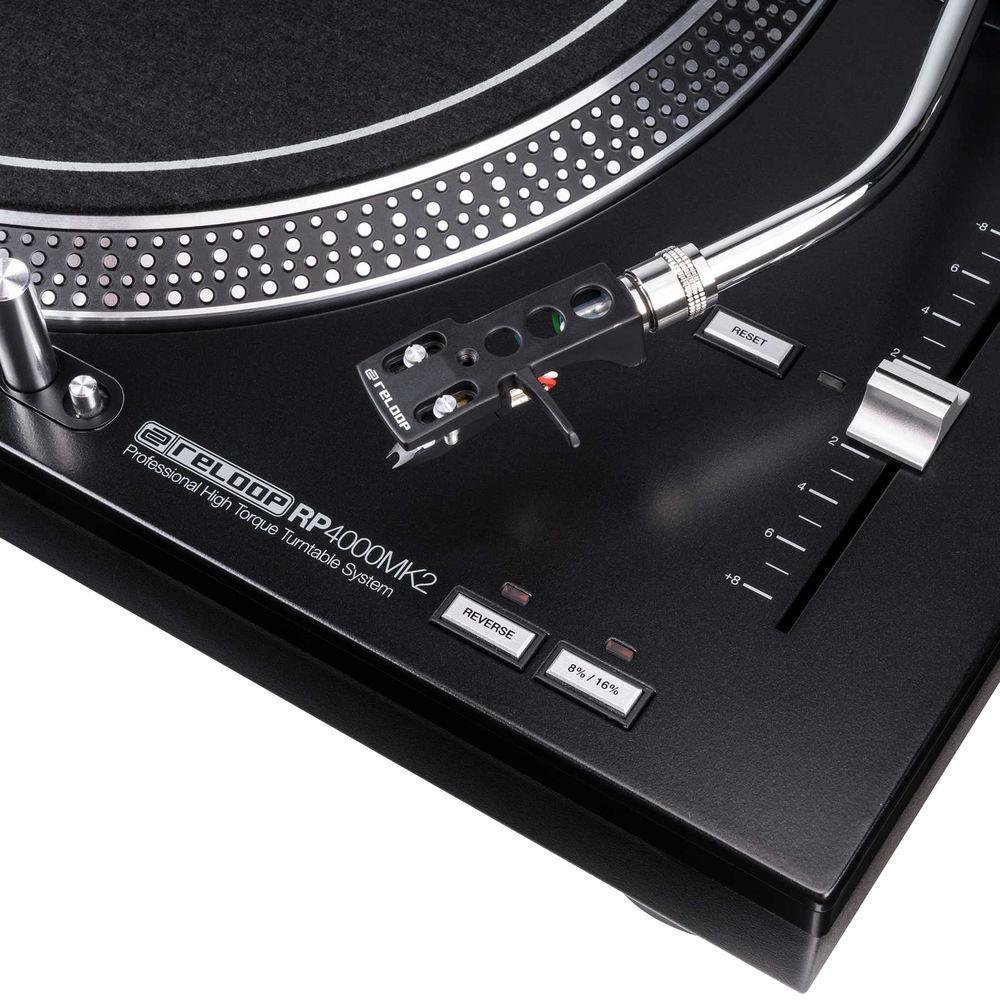

- Reworked metallic buttons with improved feel and tactile response
- Precision pitch with selectable ranges of +/-8% and +/-16%
- Tempo-reset feature (Quartz Lock)
- Reverse function—switch for forward/reverse playback
- Extendable needle illumination
- Finish in deep black metallic
- Key Features
-
- Quartz-driven DJ turntable with high-torque direct drive
- Precision-engineered, die-cast platter with stable rotation
- Brushless DC motor with more than 1.8 kg/cm of torque
- Precise motor control with 3 speeds—33-1/3, 45, and 78 RPM (selectable)

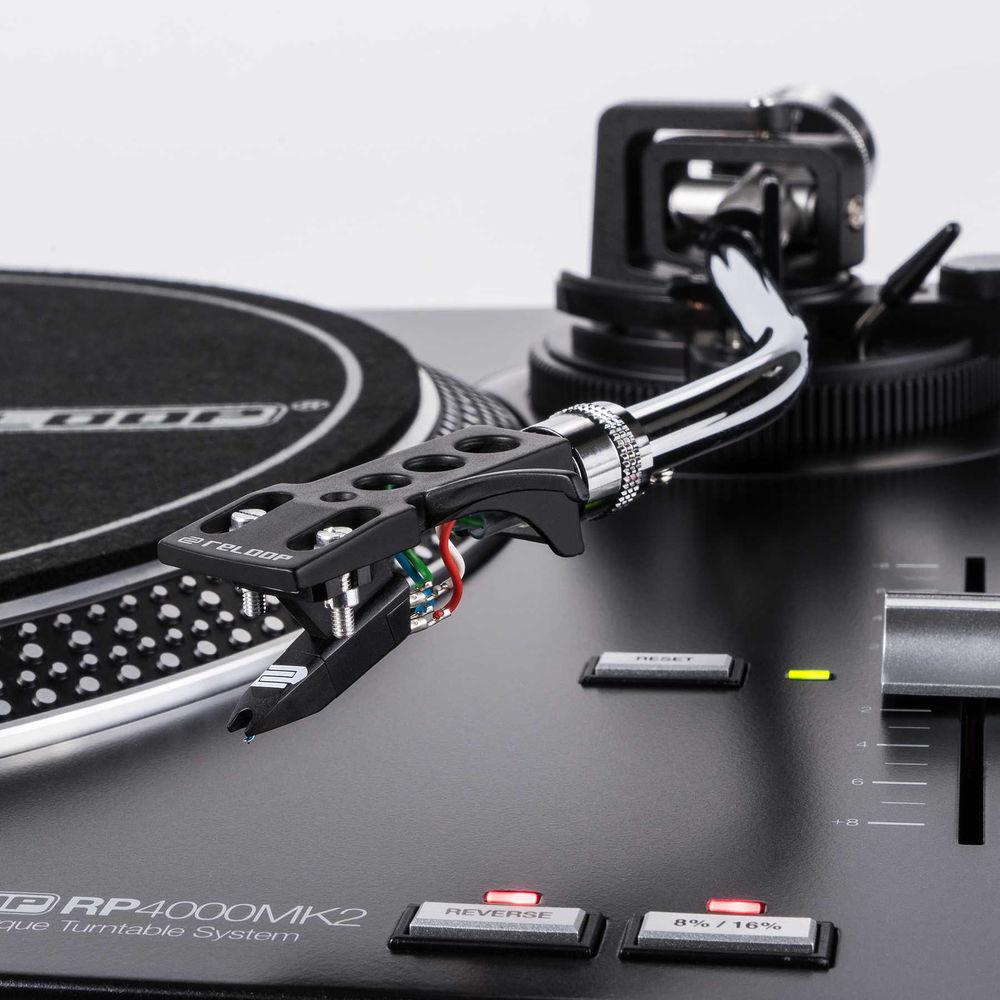

- Statically balanced s-shaped tone arm with hydraulic lift and anti-skating mechanism
- Metallic buttons for start/stop, platter speed, pitch control, reverse function, and tempo reset
- Universal connection for pick-up systems (SME)

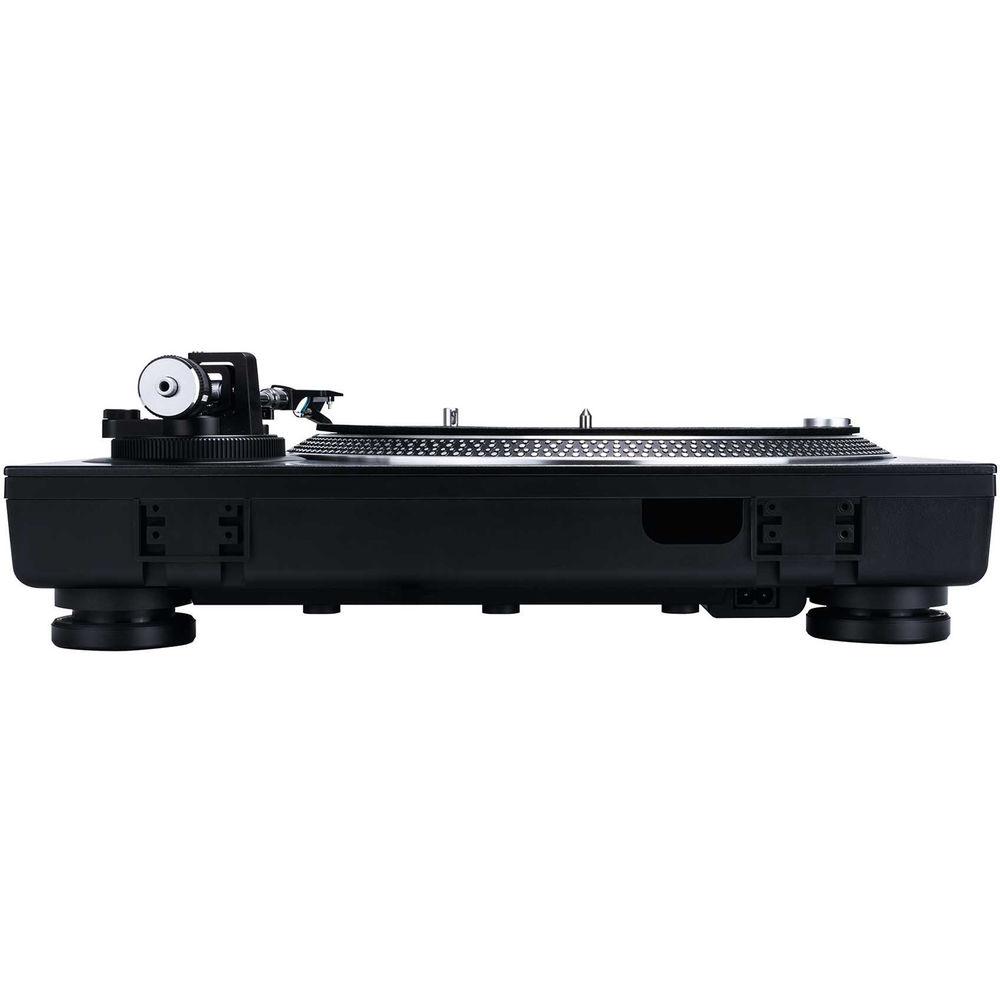

- Shock-absorbing feet for vibration isolation
- Sturdy, heavy construction with optimized damping features

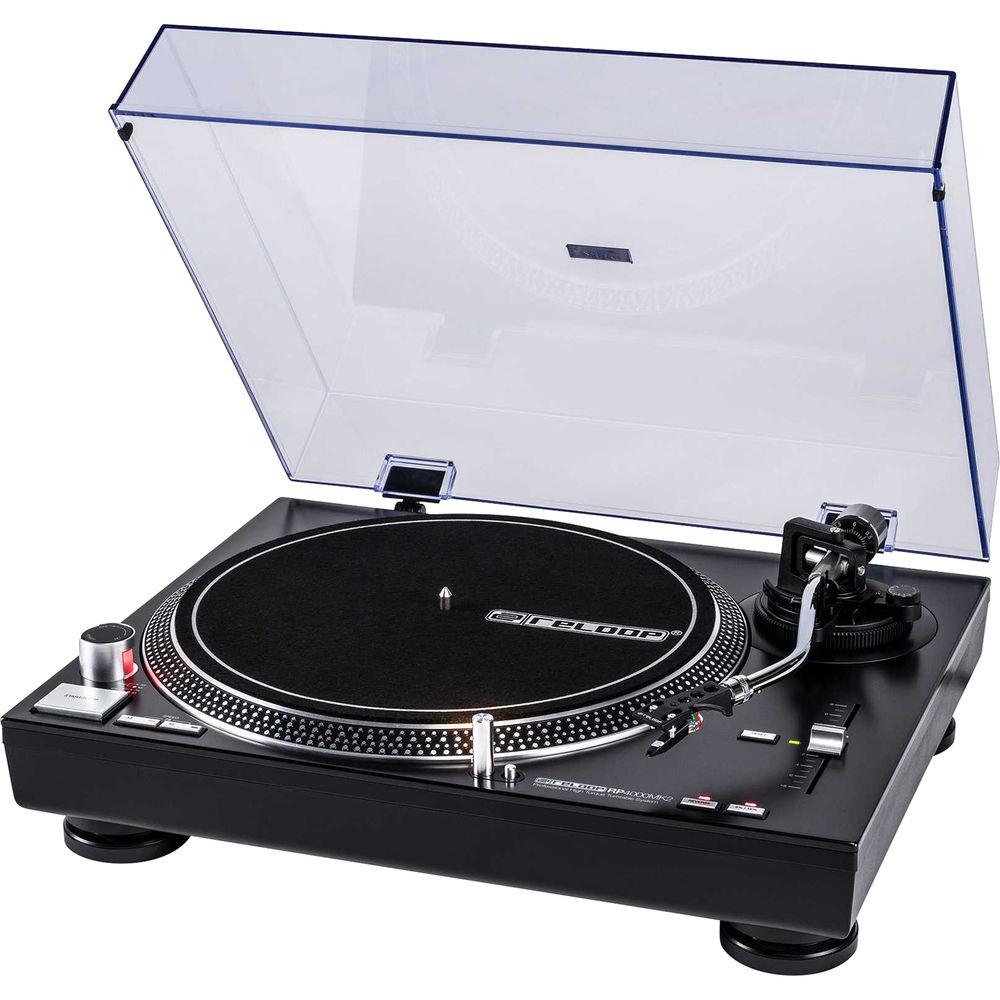

- Accepts dust cover (available separately)
- Includes OM Black cartridge with a spherical stylus (handmade by Ortofon in Denmark)
- Includes Reloop headshell
In the Box Reloop RP-4000 MK2 Quartz-Driven DJ Turntable with High-Torque Direct Drive OM Black Cartridge drsvubfbeqfzebcsbsefeduyeuefxzv Replacement Headshell (Black) Slipmat (Reloop Logo) Platter Counterweight Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop RP-4000 MK2 Quartz-Driven DJ Turntable with High-Torque Direct Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReloop RP-4000-MK2 Specs | | | Type | Direct-drive turntable | | Drive | Quartz-driven, high-torque | | Motor | 8-pole, 3-phase, brushless DC motor | | Speed | 33-1/3, 45, and 78 RPM | | Torque | Starting: >1.8 kg/cm | | Brake System | Electronic brake | | Brake Time | <1 second | | Start-Up Time | RPM Change: <1 second | | Wow & Flutter | <0.2 % WRMS | | Signal to Noise Ratio | >50 dB (DIN-B) | | | | Material | Aluminum, die-cast | | Diameter | 13.1" / 332 mm | | | | Type | Universal, statically balanced, s-shaped | | Length | 9.1" / 230.5 mm (effective) | | Overhang | 0.6" / 16.0 mm | | Tracking Angle Error | <3° | | Applicable Pick-Up Weight | 0.1 to 0.3 oz / 3.5 to 8.5 g
0.5 to 0.6 oz / 13 to 18 g (including headshell) | | Anti-Skating Range | 0 to 0.2 oz / 0 to 7 g | | | | Connections | 1 x pair of gold-plated RCA outputs (L/R), at phono level
1 x GND | | Power | 115-230 VAC, 60/50 Hz | | Power Consumption | 12 W | | Shelf Dimensions (W x D x H) | 17.7 x 13.9 x 5.7" / 450.0 x 352.0 x 144.0 mm | | Weight | 21.6 lb / 9.8 kg |
