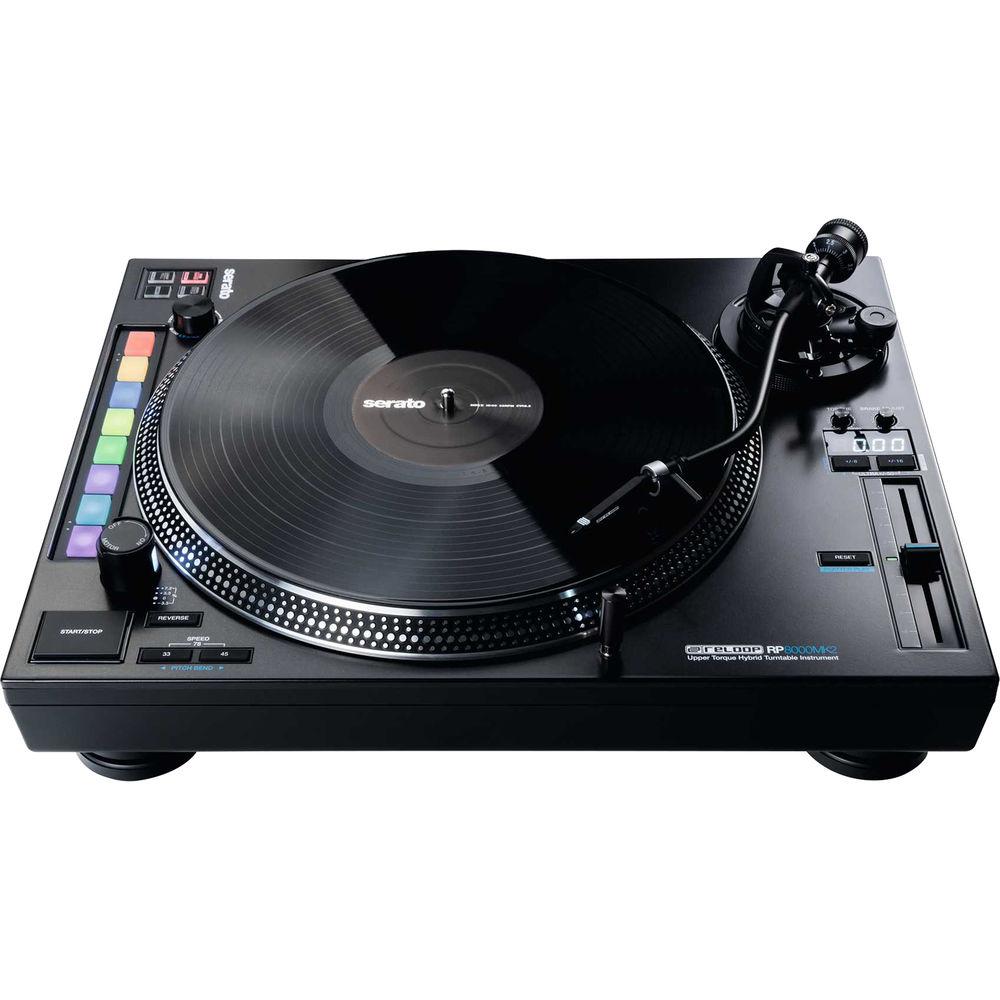

User Manual for Reloop RP-8000 MK2 - Upper Torque Hybrid Turntable Instrument for Serato DJ Pro Click to enlarge the picture
Contents of the user manual for the Reloop RP-8000 MK2 - Upper Torque
- Product category: Turntables Reloop
- Brand: Reloop
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Reloop Turntables
 |
User manual for the Reloop RP-8000 MK2 - Upper Torque contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Reloop product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Reloop user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Reloop product will considerably shorten its lifespan!
|

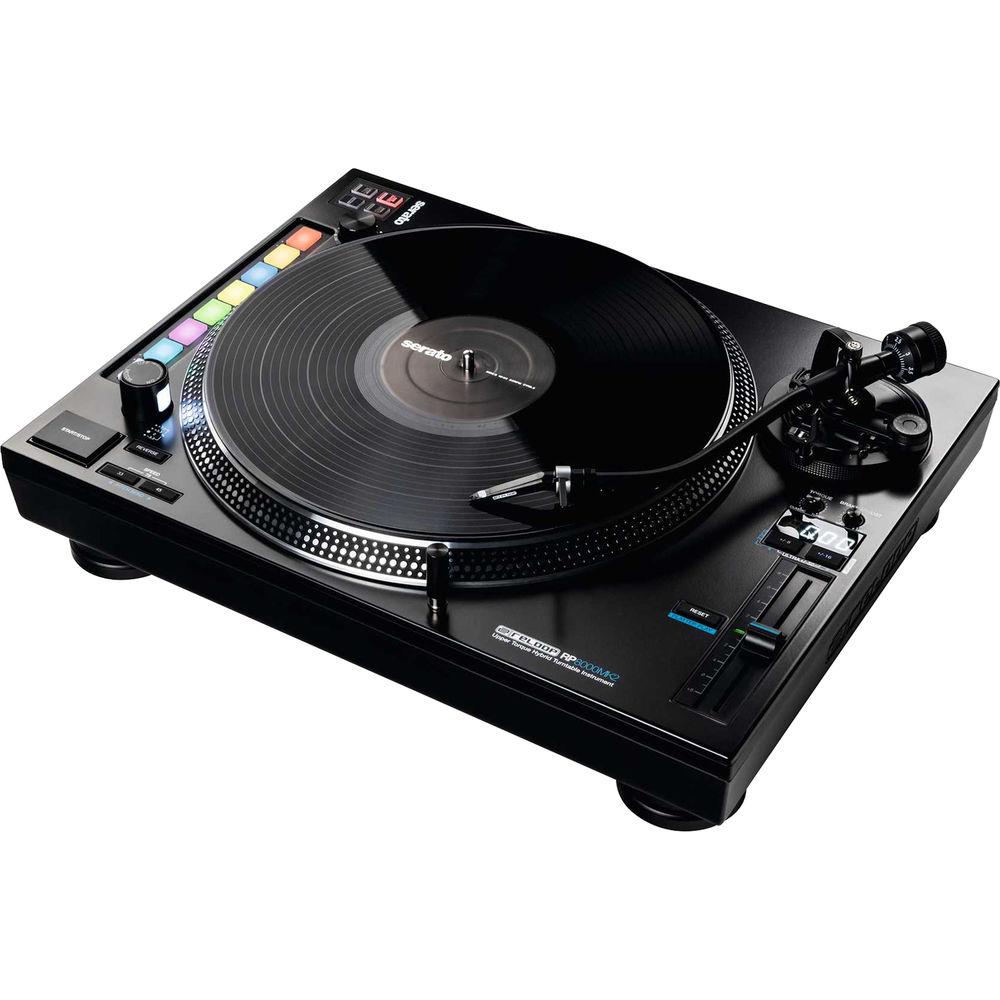

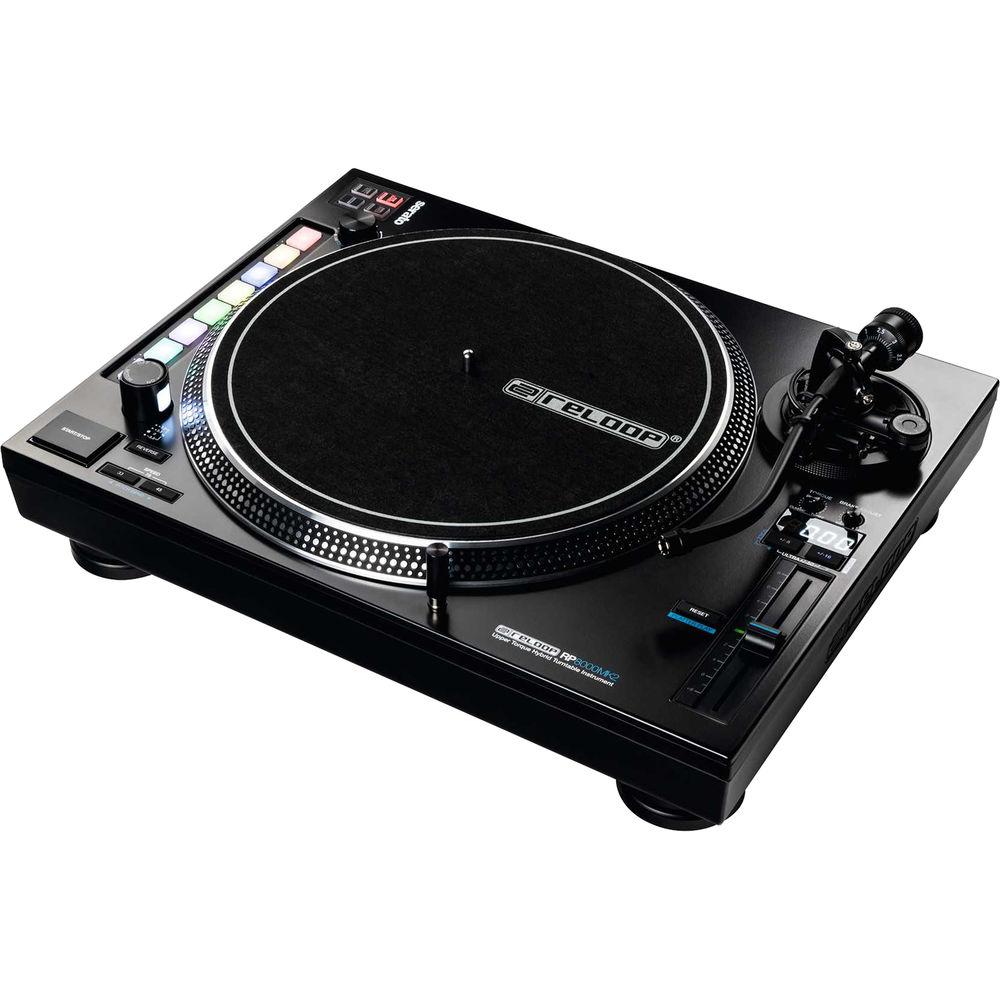

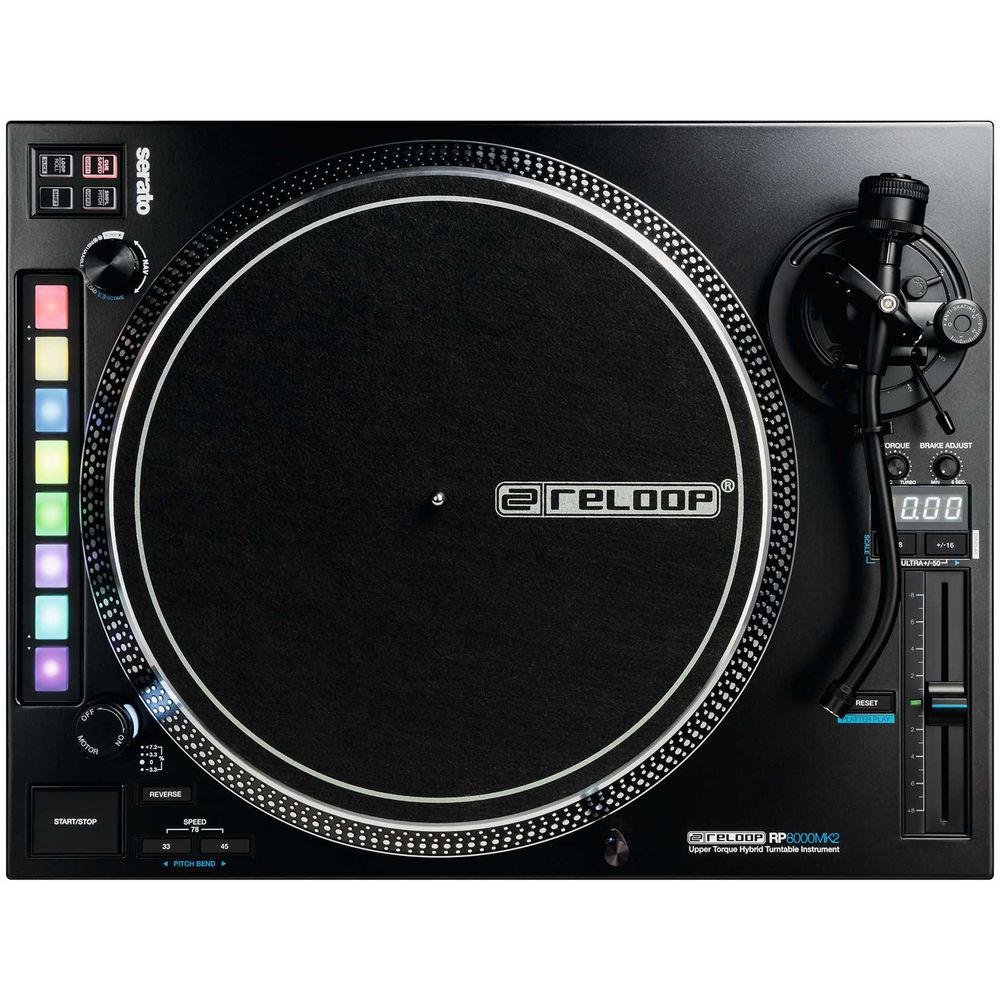

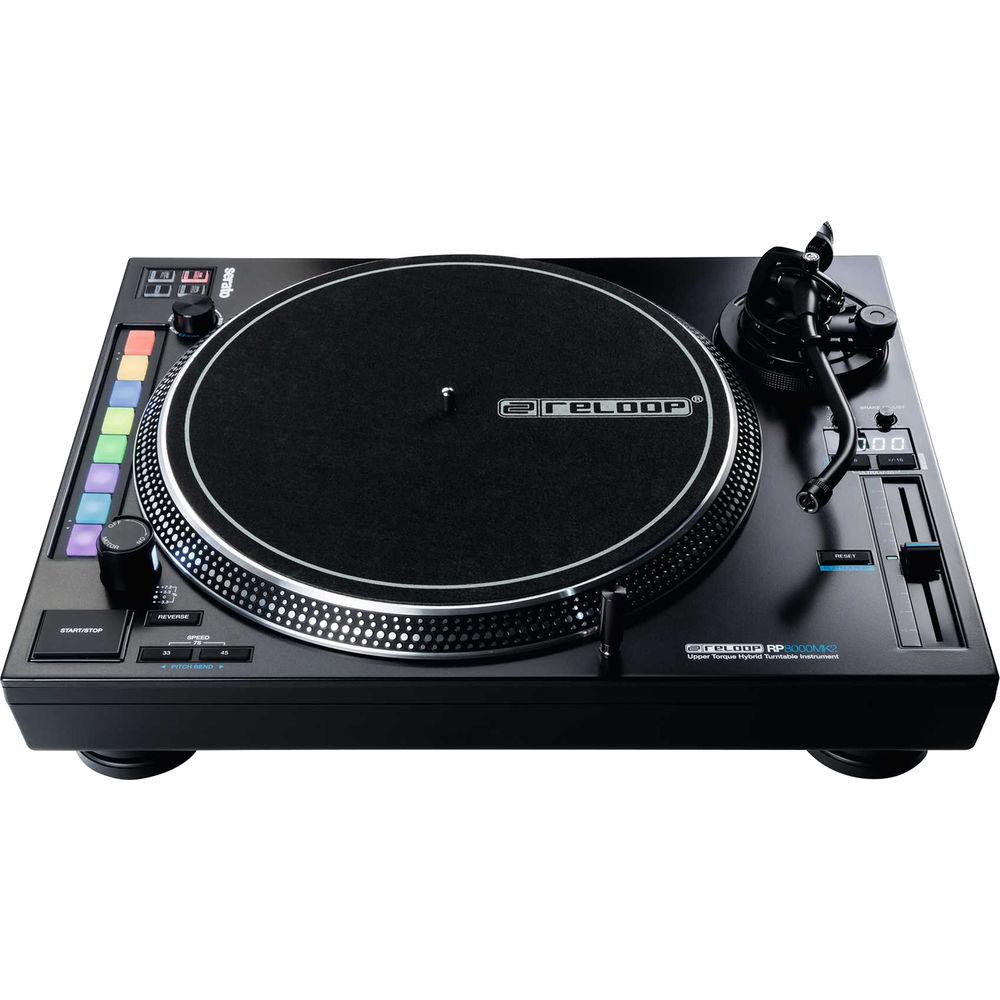

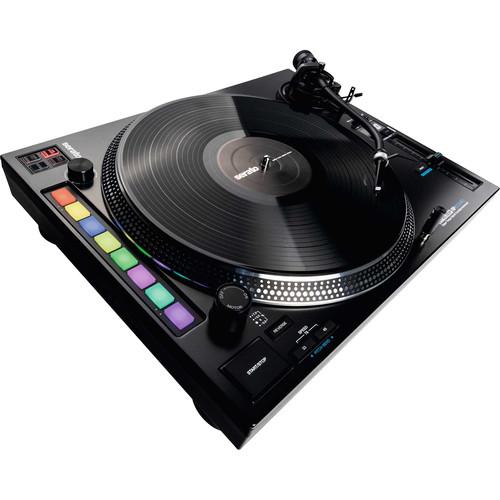

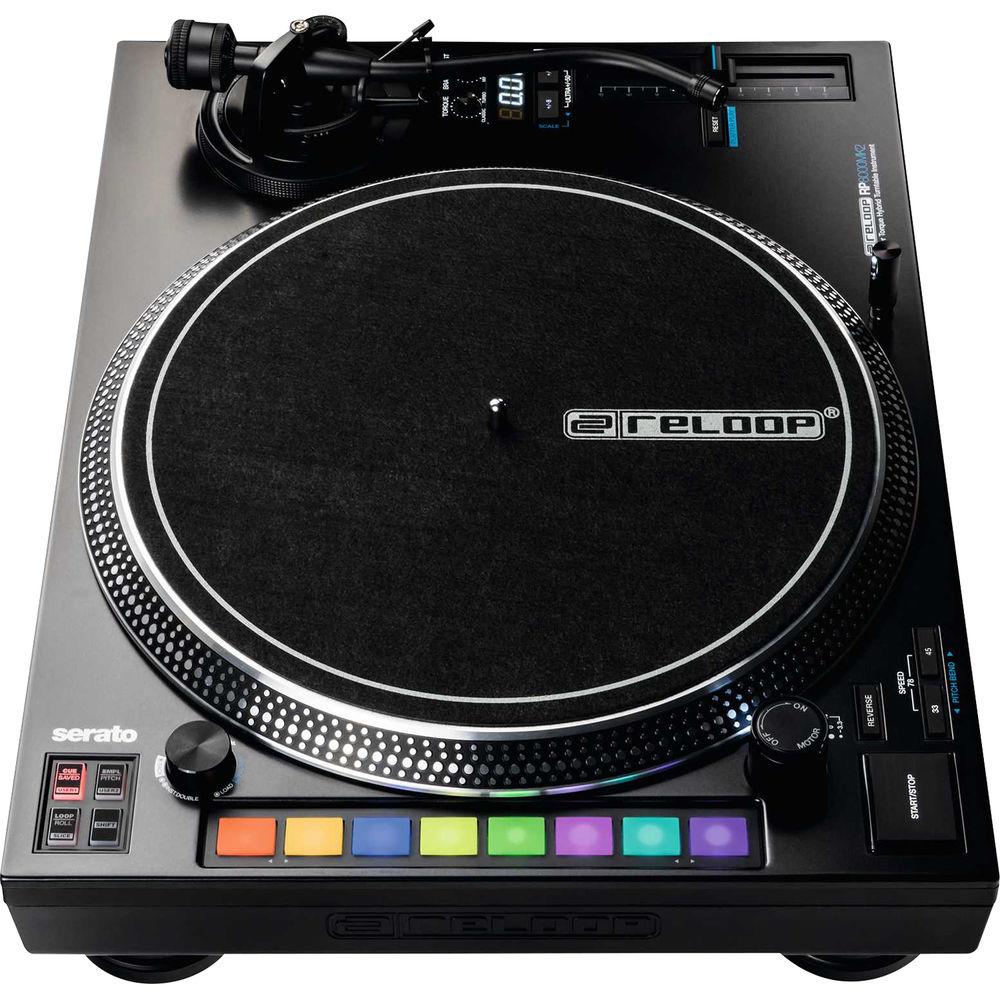

Product description Developed in close cooperation with renowned international turntable artists, the Reloop RP-8000 MK2 is an upper torque direct quartz driven hybrid turntable/instrument, well suited for live performance DJs at a party or in the club. Designed for seamless integration with Serato DJ Pro, the RP-8000 MK2 offers the possibility of controlling up to seven different performance modes via the pad section. The MK2 also includes a Platter Play mode, which allows the pads to be used to control the platter's rotation speed to create melodies and authentic musical performances.

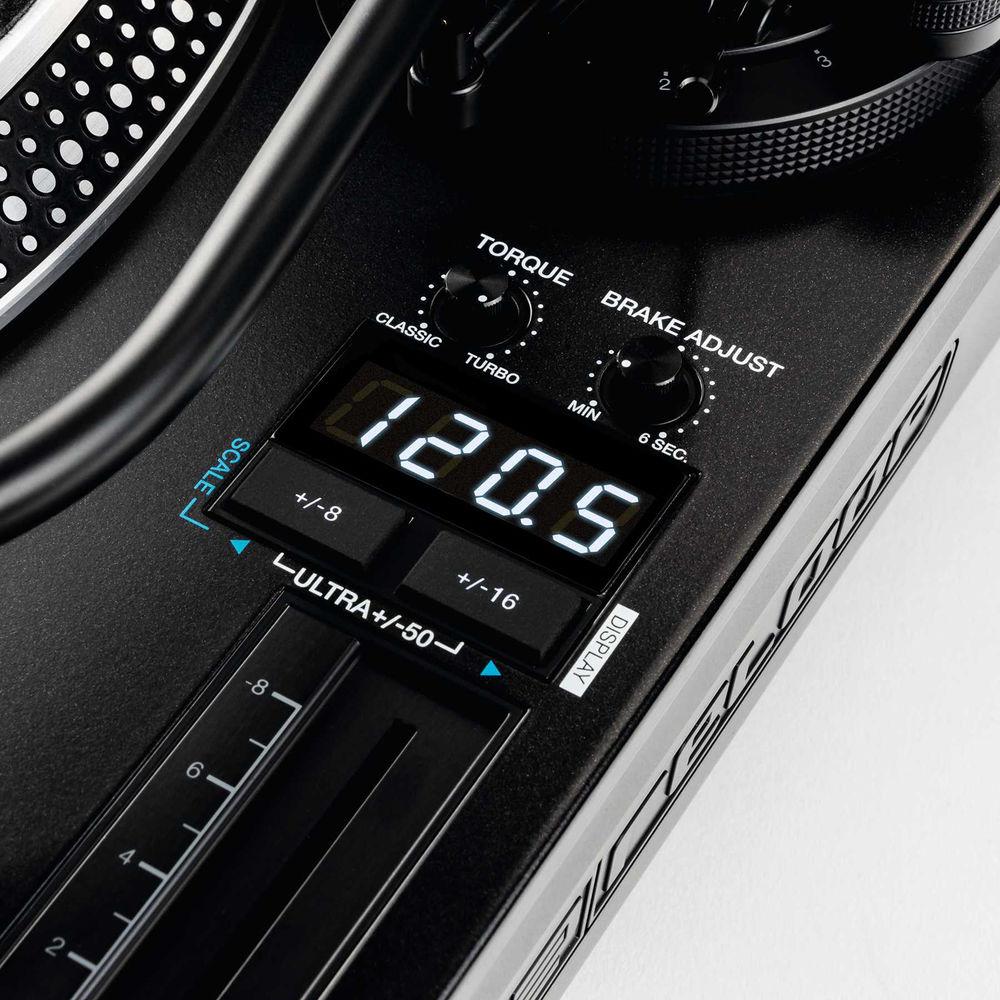

A digital LCD shows information regarding pitch, BPM, deck assignment, scales and notes, elapsed/ remaining time of current track, and firmware settings. A highly beneficial feature allows one to match track BPMs without looking at a computer screen. The 8 large RGB pads can control over 7 different performance modes (Cue, Sampler, Saved Loops, Pitch Play, Loop, Loop Roll, Slicer), as well as 2 user modes, which can be custom assigned with individual preferred functions. Additionally, the multi-encoder allows for track browsing direct from the deck itself and can instantly load to the respective deck. What's more, the RP-8000 MK2 is MIDI compatible and can communicate with most MIDI controllable DJ software, thereby negating the need for an additional controller for performance modes.
Platter Play mode controls the platter's pitch via the performance pads, opening new possibilities for musical live performances and turning the RP-8000 MK2 into a legitimate musical instrument. A total of 22 scales and 34 notes are available with an option to create up to 9 user-defined scales. The two speed select buttons can be used for pitch bending in Platter Play mode and to respectively increase or decrease the audio material's pitch in steps of one half-tone. Furthermore, the platter's speed can also be controlled via an external MIDI keyboard.
An updated statically balanced S-shaped tone arm with hydraulic lift and anti-skating mechanism was developed, while the base provides improved stability and adjustable height/vertical tracking angle (VTA). The housing is made from a combination of metal, rubber, and synthetic materials, creating a heavy and reinforced enclosure that results in vibration resistant performance, especially in heavy bass environments. Additionally, the shock-absorbing feet help to further improve this isolation. The surface is coated with a scratch-resistant high-quality deep black metallic finish. The Reloop RP-8000 MK2 ships with a slipmat, counterweight, phono cable, USB cable, and a power cord. -
- Developed in close collaboration with renowned international turntable musicians
- Designed for Serato DJ Pro: Control 7 new RGB color-coded performance modes
- Platter Play Mode: Performance pads can be used to control the speed of the platter to enable melodic and more musical live performances
- Extra-large, highly responsive performance pads with multicolor LEDs
- 22 scales are available with the option to create up to 9 custom scales
- Pitch bending function via speed select buttons in Platter Play mode
- Reworked Control Section: More streamlined multi-encoder and intuitive mode section

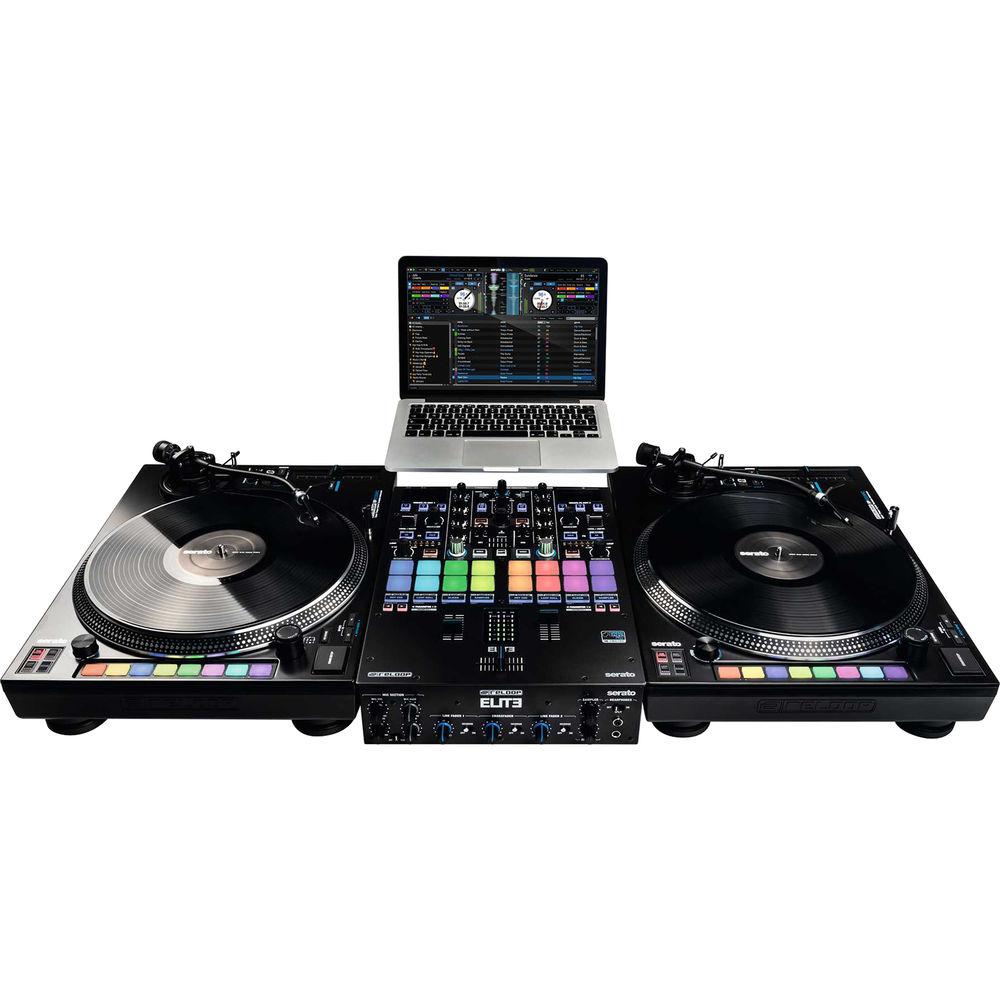

- Independent pad modes (when used in conjunction with the ELITE mixer)
- Rigid chassis construction with an even heavier design with additional reinforcements out of metal, rubber, and molding compound for high vibration damping and isolation
- More powerful starting torque (adjustable from 2.8 - 4.5 kg/cm)
- Fine-tuned motor control for further optimization of wow and flutter and rotation
- Height-adjustable MK2 tone arm base (VTA)
- Particularly lightweight and rigid satin aluminum material used for tone arm
- Adjustable pitch scale for precise adjustments
- Additional Output: The turntable can be connected to two mixers at the same time and allows easy switching from DVS to vinyl
- Optional ground terminal offers additional protection in complex club & studio environments
- Easily replaceable, freely rotatable LED needle light in new uni-body aluminum design
- High-quality and hard-wearing deep black, metallic finish
- Quartz driven hybrid turntable instrument with upper-torque direct drive
- Takes your DJ performances to a new level of creativity and musicality
- MIDI compatible control section consists of multi-encoder, 8 large LED pads, three layers with 7 performance modes (cue, sampler, saved loops, pitch play, loop, loop roll, slicer) and 2 user modes
- Digital LCD for pitch, BPM, scale, key, deck assignment and firmware settings
- Seamlessly combines a powerful musical instrument and a professional DJ turntable
- Adjustable stop time (0.2 - 6 sec.)
- Precise motor control with 3 speeds (33-1/3, 45, and 78 RPM)
- Precision manufactured, die cast aluminum turntable
- Rubber inlays reduce vibrations and background noise
- Statically balanced, universal S-shaped tone arm with hydraulic lift and anti-skating mechanism
- Universal connection for pick-up systems (SME)
- High-resolution pitch fader (0.02 % resolution)
- Pitch range +/-8%, +/-16%, +/-50% (Ultra Pitch)
- Quartz lock
- Reverse function: Switch for forward and reverse operation
- Smart USB link for up to 4 turntables
- Auto deck-assign feature when linked
- Recessed connection cavity for easy installation in cases & seamless adjustment
- Phono and line out (no grounding required)
- Removable mains and RCA cables
- Safety mains switch
- Shock-absorbing feet insulate against vibrations
- Includes turntable, slipmat, LED needle light, counterweight, phono RCA cable with grounding, USB cable, and power cord
In the Box Reloop RP-8000 MK2 - Upper Torque Hybrid Turntable Instrument for Serato DJ Pro LED Needle Light Counterweight Phono RCA Cable with Ground USB Cable Slipmat Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop RP-8000 MK2 - Upper Torque Hybrid Turntable Instrument for Serato DJ Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

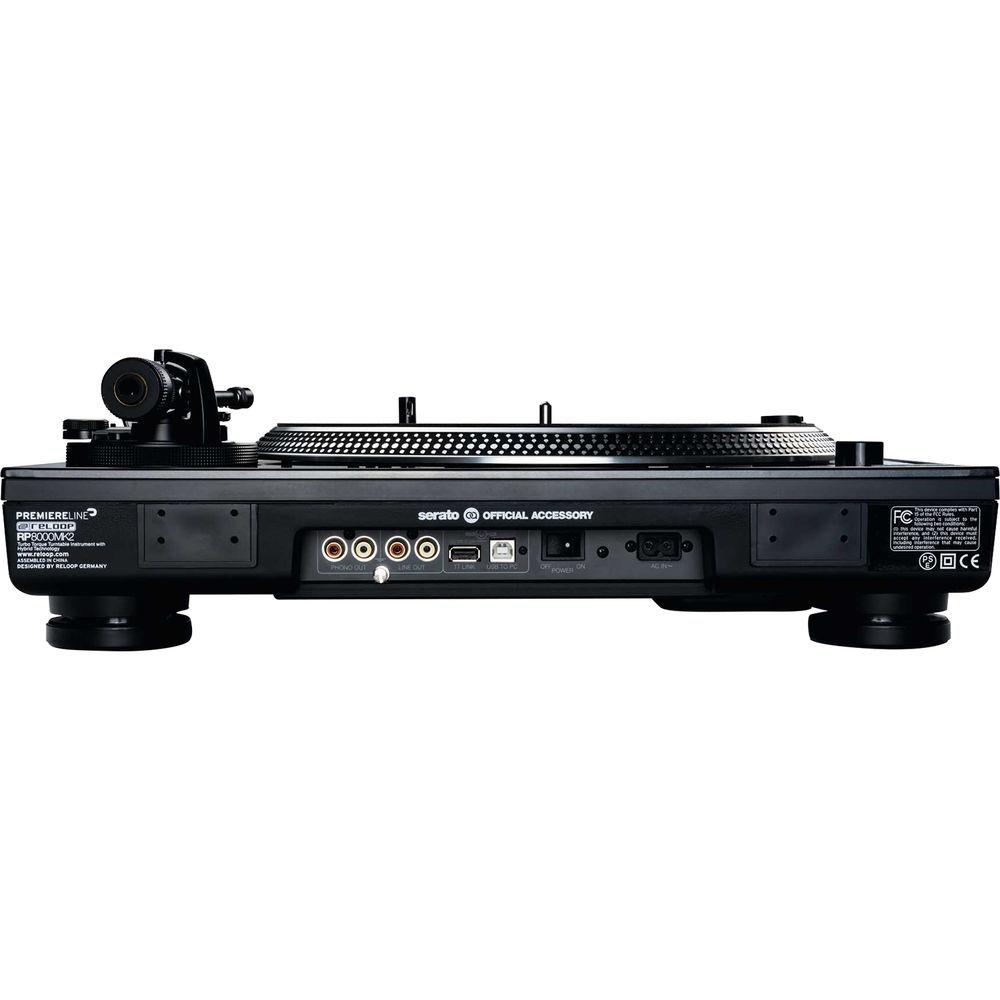

Technical parametersReloop RP-8000-MK2 Specs | | | Type | Direct-drive turntable | | Drive | Quartz-Driven, Upper-Torque Direct Drive | | Motor | 8-Pole, 3-Phase, Brushless DC Motor | | Speed | 33-1/3, 45, and 78 RPM | | Torque | Starting: 2.8 to 4.5 kg/cm (Adjustable) | | Stop Time | Adjustable Stop Time: 0.2 to 6sec | | Start Time | Start-Up Time / Change to RPM: <0.2 sec | | Wow & Flutter | 0.01% WRMS | | Signal-to-Noise Ratio (SNR) | > 55 dB (DIN-B) | | Brake System | Electronic brake | | | | Material | Aluminum, die-cast | | Diameter | 13.1" / 332 mm | | Weight | 3.3 lb / 1.5 kg | | | | Type | Universal, Statically Balanced, S-Shaped | | Length | 9.1" / 230.0 mm (Effective) | | Overhang | 0.6" / 15.0 mm | | Tracking Angle Error | <3° | | Offset Angle | 22° | | Stylus Pressure Adjustment | 0 to 4 g | | VTA Setting Range | 0 to 6.0 mm | | Applicable Pick-Up Weight | 3.5 to 8.5 g (Incl. Headshell 13.0 to 18.0 g) | | Anti-Skating Range | 0 to 3 g | | Tone Arm | Effective Tone Arm Mass: 1.1 oz / 30.0 g | | | | Connections | 1 x Pair of Gold-Plated Phono RCA Outputs (L/R)
1 x Pair of Gold-Plated Line RCA Outputs (L/R)
1 x GND | | Power | 115-230 VAC, 60/50 Hz | | Power Consumption | 17 W | | Shelf Dimensions (W x D x H) | 18.0 x 13.9 x 5.7" / 458.0 x 354.0 x 144.6 mm | | Weight | 26.0 lb / 11.8 kg | | | | Package Weight | 28.565 lb | | Box Dimensions (LxWxH) | 21.4 x 17.1 x 7.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Reloop RP-8000 MK2 - Upper Torque Hybrid Turntable Instrument for Serato DJ Pro
| Subject: The LEDs for platter play buttons | | Date: 02.09.2022 00:12:57 | Name: Gabriel | I have a problem with my LEDs. All of a sudden 2 of them stopped lighting up the correct colors.
When it is in platter play mode, the 2 LEDs that are supposed to be green aren't lighting up. And when it is in the yellow zone the 2 LEDs light up red.
Is there any way to reset the LEDs?
Thank you. | | Post reply |
