User Manual for Reloop RP-8000 STRAIGHT Advanced Hybrid Torque Turntable Click to enlarge the picture
Contents of the user manual for the Reloop RP-8000 STRAIGHT Advanced Hybrid Torque
- Product category: Turntables Reloop
- Brand: Reloop
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Reloop Turntables
 |
User manual for the Reloop RP-8000 STRAIGHT Advanced Hybrid Torque contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Reloop product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Reloop user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Reloop product will considerably shorten its lifespan!
|

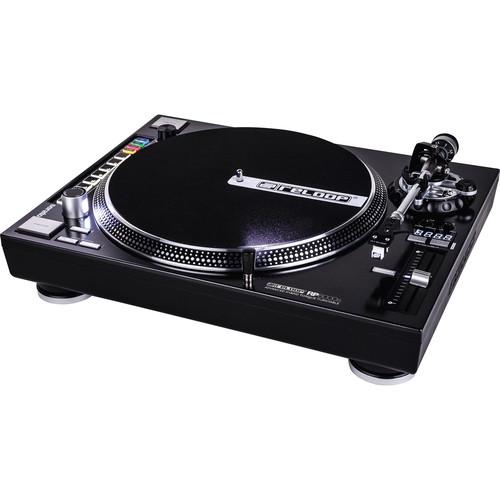

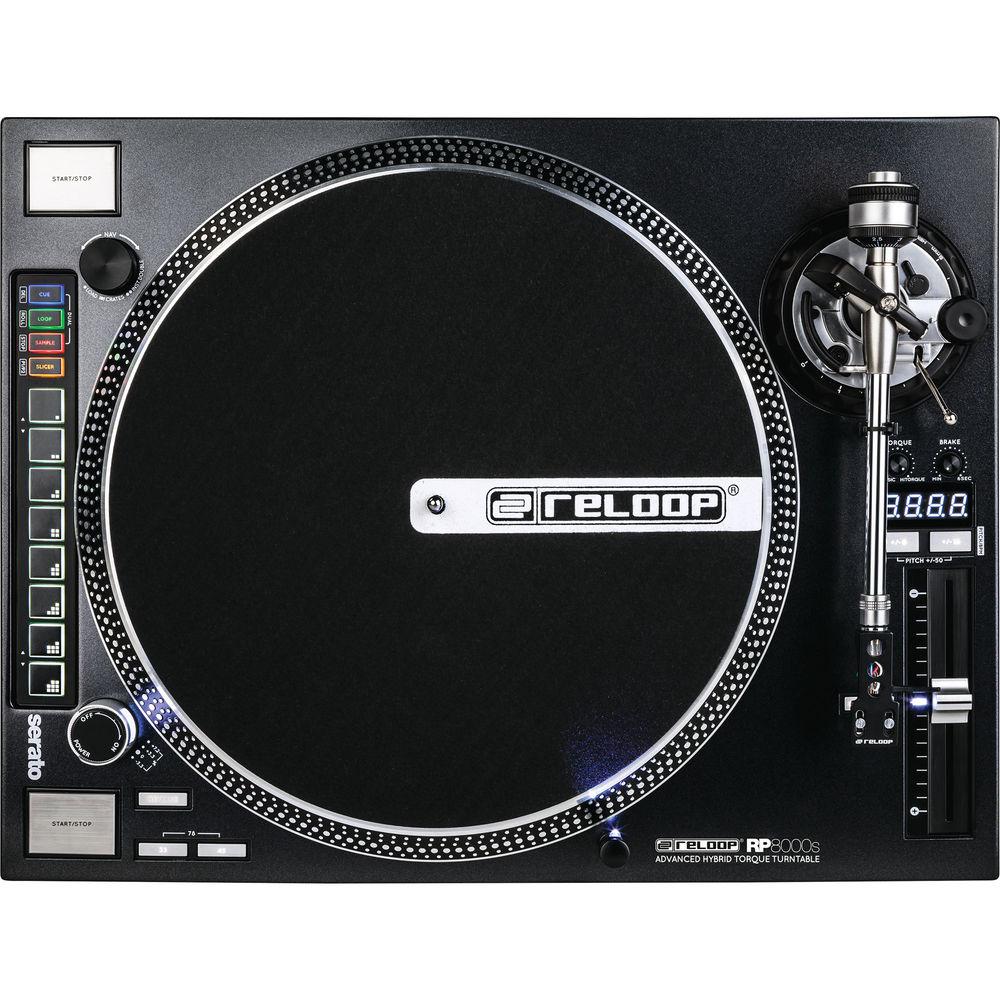

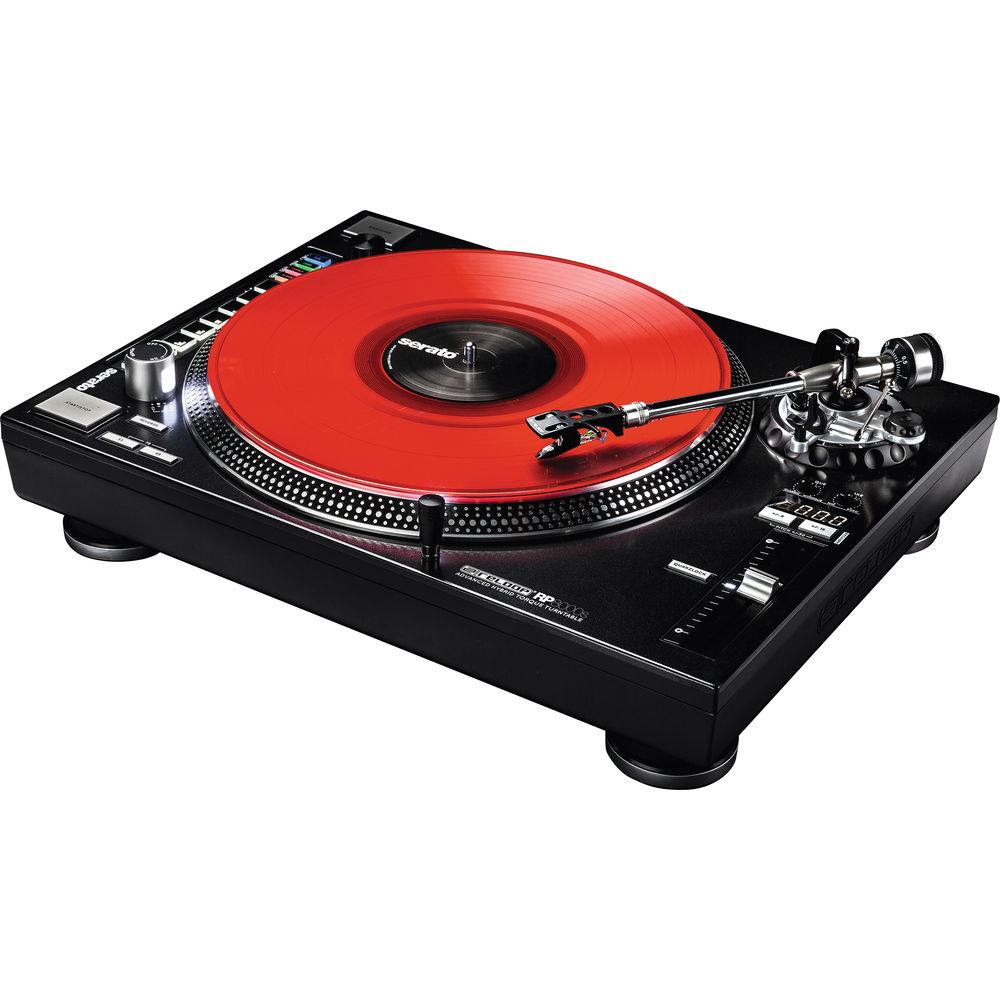

Product description The RP-8000 STRAIGHT Advanced Hybrid Torque Turntable from Reloop is an upper torque direct quartz driven turntable with a straight skip proof tone arm that allows extensive scratching. This turntable is designed to be used in conjunction with a headshell system such as the Reloop OM-GT (headshell and stylus sold separately).
The RP-8000 STRAIGHT is able to communicate with any MIDI compatible DJ software - an additional controller is not necessary. The turntable features a bank of eight user-programmable MIDI buttons with Serato Scratch Live mappings and a trax encoder for browsing your library and loading digital tracks onto the decks. The MIDI buttons can be set to four combinable performance modes for hot cueing, beat juggling, drum pad playing, and loop triggering. A user definable mode allows you to set the pads to control any compatible MIDI function. In the Dual Performance Mode, when two modes such as cue and loop are pressed simultaneously, the first four trigger buttons are assigned to cue and the other four buttons are assigned to the loop mode.
With the Turntable Link Mode, up to four turntables can be linked together over USB and the torque mode of each turntable can be adjusted from classic to HiTorque. A reverse button and adjustable stop time from 0.2 to 6 seconds expand the turntable's possibilities. - Straight skip proof tone arm

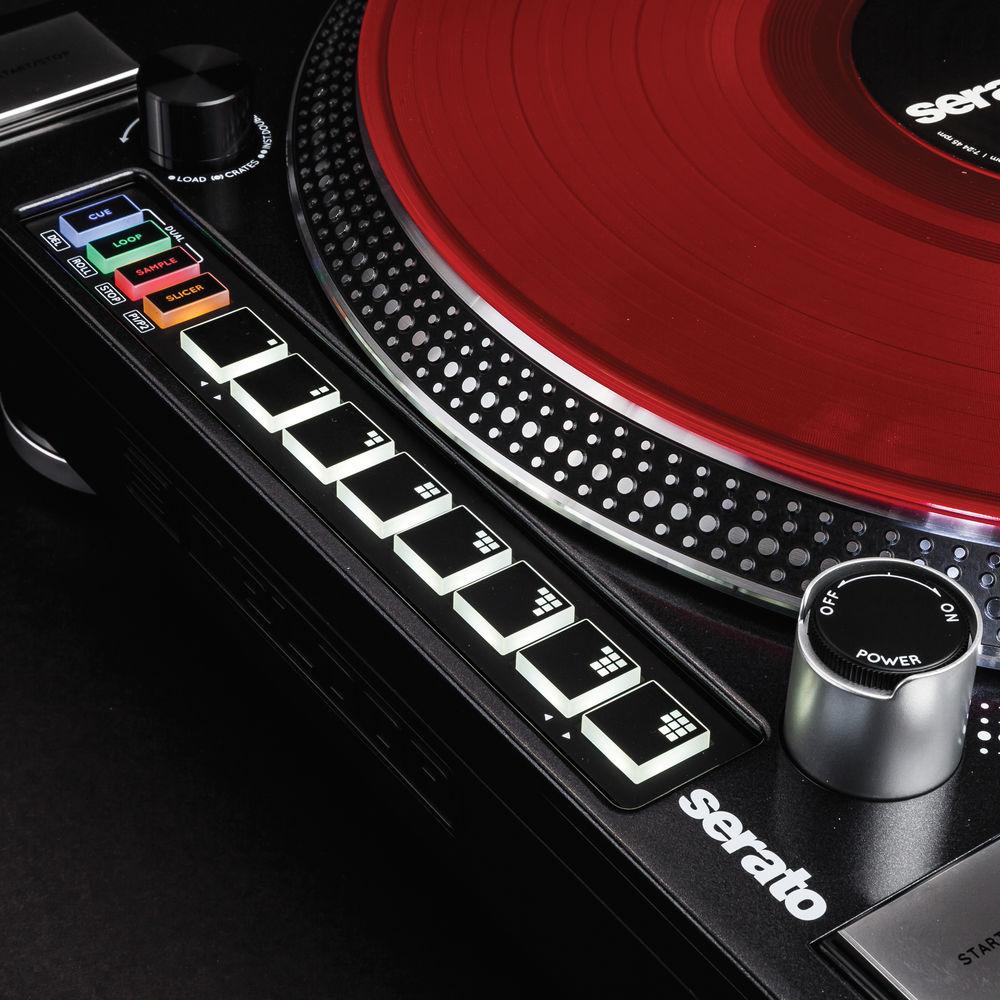

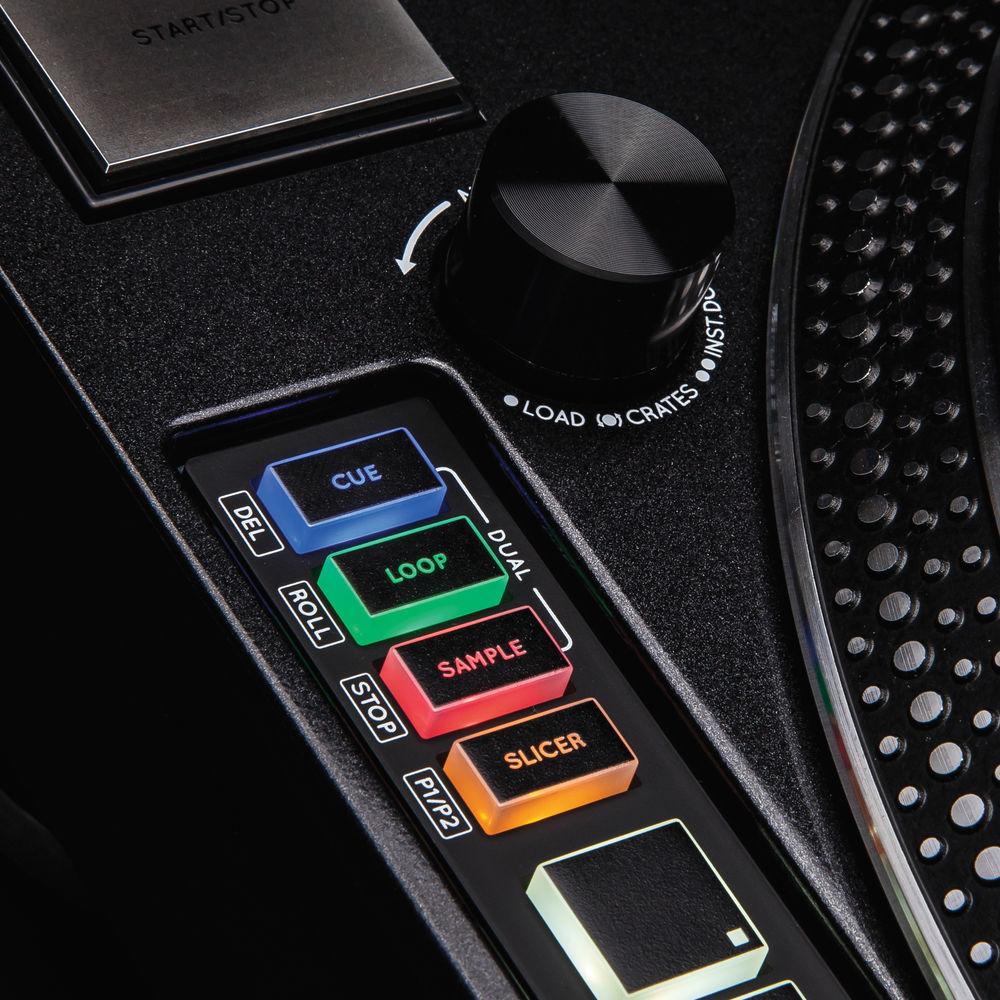

- MIDI compatible control section consisting of Trax encoder, eight backlit drum pads, and four combinable performance modes: cue, loop, sample, and slicer
- Smart USB link for up to four turntables

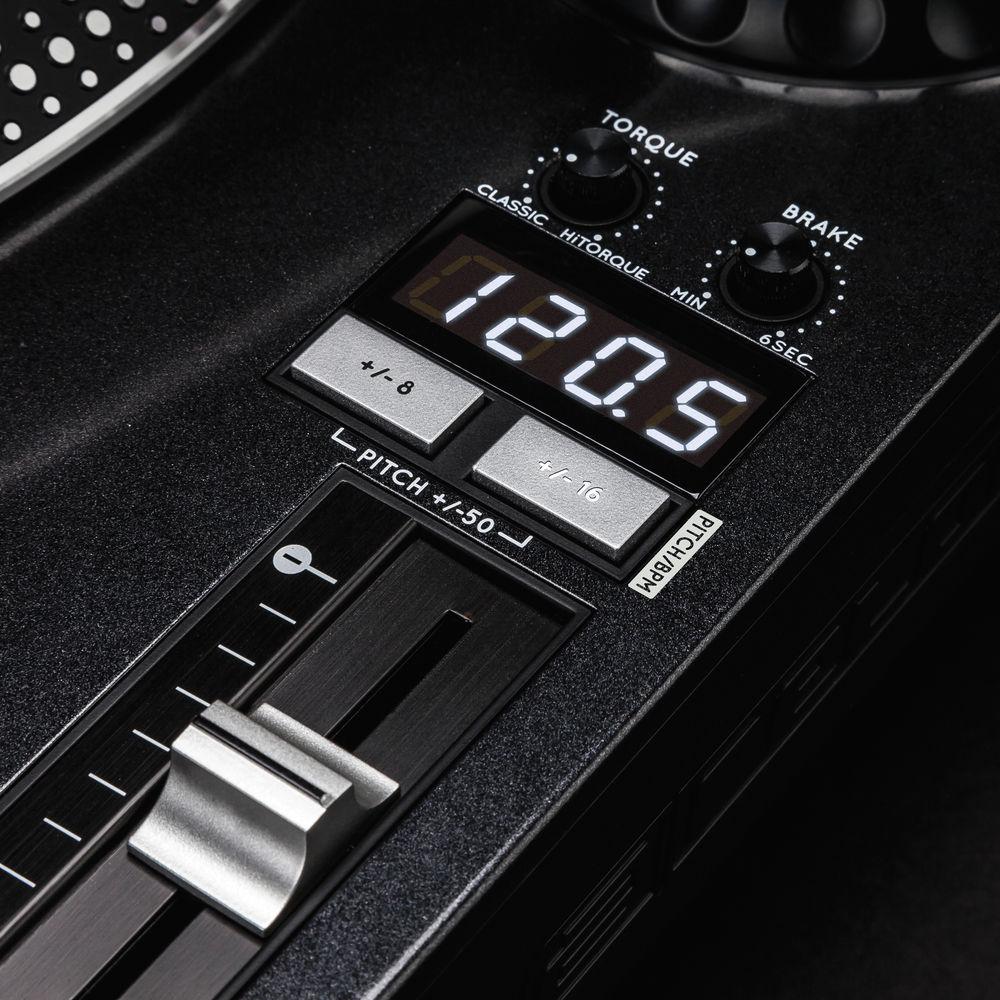

- Digital LCD display for pitch display, BPM value, deck assignment, and firmware settings
- Adjustable brake (0.2 - 6 sec) & torque (1600 - 4500 g/cm)
- Pitch range ±8%, ±16%, ±50%
- High resolution pitch fader (0.02% resolution)
- Rubber inlay for reduction of vibrations and ambient noise
- Shock proof feet and vibration-resistant base
- Serato Scratch Live mappings

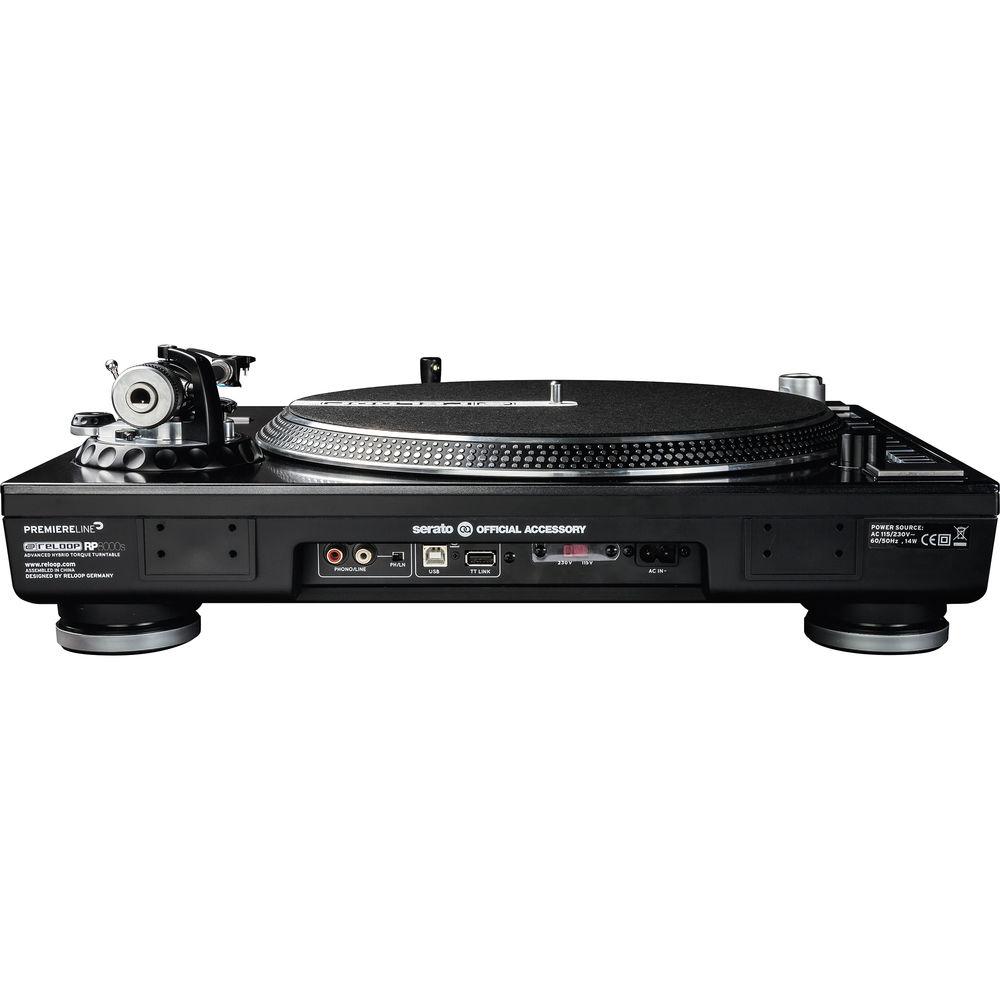

- Removable mains and RCA cables
- Sunk-in connection cavity for easy case installation
In the Box Reloop RP-8000 STRAIGHT Advanced Hybrid Torque Turntable USB Cable Slipmat Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop RP-8000 STRAIGHT Advanced Hybrid Torque Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReloop RP-8000-STR Specs | Type | Manual quartz direct drive turntable with MIDI control | | Drive | Quartz driven upper-torque direct drive | | Motor | Brushless DC motor, 3 speeds, fully manual | | RPM | 33-1/3, 45, 78 | | Material of Construction | Aluminum die casting | | Pitch | Variably Adjustable: ±8%, ±16%, ±50% | | Torque | Adjustable from 1600 to 4500 g/cm | | Start-Up Time | < 0.2 sec | | Brake | Electronic brake | | Wow & Flutter | 0.02% WRMS Impact of stylus, record, and tone arm not taken into account | | S/N Ratio | >-55 dB (1 kHz, 4 mV input) | | Cartridge Weight | Admissible Range:
0.1 to 0.3 oz (3.5 to 8.5 g)
Including Headshell: 0.4 to 0.6 oz (13 to 18 g) | | Stop Time | Adjustable from 0.2 - 6 sec | | Power Input | 14 W | | Power Supply | 115 / 230 VAC, 60 / 50 Hz | | Dimensions | 18.0 x 5.7 x 13.9" (458.0 x 144.6 x 354.0 mm) | | Weight | 21.4 lb (9.7 kg) |
