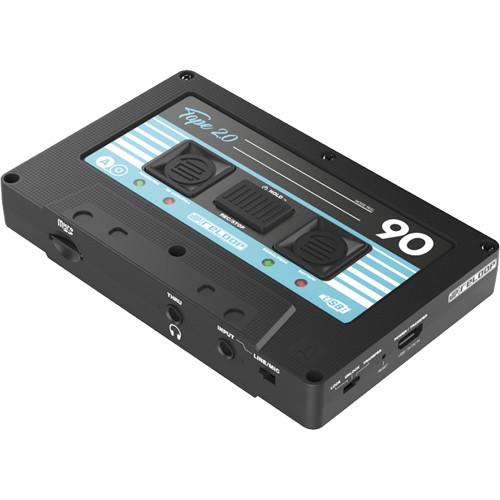

User Manual for Reloop Tape 2 Portable Mixtape Recorder Click to enlarge the picture
Contents of the user manual for the Reloop Tape 2 Portable Mixtape Recorder
- Product category: Portable Digital Recorders Reloop
- Brand: Reloop
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Reloop Portable Digital Recorders
 |
User manual for the Reloop Tape 2 Portable Mixtape Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Reloop product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Reloop user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Reloop product will considerably shorten its lifespan!
|
Product description Building upon the success of the original Tape recorder, the Reloop Tape 2 utilizes professional-grade 24-bit A/D converters to archive sets to either lossless WAV or MP3 (320 kb/s) formats, and is well suited for DJs looking for an easy-to-use recorder for archiving performances.

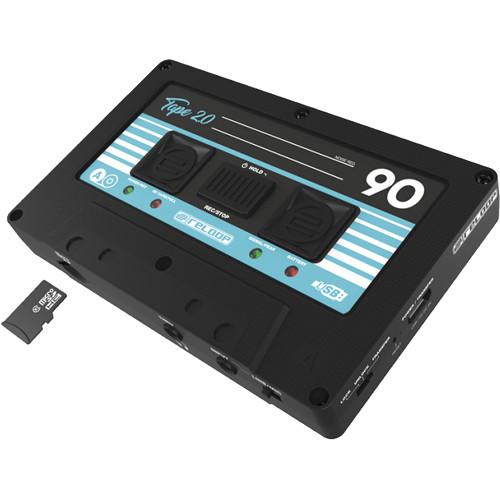

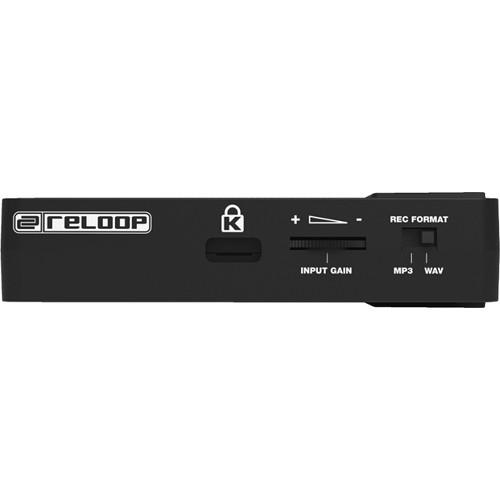

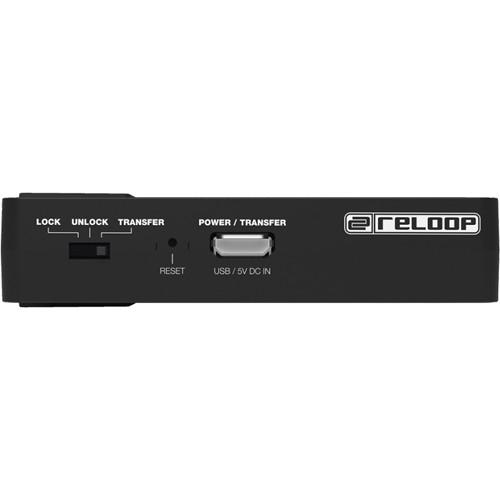

The Tape 2 features a cassette-tape-styled enclosure and an integrated lithium-ion battery with up to 6 hours of recording time on a full charge. The battery can be conveniently recharged via a standard USB power supply. Designed to be foolproof, the simple controls are easily accessed and include a switch for record format, an input gain dial, and a mode control switch with a lock function for computer transfer. The lock function prevents you from accidentally pressing stop while recording.

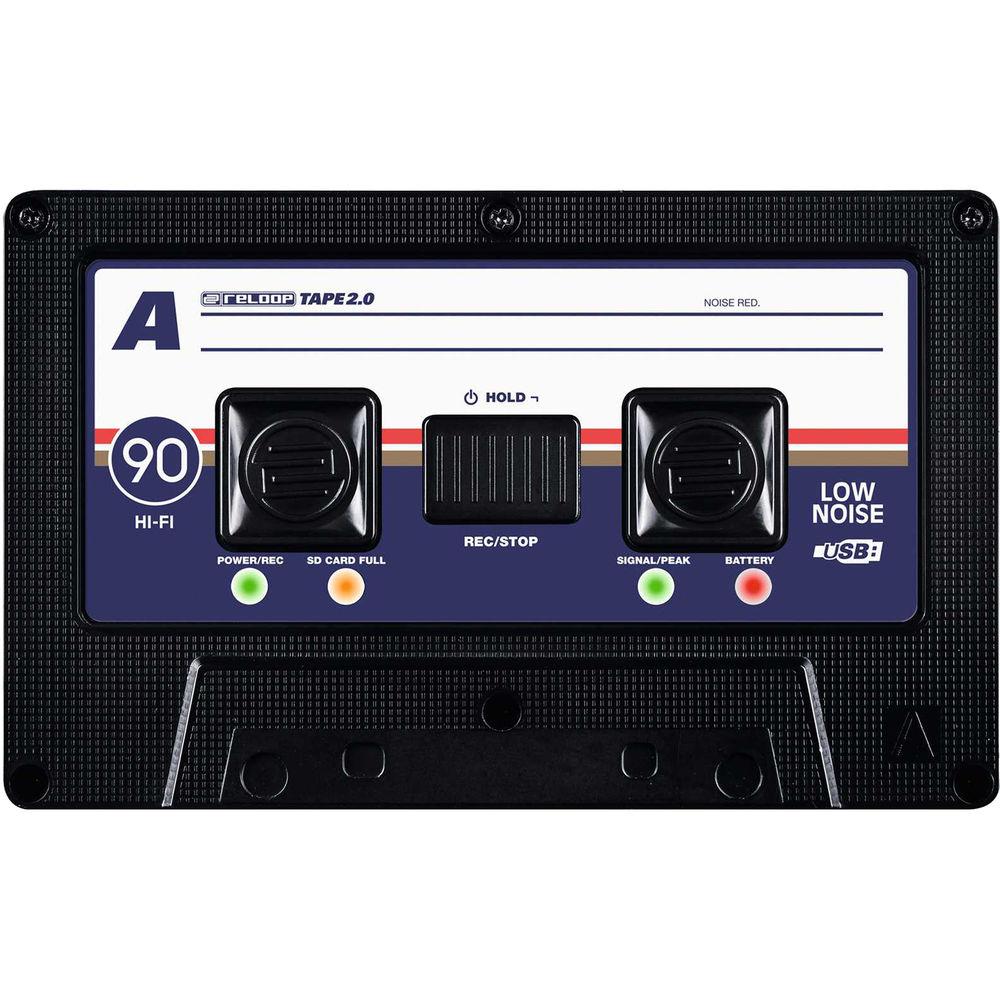

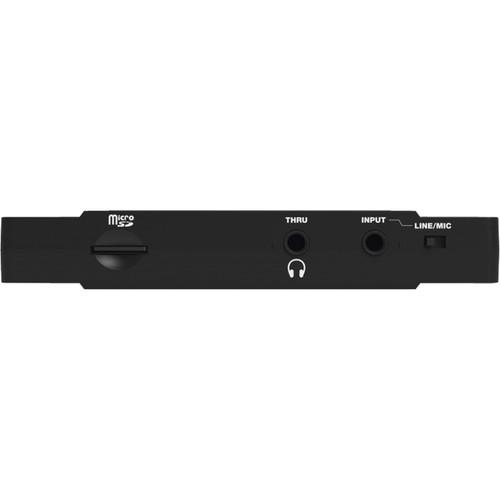

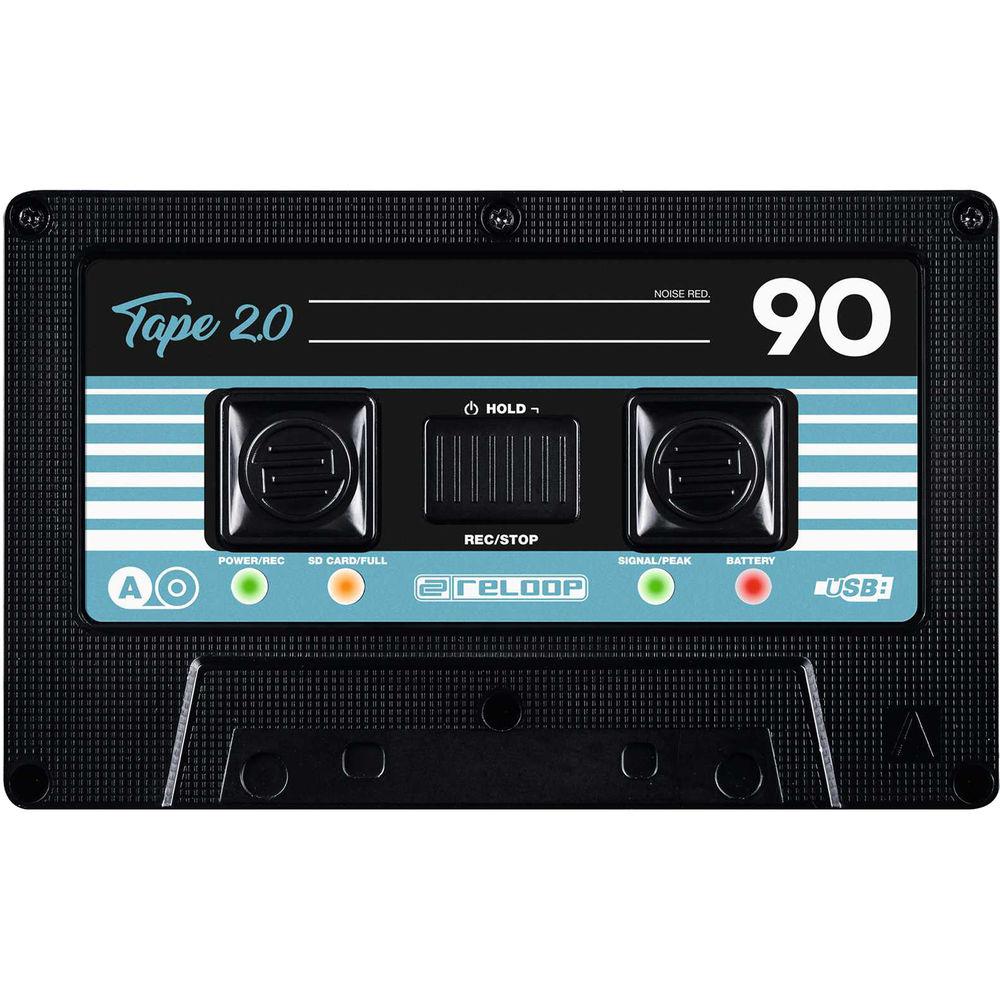

The top of the Tape 2 offers bi-colored LEDs for indicating a variety of statuses including power/rec, microSD card full, signal/peak, and battery. The front side panel offers a 3.5mm TRS input with a mic/line switch, a 3.5mm TRS thru output for monitoring or connecting to a playback system, and a microSD card slot for cards up to 128 GB. The Reloop Tape 2 Portable Recorder includes a stereo 3.5mm mini to dual RCA cable, a micro USB cable, and a set of three stickers. -

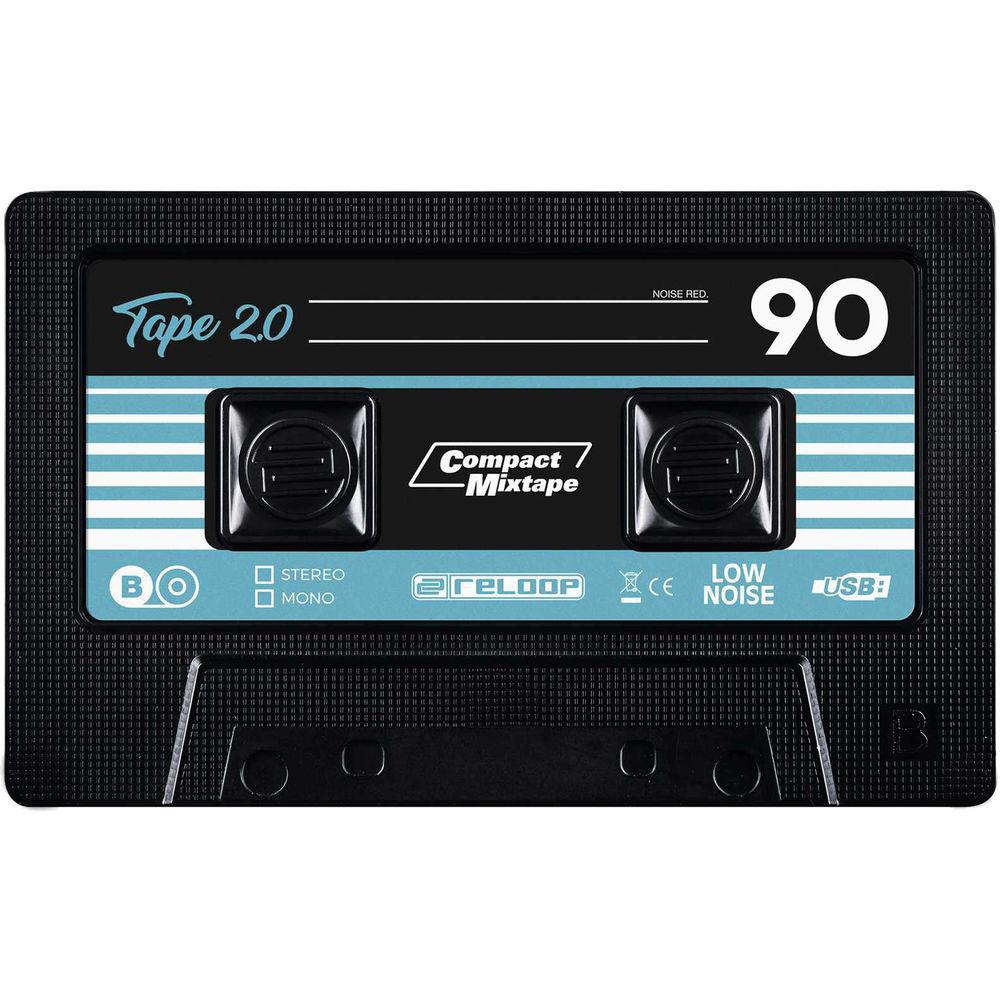

- Portable audio recorder in a retro-tape enclosure
- Easily record your mix to microSD with the push of a button
- Selectable Recording Format: WAV (lossless) or MP3 (320 kb/s)
- Integrated rechargeable battery with up to 6 hours of active recording
- Line level and mic level input for connection of mixers or dynamic microphones
- Thru output for monitoring/connecting headphones or when separated REC out is available
- Fail-safe recording without complicated adjustments
- Lock/unlock functionality provides protection against accidentally stopping while recording
- Simple handling even in dark surroundings
- Input gain control
- Bi-LED feedback (power/REC, SD card full, signal/peak, battery)
- High-quality 24-bit A/D converters
- Hi-speed slot for microSD cards (class 10 recommended, up to 128 GB)

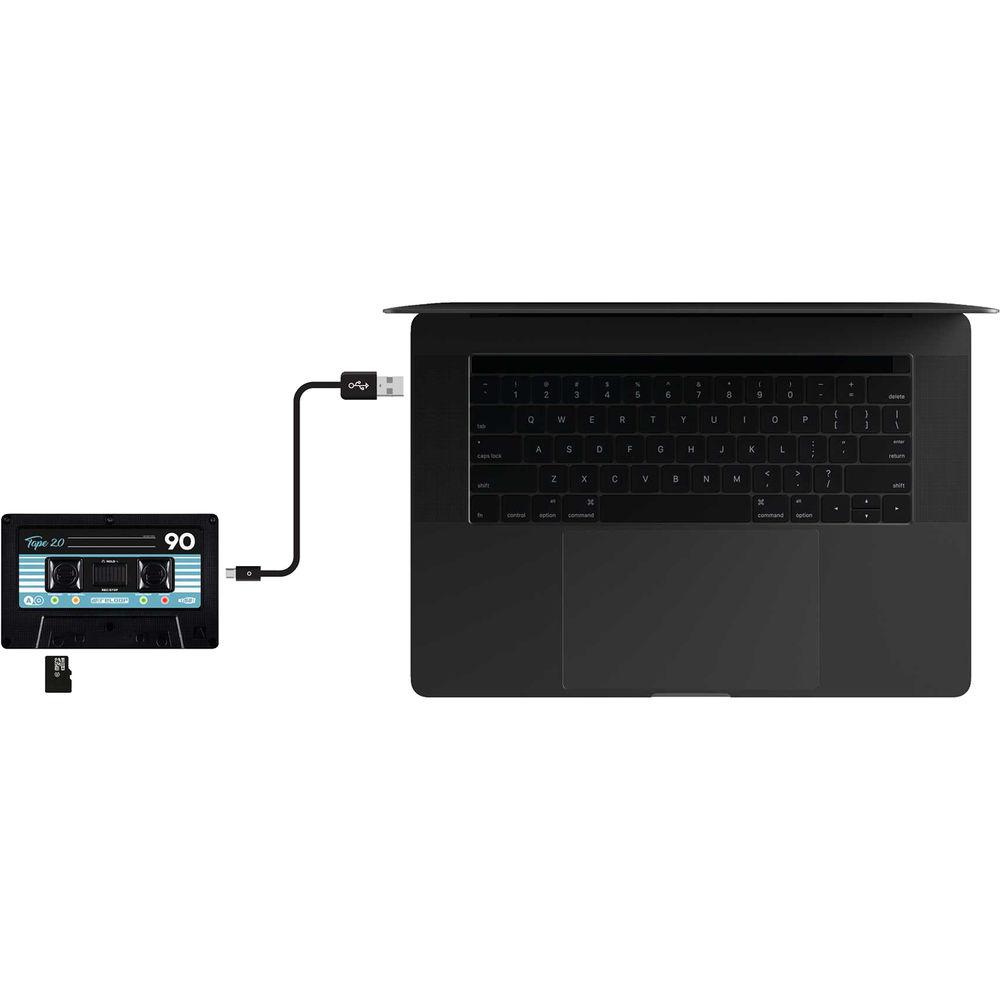

- Card reader functionality during active USB connection with a computer
- Sync Tool software identifies recordings with a time stamp
- Kensington lock to secure the device
- Can be charged with any standard mobile power adapter (5 V)
- Enclosed sticker sets allow for an individualized look
In the Box Reloop Tape 2 Portable Mixtape Recorder 3.5mm to Dual RCA Cable Power Adapter 3 x Design Sticker Sets Limited 1-Year Warranty User Manual PDF 1.2mbsdttudrcdwyvbdcqrrvabsuaydbu Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop Tape 2 Portable Mixtape Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReloop Tape 2 Specs | | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | microSD (Up to 128 GB) | | | | Audio File Formats | MP3, WAV | | Bit Depth | 24-Bit | | Bit Rates | 320 kb/s | | Timecode | No | | | | Analog I/O | 1 x 1/8" / 3.5 mm TRS Line/Mic Input
1 x 1/8" / 3.5 mm TRS Line Output | | | | Battery Type | Internal Rechargeable | | Approximate Battery Life | 6 Hours | | AC/DC Power Adapter | 5 VDC (Included) | | | | Dimensions | 4.1 x 0.6 x 2.6" / 103.0 x 14.0 x 65.0 mm | | Weight | 2.1 oz / 59.0 g | | | | Package Weight | 0.535 lb | | Box Dimensions (LxWxH) | 9.6 x 6.55 x 2.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Reloop Tape 2 Portable Mixtape Recorder
| Subject: Battery dead | | Date: 21.04.2023 19:51:51 | Name: Paul | | Same problem, battery won't charge and unit is completely dead. | | Post reply |
| Subject: My tape 2 has never been able to record | | Date: 09.11.2022 11:37:01 | Name: Roy Haddad | | I am currently using another tape 02 that is actually working but the first one that i bought is not being able to record even though they look quite identical in the process of recording, i saw there is a tiny reset thing on the side ? How can i troubleshoot it or reset it? Is it even possible to do that ? This tape 02 has costed me quite alot and would like to have what i am paying for! Extremely disappointed and hoping for an answer with a solution or possibly compensation. Is it also possible to have it fixed somewhere? | | Post reply |
| Subject: tape 2 | | Date: 02.09.2022 07:16:35 | Name: Chris | | Hi I have a Tape 2 and the battery has died, is there any way to replace it? | | Post reply |
