User Manual for Reloop Touch 7" Touchscreen DJ Controller for VirtualDJ Click to enlarge the picture
Contents of the user manual for the Reloop Touch 7" Touchscreen DJ Controller
- Product category: DJ Controllers Reloop
- Brand: Reloop
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Reloop DJ Controllers
 |
User manual for the Reloop Touch 7" Touchscreen DJ Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Reloop product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Reloop user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Reloop product will considerably shorten its lifespan!
|
Product description - Reloop TOUCH First 7" Multi-Touch Screen DJ Controller for Virtual DJ (Introduction)

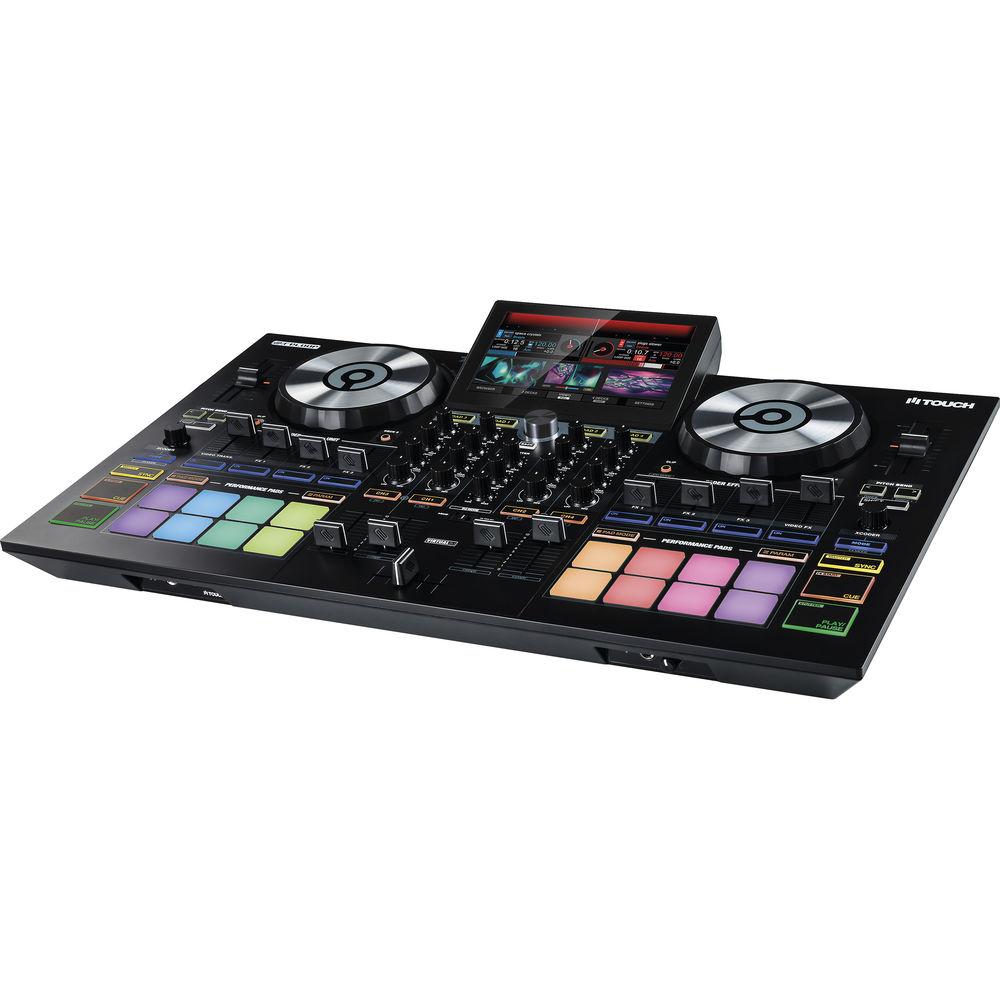

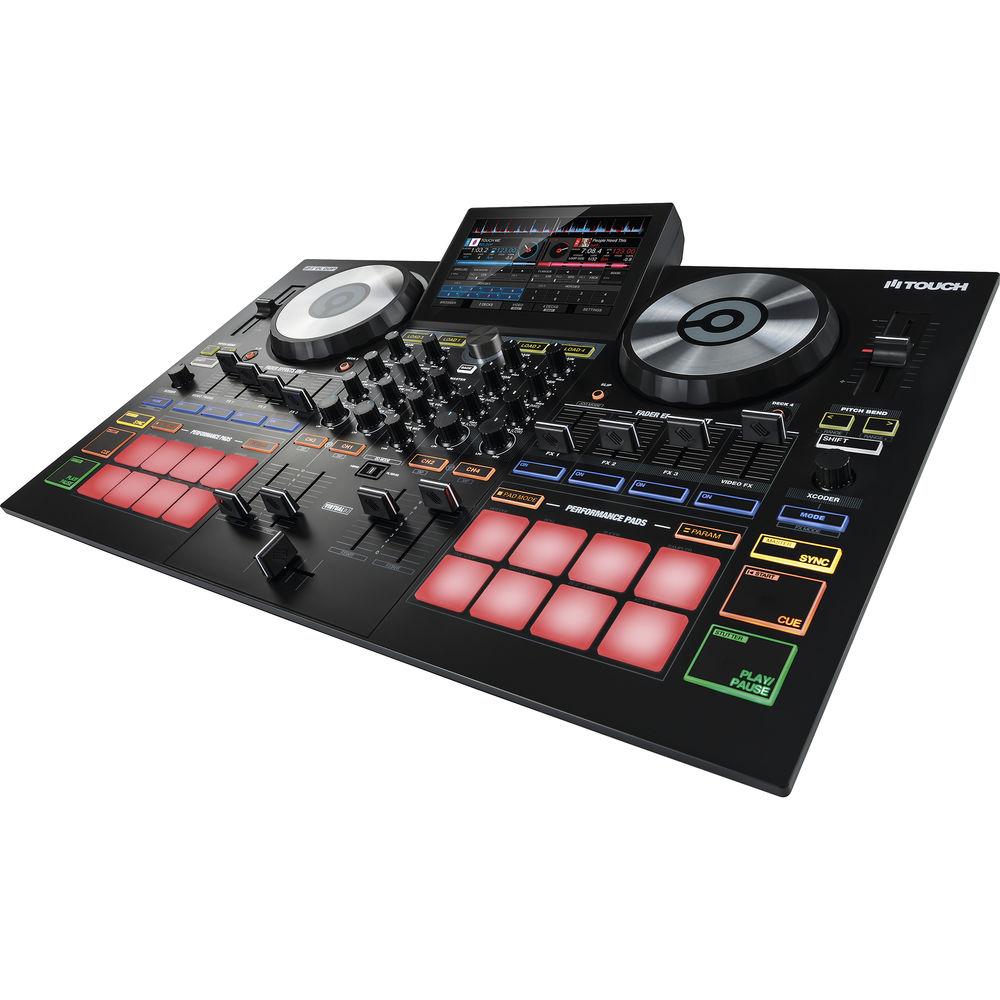

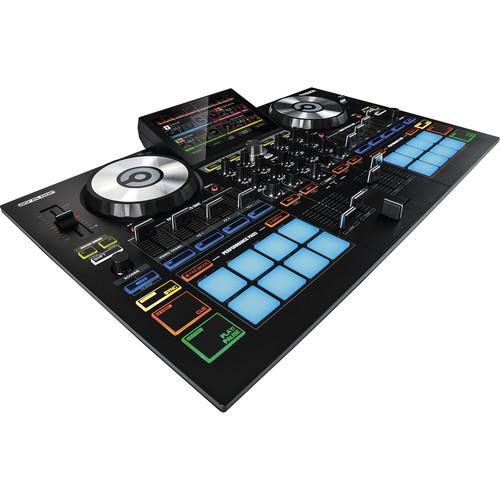

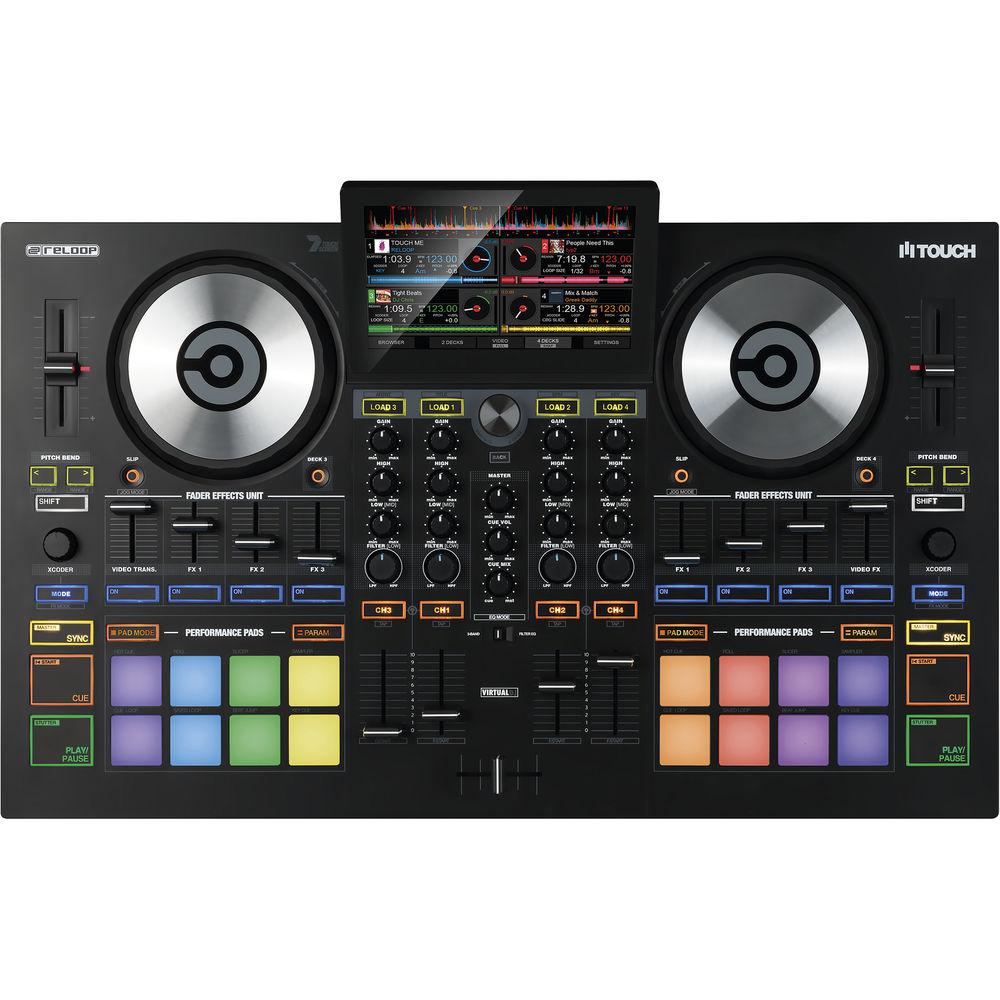

The Reloop Touch is a touchscreen DJ controller designed to provide versatile, tactile control abilities for DJs, remixers, and music producers using VirtualDJ and other software in the studio or on stage. It combines a 7” color touchscreen with a traditional 4-channel club-mixer layout for a blend of classic and modern tech. Each of the two high-resolution jog wheels is complemented by a 50mm pitch fader, multi-function XCoder encoder knob, and dedicated fader-FX unit.Each deck has eight RGB-colored performance pads and selectable pad modes. Integrated video mixing with full-screen support and XY control of FX deliver enhanced creative possibilities. Connect a dynamic microphone to the 1/4" mic input and multiple headphones to the 1/4" and 3.5mm headphone jacks. Signal via the built-in USB audio interface feeds the main 1/4" and RCA stereo outputs for easy connection to a PA.The Touch includes a VirtualDJ PRO license key, USB cable, and external power supply. - Touchscreen surface for intuitive operation, developed in cooperation with VirtualDJ
- Customizable user interface

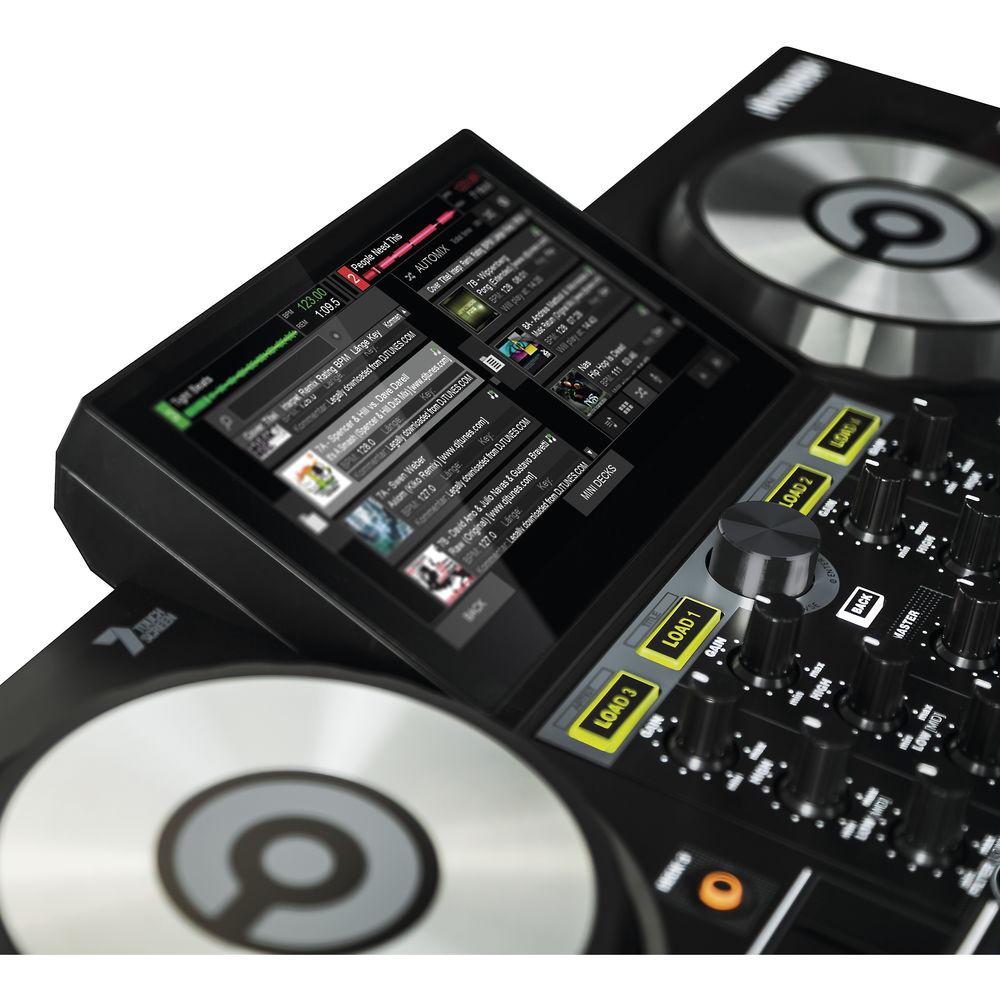

- Display up to four waveforms plus track, artist, and album information
- XY panel for direct control of FX via touchscreen
- Integrated video-mixing feature with full-screen support
- Easy media library organization via drag-and-drop of folders
- Large TRAX encoder for comfortable browsing of media libraries and cloud-streaming providers (Pulselocker and Deezer)
- 4-channel club-mixer layout with combined EQ/filter section
- Fader-FX unit for real-time editing of audio and video material

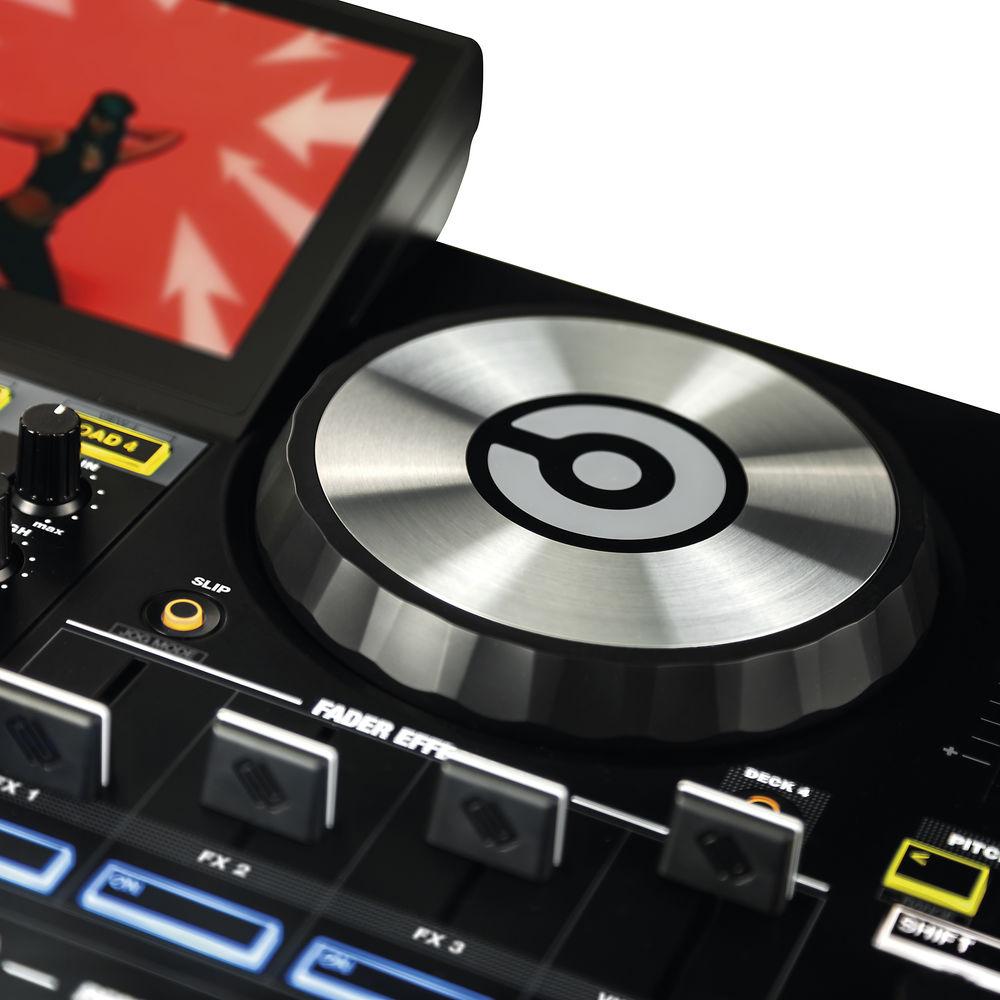

- High-resolution jog wheels with special non-slip design for pitch bending
- Activate quantize, slip-mode, and beat-grid adjustments directly via the controller
- Multi-functional XCoder encoder with various modes–loop, size, and grid-adjust
- Eight RGB-colored performance pads for creative remixing
- 12 performance modes with quick switching via the Pad Mode button and Split Mode support
- Vast adjustment possibilities for performance modes via the Param button
- Color-coded deck-switching
- Integrated audio interface with high-retention USB port

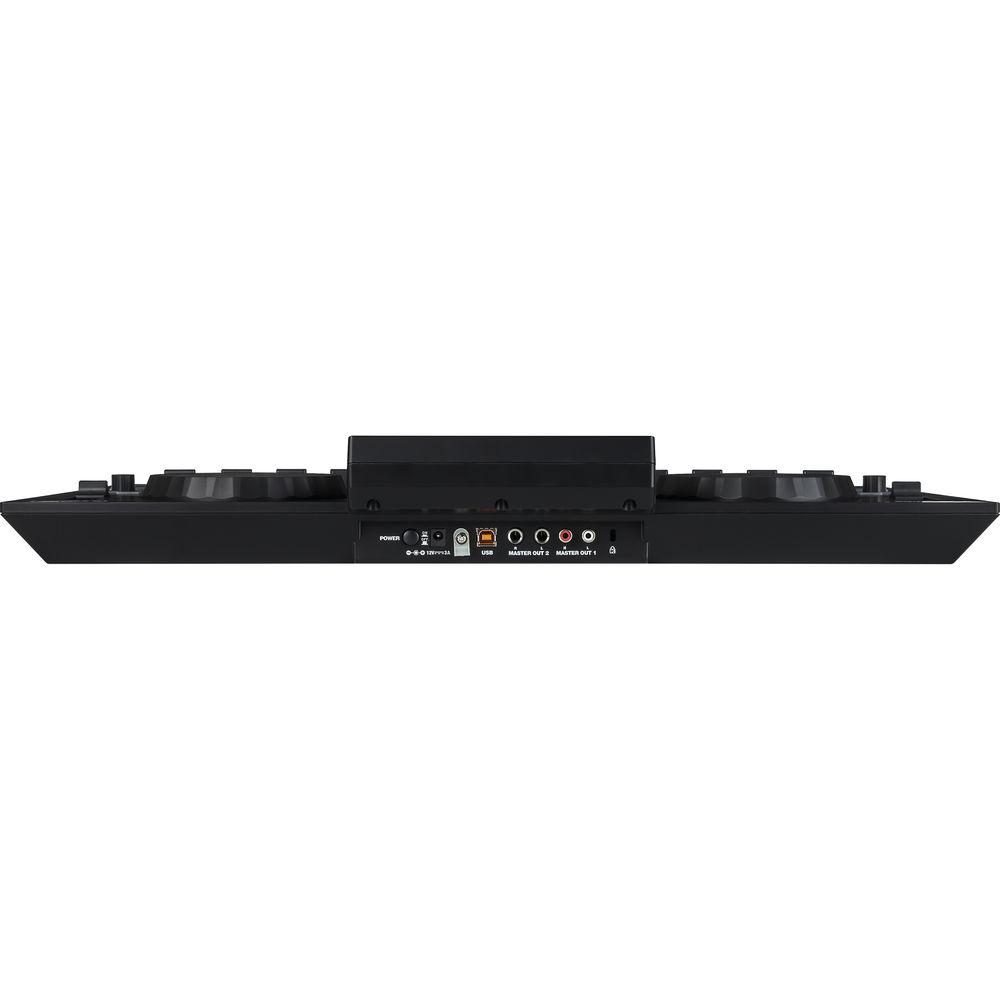

- 1/4" and 3.5mm headphone outputs, 1/4" microphone input, and two sets of master outputs (balanced 1/4" and unbalanced RCA)
- Includes full version of VirtualDJ 8 PRO
- Supports MIDI for use with other software
- Kensington lock to secure the device
- Includes USB cable and external power-supply unit with international plugs
In the Box Reloop Touch 7" Touchscreen DJ Controller for VirtualDJ USB Cable External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop Touch 7" Touchscreen DJ Controller for VirtualDJ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReloop TOUCH Specs | System Requirements | Mac OS X 10.9 or later
Dual-core 2.5 GHz processor or better
4 GB RAM minimum
Windows 8 or later
Dual-core 2.5 GHz processor or better
4 GB RAM minimum | | Inputs | 1 x 1/4" microphone input | | Outputs | 2 x 1/4" TRS balanced (one stereo pair)
2 x RCA coaxial unbalanced (one stereo pair)
1 x 1/4" headphone jack
1 x 1/8" (3.5 mm) headphone jack | | Interface | 1 x USB Type-B | | Power Supply | 12 V, 3 A | | Dimensions (W x D x H) | 23.4 x 14.8 x 1.7" / 594 x 377 x 43 mm
2.9" / 73 mm (touchscreen height) | | Weight | 8.2 lb / 3.7 kg | | | | Package Weight | 16.15 lb | | Box Dimensions (LxWxH) | 29.8 x 18.4 x 7.2" |
