User Manual for Reloop Turn-3 Belt-Driven Hi-Fi Turntable Click to enlarge the picture
Contents of the user manual for the Reloop Turn-3 Belt-Driven Hi-Fi Turntable
- Product category: Turntables Reloop
- Brand: Reloop
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Reloop Turntables
 |
User manual for the Reloop Turn-3 Belt-Driven Hi-Fi Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Reloop product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Reloop user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Reloop product will considerably shorten its lifespan!
|

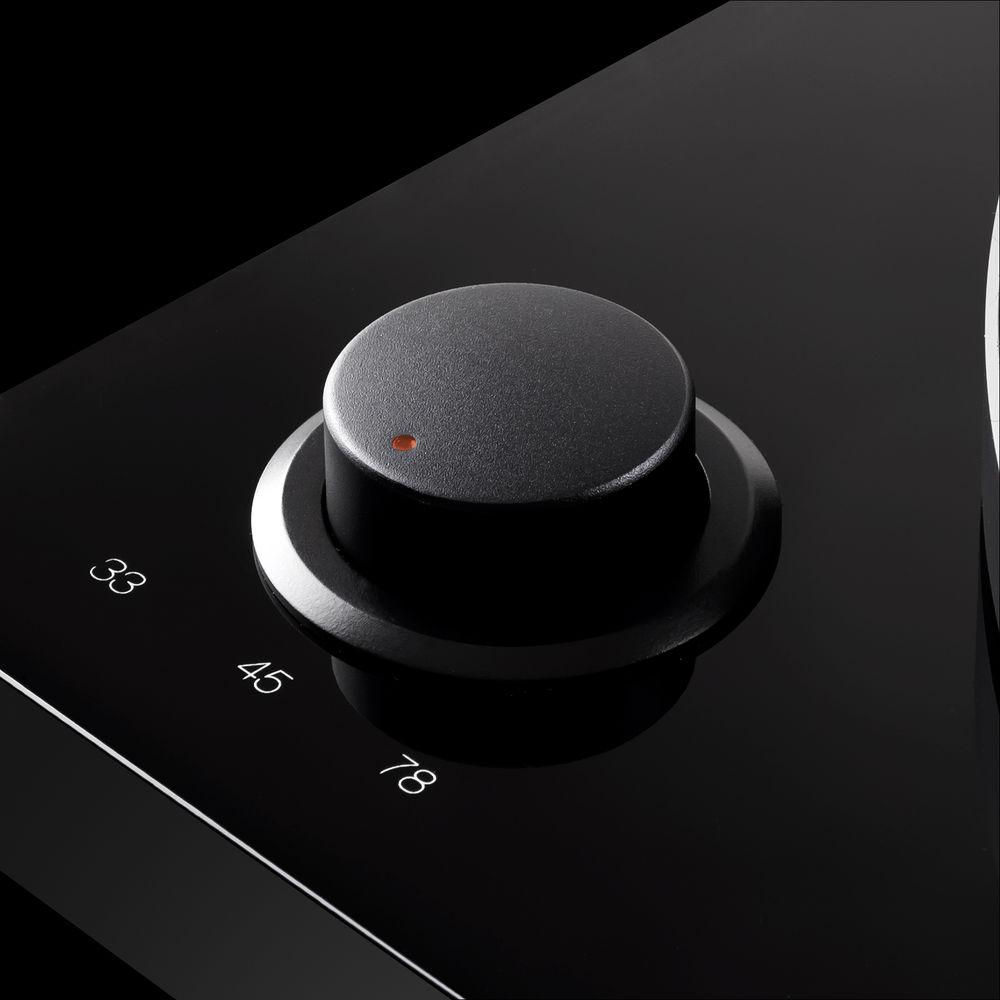

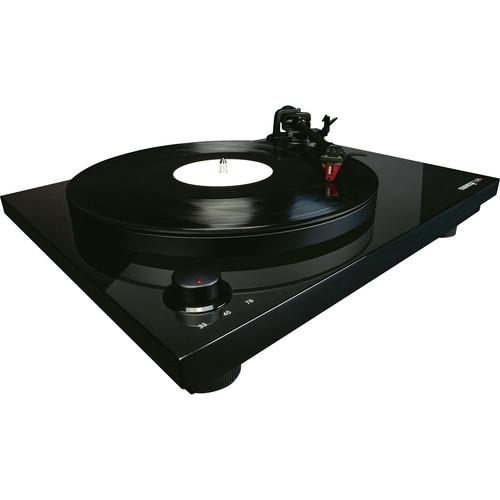

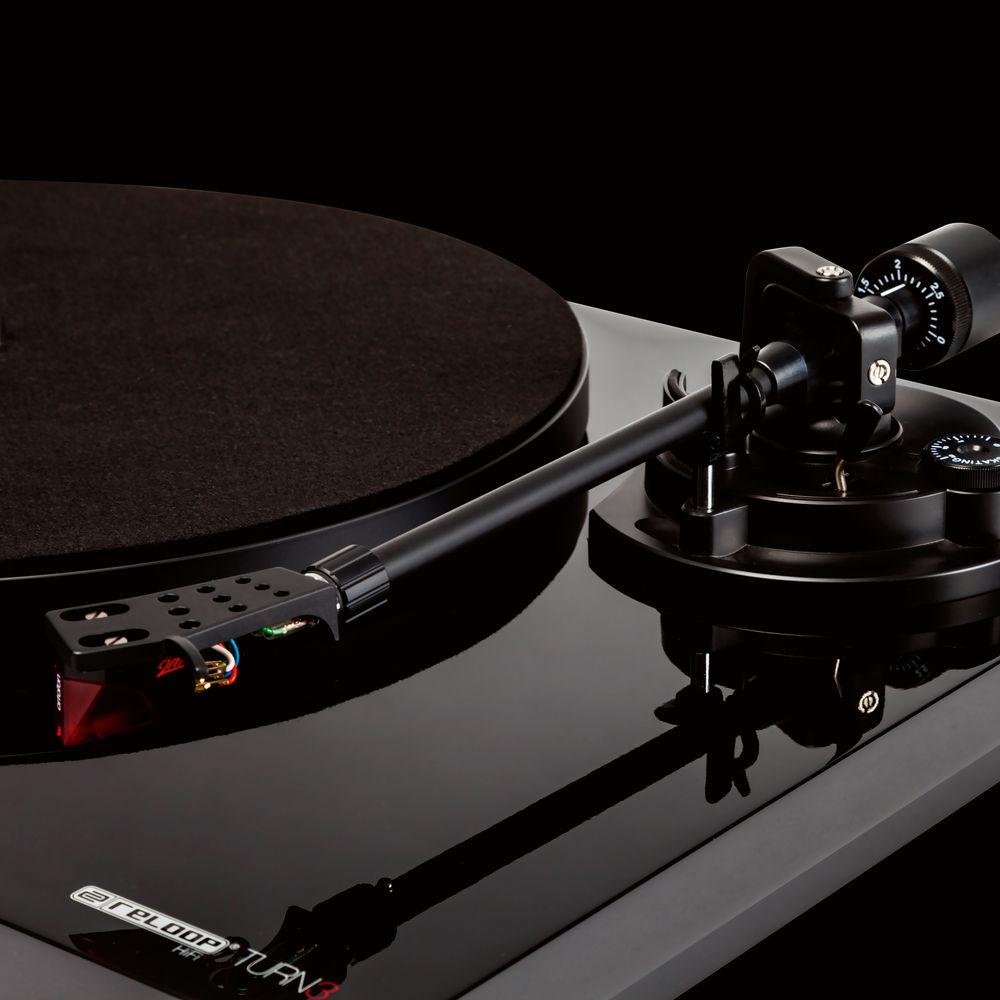

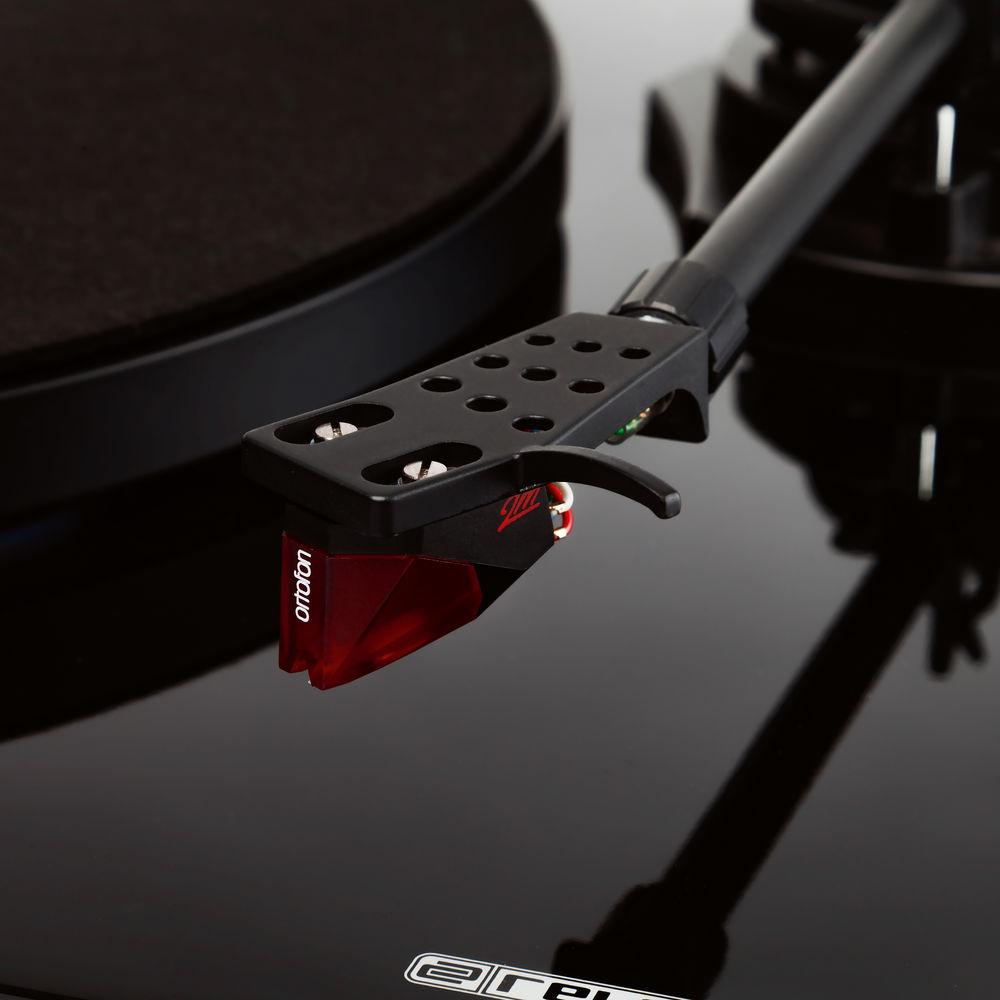

Product description The Turn-3 Belt-Driven Hi-Fi Turntable from Reloop features a straight tonearm design with adjustable anti-skating dial for improved cartridge tracking. It comes with an aluminum platter with rubber damping for optimized resonance control. The integrated motor control with speed selector allows you to select three different speeds (33 1/3, 45, and 78 rpm). - Pre-installed Ortofon 2M Red cartridge
- Built-in phono stage can be switched on or off (phono/line output)
- USB output for recording your vinyl to Windows or Mac
- Semi-automatic motor stop can be switched on or off
- External DC power supply ensures a silent running motor (100-240V / 12V / 500mA)

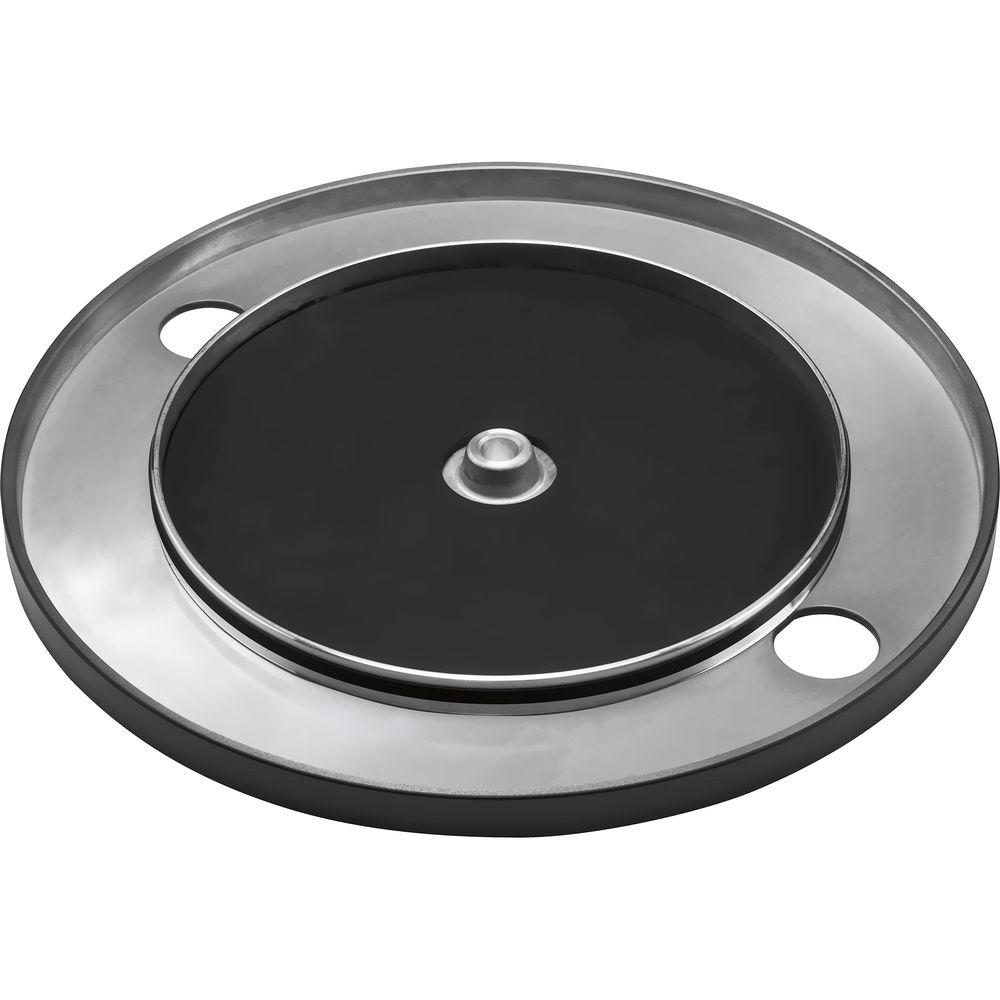

- Aluminum platter with rubber damping for optimized resonance control

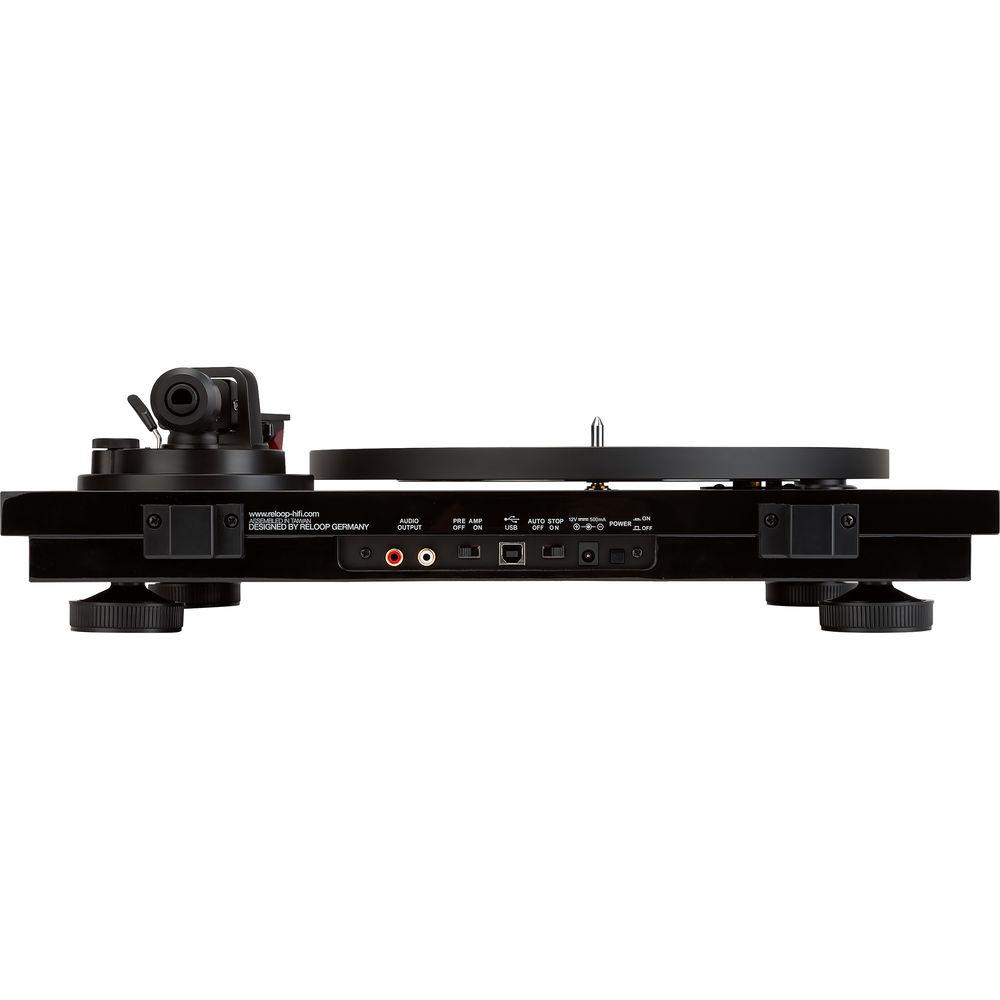

- Gold-plated, corrosion-resistant audio outputs (all cables detachable)
- Turntable feet for effective decoupling
- Master power switch on rear panel

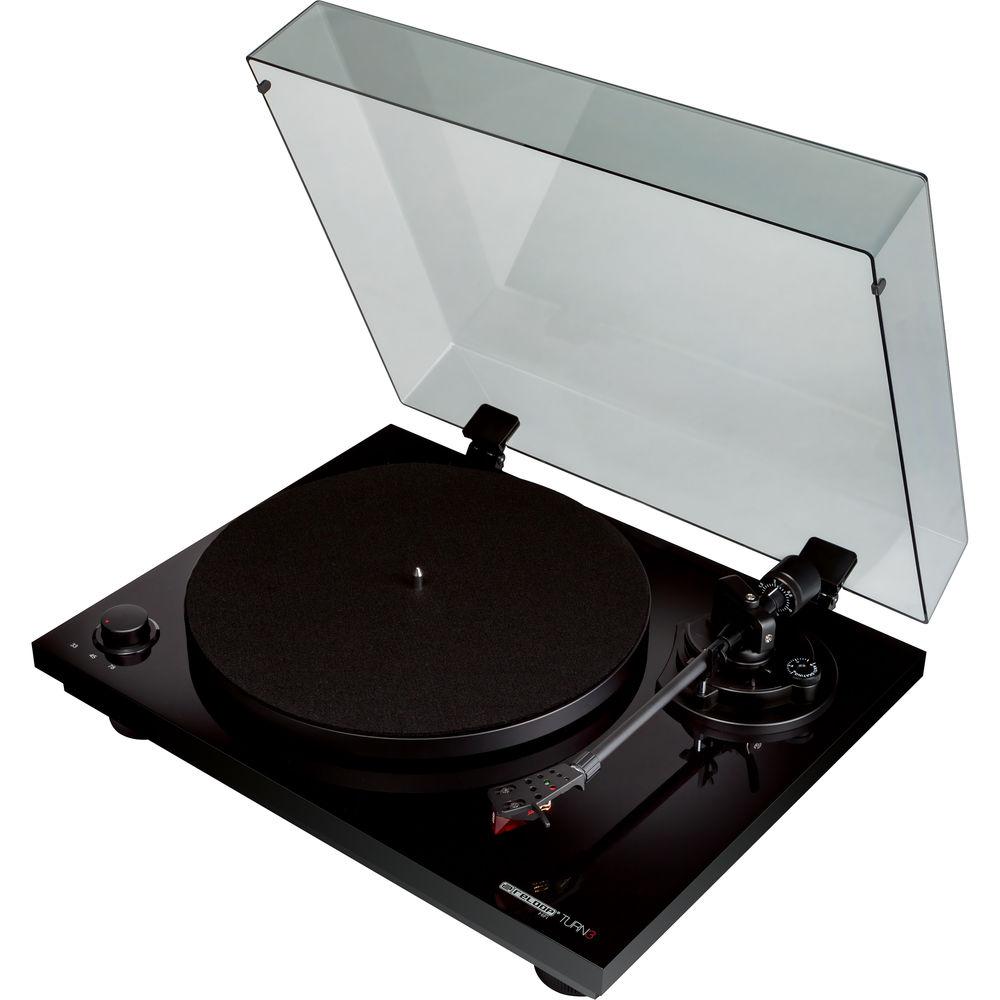

In the Box Reloop Turn-3 Belt-Driven Hi-Fi Turntable Counter Weight Dust Cover (Including Hinges) Felt Mat Rubberized Aluminum Platter 7" Aluminum Adapter RCA and USB Cables International Power Supply (UK/EU/US) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Reloop Turn-3 Belt-Driven Hi-Fi Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersReloop AMS-TURN-3 Specs | Drive Type | Belt-driven | | Motor | DC | | Rotation Speed | 33 1/3, 45, and 78 | | Wow and Flutter | 0.2% WRMS | | Analog Output | Phono / line switchable | | Connections | RCA audio output (gold-plated), USB type B | | Phono Output Level | 4.0 mV (with Ortofon 2M Red) | | Line Output Level | 224 mV (with Ortofon 2M Red) | | Tone Arm | Type: Straight
Mass: 0.9 oz (24.8 g) | | Effective Arm Length | 9.2" (23.3 cm) | | Overhang | 9.2" (23.3 cm) | | Tracking force range | 18 nm | | Platter Diameter | 11.8" (30 cm) | | Anti-skating Adjustment | Yes | | USB Output | Audio output with 48 kHz / 16-bit | | OS Supported | Windows and Mac | | Cartridge Type | MM (Ortofon 2M Red) | | Needle Pressure Range | 1.8 (
