User Manual for Remote Audio BDSv4 Battery Distribution System Click to enlarge the picture
Contents of the user manual for the Remote Audio BDSv4 Battery Distribution System
- Product category: Battery Power & Distribution Remote Audio
- Brand: Remote Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Remote Audio Battery Power & Distribution
|
User manual for the Remote Audio BDSv4 Battery Distribution System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Remote Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Remote Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Remote Audio product will considerably shorten its lifespan!
|

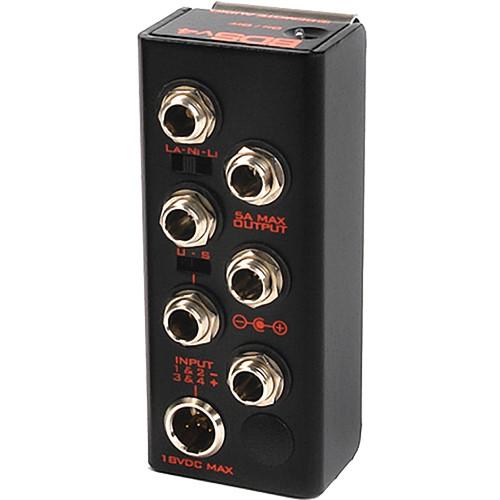

Product description The BDSv4 Battery Distribution System from Remote Audio is an effective device for distributing power to field recording devices, cameras, mixers, and monitoring devices via a single source such as an Anton Bauer "Brick" or an NP-1 battery. This allows you to power multiple items from a single source, and turn them on and off with a single switch.
The BDSv4 features 1 power input, 5 switchable outputs, and 1 output that can be set for switchable or non-switchable use, for a total of 6 outputs. All connections lock securely in place and a recessed master switch and power LED indicator are located on the side. There is also a low battery LED indicator, which has a selectable warning threshold. An internal auto-resetting circuit breaker prevents overload and possible damage to connected devices. An assortment of power cables are available for complete compatibility with various batteries and field devices. Note: All input and output cables, and other accessory devices designed for earlier versions of the BDS are also compatible with the BDSv4. - Ultra Compact
- The compact design allows terrific portability, and is even smaller than the previous version of the BDS
- Single Battery Operation
- The BDSv4 eliminates the time consuming operation of installing and testing multiple batteries. The unit effectively distributes power to 6 devices via a single battery, such as an NP-1
- Illuminated Main Switch
- The main toggle switch is illuminated with a bi-color LED for quick visual status identification
- Low Battery LED
- There is a bi-color low battery LED that has 3 user-selectable thresholds for 3 different battery types
- Switched/Unswitched Output
- One output can be set for switched or unswitched operation. Unswitched mode allows power to flow via the output regardless of the position of the master switch
- Convenient Controls
- External panel-accessible selectors let you make adjustments to the battery threshold or switched/unswitched connector quickly and easily
- Strong Connectors
- The special connectors provide excellent strength, and will now become active until a cable with the proper mating connector is plugged in. This ensures that unused and exposed outlets are not active, and helps to prevent accidental short circuits
- Auto-Reset Circuit Breaker
- The unit features an automatic reset circuit breaker, protecting the connected devices against overload
- Reverse Polarity Protection
- In the event that an input is miswired, the unit will not allow reverse polarity voltage to pass to the outputs, protecting your devices
- Aluminum Chassis
- The lightweight and durable powder coated aluminum chassis stands up to daily field use
- Steel Clip
- The stainless steel clip makes it easy to attach the BDS to a bag, belt, or strap
In the Box Remote Audio BDSv4 Battery Distribution System 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Remote Audio BDSv4 Battery Distribution System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRemote Audio BDSV4 Specs | Input Power | 6-20V | | Output Power | 3A Max per Output
5A Max Global (60W) | | Power Switch | Red/Green Bi-Color Illumination, Recessed Toggle | | Dimensions (WxDxH) | 3.29 x 1.33 x 1.17" (84 x 34 x 30mm) | | Weight | 4 oz (113g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 7.3 x 2.5 x 1.6" |
