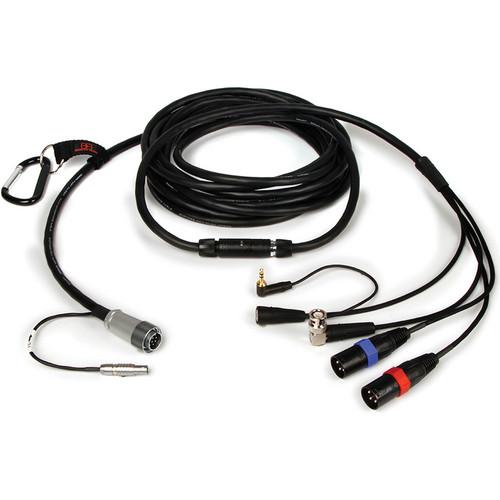

User Manual for Remote Audio CABETASD664 ENG Breakaway Output Cable with Timecode for Sound Devices 664 Click to enlarge the picture
Contents of the user manual for the Remote Audio CABETASD664 ENG Breakaway Output
- Product category: Mixer Accessories Remote Audio
- Brand: Remote Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Remote Audio Mixer Accessories
|
User manual for the Remote Audio CABETASD664 ENG Breakaway Output contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Remote Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Remote Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Remote Audio product will considerably shorten its lifespan!
|
Product description The 20' Remote Audio CABETASD664 ENG Breakaway Output Cable with Timecode for Sound Devices 664 connects to the recorder via a 10-pin Hirose connector and transmits a pair of balanced audio outputs to a camera over two XLR connectors. It also uses a dedicated 5-pin LEMO to BNC line to transmit timecode from your Sound Devices recorder to a camera. The cable features a stereo return for sending the camera's headphone output to the 664, as well as for sending the 664's headphone output to the camera operator's headphones, allowing for safe monitoring of the audio signal at the recorder's output. The CABETASD664 comes with a carabiner for wrapping the extra slack and attaching the breakaway cable to equipment or a belt while on set. - Key Features
-
- Breakaway output cable with 10-pin Hirose connector for Sound Devices 664
- Send 664 pair of balanced audio outputs to camera—via two XLR male connectors
- Send 664 stereo mix out to camera operator headphones—via 3.5mm female connector
- Send camera stereo headphone mix out to 664—via 3.5mm male connector
- Send 664 timecode out to camera—via 5-pin LEMO to right-angle BNC
- Color-coded XLR connectors
- Attachment carabiner
In the Box Remote Audio CABETASD664 ENG Breakaway Output Cable with Timecode for Sound Devices 664 (20') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Remote Audio CABETASD664 ENG Breakaway Output Cable with Timecode for Sound Devices 664 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRemote Audio CABETASD664 Specs | Connector 1 | Main: 1 x 10-pin Hirose, male
Pigtail Leg: 1 x 5-pin LEMO, male (timecode) | | Connector 2 | 2 x 3-pin XLR male, balanced
1 x BNC, right angle (timecode)
1 x 1/8" / 3.5 mm TRS, female, stereo, unbalanced
Pigtail Leg: 1/8" / 3.5 mm TRS, male, stereo, unbalanced | | Length | 20' / 6.1 m | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.472 x 7.559 x 2.677" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
