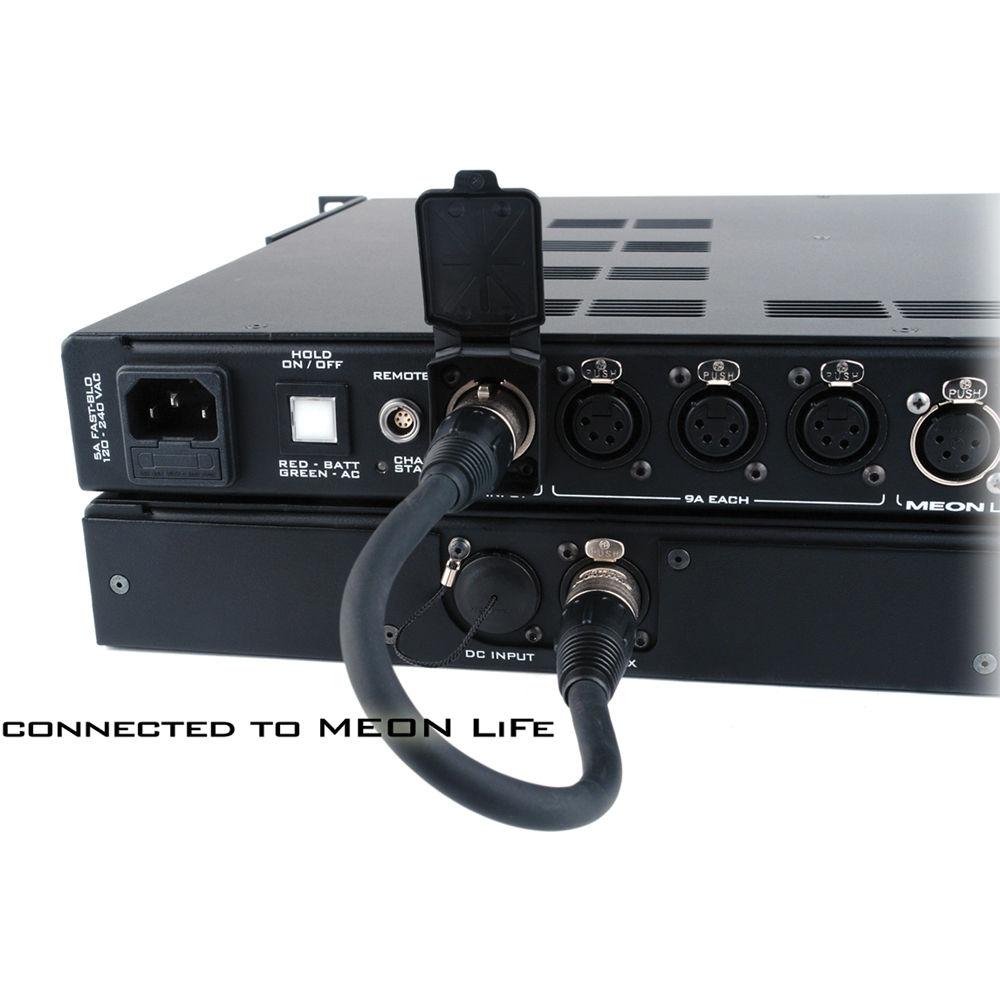

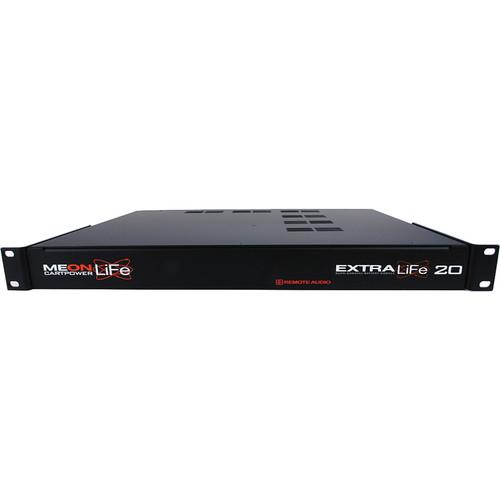

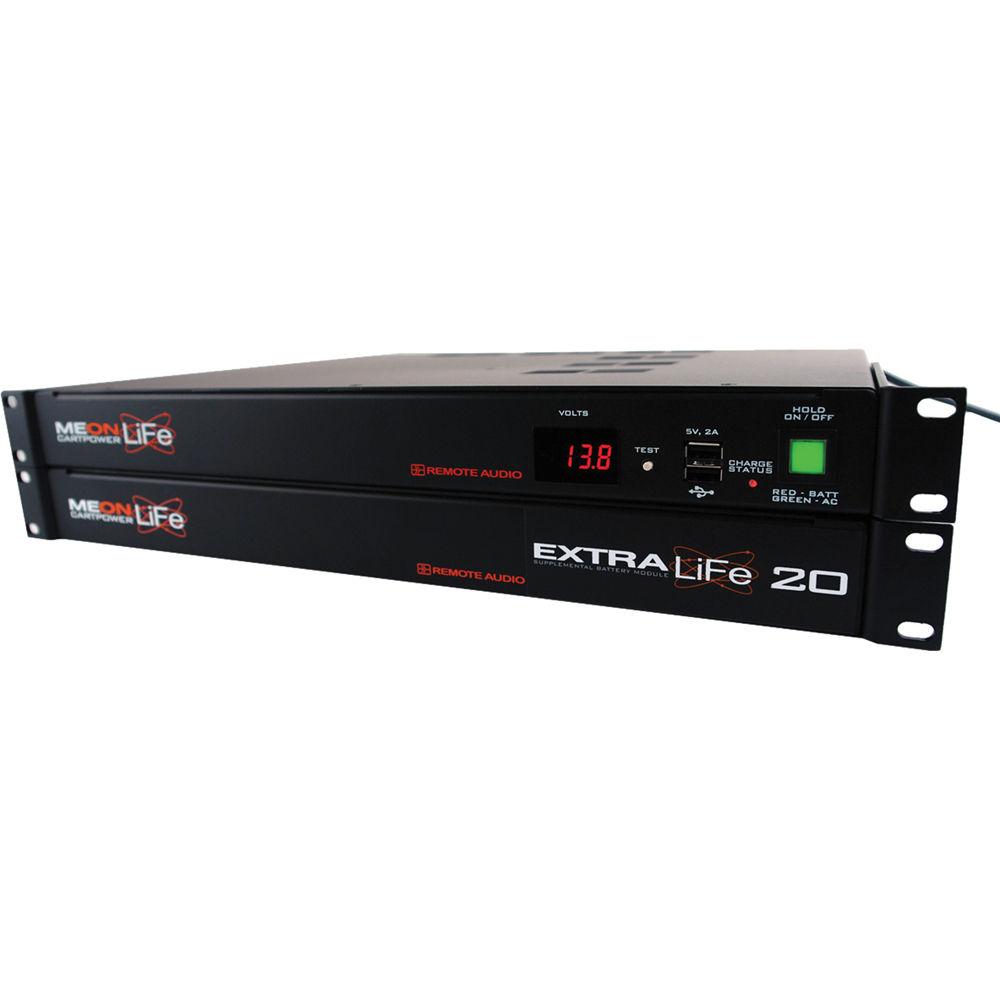

Product description The EXTRA LiFe 20 Supplemental Battery Module from Remote Audio is a lithium-iron-phosphate (LiFePO4) battery and is designed for use with the MEON LiFe cart power system. This 20Ah internal battery effectively doubles the available capacity of the system, giving you twice the battery run-time of a standalone MEON LiFe system. The EXTRA LiFe 20 (EL20) Battery Module employs two lithium-iron-phosphate battery packs that provide seamless backup power for your needs. Simply connect the module to your MEON LiFe system with the included 0.5' 14 AWG 4-pin XLR Powerflex cable and instantly double the battery run-time. The rack ears on the battery module can be removed and re-positioned to allow for front or rear mounting. The battery module does not require any ventilation space and therefore can be mounted in any position. The MEON LiFe system's internal battery charger will charge the EL20 unit simultaneously with the MEON LiFe system's battery as shown by the MEON LiFe system's CHARGE STATUS indicator. - Contains two lithium-iron-phosphate (LiFePO4) battery packs
- Single rack unit saves cart space
- Can be charged simultaneously with the internal battery of the MEON LiFe system; also chargeable via lead acid battery charger (sold separately)
- Requires no ventilation space
- Front, rear, or unmounted rack orientation via removable mounting ears (included)

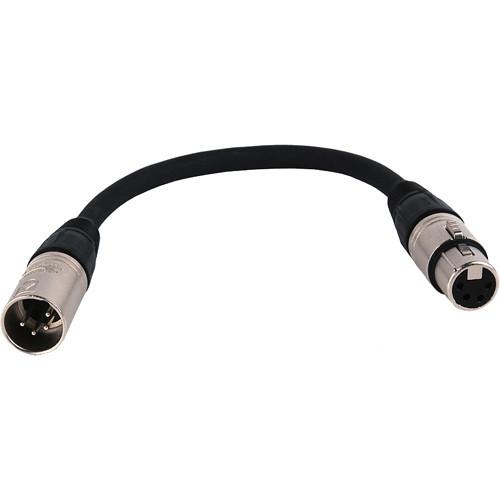

- 0.5' long 14AWG Powerflex cable with 4-pin XLRs included
In the Box Remote Audio EXTRA LiFe 20 Supplemental Battery Module 2 x Rack Ear 0.5' 14 AWG Powerflex Cable Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Remote Audio EXTRA LiFe 20 Supplemental Battery Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

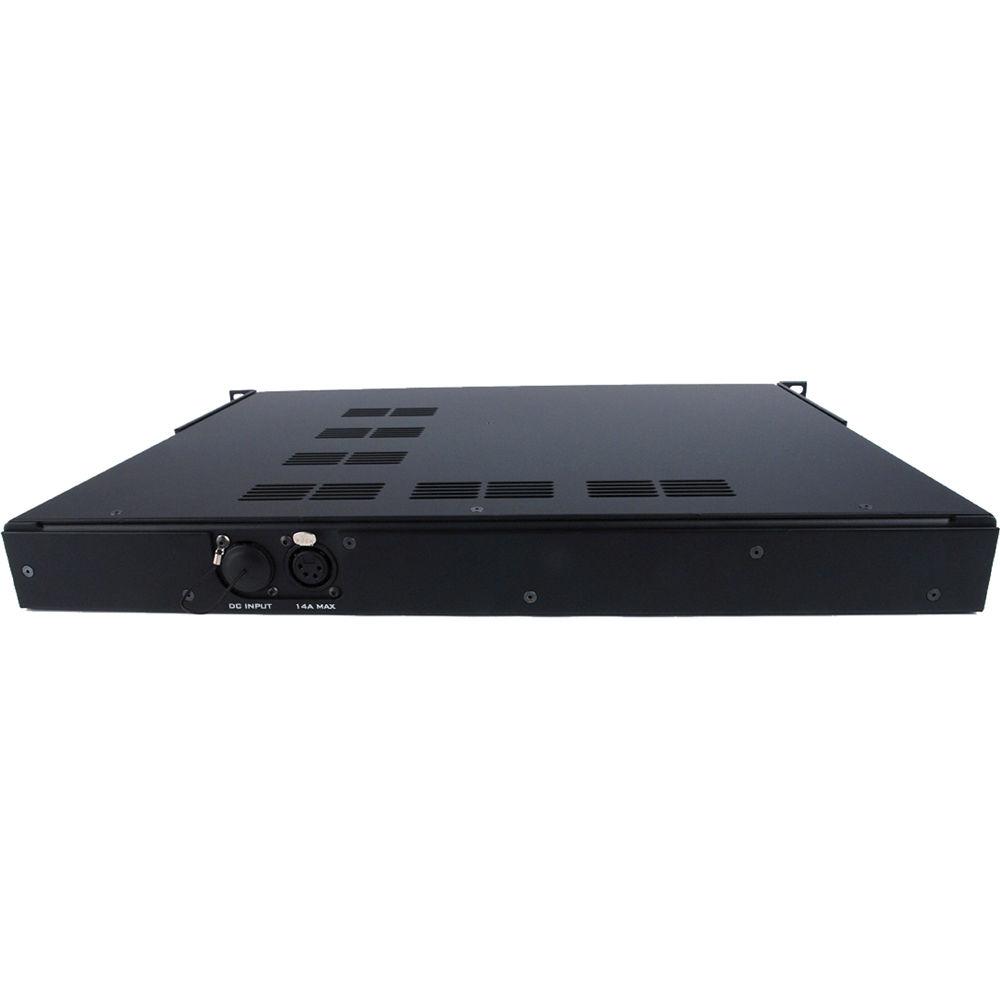

Technical parametersRemote Audio MEONEL20 Specs | Maximum Output Current | 14 A | | Input / Output Connectors | 1 x 4-pin XLR female
1 x 4-pin XLR male | | Cable | 0.50' (0.15 m) 14 AWG Powerflex cable with 4-pin XLRs included | | Battery Capacity | 20 Ah | | Dimensions | 1 Rack Space: 19.00 x 13.00 x 1.75" (482.60 x 330.20 x 44.45 mm) | | Weight | 10.4 lb (4.7 kg) | | | | Package Weight | 13.9 lb | | Box Dimensions (LxWxH) | 23.2 x 15.9 x 8.7" |
