Product description

• REMOVU K1 3-Axis Handheld Gimbal with 4K Camera
  • REMOVU K1 - Commercial

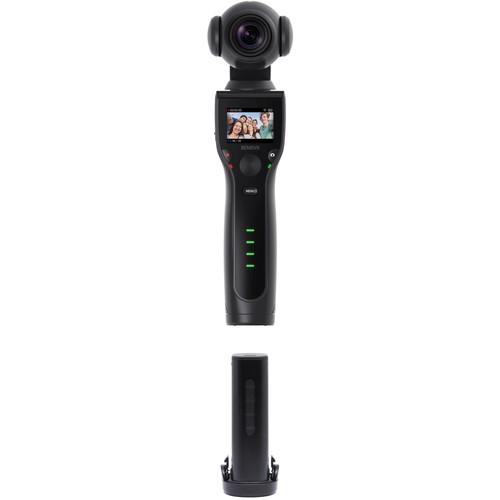

  The K1 3-Axis Gimbal with 4K Camera from REMOVU is an all-in-one camera stabilizer, combining a handheld gimbal, 4K video camera, and a 1.5" LCD display. The K1's three-axis gimbal and image stabilization produce stable images whether you're capturing sports, travelogue, or other action footage. It's capable of 330° pan rotation, 120° roll, and 108° tilt motion. The integrated camera features a 12MP Sony CMOS image sensor and records up to Ultra HD 4K resolution video (3840 x 2160) at up to 30 fps, and up to 4000 x 3000 still images. The f/2.8 camera lens has a wide 101° angle of view equivalent to a 35mm-format 17mm focal length. The K1's minimum 19.7" focus distance and 1.5" LCD display screen make taking "selfie" views a snap.

  The REMOVU K1 app enables you to operate both camera and gimbal functions, and to view and play back footage on your Android or iOS smartphone. The REMOVU K1 camera stabilizer supports up to 128GB microSD cards for storage. Its removable battery offers a maximum four-hour recording time (Wi-Fi off) and charges via USB cable.
  3-Axis Stabilization
  • The K1 uses BLDC (brushless DC motor) stabilization to produce stable footage with clear, crisp images
  4K Camera
  • Capture up to UHD 4K (3840

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• REMOVU K1 3-Axis Handheld Gimbal with 4K Camera

  Sensor	1-Chip 1/2.3" CMOS
  Color Filter	None
  Sensor Resolution	12 MP

  35mm-Equivalent Focal Length	17
  Maximum Aperture	f/2.8
  Minimum Focusing Distance	19.7" / 50.0 cm
  Fixed Focus	No
  Angle of View	Wide: 101°

  System	NTSC
  Recording Media	x microSD (128 GB Maximum)
  Video Format	3840 x 2160 at 30 fps 2704 x 1520 at 30 fps 1920 x 1080 at 30/60/120 fps 1280 x 720 at 30/60/120/240 fps
  Still Image Resolution	JPEG: 12 Megapixel, 4000 x 3000

  Display Type	LCD
  Screen Size	1.5"

  Shooting Modes	Burst Shooting Panorama Self-Portrait Time-Lapse Movie

  Image Stabilization	Digital
  Scene Modes	None
  Creative Effects	Yes
  Built-In Mic	Yes
  Built-In Light/Flash	Light - No Flash - No
  Wi-Fi	Yes
  Tripod Mount	1/4" - 20

  Inputs	1 x USB Micro-B
  Microphone Input	Yes

  Battery	Rechargeable Lithium-Ion Battery Pack, 2900 mAh Max Runtime: 4 Hours per Charge
  Charging Method	USB
  Power Adapter	None
  Dimensions (W x H x D)	2.3 x 2.8 x 8.5" / 5.8 x 7.0 x 21.6 cm
  Weight	12.00 oz / 340.20 g With battery

  Box Dimensions (LxWxH)	10.0 x 4.15 x 3.8"

• REMOVU K1 Smart Battery

  Power	3.7 VDC 2900 mAh 10.7 W
  Charging	Port: USB Micro-B Rate: 5 VDC at 2 A
  Dimensions	1.3 x 1.5 x 3.5" / 3.30 x 3.81 x 8.89 cm

  Box Dimensions (LxWxH)	3.75 x 2.6 x 1.9"
