User Manual for Resident Audio M5 Active Nearfield Studio Monitor Click to enlarge the picture
Contents of the user manual for the Resident Audio M5 Active Nearfield Studio
- Product category: Studio Monitors Resident Audio
- Brand: Resident Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Resident Audio Studio Monitors
 |
User manual for the Resident Audio M5 Active Nearfield Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Resident Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Resident Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Resident Audio product will considerably shorten its lifespan!
|

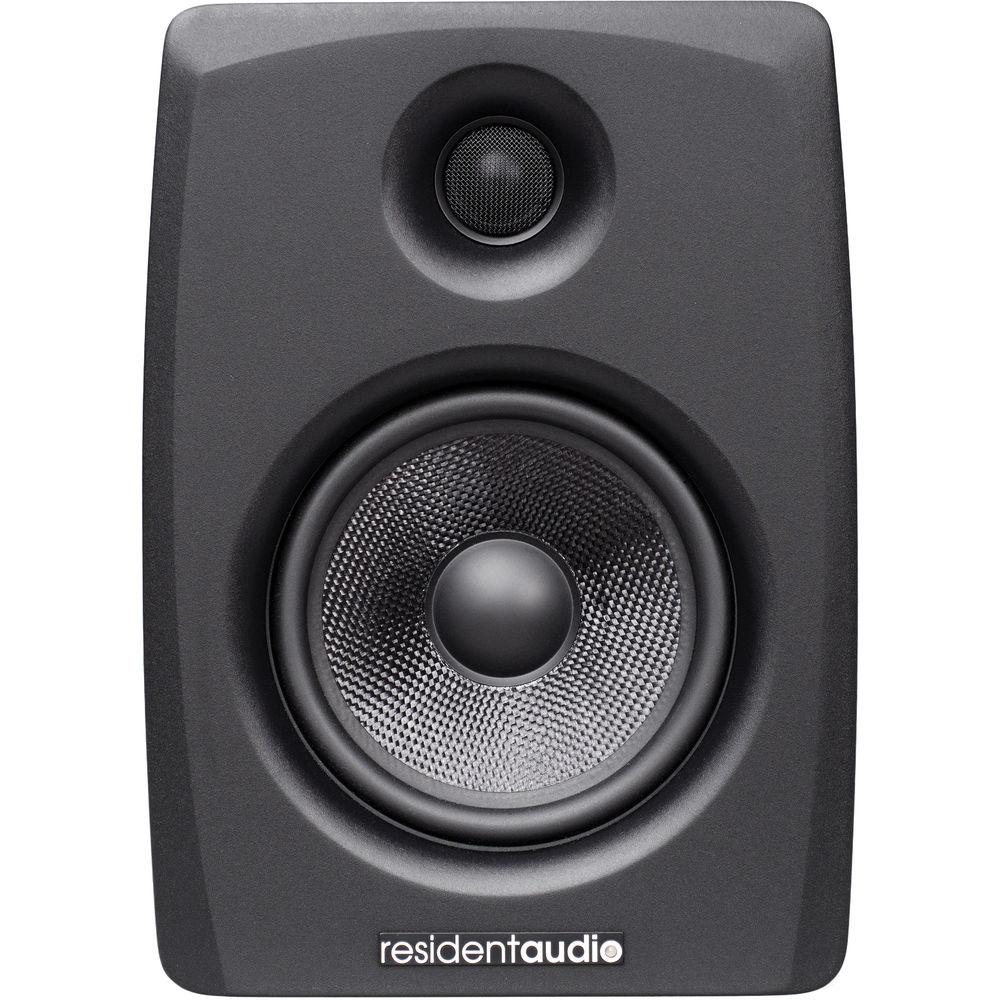

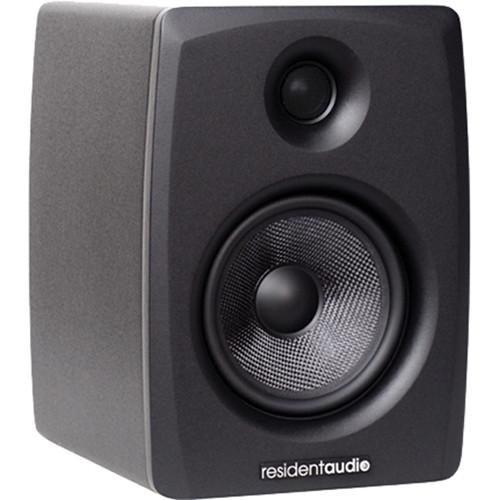

Product description The Resident Audio M5 Active Nearfield Studio Monitor is designed for both project and professional studios alike. The monitor combines a 5.25" Fiberglass Composite Woofer with a round rear firing bass port and a 3/4" Soft Silk Dome Tweeter with 70 W Power Output (30 W HF, 40 W LF) of class AB amplification to deliver a frequency response of 45 to 30,000 Hz with a maximum SPL of 104 dB.

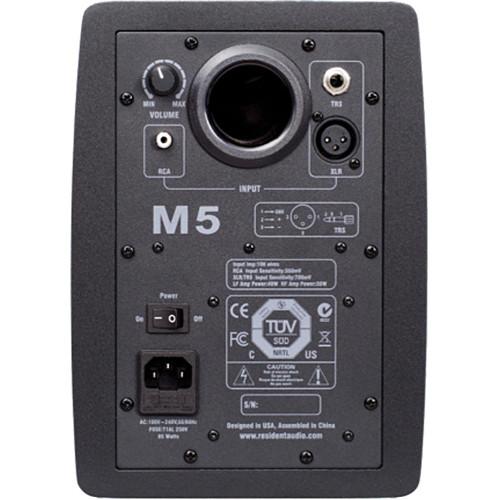

For I/O, the unit features unbalanced RCA, balanced 1/4" TRS, and balanced XLR connectors. LED indicator lights provide visual feedback for when the monitor is on (blue) or in standby mode (red). A rear panel volume knob allows you to adjust the output level. In the Box Resident Audio M5 Active Nearfield Studio Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Resident Audio M5 Active Nearfield Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersResident Audio M5 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 70 W | | Drivers | HF Driver: 1 x 0.75" / 19 mm Silk Dome Tweeter
LF Driver: 1 x 5.25" / Fiberglass Woofer | | Amplification | HF Amplifier: Class-AB Rated at 30 W
LF Amplifier: Class-AB Rated at 40 W | | | | Frequency Range | 45 Hz to 30 kHz | | Maximum Sound Pressure Level (SPL) | 104 dB | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
1 x 1/4" (6.3 mm) TRS Balanced Analog Input (10 kOhms)
1 x RCA Unbalanced Analog Input | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 7.8 x 9.9 x 7.1" / 199.0 x 251.0 x 181.0 mm | | Weight | 7.9 lb / 3.6 kg | | | | Package Weight | 10.85 lb | | Box Dimensions (LxWxH) | 12.2 x 10.6 x 9.4" |
