Resident Audio M8 Active Nearfield Studio Monitor Resident Audio M8 Active Nearfield Studio Monitor
User manual for the Resident Audio M8 Active Nearfield Studio contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Resident Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Resident Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Resident Audio product will considerably shorten its lifespan!



Product description

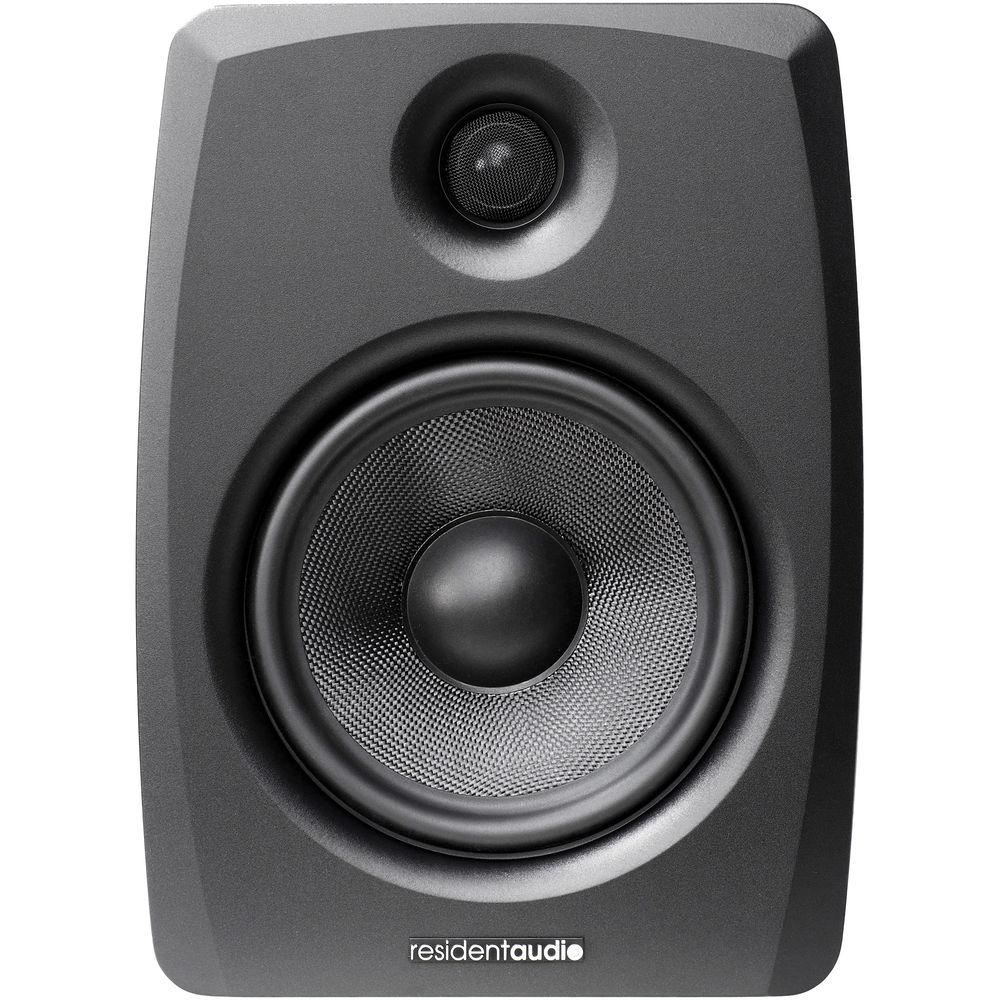

The Resident Audio M8 Active Nearfield Studio Monitor is designed for both project and professional studios alike. The monitor combines a 8" Fiberglass Composite Woofer with a round rear firing bass port and a 1" Soft Silk Dome Tweeter with 160 W Power Output (80 W HF, 80 W LF) of class AB amplification to deliver a frequency response of 35 to 35,000 Hz with a maximum SPL of 108 dB.

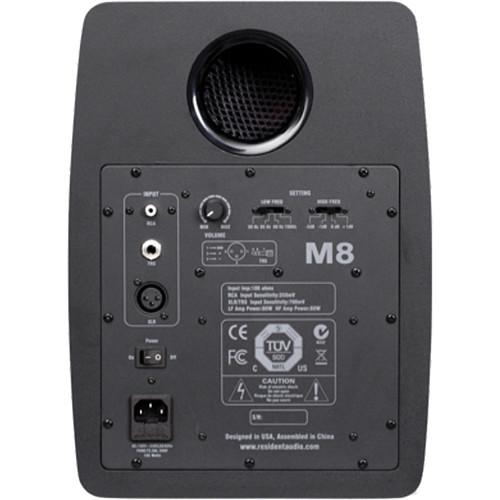

For I/O, the unit features unbalanced RCA, balanced 1/4" TRS, and balanced XLR connectors. LED indicator lights provide visual feedback for when the monitor is on (blue) or in standby mode (red). A rear panel volume knob allows you to adjust the output level To adjust the response of the monitors to your room, they come equipped with a selectable low frequency cutoff of 50, 65, 80, and 100 Hz (12 dB/octave) as well as a high frequency adjustment of -2, -1, 0, or +1 dB.. In the Box Resident Audio M8 Active Nearfield Studio Monitor
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Resident Audio M8 Active Nearfield Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Resident Audio M8 Specs

    Monitor Type Active 2-Way
    Enclosure Bass-Reflex, Shielded
    Power Rating 160 W
    Drivers HF Driver: 1 x 1" / 25 mm Tweeter
    LF Driver: 1 x 8" / 203 mm Fiberglass Cone
    Amplification HF Amplifier: Class-AB Rated at 80 W
    LF Amplifier: Class-AB Rated at 80 W
    Frequency Range 35 Hz to 35 kHz
    Maximum Sound Pressure Level (SPL) 108 dB
    EQ 1 x HF Shelf: -2 to +1 dB (1 dB Increments)
    Filters High-Pass at 50 Hz, 12 dB/Octave Slope
    High-Pass at 65 Hz, 12 dB/Octave Slope
    High-Pass at 80 Hz, 12 dB/Octave Slope
    High-Pass at 100 Hz, 12 dB/Octave Slope
    I/O 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
    1 x 1/4" (6.3 mm) TRS Balanced Analog Input (10 kOhms)
    1 x RCA Unbalanced Analog Input
    Enclosure Material MDF
    Dimensions (W x H x D) 12.5 x 13.8 x 10.1" / 317.0 x 351.0 x 257.0 mm
    Weight 19.6 lb / 8.9 kg
    Package Weight 24.55 lb
    Box Dimensions (LxWxH) 16.9 x 15.2 x 12.5"
