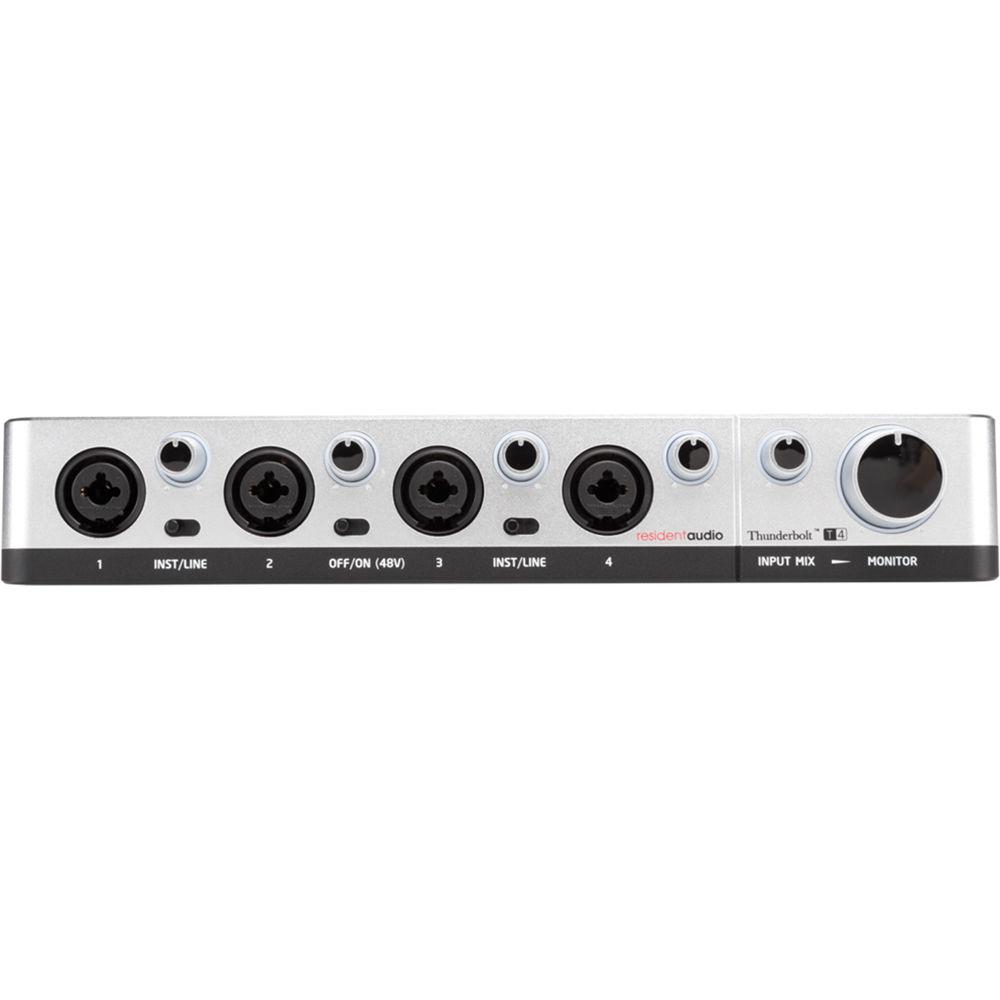

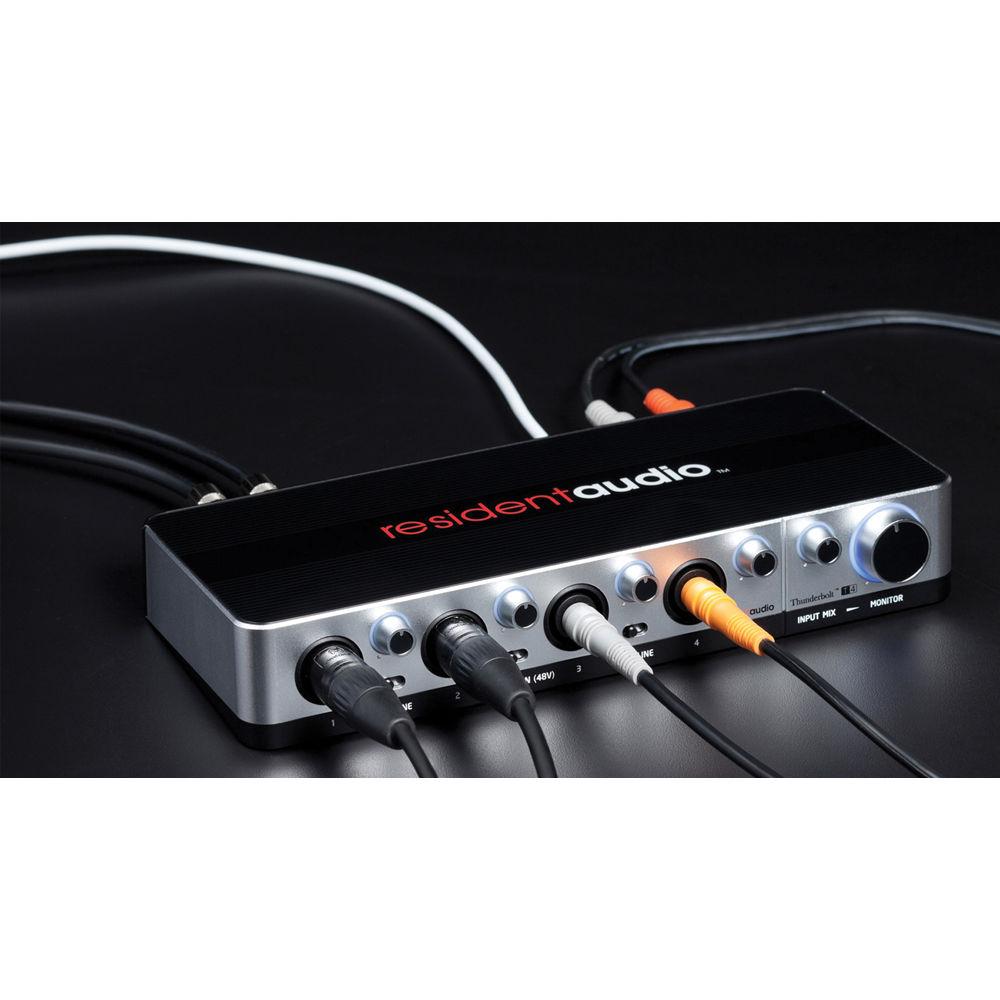

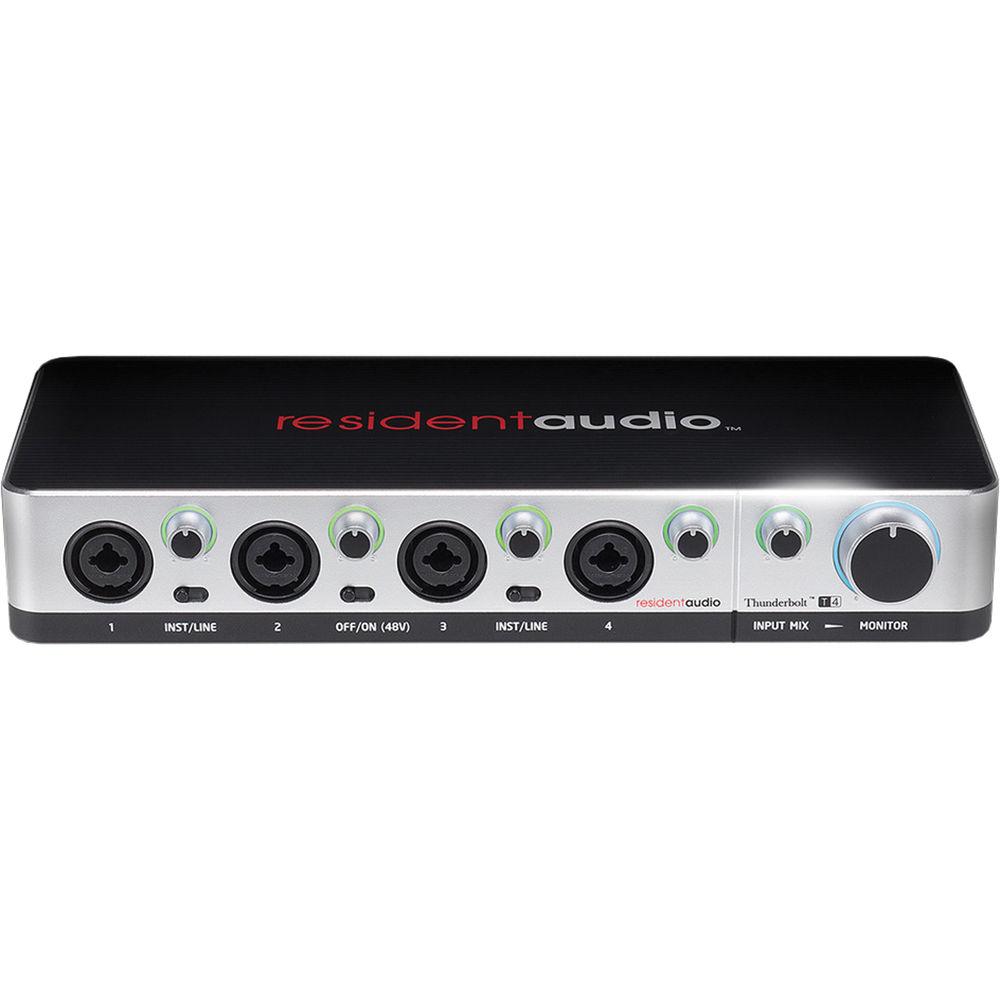

Product description - Resident Audio T4 - Thunderbolt Audio Interface Demo
The T4 from Resident Audio is Thunderbolt equipped, four input, four output audio interface with support for 24-bit/96 kHz audio and near-zero latency for virtually instantaneous recording and playback. In addition, the unit is sturdy while being lightweight and truly portable by virtue of being entirely bus powered from the Thunderbolt port. Add a pair of MIDI I/O ports and the unit extends its usefulness for both studio and live applications.

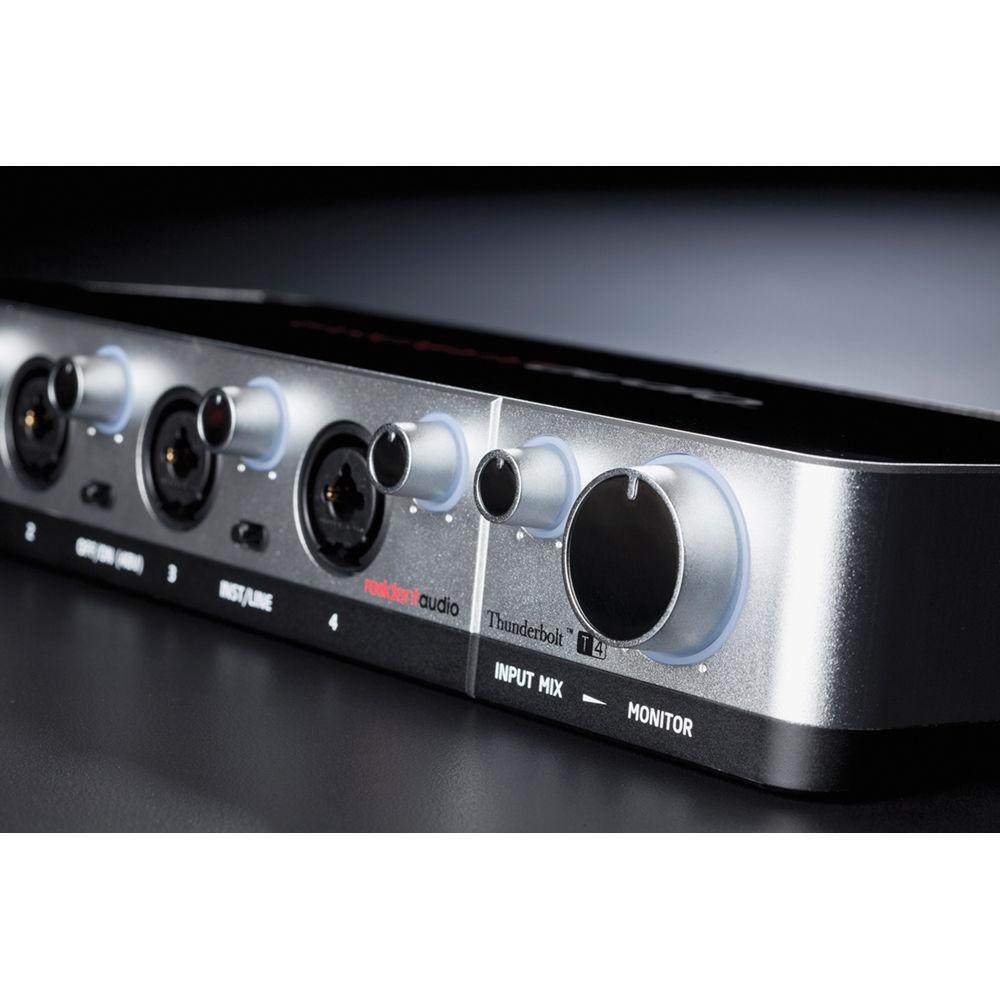

Tilted tactile gain controls with three-color wraparound LEDs allow for quickly setting optimal levels, even in low-light onstage environments. Four combo XLR/TRS input jacks accept microphones, instruments and line-level devices, with phantom power available globally for all inputs, and four balanced TRS outputs provide for connection to speakers and external mixers. An auto-detecting Multichannel Output Mode and Smart Monitoring automatically switch the outputs between stereo and mono depending upon input configuration.

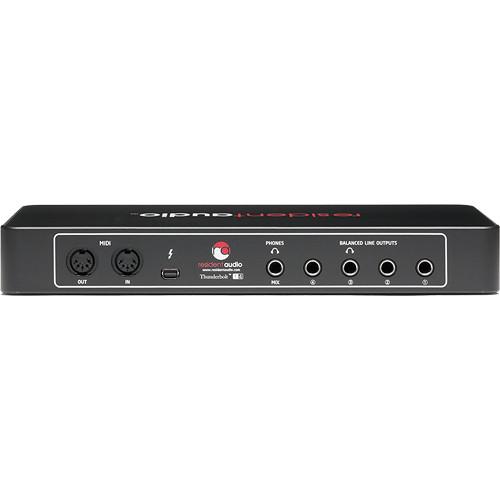

When a connection is made to output jack 4, the unit operates in multichannel mode. Four discrete monophonic output signals from the computer are routed to the corresponding four output jacks, with the live input signal sent to the headphone jack only. When no connection is made to output jack 4, the interface switches to stereo mix mode and all live input signals, along with all output signals from the computer are internally mixed to stereo and routed to outputs 1 and 2. In this mode, output 3 can be used as a second headphone source. - Four input, four output Thunderbolt audio interface
- Near-zero latency for virtually instantaneous recording and playback
- Support for 24-bit/96 kHz audio
- Four combo XLR/TRS inputs, each with input gain controls and three-color wraparound LEDs
- Four balanced 1/4" TRS outputs
- Dedicated headphone output and secondary headphone output
- Input mix control to blend live signal with computer playback
- Master "Big Knob" output control
- Smart Monitoring automatically switches between stereo and mono
- Phantom power allows use of condenser microphones
- Bus-powered (no need for AC or batteries)
- Compatible with Thunderbolt equipped Mac and select Windows computers
- Includes all required software drivers
- Sturdy aluminum/acrylic chassis ensures roadworthiness
UPC: 610256703817 In the Box Resident Audio T4 - Thunderbolt Audio Interface 19.5" (0.5 m) Thunderbolt Cable USB Card with T-Series Driver One (1) Year Limited Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Resident Audio T4 - Thunderbolt Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersResident Audio T4 Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | Thunderbolt (MDP) (Thunderbolt 1) | | Analog I/O | 4 x Combo XLR / 1/4" Input
4 x 1/4" (6.3 mm) TRS Output
1 x 1/4" (6.3 mm) TRS Headphone Output | | Phantom Power | +48 V (Applied to All Inputs) | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Gain Range | Hi-Z Inputs:
+0 dB to +45 dB
Line Inputs:
+0 to +45 dB
Mic Inputs:
+15 dB to +60 dB | | Max Input Level | Hi-Z Inputs:
+15 dBu
Line Inputs:
+15 dBu
Mic Inputs:
-1 dBu | | Dynamic Range | A/D Converters:
100 dB
Hi-Z Inputs:
91 dB
Line Inputs:
95 dB
Mic Inputs:
92 dB | | Impedance | Hi-Z Inputs:
1 MOhm
Line Inputs:
9.2 kOhms
Mic Inputs:
1.5 kOhms | | THD+N | Hi-Z Inputs:
> 0.01%
Line Inputs:
> 0.008%
Mic Inputs:
> 0.009% | | EIN | Mic Inputs:
-124 dBu | | | | Sample Rates | 44.1, 48, 88.2, and 96 kHz | | Bit Depth | 24-Bit | | | | OS Compatibility | macOS 10.9 or Later
Windows 8 or Later | | | | Power Requirements | Thunderbolt Bus-Power | | | | Dimensions | 10.6 x 4.4 x 1.8" / 269 x 112 x 46 mm | | Weight | 2.3 lb / 1.0 kg | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 13.8 x 8.1 x 3.3" |
